KITCHEN WALL MOUNT FAUCETS
Models 8713, 8714
INSTALLATION INSTRUCTIONS
THESE INSTRUCTIONS MUST BE
LEFT WITH HOMEOWNER
MT149A
®
CAUTION: Always turn water off before disassembling the valve. Open valve handle to
alleviate water pressure to insure that complete water shut-off has been
accomplished.
Before turning water on during either rough-in or trim-out, make sure that cartridge retainer clip is in place. The
cartridge and retainer clip were properly installed and tested before leaving the factory. Although it is unlikely, it
is nevertheless possible that through the handling of the valve by any number of persons the retainer clip may not
be properly installed. This should be carefully checked at time of rough-in and trim-out. If the retainer clip is not
properly installed, water pressure could force the cartridge out of the casting. Personal injury or water damage to
the premises could result.
CLIP
EAR

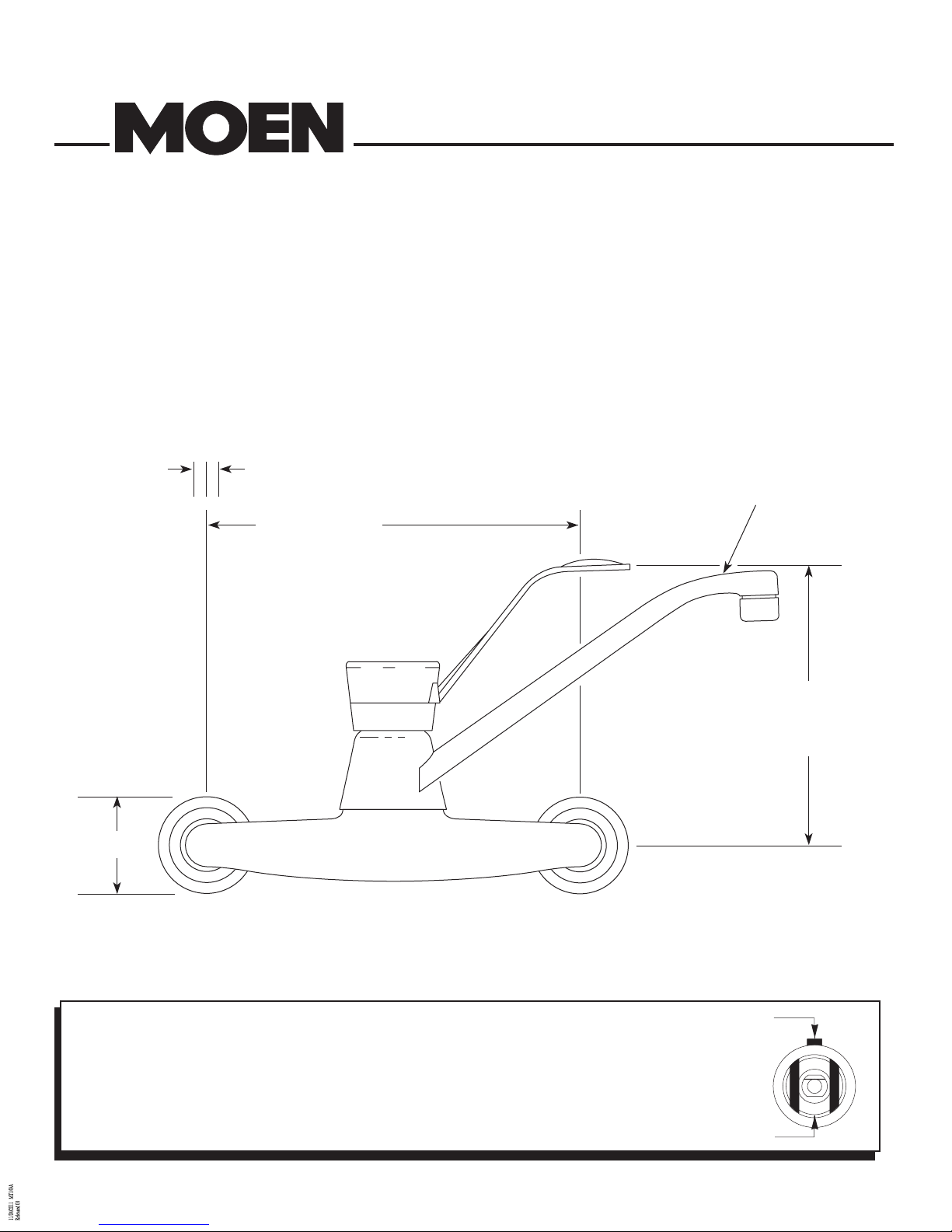

Measurements
ECCENTRICS
8" CENTERS
ADJUST FROM
7-1/2" TO 8-1/2"
9" SPOUT (MODEL 7400, 8713)
12" SPOUT (MODEL 8714)
7" NOMINAL
OPEN POSITION
1/2" VERTICAL
ADJUSTMENT
2-1/16"
1/2"
Complies with ASME A112.18.1M and CSA B125
Disassembly
1. Turn “OFF” both hot and cold water supplies. Turn faucet on to relieve pressure and insure
complete shut-off.. Pull handle cap up and off (it snaps into place). Remove the handle
screw, (Illustration 1).
2. Push the cartridge stem down and then lift and tilt handle lever and handle body off.
3. Remove retainer pivot nut.
4. Lift and twist spout off.
5. Pry out retainer clip with screwdriver, (Illustration 2).
6. Use cartridge twisting tool (furnished with replacement
cartridge) and rotate cartridge between 11 and 1 o'clock.
7. Grasp cartridge stem with pliers, (Illustration 3). Pull cartridge out.
MT149

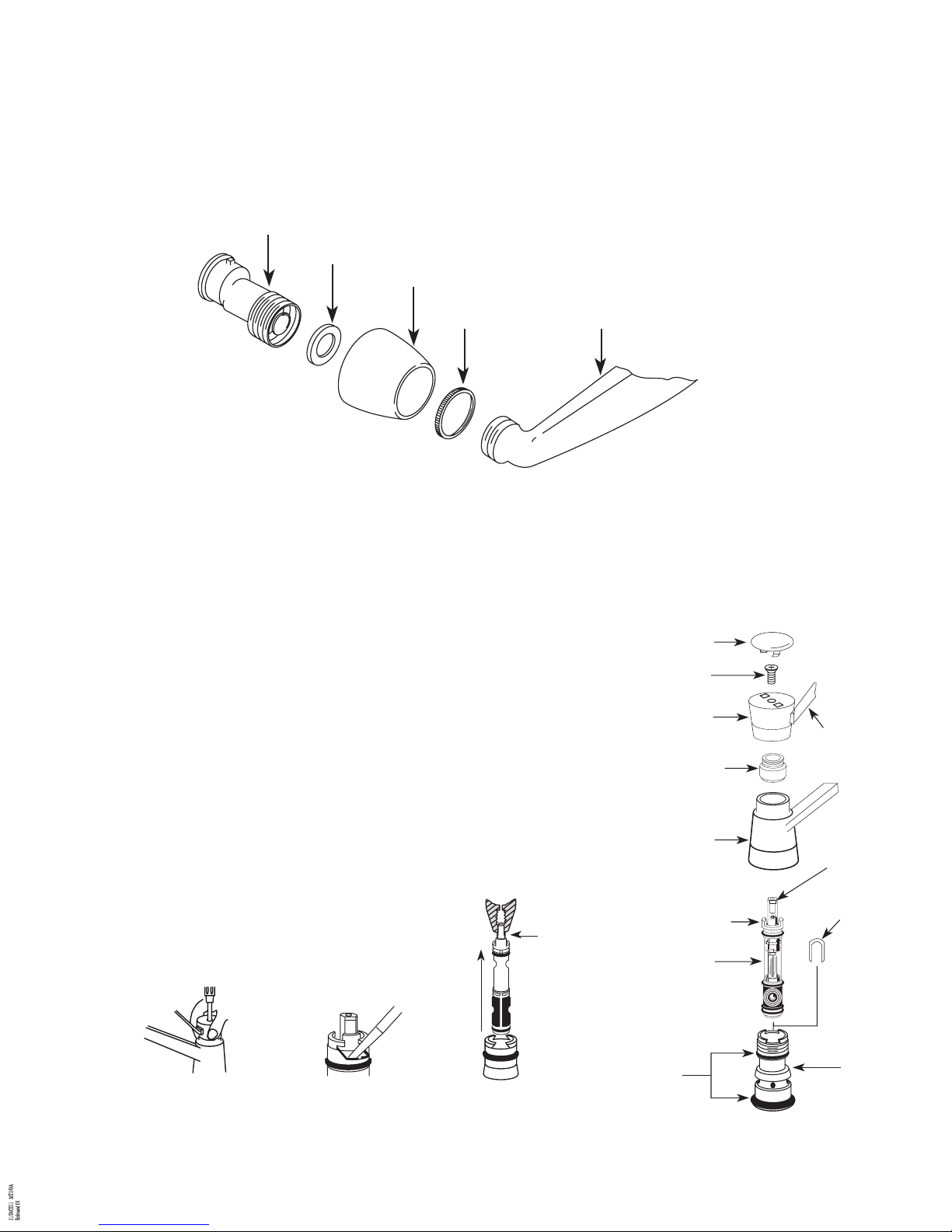

Installation
1. Apply pipe joint compound or thread seal tape on the supply threads.
2. Screw eccentric assembly on the supply threads.
3. With escutcheon nut and escutcheon on valve casting, thread eccentric assembly onto valve threads
making sure seal is in place as illustrated. Tighten by using wrench on flats of eccentrric assembly.
4. Put escutcheon into place and hand tighten escutcheon nut onto the eccentric assembly.
SEAL
ECCENTRIC
ASSEMBLY
ESCUTCHEON
ESCUTCHEON
NUT
VALVE
CASTING
Flushing
IMPORTANT:
Pipe chips, sand, stones and other solids found in new and renovated plumbing can damage the sealing surface of the
faucet cartridge and cause a leak. To avoid damage,
DO NOT OPERATE VALVE
until you have followed these instructions:
a. Make sure all water supplies are OFF. Turn the faucet on to relieve pressure and insure complete shut-off.
b. Remove handle parts and cartridge and spout (see “Disassembly” on page 3 for detailed instructions).
c. At the supplies, slowly turn both hot and cold water on and thoroughly flush out the body and lines.
d. Turn off supplies and reasemble spout, cartridge and handle parts (see "Reassembly).
e. Turn on supplies and check system for leaks.
Illustration 1
RETAINER
PIVOT NUT
RETAINER
CLIP
EARS
HANDLE
COVER
SPOUT
CARTRIDGE
SPOUT
SEALS
VALVE
BODY
HANDLE
SCREW
HANDLE
ASSEMBLY HANDLE
LEVER
NOTCHED
FLAT
STEM
Illustration 2 Illustration 3
CARTRIDGE

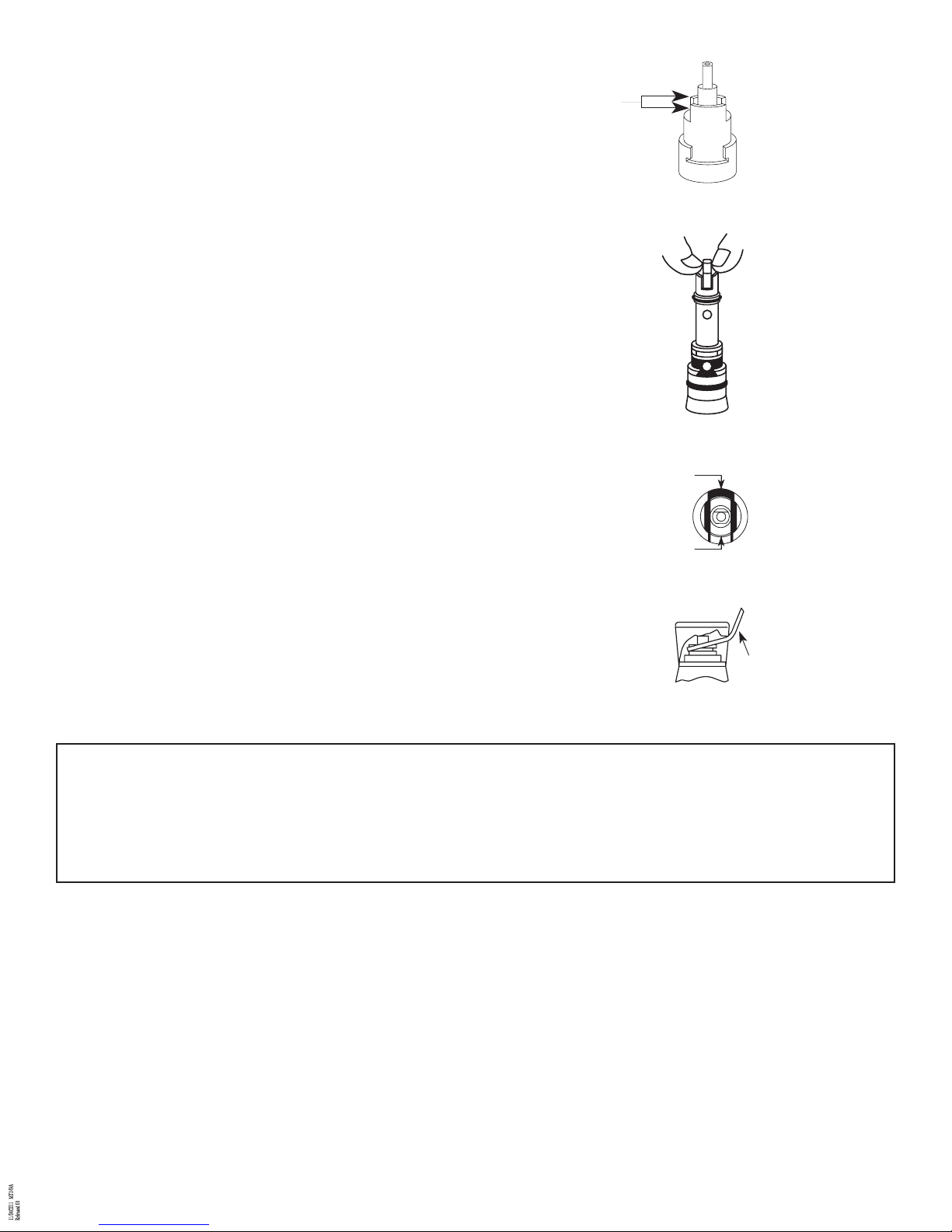

Reassembly
1. With cartridge stem UP, insert cartridge with ears aligned front to back (illustra-
tion 4).
2. Push the cartridge down by the ears (Illustration 5) until the top of the ears are
flush with the top of the body.
3. Turn notched flat of cartridge stem toward front of sink. (Note: for
cross piping installations, see instructions on back page).
4. Replace the clip all the way (Illustration 6).
5. Replace spout. Push down until it nearly
touches the faucet escutcheon.
6. Screw on retainer pivot nut. DO NOT CROSS THREAD.
Tighten firmly.
7. Press cartridge stem down. Holding handle UP, (Illustration 7), hook
handle ring (inside the handle body) into groove on the retainer pivot nut.
8. Swing handle back and forth until it drops down into place.
9. Replace handle screw. Tighten securely. Push handle cap down until it snaps
into place.
Maintenance
Your new faucet will give good service for an extended period of time. Should foreign materials in the system affect its operation, routine repairs can be
easily made. If your faucet drips from the spout end or leaks up through the handle, follow “Disassembly“ instructions and replace with the cartridge
listed in the Replacement Parts List, on page 4. If your faucet leaks from either the top or bottom of the spout hub, use the Spout Seal Kit (listed in the
Replacement Parts List) and replace. Re-assemble, following “Reassembly“ instructions. For proper water flow, aerator must be free of foreign
particles;. If fow is weak or irregular, unscrew aerator, clean and replace.
Illustration 4
Illustration 7
To Eliminate Cross-Piping On Back-To-Back Installations, or To Correct
Reversed Rough-In Where Hot and Cold Positions Are Reversed:
Remove handle cap, handle screw and handle assembly (see “Disassembly” instructions). Turn valve stem around
so that the notched flat is turned one half turn or 180˚. Re-install handle parts (see “Reassembly” instructions).
HOLD
UP
Illustration 5
Illustration 6
EARS
EAR
CLIP
MT149A SEP 95
© Copyright, 1995
Moen Incorporated
Printed in U.S.A.
Consumer Information
Faucets made of leaded brass alloys may contribute small amounts of lead to water that is allowed to stand in contact with the brass. The amount of
lead contributed by any faucet is highest when the faucet is new. The following steps may reduce potential exposure to lead from faucets and other parts
of the plumbing system:
• Always run the water for a few seconds prior to use for drinking or cooking.
• Use only cold water for drinking or cooking.
• If you wish to flush the entire plumbing system of water that has been standing in the pipes or other fittings, run the cold water until the temperature
of the water drops, indicating water coming from the outside main.
• If you are concerned about lead in your water, have your water tested by a certified laboratory in your area.
HELPLINE:
For answers to any product, installation,
replacment parts or warranty questions,
call our consumer helplines.
In the U.S., toll free:
1-800-321-6636
In Canada call:
Toronto, 905-829-3400
Rest of Canada, 1-800-465-6130
Moen Incorporated 25300 Al Moen Drive, North Olmsted, OH 44070-8022, U.S.A.
In Canada:
Moen Inc. 2816 Bristol Circle, Oakville, Ontario L6H5S7
®
