MONARCH INSTRUMENT RCA Bedienungsanleitung

Instruction Manual

Remote Contact Assembly 

15 Columbia Drive

Amherst, NH 03031 USA

Phone: (603) 883-3390 • Fax: (603) 886-3300

E-mail: [email protected]

Website: www.monarchinstrument.com

          

    This product may contain material

which could be hazardous to human health and the environment. DO NOT

DISPOSE of this product as unsorted municipal waste. This product needs to be

RECYCLED in accordance with local regulaons; contact your local authories for

more informaon. This product may be returnable to your distributor for recycling;

contact the distributor for details.

SAFEGUARDS AND PRECAUTIONS

Read and follow all instrucons in this manual carefully, and retain this

manual for future reference.

Do not use this instrument in any manner inconsistent with these operang

instrucons or under any condions that exceed the environmental

specicaons stated.

 Making measurements in direct contact with rotang

equipment can be dangerous. Keep all loose clothing and hair away from

exposed moving machinery. Keep the hand holding the RCA well behind

the front ange of the Remote Contact Assembly. Properly replace all the

machinery guards aer compleng measurement. Do not use for rotaon

greater than 20,000 RPM. Not designed for connuous operaon.

TABLE OF CONTENTS

Monarch Instrument’s Limited Warranty applies.

See www.monarchinstrument.com for details.

Warranty Registraon and Extended Warranty Coverage informaon is available

online at www.monarchinstrument.com.

 

 

 

 

 

 

 

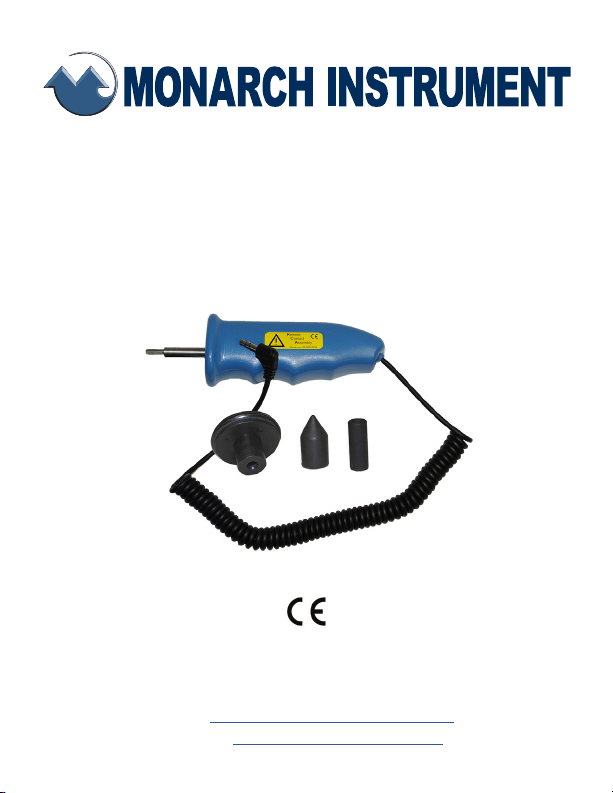

The RCA is an accessory for measuring contact RPM, linear

speeds or totalizing lengths. It needs to be plugged into a

tachometer to be funconal. It is supplied with two rubber

contact ps (one concave and one convex) and a 10 cm

linear wheel. An oponal 12-inch linear wheel is available.

When used with the     , the

unit outputs 12 pulses per revoluon (PPR). The maximum

operang range of the RCA is 20,000 RPM when used with a

contact p and 12,000 RPM when used with a linear wheel.

 

The RCA plugs into the 3.5 mm stereo

input jack of the tachometer. Refer to

the tachometer’s operang instrucons

on how to set up the tachometer for

contact measurement of speed, rate, or

totalizaon.

 

Connector pinouts are shown in Figure 1.

Figure 1 RCA Output Connector - Connecon Detail

 

To measure rotaonal speed

(RPM), select either a convex

or concave rubber contact p

appropriate for the measurement

to be made and install it rmly on

the sha of the RCA. Note that

the sha has a at surface that

must align with the at in the

rubber contact ps. The pointed convex (conical) p is used

for moderate to large diameter shas that are equipped with

a turned center, while the concave (inverted conical) p is

used on smaller diameter shas. The circumference of the

concave p is 1.0 inch [2.54 cm].

To make a measurement, start the rotang equipment and

carefully move the contact p against the center on the end

of the rotang sha. Keep the hand holding the RCA well

behind the back edge of the front ange of the RCA. Use only

a moderate amount of pressure to keep the rubber p in

contact with the rotang sha.

 

Surface speed linear rate measurements are made with

the Linear Speed Wheels which can read both direcons of

movement.

The 10 cm Linear Speed Wheel must

be pushed back onto the sha,

aligning the ats. Secure it in posion

by rmly ghtening the small machine

screw on the wheel.

The oponal 12-inch wheel also has

a slot that must engage with the pin

in the RCA sha and a locking screw

which must be ghtened.

    





To measure a linear surface speed and/

or total length such as a moving belt,

roll or web, rst select the Rate (Linear Contact) or Total

mode on the tachometer and set the wheel size [10 cm or

12 in.]. Hold the RCA at a right angle (90 degrees) to the

direcon of movement and gently contact the rubber edge of

the wheel against the belt or top surface of the object to be

measured. For accurate results, be sure that the wheel edge

 

The RCA includes two rubber contact ps (concave and

convex) and a 10 cm linear contact wheel.

Linear Contact Wheel [12 inches]

PN: 6580-011

Replacement Rubber Tips

Replacement rubber concave, convex ps

and 10 cm wheel

PN: 6580-010

is held perpendicular (at 90°) to both the measurement plane

and the direcon of travel. Only a very moderate amount of

pressure is required. Excess pressure can load the RCA sha

causing an erroneous reading and eventual wear in the

bearings of the RCA.

15 Columbia Drive, Amherst NH 03031 USA

Tel.: (603) 883-3390 // Fax: (603) 886-3300

Email: support@monarchinstrument.com

Website: www.monarchinstrument.com

Monarch Instrument is commied to excellence and quality in

manufacturing, sales, and service.

THE PROFESSIONAL’S CHOICE

Track-It™Data Loggers Panel Tachometers

DataChart™ Paperless

Recorders

Speed Sensors

Portable

Tachometers

Portable Strobes Frequency

Converters

Fixed Mounted

Strobes

 0721
