Introduction

Your new Monogram wine reserve makes an eloquent statement of style, convenience and kitchen

planning flexibility. Whether you chose it for its purity of design or the assiduous details, you will find

that your Monogram wine reserve’s superior blend of form and function will delight you for years to

come.

The information on the following pages will help you operate and maintain your wine reserve properly.

If you have any other questions, visit our Website at: monogram.com

Contents

Consumer Services

Important Phone Numbers . . . . . . . . . . . . . . . . . . . . .24

Model and Serial Numbers . . . . . . . . . . . . . . . . . . . . . . .2

Performance Data Sheet . . . . . . . . . . . . . . . . . . . . . . .19

Problem Solver . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 18

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5

State of California Water

Treatment Device Certificate . . . . . . . . . . . . . . . . . . .20

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Care and Cleaning

Cleaning—Outside and Inside . . . . . . . . . . . . . . . . . .14

Light Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . 15

Vacation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Operating Instructions

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Automatic Icemaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Customizable Drawer . . . . . . . . . . . . . . . . . . . . . . . . . .11

Drawers/Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

External Moisture Control . . . . . . . . . . . . . . . . . . . . . .12

LEDDisplay Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Sabbath Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Temperature Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Water Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Preparation

Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Before

using your

wine reserve

Read this manual carefully. It is intended to help

you operate and maintain your new wine reserve

properly.

Keep it handy for answers to your questions.

If you don’t understand something or need more

help, there is a list of toll-free consumer service

numbers included in the back section of this

manual.

Visit our Website at: monogram.com

Write

down the

model &

serial

numbers

You will find them on a label on the ceiling inside

the wine reserve. Please write these numbers here:

Model Number

Serial Number

Use these numbers in any correspondence or

service calls concerning your wine reserve.

If you

received a

damaged

appliance

The warranty does not cover damage caused

after delivery. Immediately contact the dealer (or builder) that

sold you the wine reserve.

Save time

& money

Before you request service, check the Problem

Solver in the back of this manual. It lists causes of minor operating problems that

you can correct yourself.

If you

need

service

To obtain service, see the Consumer Services

page in the back of this manual.

We’re proud of our service and want you to be

pleased. If for some reason you are not happy

with the service you receive, here are steps to

follow for further help.

FIRST, contact the people who serviced your

appliance. Explain why you are not pleased.

In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all

the details—including your phone number—to:

Manager, Customer Relations

GE Appliances

Appliance Park

Louisville, KY 40225

Consumer Information

Wine Reserve

All refrigeration products contain refrigerants, which under

federal law must be removed prior

to product disposal. If you are getting rid of an old

refrigeration product, check with the company handling the

disposal about what to do.

WARNING–R600a Refrigerant

Warning: This appliance contains isobutane refrigerant,

R600a, a natural gas with high environmental compatibility.

However it is also combustible. Please adhere to the

warnings below:

1) Whenhandling,installing and operatingtheappliance,care

shouldbetakento avoid

damageto the refrigerant tubing.

2) Servicingshallbeperformed by factory-authorizedservice

personnelandcomponentparts shall be replaced with

manufacturer-authorizedreplacementcomponents.

3)Refrigeration products contain refrigerants, which under

federal law must be removed prior

to product disposal.

4) Keepventilationopeningsintheapplianceenclosuresorin

thebuilt-instructureclearofobstruction.

5) Donotusemechanical devices or other means

to acceleratethedefrostingprocess.

6) Donotdamagerefrigerant circuit.

7) Donotuseelectrical appliancesinsidethe

foodstorage compartment of the appliance.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING–Whenusing this

appliance, always exercise basic safety precautions,

including the following:

• Use this appliance only for its intended purpose

asdescribedinthis Owner’sManual.

• This wine reserve must be properly installed in

accordance with the Installation Instructions

before it is used.

• Do not allow children to climb, stand or hang

on the wine reserve full-extension drawers.

Theycouldseriouslyinjure themselves and

possiblycausedamageto the winereserve.

• Do not touch the cold surfaces in the freezer

compartment when hands are damp or wet.

Skinmayadhereto these extremely coldsurfaces.

• Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

• Your freezer has an automatic icemaker

in the freezer drawer—avoidcontactwiththe

movingpartsofthe ejector mechanism,orwith

theheatingelementlocated onthebottom

oftheicemaker. Do not place fingersorhands on

theautomatic icemaking mechanism while the

freezerispluggedin.

• Turn off the circuit breaker to disconnect power

when cleaning or making repairs. Repairsshould

bemadebya qualified service technician.

• Do not try to replace a burned-out LED light.

Anauthorizedtechnician will needto replace the

LEDlights.

• Do not refreeze frozen foods which have thawed

completely.

DANGER: RISK OF CHILD ENTRAPMENT

Childentrapmentandsuffocation are not

problemsofthe past. Junked or abandoned

appliances are stilldangerous…evenifthey will sit

for“justafew days.”Ifyouaregettingridofyourold

appliance, please followtheseinstructionsto help

preventaccidents.

Before You Throw Away Your Old Appliance:

•Takeoffthedoor/drawers.

•Leavetheshelvesin place so that children may

noteasilyclimbinside.

REFRIGERANTS

IMPORTANT SAFETY INSTRUCTIONS

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances,

cut or remove the third (ground) prong

from the power cord. For personal safety,

this appliance must be properly grounded.

The power cord of this appliance is equipped

with a 3-prong (grounding) plug which mates

with a standard 3-prong (grounding) wall outlet

to minimize the possibility of electric shock

hazard from this appliance.

Have the wall outlet and circuit checked by

a qualified electrician to make sure the outlet

is properly grounded.

Where a standard 2-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a properly

grounded 3-prong wall outlet.

The wine reserve should always be plugged into

its own individual electrical outlet which has a

voltage rating that matches the rating plate.

DO NOT USE AN ADAPTER PLUG TO CONNECT

THE WINE RESERVE TO A 2-PRONG OUTLET.

DO NOT USE AN EXTENSION CORD WITH

THIS APPLIANCE.

This provides the best performance and also

prevents overloading house wiring circuits, which

could cause a fire hazard from overheated wires.

Never unplug your wine reserve by pulling on

the power cord. Always grip plug firmly and pull

straight out from the outlet.

Repair or replace immediately all power

cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks

or abrasion damage along its length or at

either end.

When moving the wine reserve away from

the wall, be careful not to roll over or damage

the power cord.

SAVE THESE

INSTRUCTIONS

Icemaker

Customizable Drawer

Freezer Drawer

Temperature Controls

Wine Reserve

Upper Wine

Reserve

Lower Wine

Reserve

Full Extension

Drawers

Wine Display

Shelf

Alarm

To turn the Alarm feature on, press and hold

the ALARM button for 3 seconds. ALARM will

be underlined when active. To turn off, press

and hold the ALARM button for 3 seconds.

The underline will disappear.

When the ALARM

is active, the alarm

will flash and beep

if you keep the door

open for more than 2 minutes.

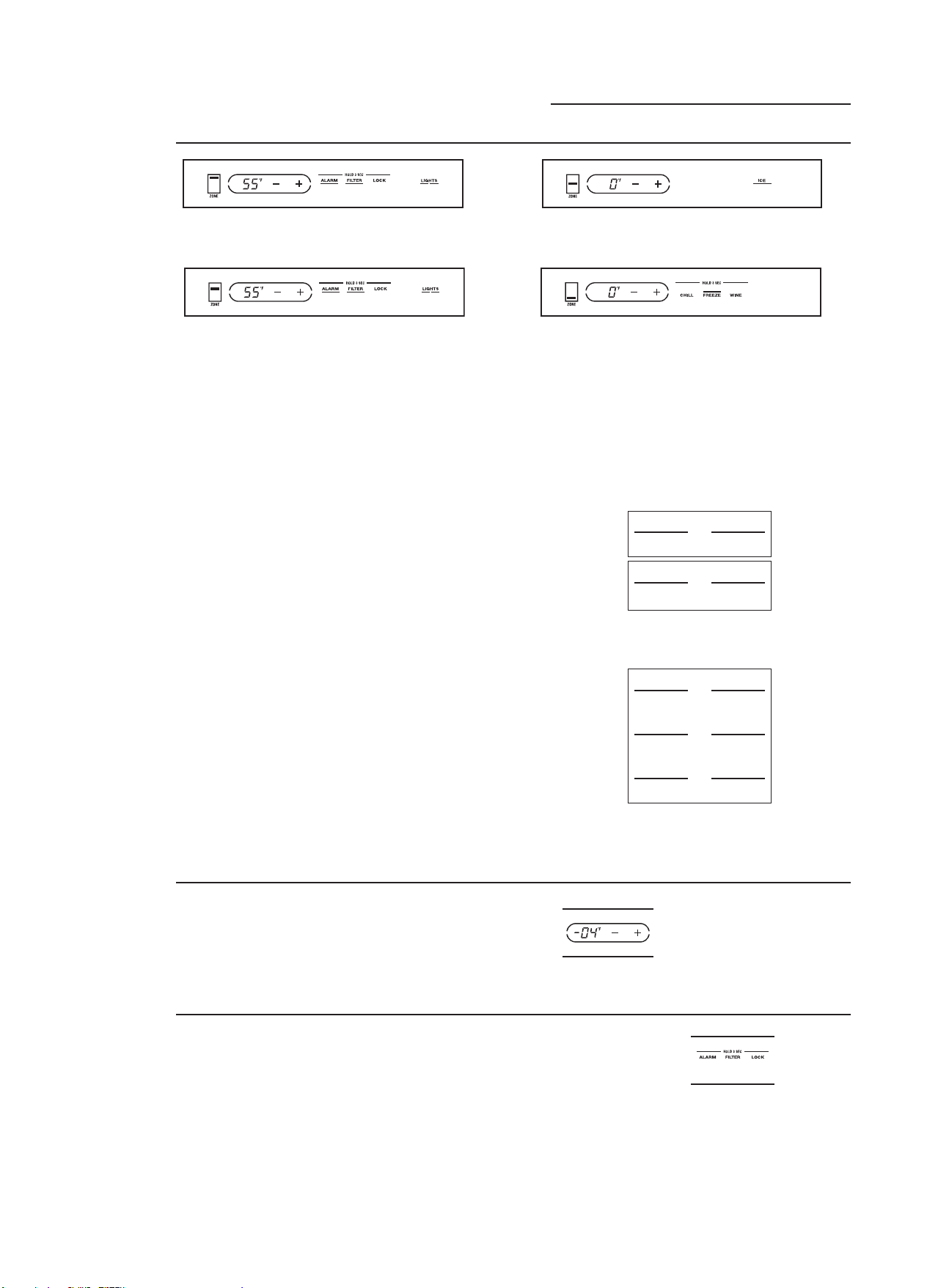

Temperature Controls

Temperature

controls

Changing

display

temperatures

from °F to °C

To change the temperature display between

Fahrenheit and Celsius, press both the plus (+)

and minus (–) pads for 5 seconds.

The temperature display shows the actual

temperature of the wine compartment, freezer

drawer or customizable drawer when each

one is selected by toggling the Zone indicator.

The actual temperature will vary from the set

temperature based on factors such as frequency

of door openings, amount of wine, defrost

cycling and room temperature.

NOTE: Frequent door openings or doors left open

for periods of time may increase the internal

temperature of the compartments temporarily.

To turn off the cooling system, toggle the ZONE

indicator to the wine mode. Press the plus (+) pad

until the display shows OFF.

To turn the cooling system on, toggle the ZONE

indicator to the wine mode and press the minus

(–) pad until the desired temperature is

displayed.

To check the current temperature setting for a

compartment, press the plus (+) or minus (–) pad

once. After 5 seconds, thedisplay will return to

the actual temperature.

To change the temperature settings, press

the plus (+) or minus (–) pad for each increment

to the desired temperature set point. Allow

24 hours for the unit to reach the temperature

you have set.

Temperature Ranges

Low High

Wine

Freezer

Drawer

Customizable Drawer Temperature Ranges

Low High

Freezer

Chill

Wine

NOTE: Setting the controls to OFF stops cooling,

but does not shut off electrical power to the unit.

All readings in °C will be rounded.

40°F

4°C 65°F

18°C

Wine Reserve

Wine – Upper Compartment

Wine – Lower Compartment

Upper Drawer – Freezer

Lower Drawer – Customizable

-6°F

–21°C

34°F

1°C

40°F

4°C

+6°F

–14°C

46°F

8°C

55°F

13°C

–6°F

–21°C +6°F

–14°C

Automatic Icemaker

Wine Reserve

Automatic

icemaker

Accessing

the icemaker

and freezer

drawer

The icemaker is located on the ceiling of the

freezer drawer and to the left rear. There is an

LED strip in the freezer drawer ceiling. The

freezer drawer contains 1 ice bin.

A newly installed wine reserve may take 12–24

hours to begin making ice. The wine reserve

is shipped with the icemaker set to ON.

The icemaker will produce seven cubes per

cycle—approximately 15 cycles in a 24-hour

period, depending on freezer compartment

temperature, room temperature, number of

door openings and other use conditions.

If the wine reserve is operated before the water

connection is made to the icemaker, set the

icemaker to OFF. To set the icemaker to OFF,

press the ZONE indicator on the control pad

three times to select the freezer drawer. Press

the ICE icon to the right. The line under ICE will

disappear and the word OFF will show under ICE.

Throw away the first full bucket of ice.

Be sure nothing interferes with the sweep

of the feeler arm.

When the bin fills to the level of the feeler arm,

the icemaker will stop producing ice.

It is normal for several cubes to be joined

together.

If ice is not used frequently, old ice cubes

will become cloudy, taste stale and shrink.

After the icemaker has been turned on again,

there will be a delay of about 45 minutes before

the icemaker resumes operations.

NOTE: In homes with lower-than-average

water pressure, you may hear the icemaker

water valve cycle on several times when

making one batch of ice.

NOTE: Icemaker works best between

40 and 120 PSI home water pressure.

Icemaker

Feeler Arm

Thewater filter cartridge is locatedbelow

thecustomizable draweron the lower-rightside

ofthe appliance.

To Replace the Filter:

Whilethe filter cartridge may last up to 1 year,

replacementfrenquency will dependon ice usage.

Thereis a replacementindicatorlight for the water

filtercartridge on the control panel. The filter

cartridgeshould be replacedwhen the word

REPLACE appears beneath FILTER on the control

panel.

Installing the Filter Cartridge:

1. Openthe customizabledrawerto gainaccess

to the water filter cartridge.

2. Removethe old cartridgeby twisting

counterclockwise. Pull forwardonthe filter

to remove.

3. Insertthe new filterinto the compartment and

twistclockwise until the cartridgestops.

To Reset the Filter Status Light:

Pressandholdthe FILTER button for 3seconds.

Filter Bypass Plug:

You mustusethe filterbypassplugif:

a) youhaveahousehold reverse osmosis water

system and/or another form ofhomewater

filtration system.

b) areplacementfilteris not available.

Theicemakerwill not operatewithoutthefilteror

filterbypasspluginstalled.

Thebypassplugand mini manual are located

inthebottom machine compartment.

Replacement filters:

To order additional filter cartridges, visit our

Website at monogram.com, or call GE Parts and

Accessories, 800.626.2002.

Filter Model Number GSWF

IMPORTANT NOTE: Remove the water filter

to immediately stop any water leak from the

icemaker. The water filter cartridge holder acts

as a cut-off valve when the filter

is removed and will prevent further leaking.

Water Filter

Wine Reserve

Water filter

cartridge

Water Filter

Cartridge

Child control

lockout

This child control lockout feature prevents

unwanted changes to your temperature settings. After the desired temperature is set, the

temperature can be locked. To lock, press and

hold the LOCK button for 3 seconds. To unlock,

press and hold the LOCK button for 3 seconds.

Drawers/Shelves

Wine Reserve

Wine bottle

arrangement

Full-Extension Drawers

The top 6 drawers are full-extension drawers, with

each drawer holding up to 10 bottles. The bottles

will be stored with necks alternating from front to

back.

Wine Display Shelf

The wine display shelf can either be in a

horizontal position or an angled position. The

horizontal position can hold 18 bottles. The

angled position holds 5 bottles. The shelf can be

angled by lifting the shelf onto pegs on the back

wall.

Peg

Wine bottle

tips and

suggestions

•Keep wines that you plan to use for everyday

drinking and entertaining on the front half of

the full-extension drawers where labels are

completely visible. Place wines for aging or

longer-term storage in the rear.

•Do not allow children to climb, stand or hang

on the wine reserve full-extension drawers.

They could seriously injure themselves and

possibly cause damage to the wine reserve.

•Group your wine inventory according to type:

i.e., white wines in the cooler zones and red

wines in the warmer zones.

•Store red and white wines in separate zones so

you can keep them at different temperatures.

Angled Position

Horizontal Position

Angled Position

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Monogram Kühlschrank Handbücher

Monogram

Monogram Monogram 197D3359PO02 Bedienungsanleitung

Monogram

Monogram ZIFI240 Bedienungsanleitung

Monogram

Monogram ZIDI240HII Bedienungsanleitung

Monogram

Monogram Monogram ZFSB25DSS Bedienungsanleitung

Monogram

Monogram ZDOD240NSS Bedienungsanleitung

Monogram

Monogram ZWE23E series Bedienungsanleitung

Monogram

Monogram ZIFS360 Bedienungsanleitung

Monogram

Monogram ZISW36DY Bedienungsanleitung

Monogram

Monogram ZFGB21HZBSS Bedienungsanleitung

Monogram

Monogram ZIBS240 Bedienungsanleitung

Monogram

Monogram ZDOD240 Bedienungsanleitung

Monogram

Monogram ZIPS360NHSS Bedienungsanleitung

Monogram

Monogram ZIFS360NHH Bedienungsanleitung

Monogram

Monogram ZISB360DPII Bedienungsanleitung

Monogram

Monogram Side-by-Side Stainless Steel Free-Standing Bedienungsanleitung

Monogram

Monogram ZFGB21HXCSS Bedienungsanleitung

Monogram

Monogram ZISB36 Series Bedienungsanleitung

Monogram

Monogram ZISW480D Bedienungsanleitung

Monogram

Monogram ZISS480DXASS Bedienungsanleitung

Monogram

Monogram ZIS36N Bedienungsanleitung

Monogram

Monogram Double Door, Double Drawer, Stainless Steel, Free-Standing... Bedienungsanleitung

Monogram

Monogram WX08X10002 Bedienungsanleitung

Monogram

Monogram ZlC360N RH Leitfaden

Monogram

Monogram ZIDI240HII Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
