1
MONOPRICE
SDI to DVI Converter
PID 11751
User's Manual
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future
reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power source.
Do not expose this device to excessively high temperatures. Do not place it in,
on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it
in direct sunlight.
Unplug this device from the power source when not in use.
Prior to operation, check the unit and power cord for physical damage. Do not
use if physical damage has occurred.
Use only the AC adapter included with this device. If the AC adapter is lost or
damaged, use only an exact replacement.
Clean only using a soft, dry cloth. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
3
INTRODUCTION
Thank you for purchasing this SDI to DVI Video Converter from Monoprice!
This converter allows you to view your SDI source material on a digital DVI-D video
display. It also supports both digital optical (Toslink) and digital coaxial audio outputs
and features an SDI output connection, so that multiple units can be cascaded.
FEATURES
Supports multiple digital DVI-D video resolutions (720p @50/60Hz, 1080i
@50/60Hz, 1080p @24Hz, 1080p @50/60Hz
Supports multiple color spaces (RGB sampled, YCbCr 4:4:4 sampled, YCbCr
4:2:2 sampled)
Supports data rates from 270Mbps to 2.97Gbps
Supports 8-bit, 10-bit, and 12-bit Deep Color
Supports 8 channels of 48k sampling rate digital audio
Supports long SDI cable runs (up to 400m for SD mode, 200m for HD mode, and
100m for 3G mode)
Includes a reclocked SDI output
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your
ordering, purchasing, and delivery experience is second to none. If you have any
problem with your order, please give us an opportunity to make it right. You can contact
a Monoprice Customer Service representative through the Live Chat link on our website
(www.monoprice.com) during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun:
9am-6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service
for a replacement.
1x SDI to DVI video converter
1x AC power adapter
1x User's manual
4
PRODUCT OVERVIEW
1. SDI Video Input: Use an SDI cable (not included) to connect to an SDI video
source.
2. SDI Video Output: Use an SDI cable (not included) to connect to an SDI
display or other SDI device.
3. DC Power Jack: Plug the DC connector on the included AC adapter into this
jack.
4. Power Indicator: This LED indicator glows red when power is applied to the
converter.
5. Toslink Audio Output Jack: Use a digital optical (Toslink) cable (not included)
to connect to the digital optical input of an amplifier/AV receiver.
6. Coax Audio Output Jack: Use a digital coaxial RCA (not included) cable to
connect to the digital coaxial input of an amplifier/AV receiver.
7. DVI Video Output: Use a DVI-D cable (not included) to connect a DVI-D video
display.
SDI CABLES
SDI cables are constructed using RG-6 or RG-59 75-ohm coaxial cable, terminated with
BNC connectors on each end.
5

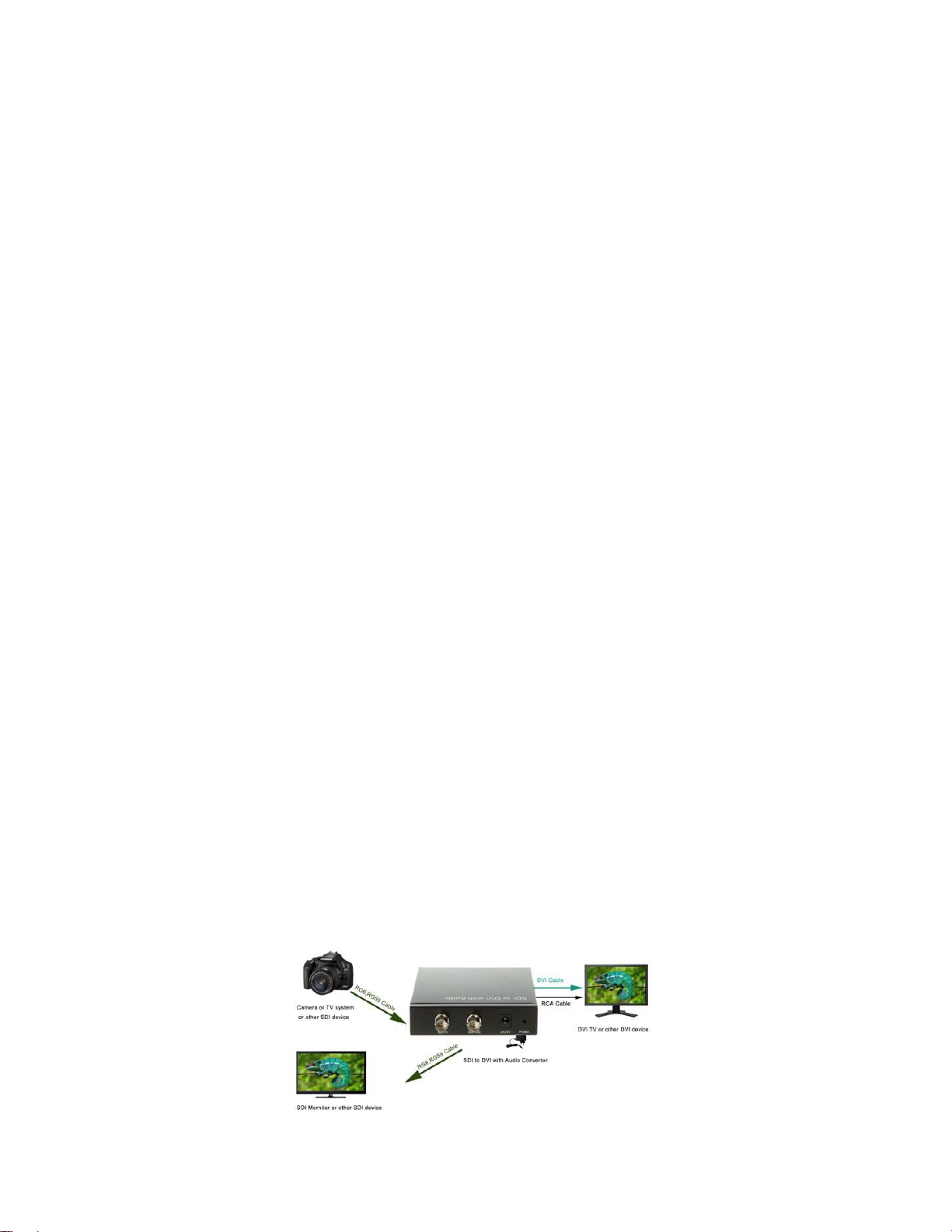

INSTALLATION
Perform the following steps to connect the converter to a DVI video source, an analog
audio source, and one or more SDI output devices.
1. Ensure that all devices you will be connecting are powered OFF.
2. Plug one end of a DVI-D cable (not included) into the video input of your DVI
display.
3. Plug the other end of the DVI-D cable into the DVI output port (7) on the
converter.
4. Plug one end of a digital coaxial audio cable (not included) into the digital coaxial
audio input jack on your amplifier/AV receiver. Alternatively, plug one end of a
digital optical (Toslink) audio cable (not included) into the digital optical (Toslink)
audio input on your amplifier/AV receiver. Note that you need to use only one of
the two audio options.
5. Plug the other end of the digital coaxial audio cable into the Coax jack (6) on the
converter. Alternatively, plug the other end of the digital optical (Toslink) audio
cable into the Toslink jack on the converter. Again, you need to use only one of
the two audio options.
6. (Optional) Plug one end of an SDI cable (not included) into the SDI input jack on
an SDI display or other device.
7. (Optional) Plug the other end of the SDI cable into the SDI Out jack (2) on the
converter.
8. Plug one end of an SDI cable (not included) into the SDI In jack (1) on the
converter.
9. Plug the other end of the SDI cable into the SDI video output of your SDI video
source device.
10.Plug the DC connector on the AC adapter into the DC Power Jack (3) on the
video converter.
11.Plug the AC adapter into a nearby power outlet.
12.Power on your display(s) or other device(s).
13.Power on your SDI video source device and start playback of your audio/video
source.
6
TROUBLESHOOTING
Q1: The converter is connected, but there is no video on the connected display.
A1: Double-check all connections. Try using different video cables. Ensure that the AC
adapter is plugged into the converter and into an AC power source. Verify that you
are using a DVI-D cable.
Q2: The SDI output has video, but no audio can be heard.
A2: Double-check the audio connections. Verify that your source material contains
audio. Try using different audio cables. Ensure that you are using a digital coaxial
audio input on your amp and not an ordinary analog audio input.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with
any questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come
online to talk to one of our friendly and knowledgeable Tech Support Associates.
Technical support is available through the online chat button on our website
(www.monoprice.com) during regular business hours, 7 days a week. You can also
7
SPECIFICATIONS
Input Connectors
1x SDI BNC (female)
Output Connectors
1x DVI-D (female)
1x SDI BNC (female)
1 Digital optical (Toslink) audio (female)
1 Digital coaxial RCA audio (female)
Maximum Resolution
1920 x 1080p @50/60 Hz
Deep Color Support
8-, 10-, and 12-bits/channel
Supported Color Spaces
RGB sampled, YCbCr 4:4:4 sampled,
YCbCr 4:2:2 sampled
Audio Support
Up to 8 channels of 48k sampling rate digital
audio
Bandwidth Range
270Mbps ~ 2.97Gbps
Maximum SDI Cable Length
(using RG-6 cable)
SD Mode: up to 400m
HD Mode: up to 200m
3G Mode: up to 100m
Input Power
5.0 VDC, 2A
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz, 0.5A
Power Consumption
up to 3 watts
Operating Temperature
+32 ~ +158°F (0 ~ +70°C)
Operating Humidity
10 ~ 85% RH (non-condensing)
Storage Temperature
+14 ~ +176°F (-10 ~ +80°C)
Storage Humidity
5 ~ 90% RH (non-condensing)
Dimensions
4.7" x 3.9" x 0.9" (120 x 100 x 24 mm)
Weight
13.9 oz. (395g)
Regulatory Compliance
FCC, CE, UL
8
REGULATORY COMPLIANCE
FCC Class B Notice
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Modifications: Any modifications made to this device that are not approved by
Monoprice, Inc. may void the authority granted to the user by the FCC to operate
this equipment.
This product is in compliance with CE directives and bears the CE mark. For
detailed information on specific directives, please contact Monoprice Customer
Service.
