Monoprice PID 10322 Bedienungsanleitung

MONOPRICE

PID 10322

3G SDI 1x4 Splitter

User's Manual

Contents

1 INTRODUCTION...........................................................1

2 SPECIFICATIONS…………………………………………....1

3 PACKAGE CONTENTS.…………………………………….2

4 PANEL DESCRIPTION……………………………………...2

5 CONNECTION AND OPERATION…………………………3

MONOPRICE SDI 1x4 Splitter

3G SDI 1x4 Splitter

Thank you for purchasing this 3G SDI 1x2 Splitter! For best results, please

thoroughly read this manual and carefully follow the instructions. Please keep

this manual for future reference.

1 INTRODUCTION

1.1 Product Description

Designed for professional SMPTE video applications, this 3G SDI 1x4 Splitter

allows you to distribute a single SDI video source to four SDI video monitors.

This splitter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI,

and 3G-SDI video signals.

1.2 Features

1. Features equalizer circuitry on the inputs and outputs, allowing it to support

long cable runs

2. Support for multiple standard and high definition video resolutions:

SD 525i and 625i

HD 720p @ 24, 25, 30, 50, and 60 Hz

HD 1080i @ 50, 60 Hz

HD 1080p @ 24, 25, and Hz

3G 1080p @ 50, 60 Hz

3. Support for multiple color spaces:

RGB or YCbCr 4:4:4 sampled

YCbCr 4:2:2 sampled

4. Supports data rates: 270Mbps～2.97Gbps

5. Supports 8-bit, 10-bit, and 12-bit Deep Color

6. Compatible with the HDcctv 1.0, HD-SDI (ST 292), 3G-SDI (ST 424), and

SD-SDI (ST 259) standards

2 SPECIFICATIONS

Signal Input/Output

Input Connector

1x SDI BNC Male

Output Connector

4x SDI BNC Male

Supported cable length using RG59

3G (1080p 60Hz) Mode

up to 262 ft (80m)

HD (720p 60Hz) Mode

up to 393 ft (120m)

SD (480i) Mode

up to 656 ft (200m)

Physical

Dimensions (LxWxH)

6.4" x 3.2" x 1.0" (162 x 82 x 25 mm)

MONOPRICE SDI 1x4 Splitter

Weight (Net)

13.4 oz. (380g)

Environmental

Operating Temperature

+32 to +158°F (0 to +70°C)

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

+14 to +176°F (-10 to +80°C)

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirements

AC Adapter Input

100-240 VAC, 50/60 Hz

AC Adapter Output

5 VDC, 2A

Power Consumption (Max)

1.2W

Regulatory Approvals

Splitter Unit

FCC, CE, UL

Power Supply

UL, CE, FCC

Note: Specifications are subject to change without notice.

3 PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the

items listed below. If anything is missing or damaged, please contact

Monoprice Customer Service for a replacement.

1x 3G SDI 1x4 splitter

1x AC power adapter

User's manual

4PANEL DESCRIPTION

Power in: Connect the included DC 5V/2A power adapter.

IN:Connect to the SDI source using a 75-ohm RG59 cable.

OUT1, OUT2, OUT3, OUT4: Connect to SDI displays or other SDI

MONOPRICE SDI 1x4 Splitter

devices using 75-ohm RG59 cables.

5 CONNECTION AND OPERATION

5.1 Connection and Operation

1. Using a 75-ohm RG59 cable connect an SDI source to the IN port.

2. Using 75-ohm RG59 cables connect the OUT1, OUT2, OUT3, and OUT4

ports on the splitter to SDI displays or other SDI devices.

3. Press the 1side of the power switch to power on the device. The power

LED will illuminate.

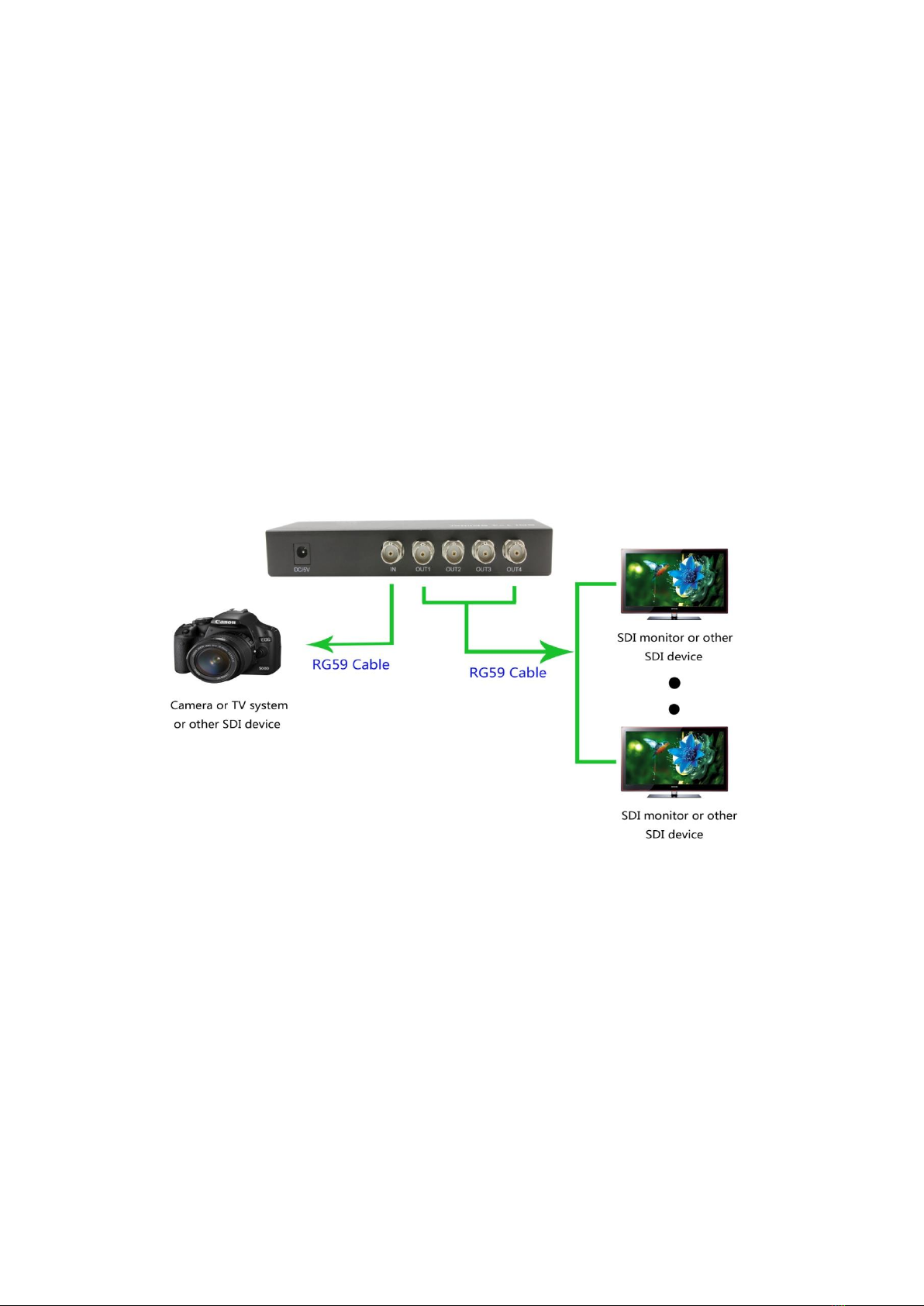

5.2 Connection Diagram
