Monoprice 38035 Bedienungsanleitung

35" UWQHD 100Hz Zero-G Gaming Monitor

P/N 38035

User's Manual

CONTENTS

SAFETY WARNINGS AND GUIDELINES ....................................................................................................................3

FEATURES ..........................................................................................................................................................................................4

SYSTEM REQUIREMENTS......................................................................................................................................................5

CUSTOMER SERVICE.................................................................................................................................................................5

PACKAGE CONTENTS..............................................................................................................................................................5

PRODUCT OVERVIEW..............................................................................................................................................................7

Controls.......................................................................................................................................................................................7

Connections ............................................................................................................................................................................8

INSTALLING THE STAND.......................................................................................................................................................8

REMOVING THE STAND.........................................................................................................................................................9

USING A WALL OR DESK MOUNT ..............................................................................................................................10

OSD MENU MAP........................................................................................................................................................................10

TROUBLESHOOTING...............................................................................................................................................................14

TECHNICAL SUPPORT............................................................................................................................................................15

SPECIFICATIONS ........................................................................................................................................................................16

REGULATORY COMPLIANCE...........................................................................................................................................17

Notice for FCC..................................................................................................................................................................... 17

Notice for Industry Canada......................................................................................................................................18

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to

these safety warnings and guidelines. Please keep this manual in a safe place for

future reference.

This device is intended for indoor use only.

Do not expose this device to water or moisture of any kind. Do not place

drinks or other containers with moisture on or near the device. If moisture

does get in or on the device, immediately unplug it from the power outlet

and allow it to fully dry before reapplying power.

Do not touch the device, the power cord, or any other connected cables

with wet hands.

Do not place the monitor on an unstable surface where it could fall and

cause either personal injury or damage to the monitor and/or other

equipment.

Do not expose this device to excessive vibration.

Do not subject the product to extreme force, shock, or fluctuations in

temperature or humidity.

Do not expose this device to excessively high temperatures. Do not place

it in, on, or near a heat source, such as a fireplace, stove, radiator, etc. Do

not leave it in direct sunlight.

This device ventilates excessive heat through the slots and openings in the

case. Do not block or cover these openings. Ensure that the device is in an

open area where it can get sufficient airflow to keep from overheating.

Prior to operation, check the unit and power cord for physical damage. Do

not use if physical damage has occurred.

Before plugging the unit into a power outlet, ensure that the outlet

provides the same type and level of power required by the device.

This device uses a grounded power cord and requires a ground connection

for safe operation. Ensure that the power source has a proper ground

connection. Do not modify the plug or use a "cheater" plug to bypass the

ground connection.

Unplug this device from the power source when not in use.

Take care to prevent damage to the power cord. Do not allow it to

become crimped, pinched, walked on, or become tangled with other cords.

Ensure that the power cord does not present a tripping hazard.

Never unplug the unit by pulling on the power cord. Always grasp the

connector head or adapter body.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents,

or detergents. For stubborn deposits, moisten the cloth with warm water.

This monitor has no user serviceable parts. Do not open the case or

otherwise attempt to modify this monitor.

Do not leave a single image on the display for a long period of time. Doing

so could cause "burn-in" of the image. It is recommended to use a variable

desktop background and to use a screen saver to prevent "burn-in".

Alternatively, ensure that the monitor is powered off for at least 2 hours

out of every 12.

Keep the original foam packaging material for use when installing or

removing the included stand.

FEATURES

35" display with 1800R curvature

1x HDMI® 2.0, 2x HDMI 1.4, and 1x DisplayPort® 1.2 video inputs

3440 x 1440p @ 100Hz maximum video resolution

178° horizontal and vertical viewing angles

21:9 aspect ratio

8ms response time, 4ms when overdriven

2500:1 contrast ratio

300 cd/m² brightness

Supports AMD FreeSync™ 1.0 technology

Supports Picture-in-Picture (PiP) and Picture-by-Picture (PbP) display

modes

100 x 100 VESA mounting pattern

SYSTEM REQUIREMENTS

Operating System: Windows® 7/8/10 64-bit or higher

Processor (CPU): Intel® Core™ i5 or AMD Phenom™ II X3 or higher

Graphics Card: NVIDIA® GeForce® GTX950 or AMD Radeon™ R9 380 or higher

Memory: 6GB RAM

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your

ordering, purchasing, and delivery experience is second to none. If you have any

problem with your order, please give us an opportunity to make it right. You can

contact a Monoprice Customer Service representative through the Live Chat link on

our website www.monoprice.com or via email at su[email protected]. Check

the website for support times and links.

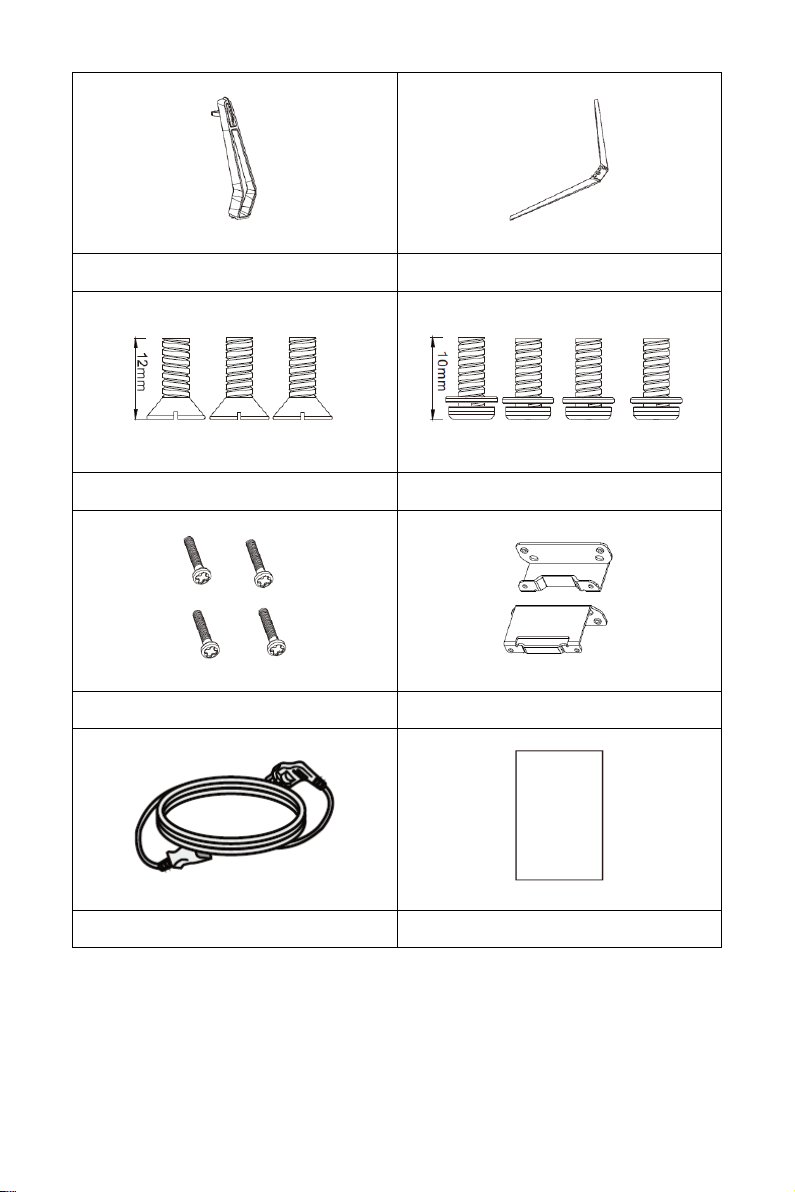

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items

listed below. If anything is missing or damaged, please contact Monoprice Customer

Service for a replacement.

1x 35" Curved Monitor

1x DisplayPort® Cable

1x Stand Stem

1x Stand Base

3x K-Head Screws (M4x12)

4x P-Head Screws (M4x10)

4x Wall Mount Screws (Installed)

2x Wall Mount Adapters

1x AC Power Cord

1x User's Manual

PRODUCT OVERVIEW

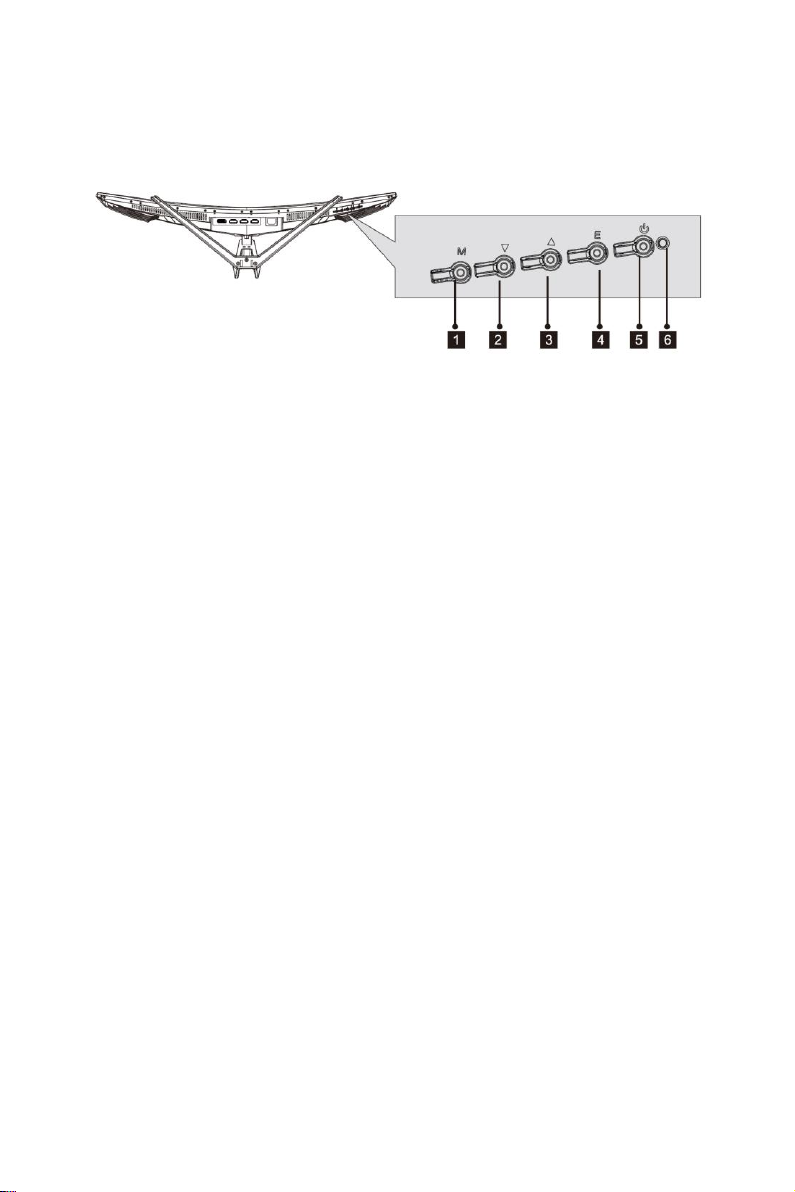

Controls

1. MENU: If the OSD menu is not displayed, press the MENU button to access

the OSD menu. If the OSD menu is displayed, press the MENU button to

enter a submenu. If editing a value, press the MENU button to save the

edited value.

2. DOWN: If the OSD menu is displayed, press the DOWN button to move the

menu highlight down. If editing a value in the OSD menu, press the DOWN

button to decrease the value.

3. UP: If the OSD menu is displayed, press the UP button to move the menu

highlight up. If editing a value in the OSD menu, press the UP button to

increase the value. If the OSD menu is not displayed, press the UP button

to toggle the FPS gaming crosshairs in the middle of the screen on or off

and to cycle through the four different crosshair styles.

4. EXIT: If a submenu in the OSD menu is displayed, press the EXIT button to

go back to the previous menu level. If the top level of the OSD menu is

displayed, press the EXIT button to close the OSD menu. If editing a value

in the OSD menu, press the EXIT button to cancel any changes made and

exit editing.

5. POWER: Press the POWER button to turn the monitor on or off.

6. LED INDICATOR: The LED indicates various monitor states. If the LED

INDICATOR is solid blue, solid green, or solid white, the monitor is powered

on and is operating normally. It flashes blue when no video source has

been detected. It is solid red when no signal is detected or if there is

insufficient power received.

Connections

7. AC POWER SOCKET: NEMA 5-15 socket for connecting the included AC

power cord.

8. AUDIO: 3.5mm stereo jack for connecting headphones, powered speakers,

etc.

9. DISPLAYPORT: DisplayPort® 1.2a video input.

10. HDMI 1: HDMI® 2.0 video input.

11. HDMI 2: HDMI 1.4 video input.

12. HDMI 3: HDMI 1.4 video input.

INSTALLING THE STAND

Perform the following steps to install the stand onto the monitor.

1. Attach the Stand Base to the Stand Stem using the three P-Head Screws,

as shown in the image below.

2. Remove the monitor from the box and place it face down with the foam

packaging on a table or floor, then remove the rear piece of foam

packaging.

3. Press the Button on the back of the monitor, as shown in the image below,

then remove the Stand Plate.

4. Attach the Stand Plate to the Stand Assembly using two K-Head Screws,

as shown in the image above.

5. With the Stand Plate now part of the entire Stand Assembly, insert the

Stand Plate into the back of the monitor until it clicks into place. Ensure

that it is securely attached to the monitor.

6. Remove the monitor with the attached Stand Assembly from the foam

packaging and place it on a flat, stable surface.

REMOVING THE STAND

Perform the following steps to remove the installed stand from the monitor.

1. Place the front piece of the original foam packaging material on a table or

on the floor, then place the monitor face down inside the foam.

2. Press the Button on the rear of the monitor to remove the Stand

Assembly.

USING A WALL OR DESK MOUNT

The monitor supports a 100x100 VESA® mounting pattern, allowing it to be used

with a compatible wall or desk mount (not included). Perform the following steps to

attach the monitor to a mount.

1. Install the wall or desk mount using the instructions included with the

mount.

2. If the included stand was installed, remove it following the instructions in

the

REMOVING THE STAND

section above. If the included stand was not

installed, press the Button on the rear of the monitor, then remove the

Stand Plate.

3. Remove the four Screws revealed by the removal of the Stand Plate, as

shown in image ➊below.

4. Using the four screws removed in the previous step, attach the two Wall

Mount Adapters, as shown in image ➋above.

5. Following the instructions included with your wall or desk mount and

using the hardware provided, attach the monitor to the mount.

OSD MENU MAP

Main Menu

Submenu

Options

Description

Input Source

HDMI 1 (2.0)

NONE

Selects the primary video source

HDMI 2 (1.4)

HDMI 3 (1.4)
