Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

Installation and Operating Instructions

THE PERFECT BALANCE OF FUNCTION AND STYLE

LAUNDRY - DISHWASHING - COOKING - COOLING

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

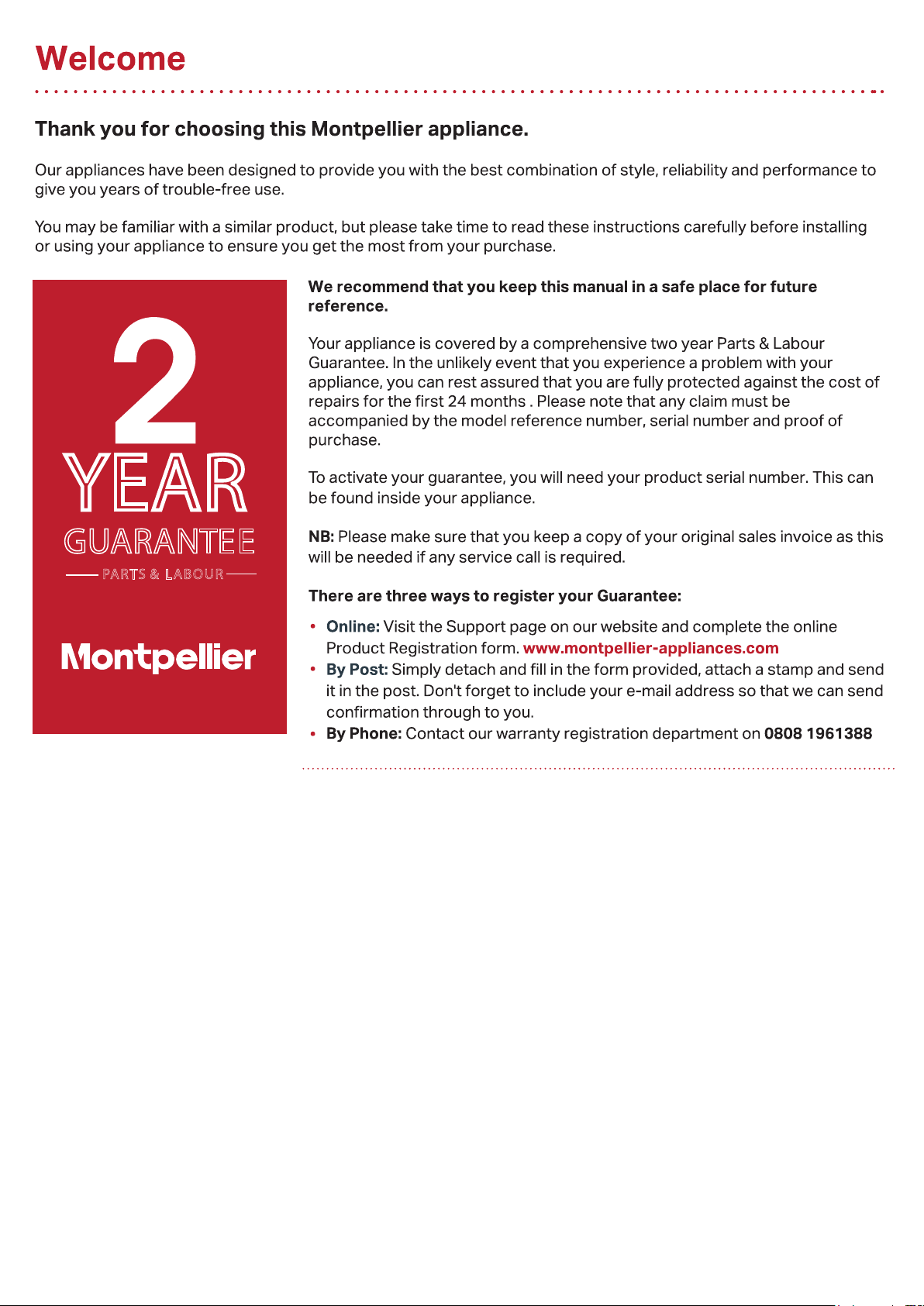

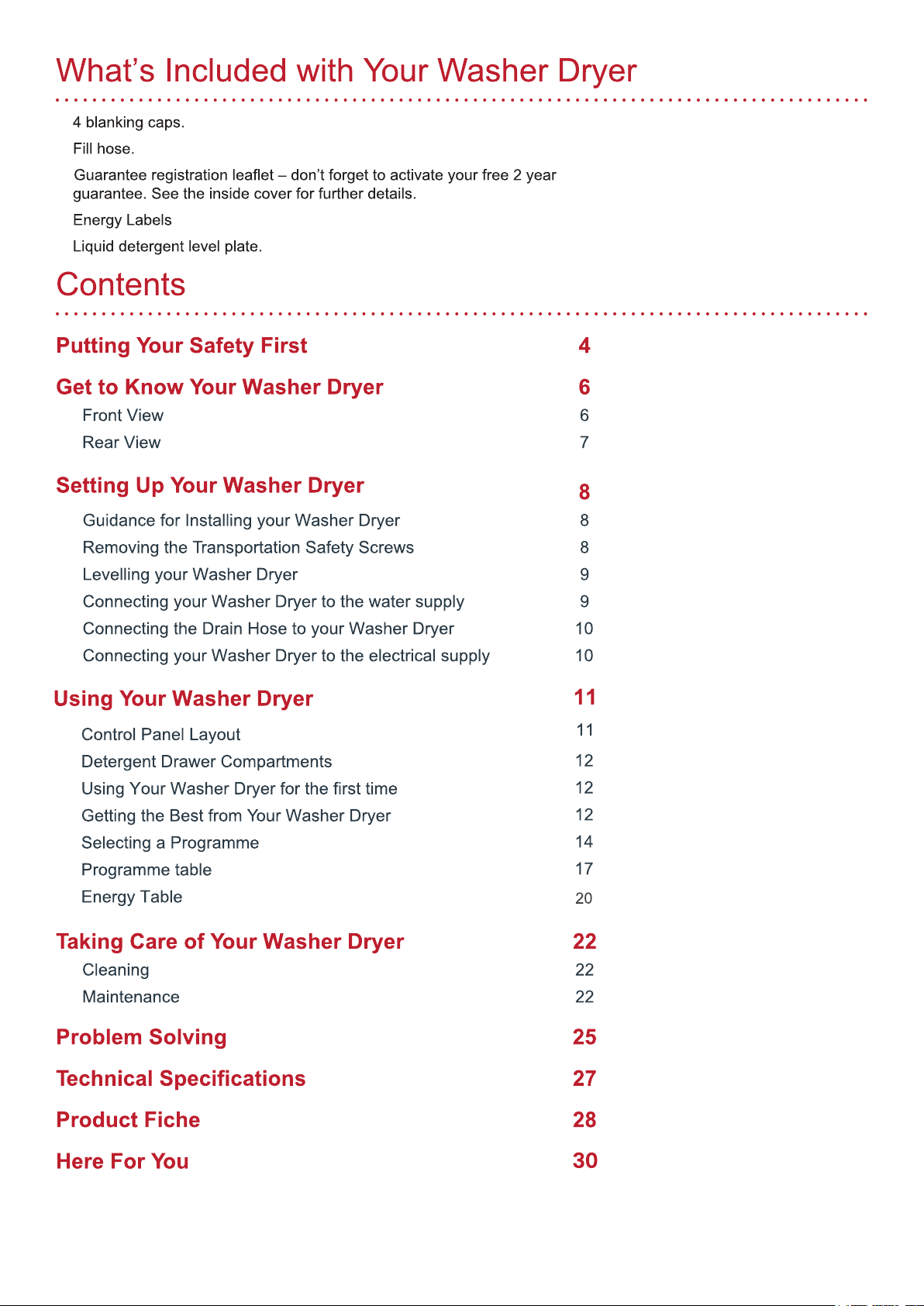

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and

maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for

future reference.

The design and specifications are subject to change without prior notice for product improvement.

•

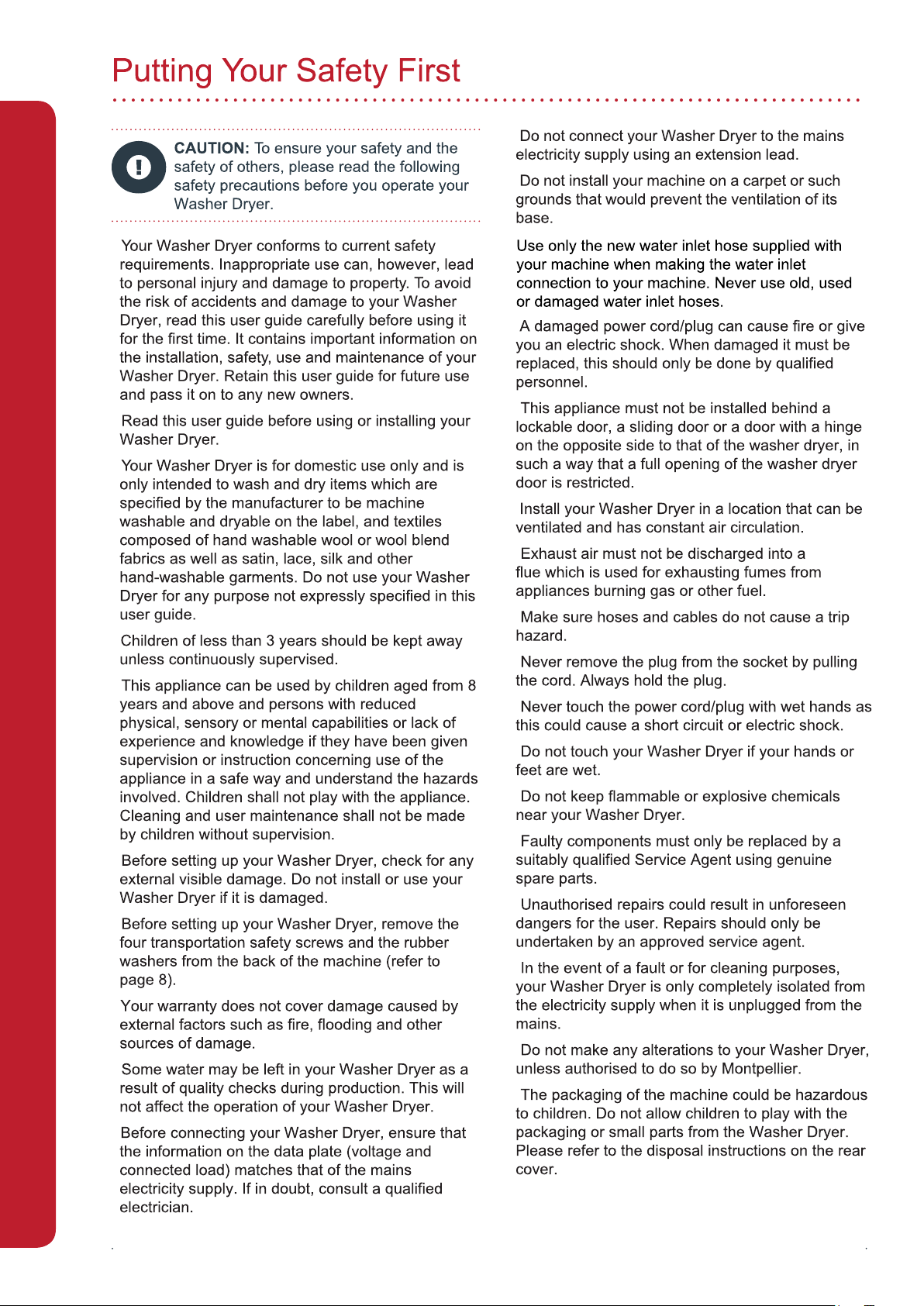

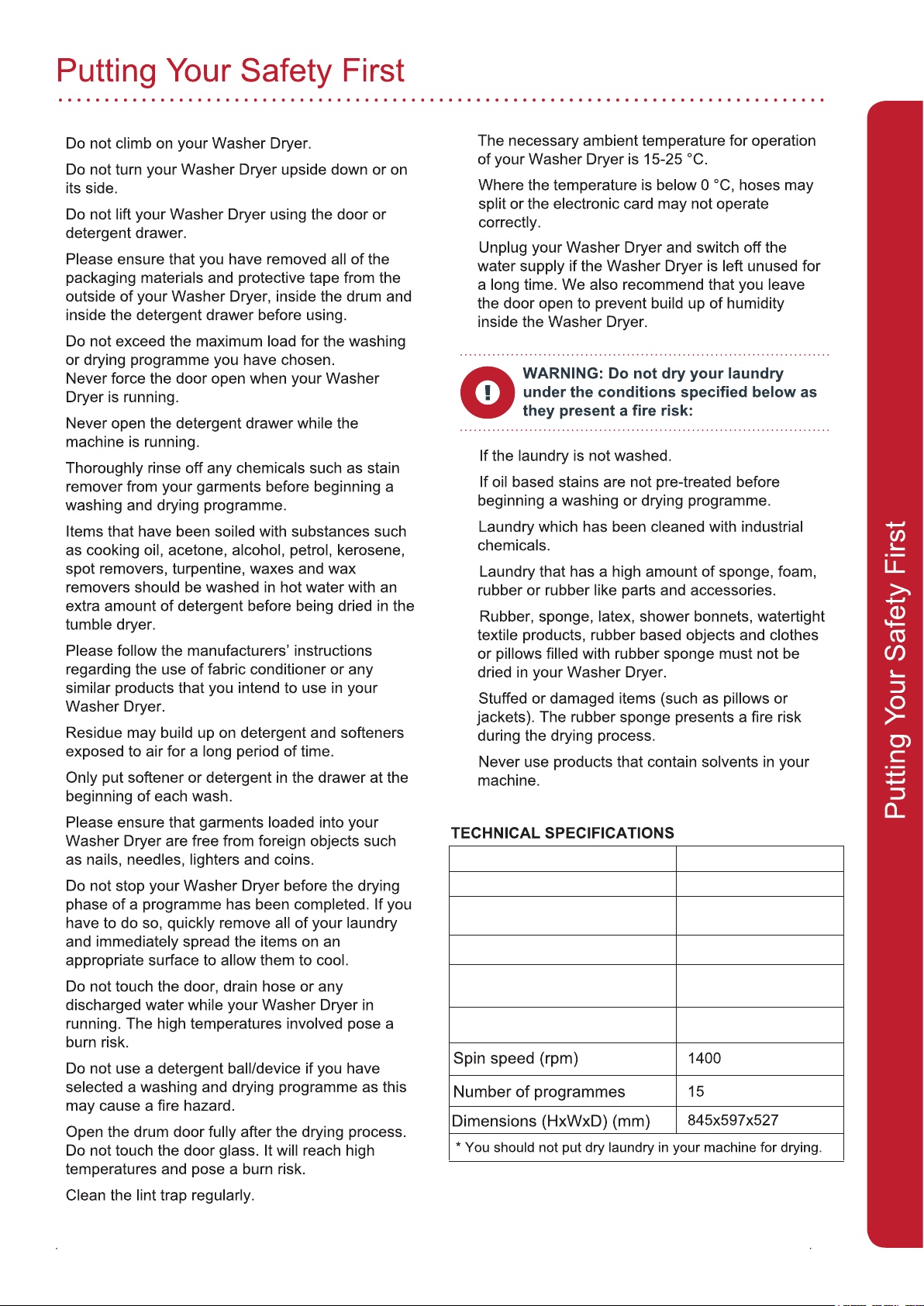

Putting Your Safety First

•

Operating voltage / frequency (220-240) V~/50Hz

Total current (A) 10

Water pressure (Mpa) Maximum 1 Mpa /

Minimum 0. 1Mpa

Total power (W) 1850

Maximum washing capacity

(dry laundry) (kg) 8

Maximum drying capacity (kg) 5

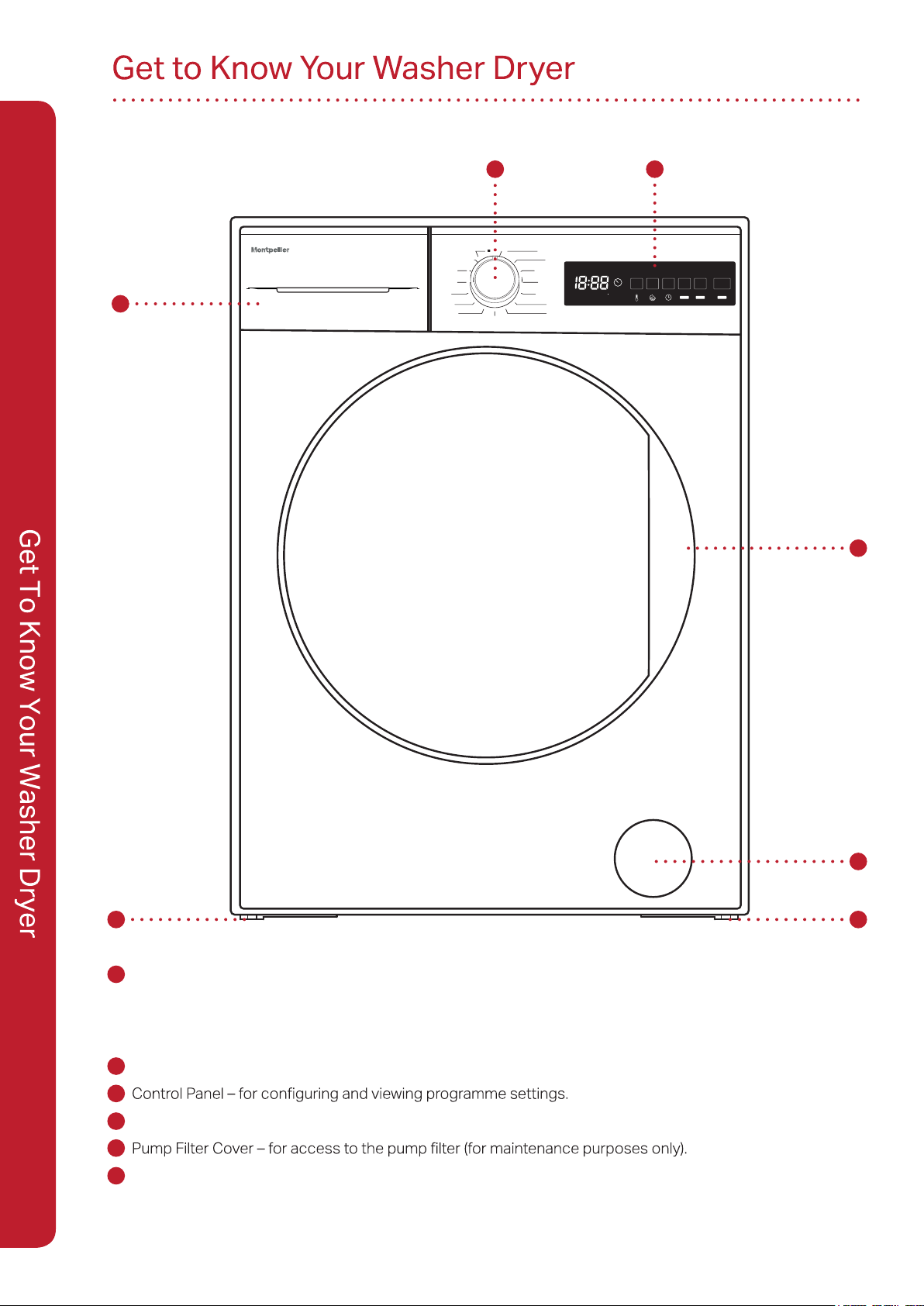

Front View

1Detergent Drawer – for inserting detergent and fabric conditioner. Contains 3 compartments:

•Main Wash.

•Softener.

•Pre-Wash.

2Programme Dial – for selecting a washing and/or drying programme.

4Door Handle - for access to the drum.

6Adjustable Feet (x4) – for adjusting the level and height of your machine.

Spin / Drain

Gentle Dry

Cotton Dry

Quick Wash & Dry

Cotton Wash & Dry

Rapid 15'

Eco 40-60

Cotton

Cotton 20°C

Synthetics

Wool & Silk

Duvet

Rinse

Anti -A llergy

Fast 60’

Off

2 3

Figure 1

Spin Delay Time Dr y Dry Option

Start

Pause

Temp.

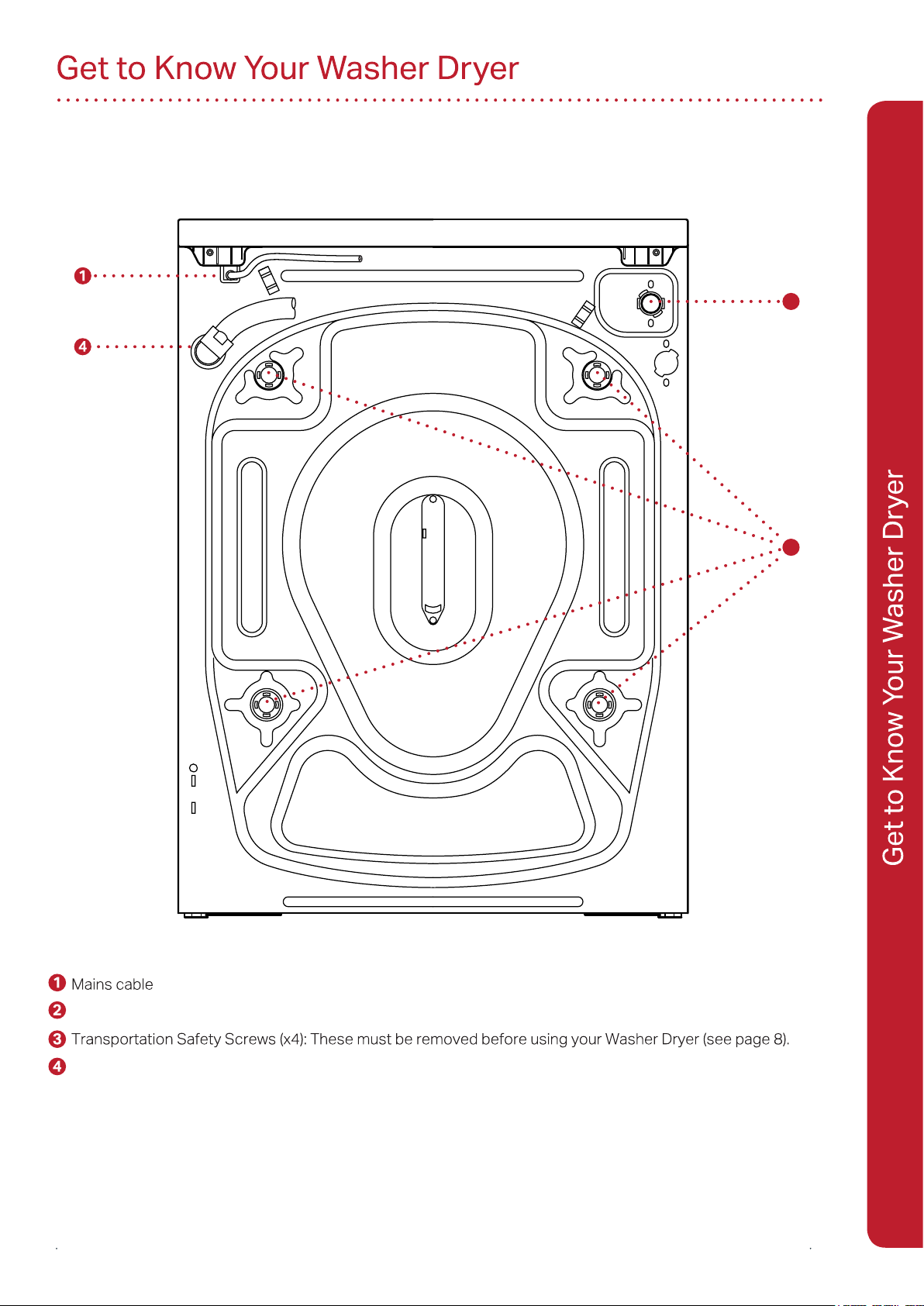

Rear View

Water supply connection – for connecting your Washer Dryer to the cold water supply.

Drain hose connection – for draining dirty water from your Washer Dryer.

Figure 2

Guidance for installing your Washer

Dryer

We recommend that you follow the guidance below

when selecting a suitable location to install your

Washer Dryer.

Install your washer Dryer in an area that will allow

the door to fully open.

Make sure your Washer Dryer is located close to

electrical and plumbing connections.

We recommend installing your Washer Dryer on a

room. This will provide the greatest stability.

Do not install your Washer Dryer on a soft surface

such as carpet or rug.

Do not install your Washer Dryer in an area where

the temperature may drop below freezing. If hoses

freeze they may split or burst.

Removing the Transportation Safety

Screws

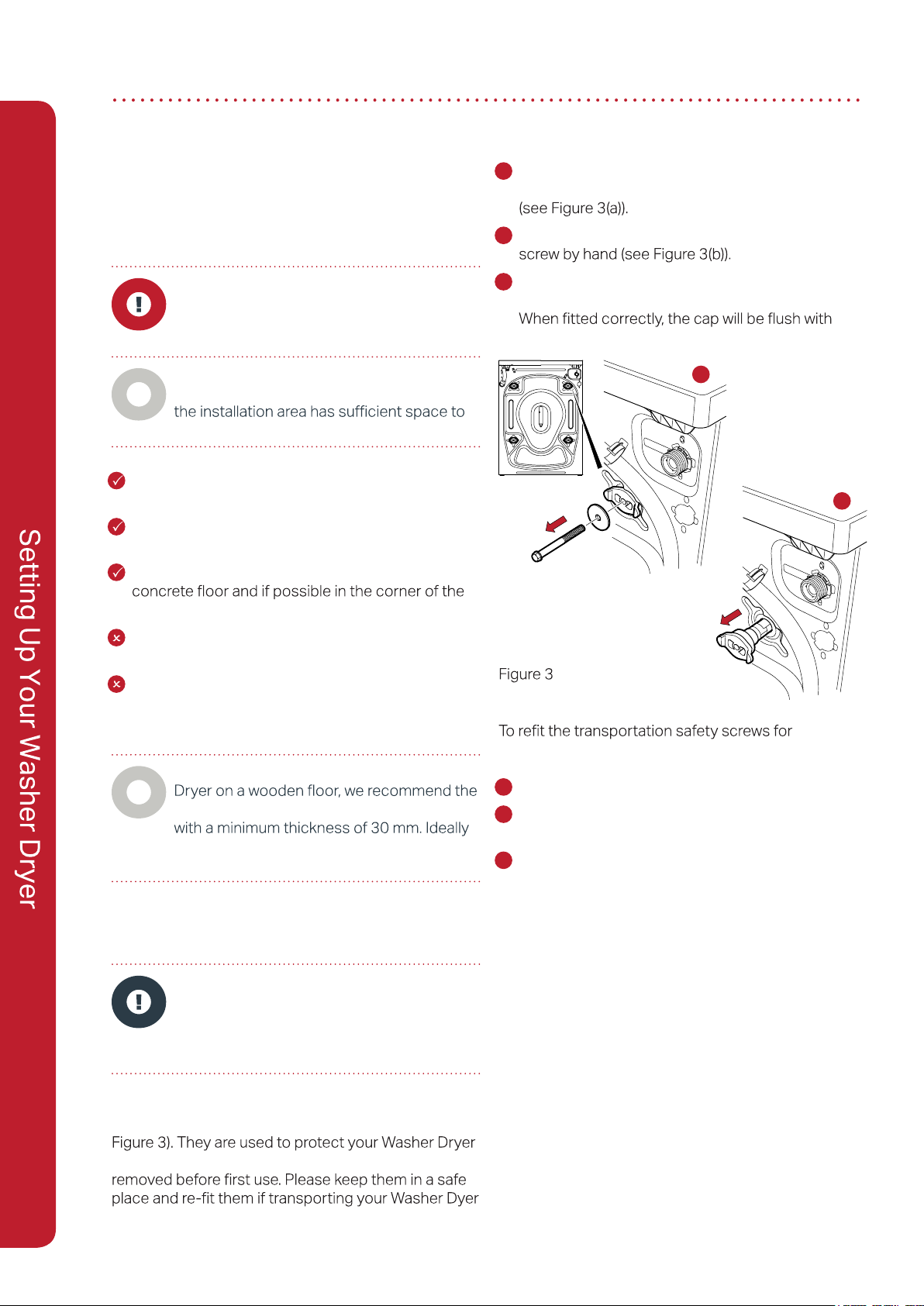

There are four transportation safety screws located

on the rear of your Washer Dryer (as shown in

from damage during transportation and must be

in the future.

To remove the transportation safety screws:

1Using a suitable spanner, rotate each safety

screw anti-clockwise until loose, and remove

2Pull out the remaining plastic sections of each

3Insert the blanking caps into the four holes.

Push the cap until the connectors click into place.

the machine.

transportation:

1Remove each of the four blanking caps.

2Insert the plastic sections of the safety screws into

the four holes.

3Position the safety screws into the plastic sections

inserted in step 2 and use a suitable spanner to

tighten until secure.

Setting Up Your Washer Dryer

WARNING: Risk of injury. Your Washer

Dryer is heavy and we strongly

recommend that it is moved by a

minimum of two people.

Note: The dimensions of your Washer

Dryer are 85 x 60 x 60 cm. Make sure that

accommodate your appliance.

Note: If you have to install your Washer

installation of a water resistant wooden base

the base should be bolted down and span

several joists.

CAUTION: Before operating your Washer

Dryer, the transportation safety screws must

be removed. Failure to do so may cause

damage to your machine and will invalidate

your guarantee.

Setting Up Your Washer Dryer

Levelling your Washer Dryer

Your Washer Dryer is supported by four adjustable

feet. Adjust the feet as necessary to ensure that your

appliance is level and secure:

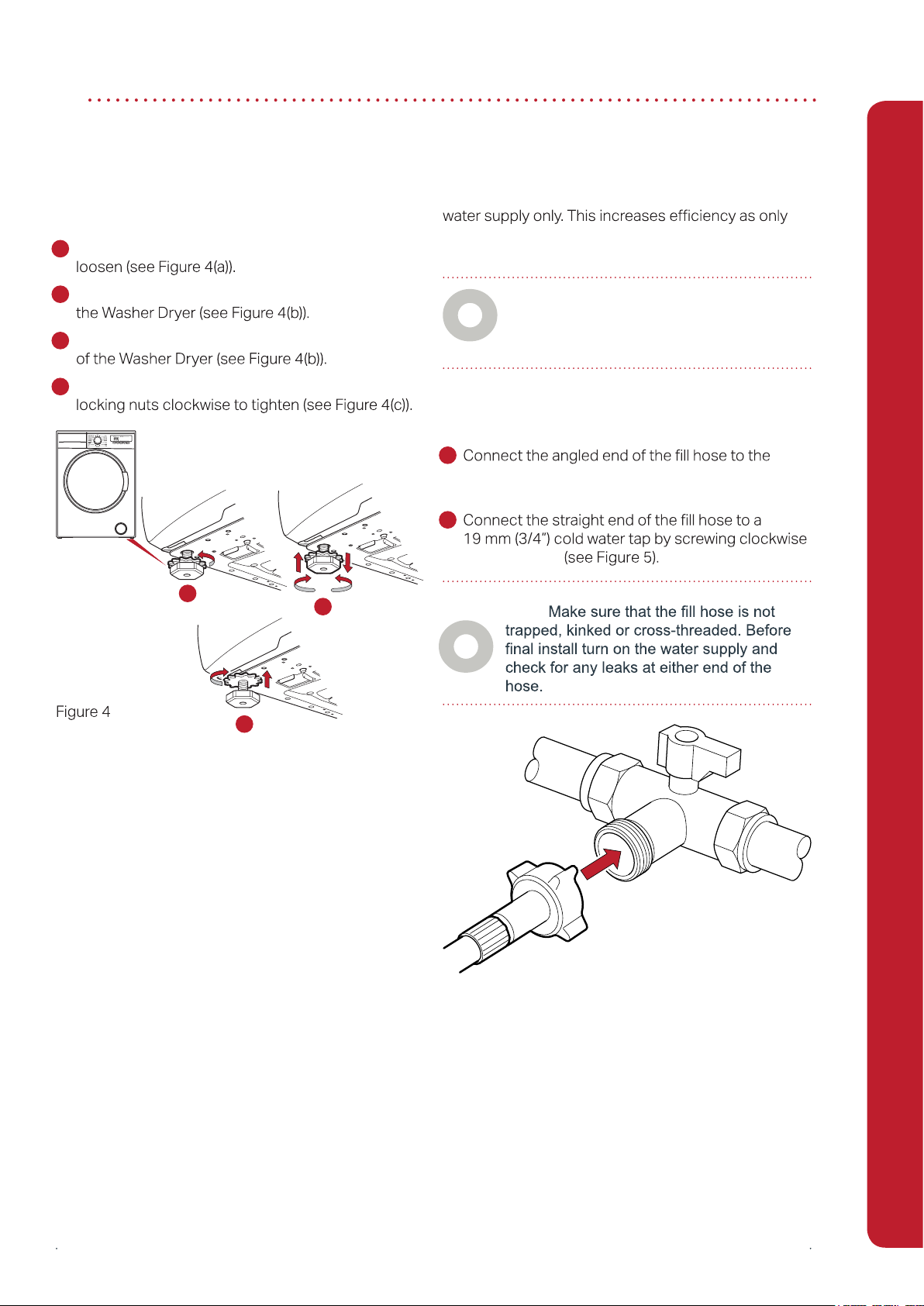

1Turn the plastic locking nut anti-clockwise to

2Turn the feet clockwise to increase the height of

3Turn the feet anti-clockwise to decrease the height

4Once the Washer Dryer is level, turn the plastic

Connecting your Washer Dryer to the

water supply

Your Washer Dryer must be connected to the cold

the minimum amount of water required to wash your

laundry is heated.

To connect your Washer Dryer to the cold water

supply:

cold water inlet at the rear of the Washer Dryer

by screwing clockwise until hand tight.

until hand tight

Note: If your previous machine had a hot

water connection, we recommend that you

check the hot tap on your water supply is

closed to prevent leakage.

Note:

Figure 5

Note: In either option the drain hose must be

between 0 cm and 80 cm from the ground.

Note: Your Washer Dryer runs on a

Do not use any other supply.

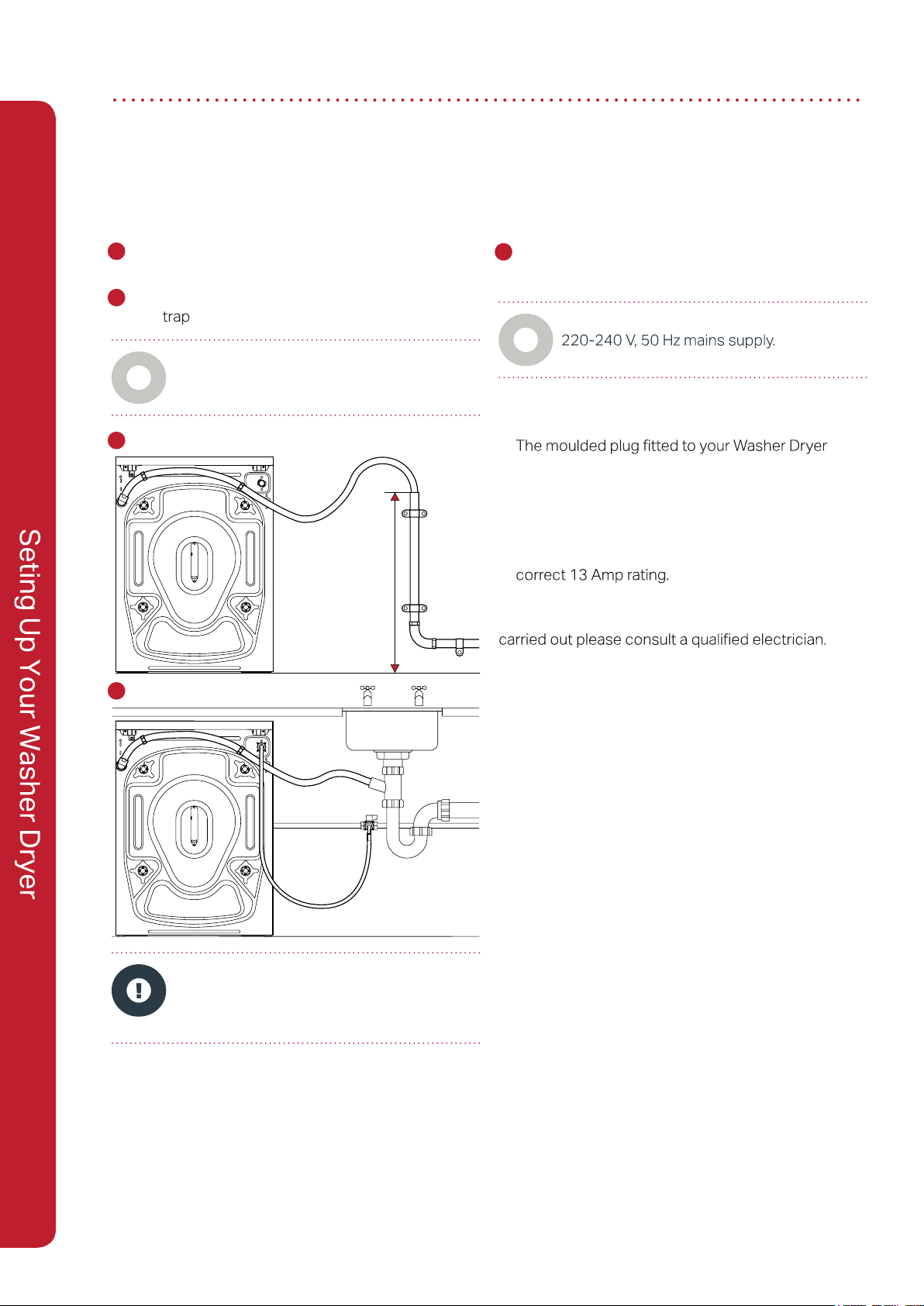

Connecting the Drain Hose to your

Washer Dryer

Your Washer Dryer can be connected to your

household drainage system in one of two ways:

1The drain hose can be connected to a standpipe

(see Figure 6(a)).

2The drain hose can be connected to a household

sink (see Figure 6(b)).

We recommend that once you have connected your

Washer Dryer to the water supply, you slowly turn

your cold water supply on to check for any leaks.

Connecting your Washer Dryer to the

electrical supply

To connect your Washer Dryer to the mains power

supply:

1Plug your Washer Dryer into a suitable mains

supply.

Please note the following:

•

cannot be re-wired.

•If you notice any damage to the plug or fuse cover

do not use your Washer Dryer.

•If replacement fuses are required they should be

ASTA-approved to British Standards and have the

If you are in any doubt over whether your mains

supply is suitable or require any repair work to be

Setting Up Your Washer Dryer

CAUTION: Make sure the drain hose is not

trapped, twisted, folded or crushed. Do not

attempt to extend the drain hose by adding

extra sections.

Figure 6

80 cm
