MOTA Premium Power Train Set Montageanleitung
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
1
Owner’s Manual
and Assembly Instructions
Please read and retain this document as it contains
important operational and safety information.
Meets or Exceeds ASTM F963; GB6675; EN 62115
Safety Standards.
MOTA TOYS –UNORTH, LLC
PO BOX 1116
Campbell, CA 95009-1116
USA
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
2
STOP!
In the event of damaged, defective, or non-working
unit,
DO NOT RETURN THIS TRAIN SET TO THE
STORE WHERE IT WAS PURCHASED.
Please review the information in this document. If
service is required, please contact MOTA®Toys
Support by visiting
http://www.MOTAToys.com/support/
or call +1-720-466-3869.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
3
IMPORTANT INFORMATION
WARNING –Electric Hazard
This product is recommended for children over
fourteen years of age. Adult supervision is
required. During handling and operation, exercise
cautious to prevent electric shock.
IMPORTANT NOTICE
To ensure trouble-free operation, use only MOTA®
products with this train set. Use of non-compatible
system may damage or result in unsatisfactory
performance.
NOTE TO PARENTS
Adult supervision is required. Please examine the
product for potential hazards. Any damage parts
must be repaired or replaced immediately.
NOTE:
Similar to an actual train or any machinery, your MOTA®
train will work best after a few hours of running time.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
4
LIST OF PARTS
1. Locomotive x 1
2. Coal Wagon x 1
3. Passenger Cars x 2
4. Curved Tracks x 12
5. Straight Tracks x 5
6. Terminal Rerailer x 1
7. Speed Controller x 1
8. Power Adapter x 1
9. Terminal Wire x 1
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
5
TRAIN ASSEMBLY - 1
Please check the list of contents to ensure you have all
the parts before starting assembly.
Choose a firm and flat surface for assembly such as a
tabletop, floor, or carpet.
It is recommended to place the tracks loosely on the flat
surface to ensure there is enough space for complete
assembly.
NOTE: Improper assembly will result in interrupted
electrical current and/or derailment of the train.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
6
TRAIN ASSEMBLY - 2

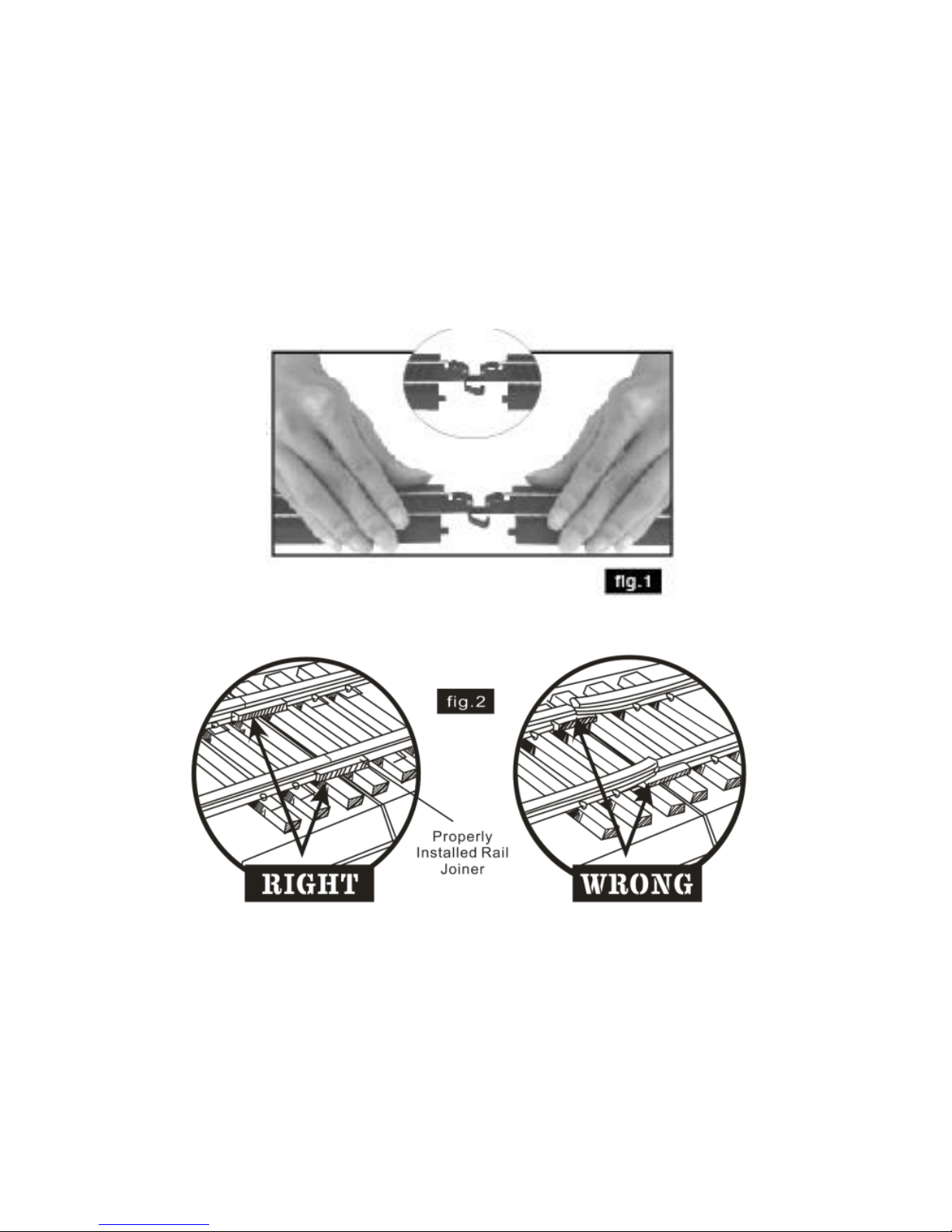

When assembling the track, snap it together tightly
(figure 1) while making sure the rail and rail connectors
are aligned properly as shown in figure 2.
NOTE: Ensure rail connectors do not slip under the rails
without properly connecting.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
7
TRAIN ASSEMBLY - 3
It is best to assemble the tracks where it will be
ultimately displayed and used. If assembled tracks must
be moved, please ensure tracks do not bend.
After track is assembled, please check all connectors to
make sure tracks are flush and level. Ensure there are

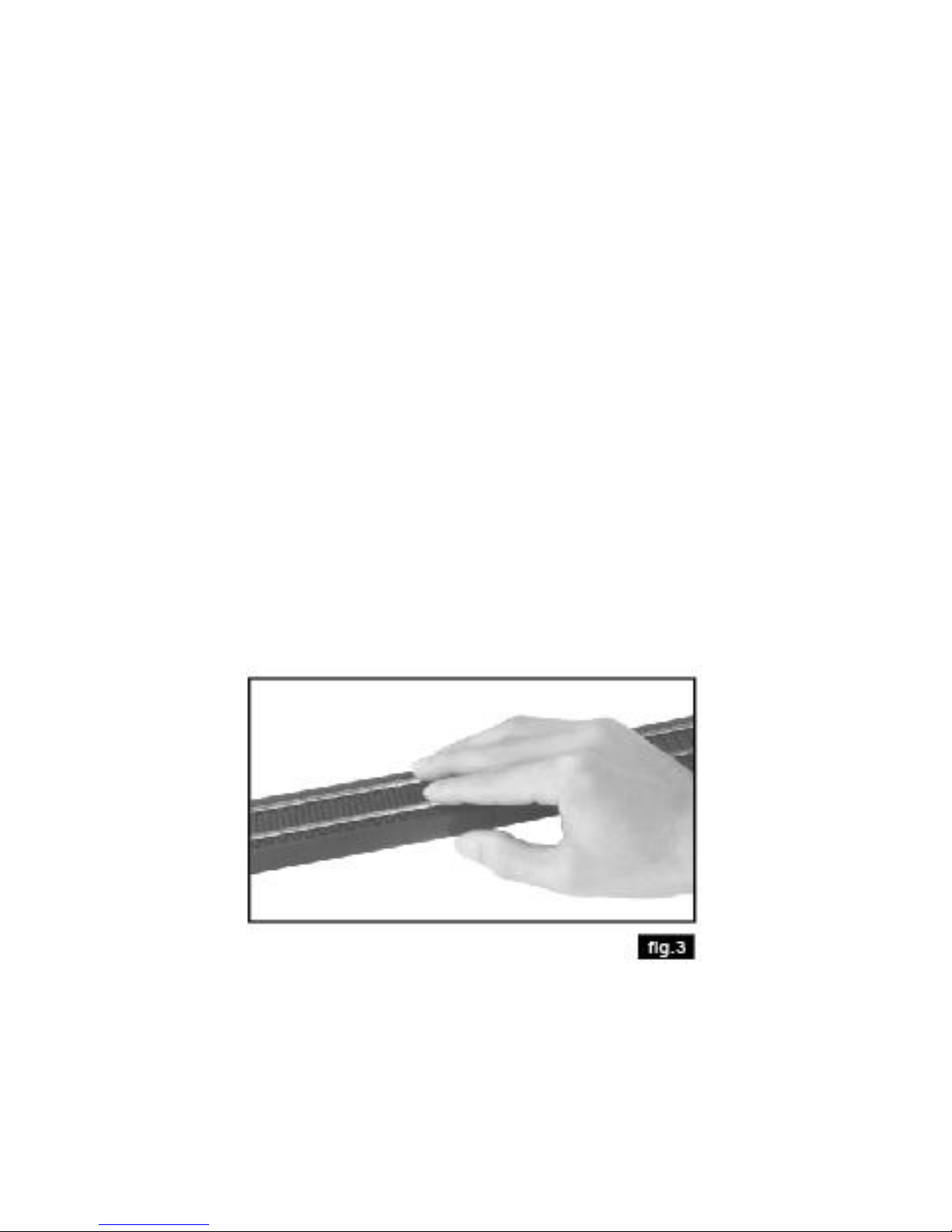

no bumps or distortions. Run your finger on the track
rails to ensure proper setup.
If there are any issues, please carefully check the rail
connectors or use a pair of pliers to make minor
adjustments as necessary.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
8
POWER PACK
WARNING –RISK OF ELECTRIC SHOCK
To reduce the risk of fire or electric shock, do not
expose this unit to rain or moisture.
CAUTION –RISK OF ELECTRIC SHOCK
To prevent the risk of electric shock, do not remove the
cover. Do not connect this unit to AC outlet in
bathroom, near any sink, or in any other damp area. Do
not operate this unit when the power cord or cover
enclosure is damaged. Periodic examination is
recommended.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
9
POWER PACK - CONNECTING

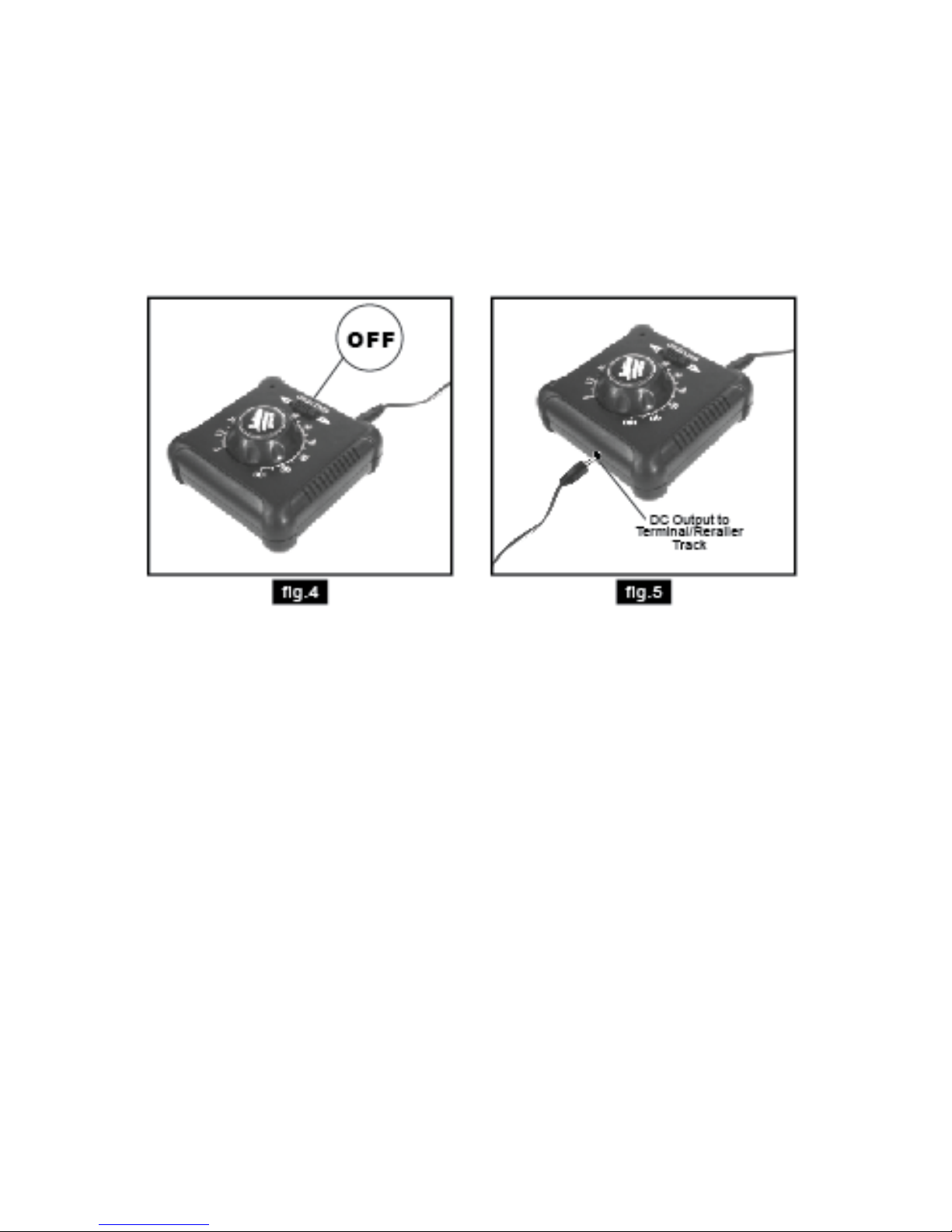

Before connecting the power pack, please place the
power slide to OFF position (figure 4).
Connect the terminal wire to the DC outputs as shown
in figure 5. DO NOT CONNECT THE TERMINAL WIRE TO
AC OUTPUTS AS IT WILL CAUSE THE LOCOMOTIVE
MOTOR AND LIGHTS TO BURNOUT. AC outputs are
used for accessories that may be attached to this unit at
a later time.
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
10
POWER PACK - CONNECTING

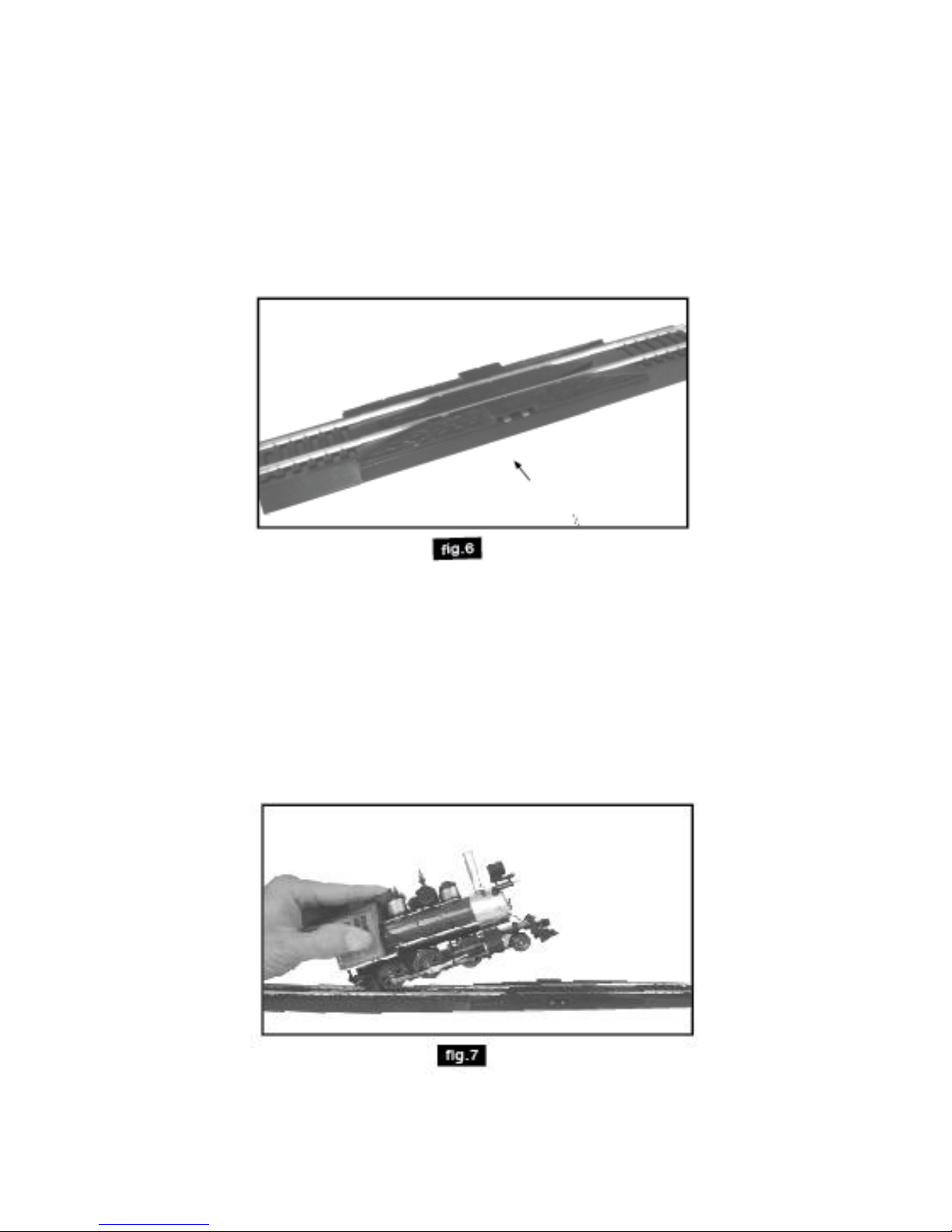

Connect the other end of the terminal wire to the re-
railer track by simply plugging it as shown in figure 6.
Place only the locomotive on the track by simply
running its wheels back and forth over the terminal re-
railer track as shown in figure 7. Be sure all wheels are
properly on the track before operating your train.
