VC5090 Vehicle Computer

Quick Reference Guide

2 VC5090 Vehicle Computer

Motorola reserves the right to make changes to any product to improve

reliability, function, or design.

Motorola does not assume any product liability arising out of, or in

connection with, the application or use of any product, circuit, or

application described herein.

No license is granted, either expressly or by implication, estoppel, or

otherwise under any patent right or patent, covering or relating to any

combination, system, apparatus, machine, material, method, or process

in which Motorola products might be used. An implied license exists only

for equipment, circuits, and subsystems contained in Motorola products.

MOTOROLA, the Stylized M Logo, Symbol and the Symbol logo are

registered in the US Patent & Trademark Office. Other product names

mentioned in this manual may be trademarks or registered trademarks of

their respective companies and are hereby acknowledged.

Motorola, Inc.

One Motorola Plaza

Holtsville, N.Y. 11742-1300, USA

http://www.symbol.com

Warranty

Subject to the terms of Motorola’s hardware warranty statement, the

VC5090 Vehicle Computer products are warranted against defects in

workmanship and materials for a period of one year from the date of

shipment. For the complete Motorola hardware product warranty

statement, go to: http://www.symbol.com/warranty.

Patents

This product is covered by one or more patents. For patent information

go to: http://www.symbol.com/patents.

Quick Reference Guide 3

Introduction

The VC5090 Vehicle Computer is a vehicle or fixed-mount computer

consisting of two configurations: a full-screen computer with optional

keyboard and a half screen configuration with a integrated keyboard. You

can enter data using the touch screen, the keyboard, an optional bar

code scanner, or a combination of the three. The data is transmitted

wirelessly to a host computer. The vehicle computer features:

• Ergonomic design with color LCD touch screen

• Internal wide-range power supply (9 - 60 VDC) to accommodate

propane, gasoline, and electric-powered forklifts

• Internal antennas with external antenna port

• Interfaces with scanners, printers, audio devices and other

peripherals

• Continuous operation at -30 °C (-22 °F)

• Pre-loaded with terminal emulation software.

About This Guide

This guide contains the following:

•Features on page 4

•Unpacking on page 5

•Optional Accessories on page 5

•Installation on page 6

•Powering the VC5090 On/Off on page 21

•Connecting Accessories on page 24

•Maintenance on page 24

•Troubleshooting on page 25

•Regulatory Information on page 26.

For more information including installation instructions, refer to the

VC5090 Product Reference Guide, p/n 72E-76347-xx available at

http://support.symbol.com.

4 VC5090 Vehicle Computer

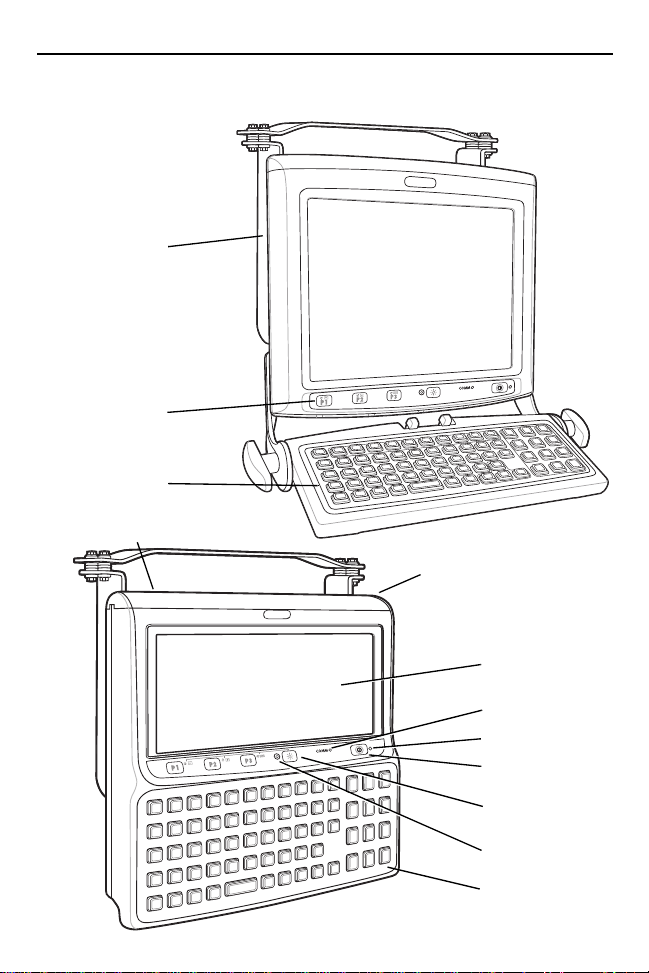

Features

Optional Keyboard

Power LED

Antenna Port for Optional

External Antenna

Display

Built-In Keyboard

Backlight

Control Button

Main Power Switch

Quick Access

Panel

Power Button

Backlight

Control LED

WLAN COMM LED

Mounting Bracket

Quick Reference Guide 5

Unpacking

The following items are contained in the box:

• VC5090 vehicle computer

• mounting bracket

• hardware kit

• desiccant door kit

• power cable

• this guide.

Optional Accessories

• Heated keyboard with bracket assembly

• Scanners and cables

• Headset/Handset

• Vehicle Motion Detector Kit

• Printer cables

• Adjustable handles

• RS-232 and USB ActiveSync cables

• AC power supply

• Uninterruptable power supply (UPS)

NOTE The hardware kit contains items that might not be used during

installation. Keep the hardware kit in a safe place for future use.

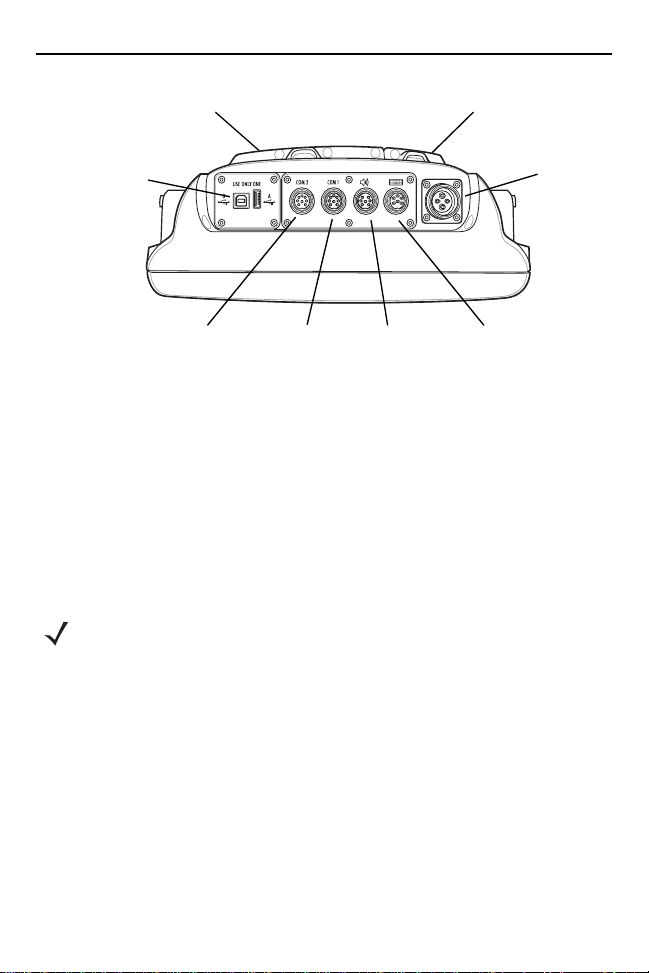

Desiccant Door

COM1 Port

Connector

COM2 Port

Connector

USB/

Keyboard

Connector

UPS/Memory Card Door

Audio

Connector

USB Ports

(Client

and Host)

Power

Connector

6 VC5090 Vehicle Computer

• Replacement desiccant bag kit

• Protective keyboard cover

• Replacement screen protector.

Installation

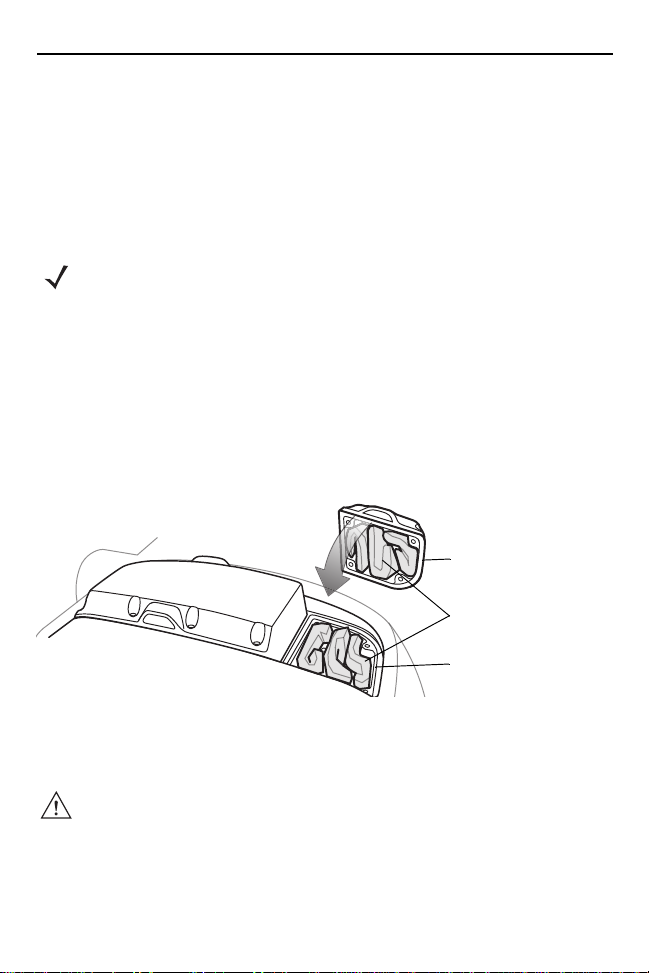

Installing the Desiccant Door

1. Open the desiccant package and remove the six desiccant bags.

2. Place three desiccant bags in the desiccant well.

3. Place the other three desiccant bags in the back of the desiccant door.

4. Ensure that the door seal is in place.

5. Carefully place the desiccant door onto the back housing. Ensure that

the desiccant bags do not interfere with door seal.

6. Secure the door to the back housing using the four screws. Torque to

9 ± 0.5 kgf.cm (7.8 ± 0.4 in-lbs).

NOTE Motorola recommends installing the desiccant bags in

environments where extreme temperature changes occur, such

as applications where the device may be continuously moved

between a freezer and a hot/humid area. Temperature changes

would occur more often in the hot/humid months of summer

and less frequently in cold/dry months of winter. If desiccant is

not used, the desiccant door must still be installed and secured.

CAUTION Ensure to torque the screws to seal the device properly.

Otherwise, sealing can be compromised.

Desiccant Bags

Desiccant Door

Desiccant Well

Quick Reference Guide 7

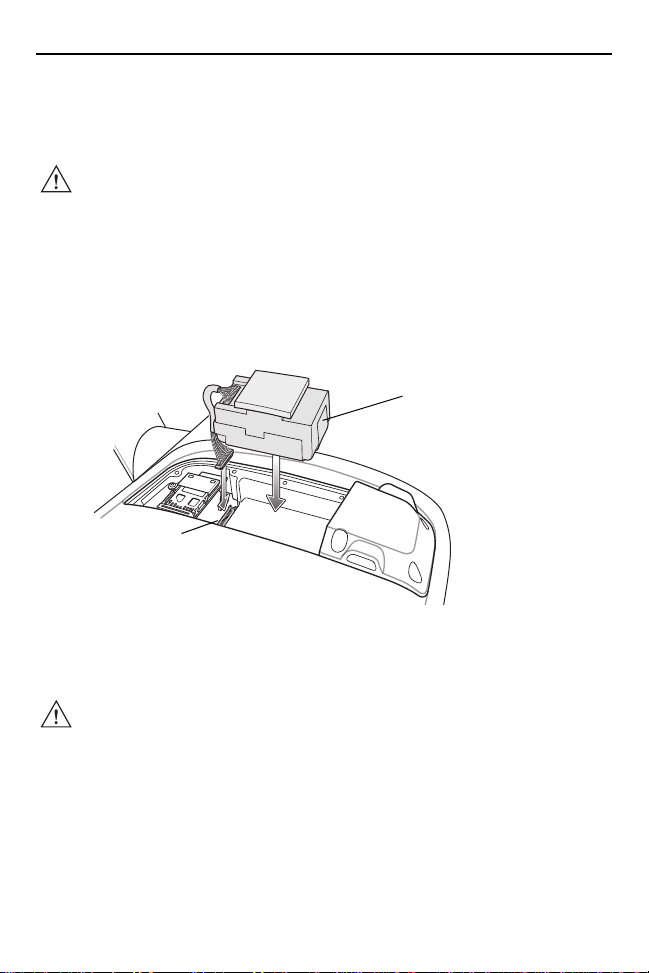

Installing the Optional UPS

To install the optional UPS:

1. Place the Main Power switch on top of the vehicle computer to the off

position.

2. Remove and discard the eight screws securing the UPS/Memory Card

door on the back of the vehicle computer.

3. Connect the UPS cable connectors to the connector on the printed

circuit board (PCB) and on the UPS.

4. Place the UPS into the well.

5. Place the UPS/Memory Card door over the UPS and secure using the

eight new screws supplied with the UPS kit.

6. Torque the screws to 9 +/- 0.5 kgf.cm (7.8 ± 0.4 in-lbs).

7. Place the Main Power switch to the on position.

Its takes four hours to fully charge the UPS.

CAUTION Use ESD precautions when installing the UPS.

CAUTION Ensure to torque the screws to seal the device properly.

Otherwise, sealing can be compromised.

Connector on PCB

UPS

8 VC5090 Vehicle Computer

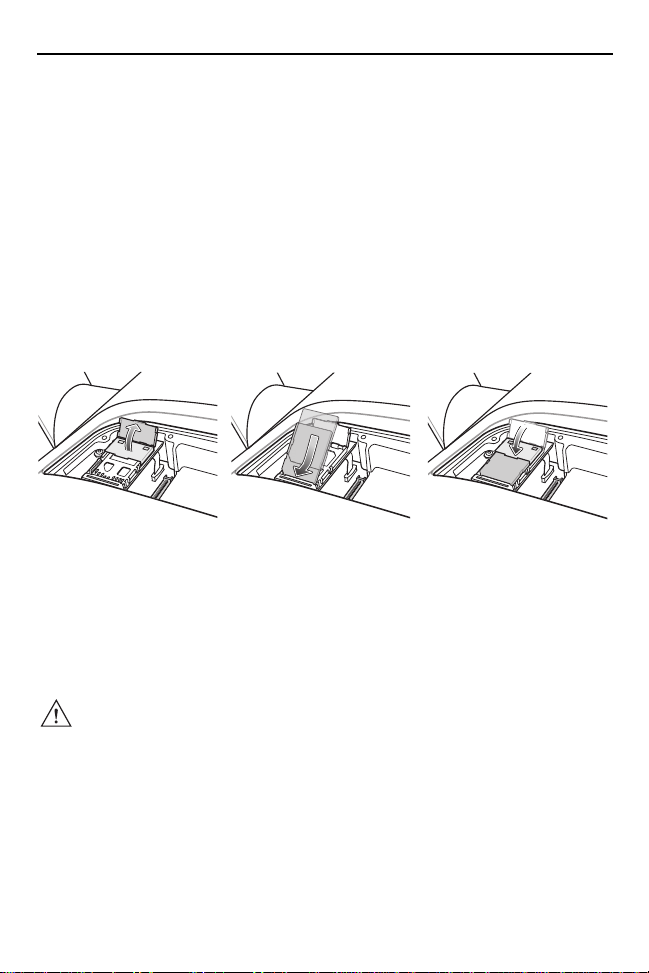

Installing a Memory Card

A memory card (Secure Digital) provides secondary non-volatile storage.

The card holder is located on the back of the VC5090 under the

UPS/Memory Card door.

To install the memory card:

1. Place the Main Power switch on the top of the vehicle computer to the

off position.

2. Remove and discard the eight screws securing the UPS/Memory Card

door.

3. Lift the card holder retaining door.

4. Position the memory card, with the contacts down, into the card

holder. The memory card corner notch fits into the holder only one

way.

5. Snap the retaining door closed.

6. Replace the UPS/Memory Card door and secure using eight new

screws.

7. Torque the screws to 9 +/- 0.5 kgf.cm (7.8 ± 0.4 in-lbs).

8. Place the Main Power switch to the on position.

CAUTION Ensure to torque the screws to seal the device properly.

Otherwise, sealing can be compromised.

Quick Reference Guide 9

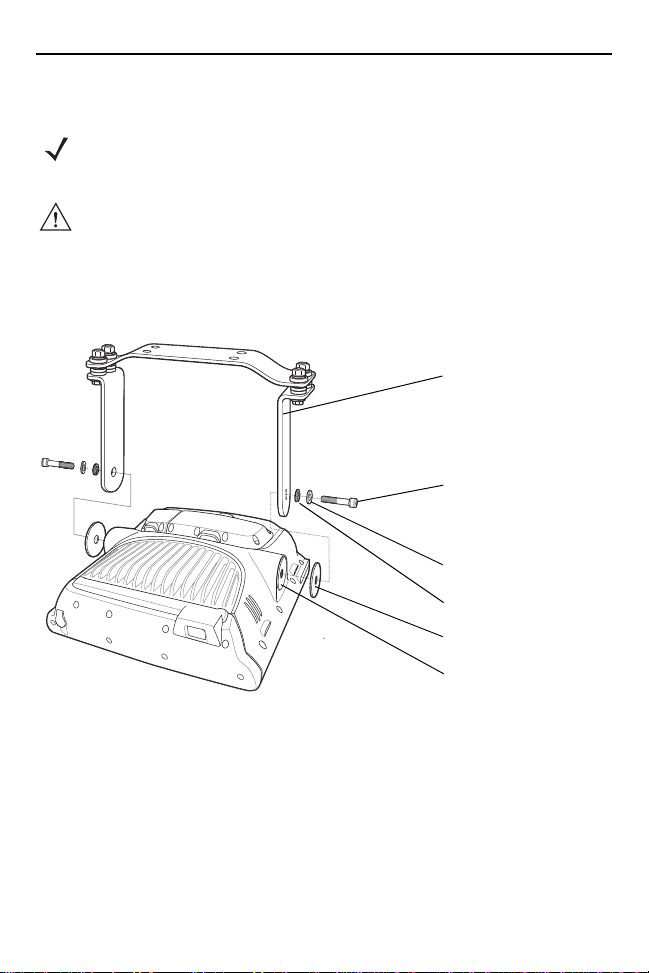

Mounting Bracket Installation

Assemble the mounting bracket onto the vehicle computer as shown

below.

Torque cap screws to 276 ± 8.7 kgf.cm (239.6 ± 7.6 in-lbs).

NOTE The vehicle computer and bracket must be firmly secured to a

surface that can support the vehicle computer’s weight.

CAUTION Motorola requires that the supplied mounting bracket be

used when mounting the vehicle computer.

Mounting Bracket

Lock Washer

Flat Washer

Friction Pad

Cap Screw

Friction Pad

Mounting Area

10 VC5090 Vehicle Computer

Installing the VC5090 in a Forklift

Follow the instructions below to properly install the VC5090 in a forklift.

• Determine the best location for mounting the vehicle computer taking

into consideration the driver’s field of view and ease of accessing the

vehicle computer.

• Install the appropriate mounting hardware. The VC5090 ships with

four cap screws (3/8” - 16 - 2”) for securing the mounting bracket. If

the supplied cap screws are not long enough, use 3/8” - 16 - X

stainless steel cap screws where X represents the length in inches of

the required cap screws.

• Connect the vehicle computer to the vehicle’s wiring system.

Positioning the Vehicle Computer

• Position the vehicle computer to ensure proper ventilation around the

device.

• Determine the best position for the vehicle computer and all the

associated components. If a similar vehicle computer was previously

installed, check to see if the position it used is suitable for the

VC5090.

• Test the installation for at least 30 minutes before installing on another

vehicle:

CAUTION A qualified engineer must perform the installation in a

vehicle. Improper installation can injure the operator or

damage the vehicle and/or VC5090.
