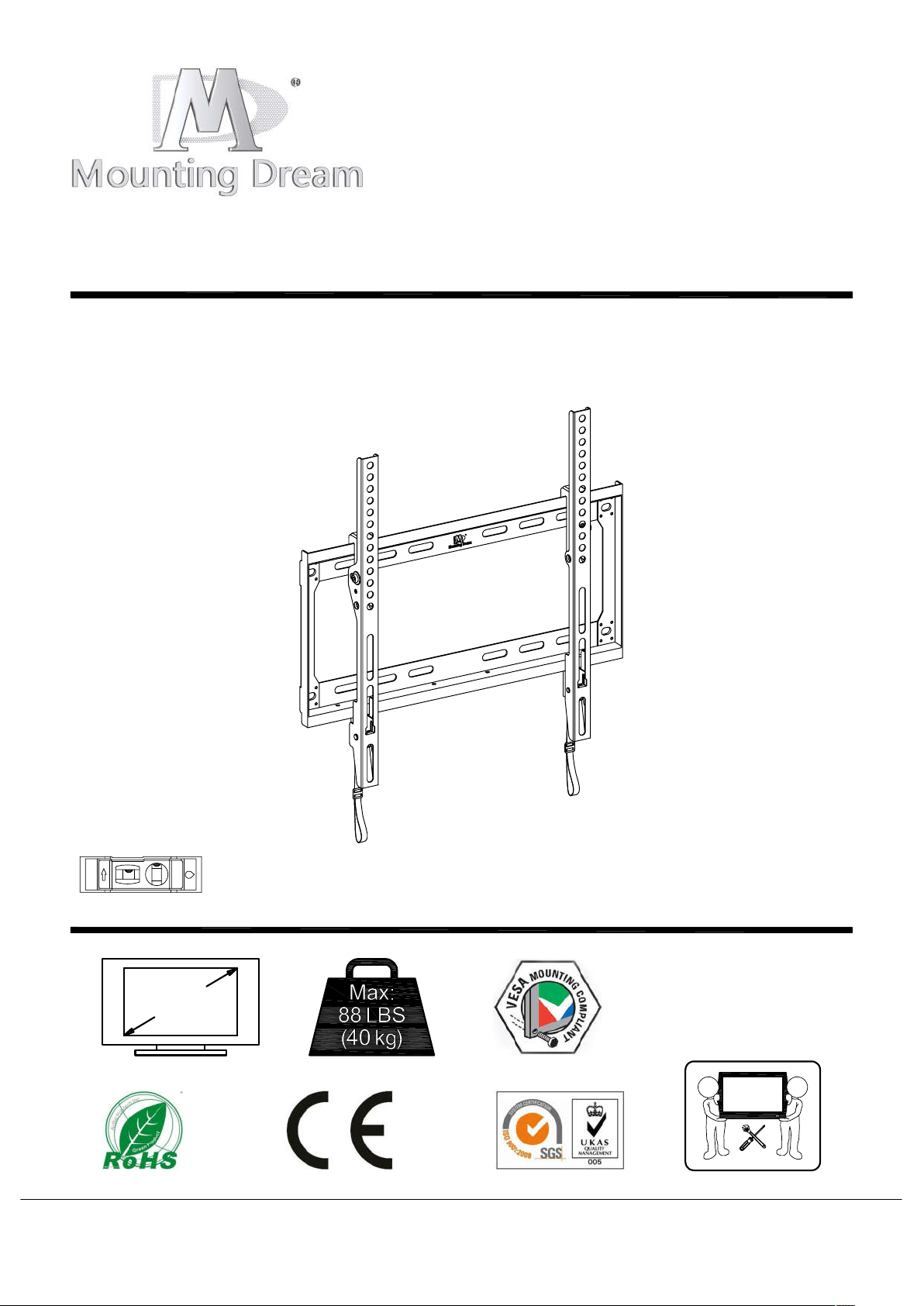

HM2268-MK INSTALLATION INSTRUCTION

If you have any questions, please contact us via customerservice@hingear.com

or call us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time).

(B1)

26"~55" Max:400x400mm/16x16"

Min:75x75mm/3x3"

Für die Installationsanweisungen auf deutsch, Siehe Seite 10~11.

Pour l'instruction en français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en español, favor vea la página 14~15.

Per le Istruzioni in italiano, vedi pagina 16~17.

1 2

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3" and

equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

88 LBS (40 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@hingear.com or call us at telephone (626) 645-7128 (USA) Mon - Fri

10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 5/32"(4mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@hingear.com.

NOTE: Not all hardware included will be used.

TV Brackets

1-1 Select TV Screws

TV back

Bracket

Long Screw

Spacer

Yes, go to PAGE 3 for detailed combination.

1-2 Need Spacer?

Washer

Highly recommended to add spacers for more

spacing between wall mount and wall.

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Bracket Washer

No, go to PAGE 3 for detailed combination.

TV back

Short Screw

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

1-3 Attach the TV Brackets

Spacer(s), screw and washer

No!

Screw and washer

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 6

<16mm

(5/8") Max.

16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

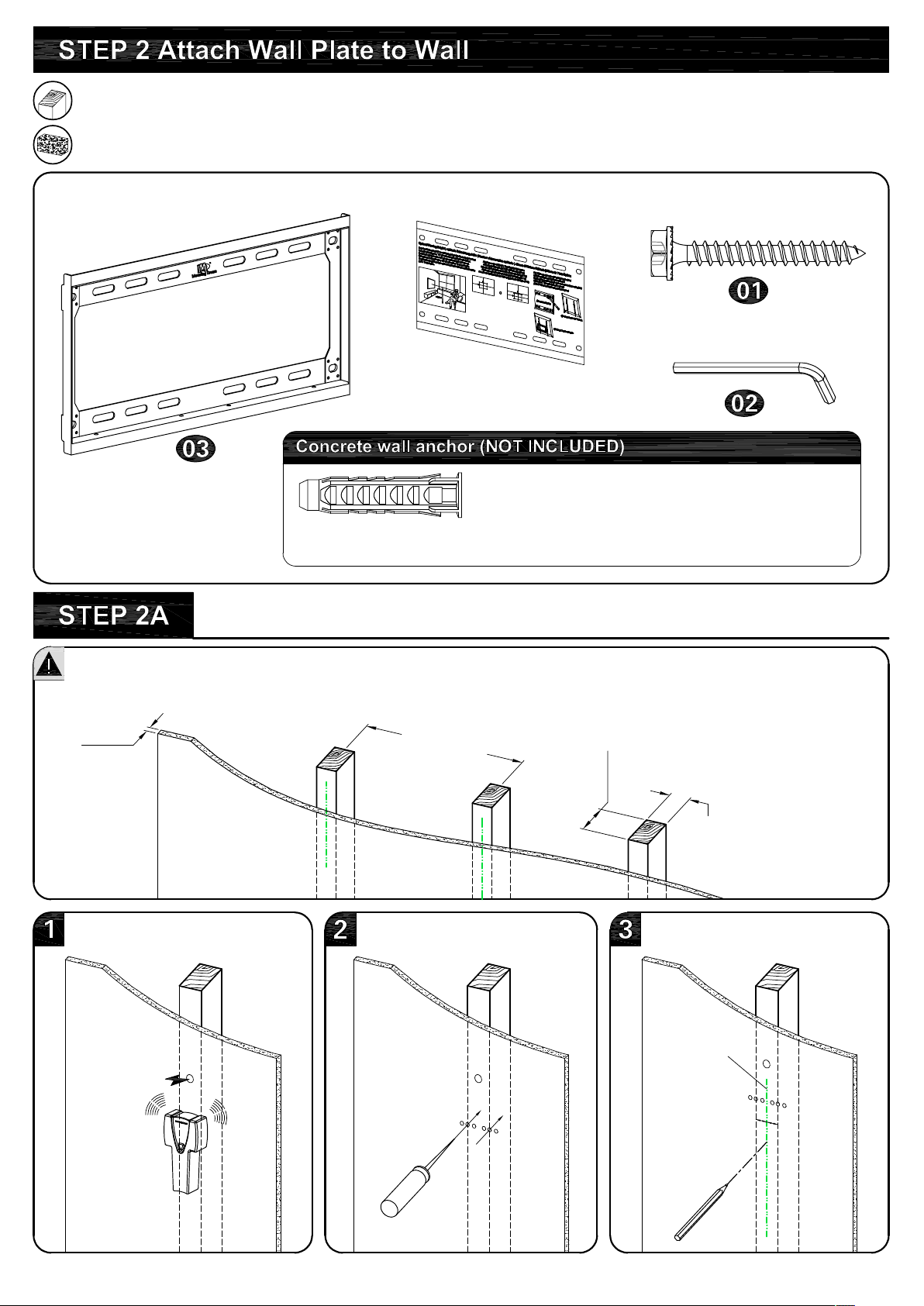

Parts and Hardware

Wood Stud Installation

Centre line

Wall Plate

Lag Bolt M7x55mm

Allen Key

Mon - Fri 10am - 6pm (Pacific time) or email us by

[email protected] to have these

additional pieces shipped directly to you.

Concrete Wall Anchor

4pcs

Mounting Template

16"(406mm)

5/32"

(4mm)

2.36"(60mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Go to Step 3 on PAGE 7.

Centre line

Again, find another wood stud

No!

Mounting

Template

Solid Conrete Wall Installation

2.36"

(60mm)

Concrete Wall

Anchor

Min.

8"(203mm)

3/8"

(10mm)

3/8"

(10mm)

DANGER

No!

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Mounting

Template

88 LBS (40 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

Pull down

1 2

Tilting angle adjustment (0°/-8°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

0°

-8°

Option: To keep TV in vertical position, please use two pins to insert the holes on two

brackets respectively (as shown in below image).

Tighten

Loosen

MAX:400mm

435mm

222mm

MAX:

400mm

420mm

38mm

0°~ -8°

Pull down

the straps
