MD2432-03 INSTALLATION INSTRUCTION

Für die Installationsanweisungen auf Deutsch, siehe Seite 10-11.

Pour l'instruction en Français, veuillez vous reporter à la page 12-13.

Para las instrucciones de la instalación en Español, favor vea la página 14-15.

Per le Istruzioni in Italiano, vedi pagina 16-17.

x3 x1

26"~55" Max:400x400mm/16x16"

Min:75x75mm/3x3"

(DE-B2)

1 2

If you have any questions, please contact our customer service.

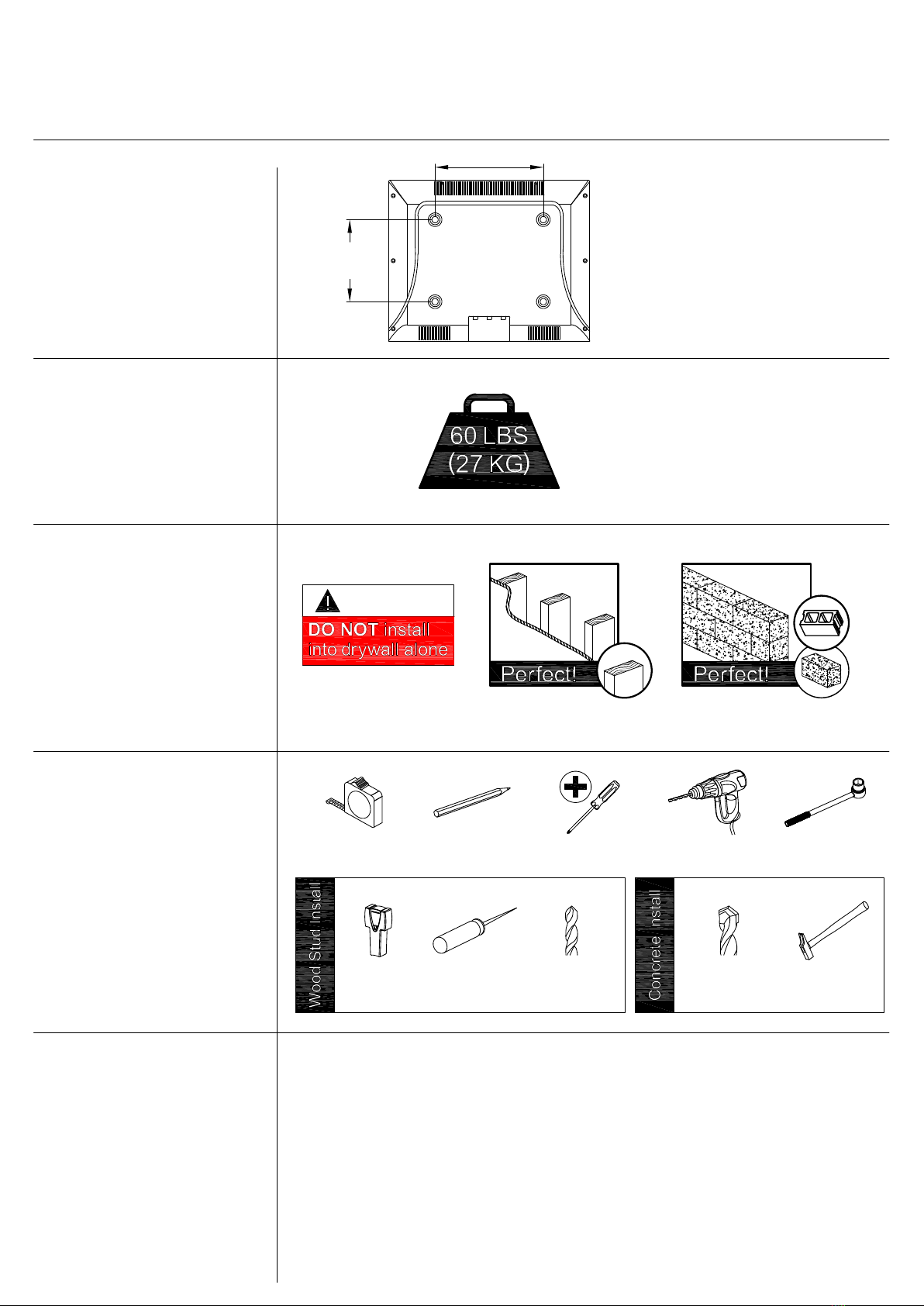

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3"

and equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

60 LBS (27 KG)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

5 Safety Caution

Solid concrete or

concrete block?

3 What is your wall

made of?

Band Tape

Pencil ScrewdriverElectrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, please contact customer service.

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

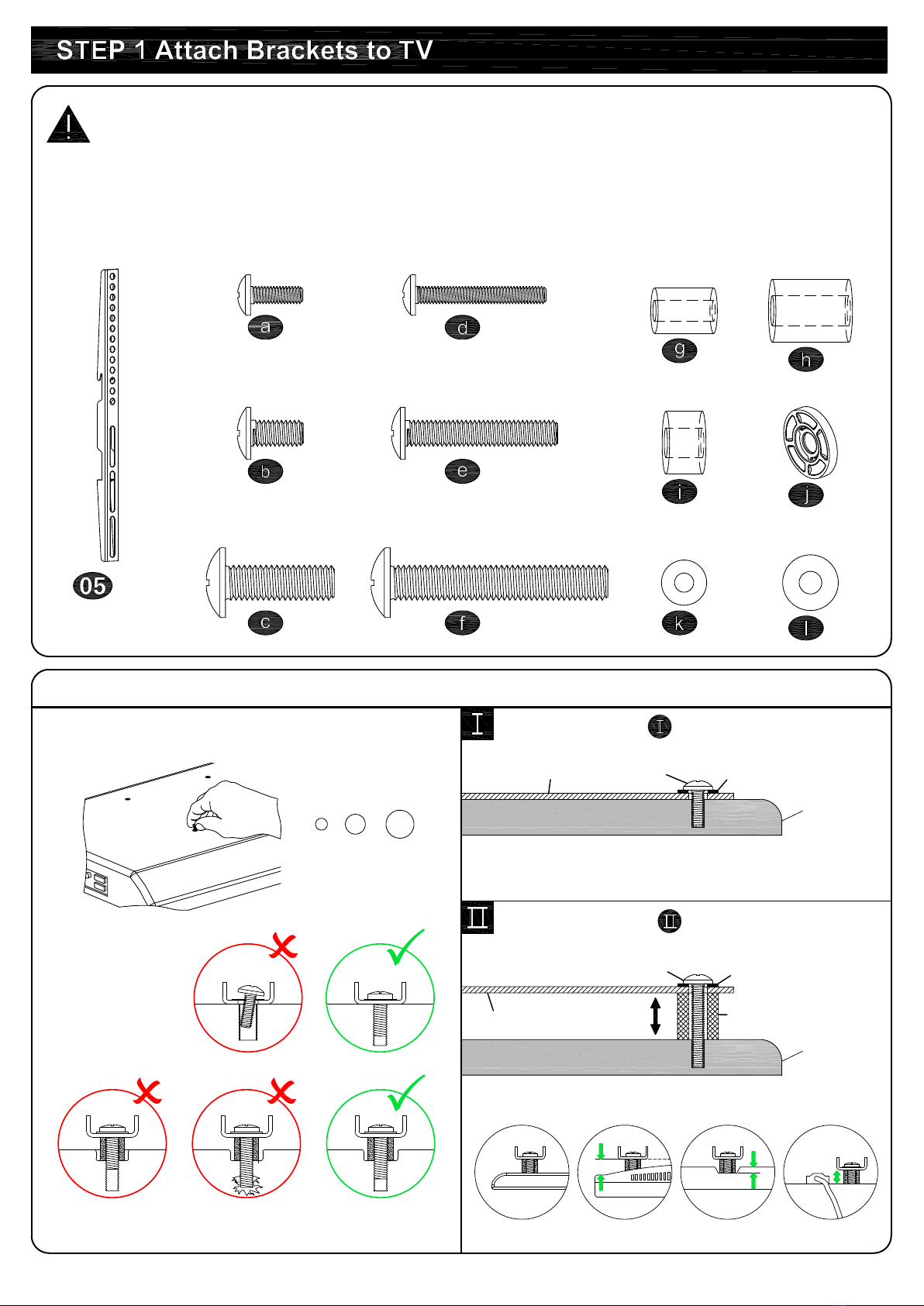

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact customer service.

NOTE: Not all hardware included will be used.

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

TV Brackets

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm M8x22mm

M4M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

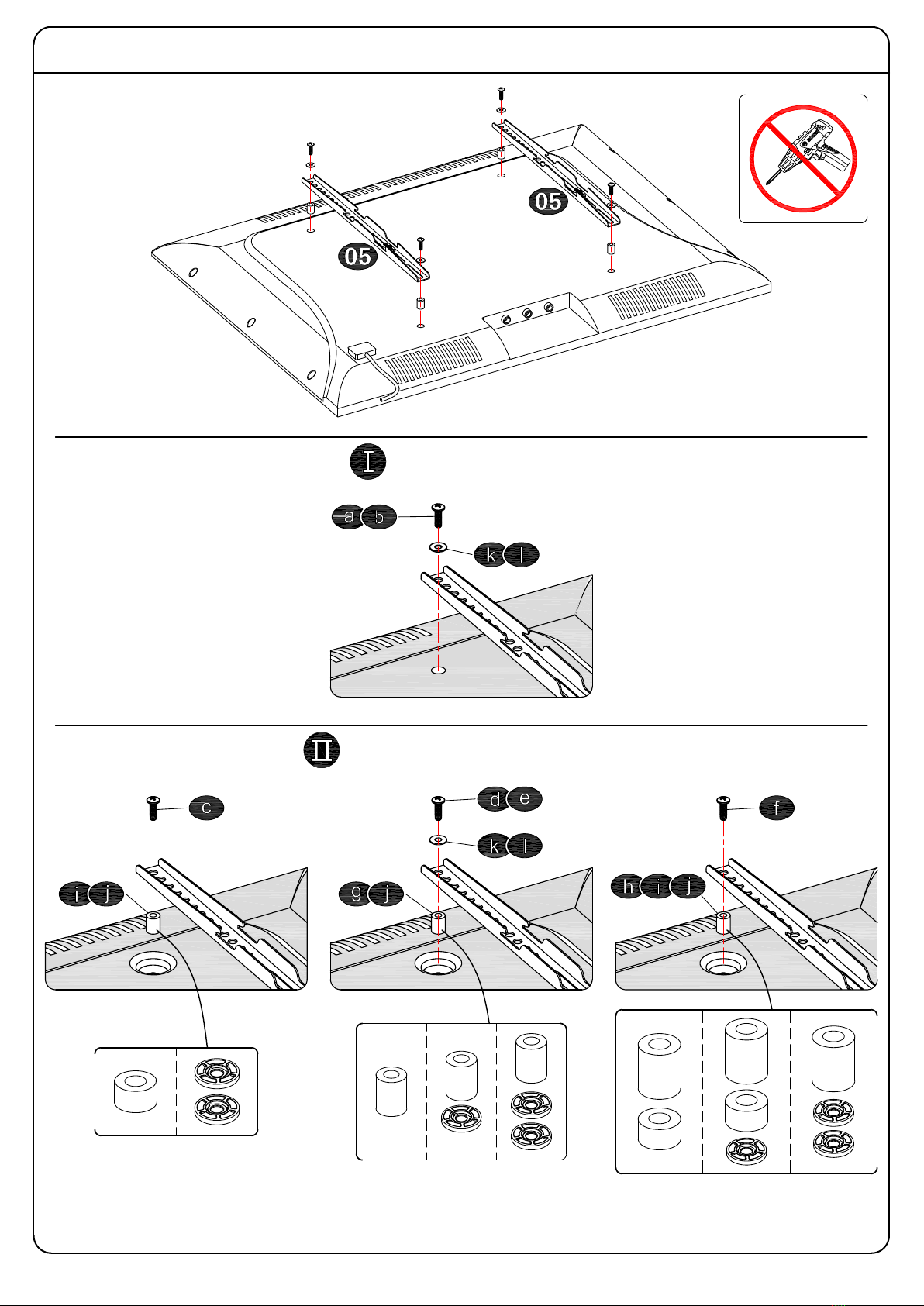

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

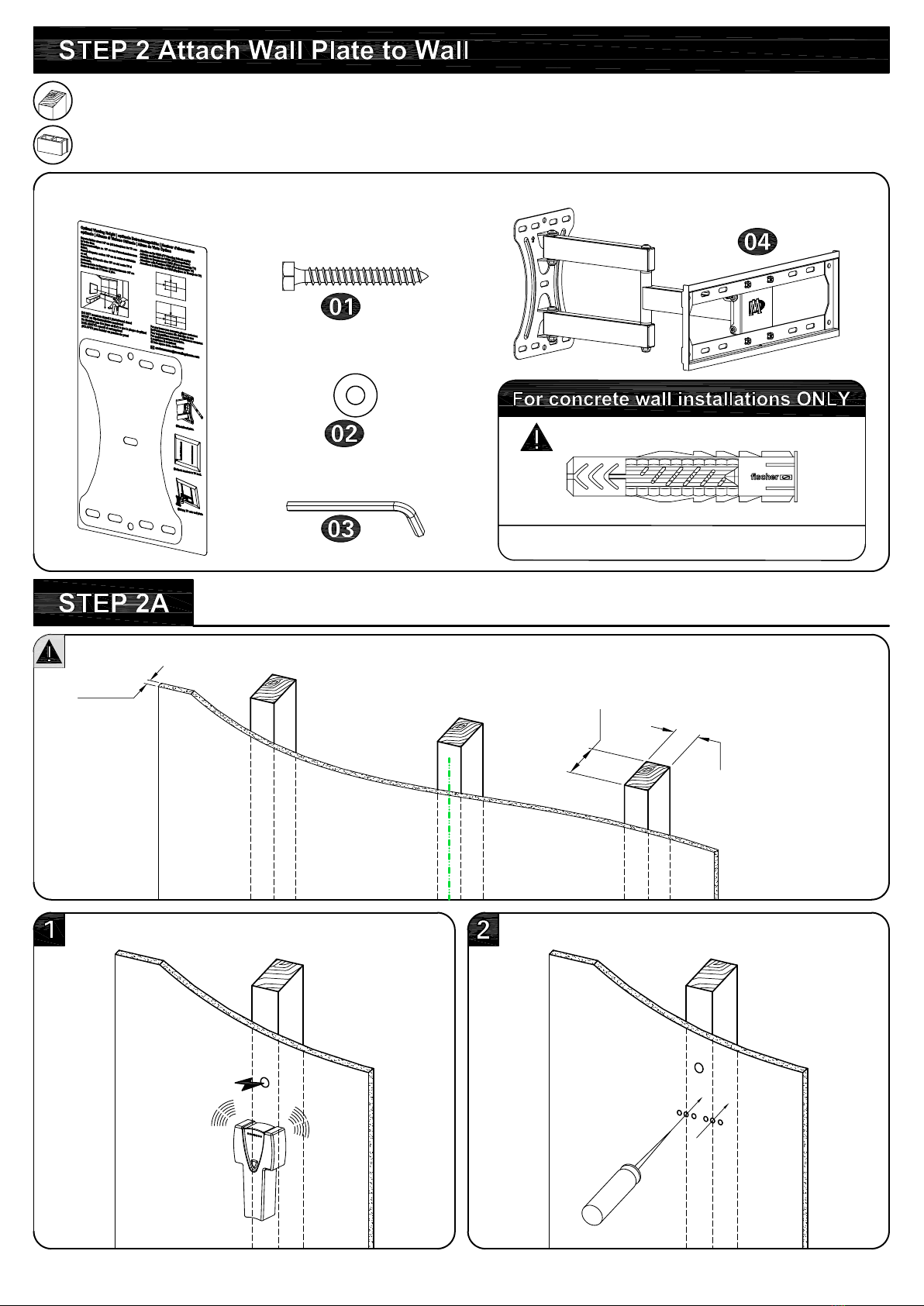

For wood stud installations, follow STEP 2A

For concrete installations, follow STEP 2B on PAGE 6

Parts and Hardware

Lag Bolt M8x70mm

M8 Washer

Allen Key

<16mm

(5/8")

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Wood Stud Installations

Concrete Wall Anchor 4pcs

CAUTION:Do not use in drywall or wood

Fischer UX10x60 R

Wall Plate

Unit x1

Mounting Template

7/32"

(5.5mm)

Go to Step 3 on PAGE 7.

Centre line

2.5"(64mm)

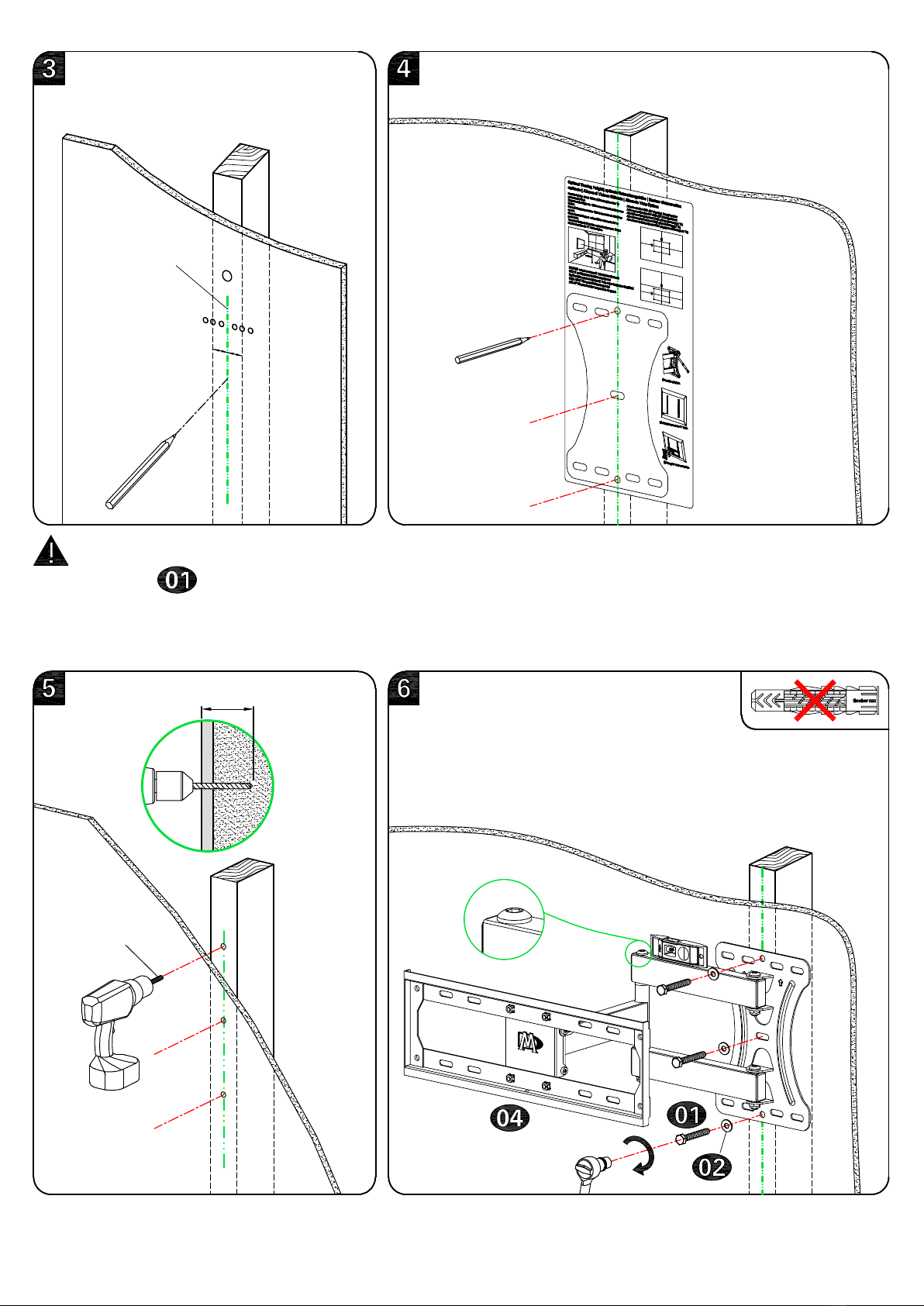

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Level

Mounting Template

Bolt Head UP!

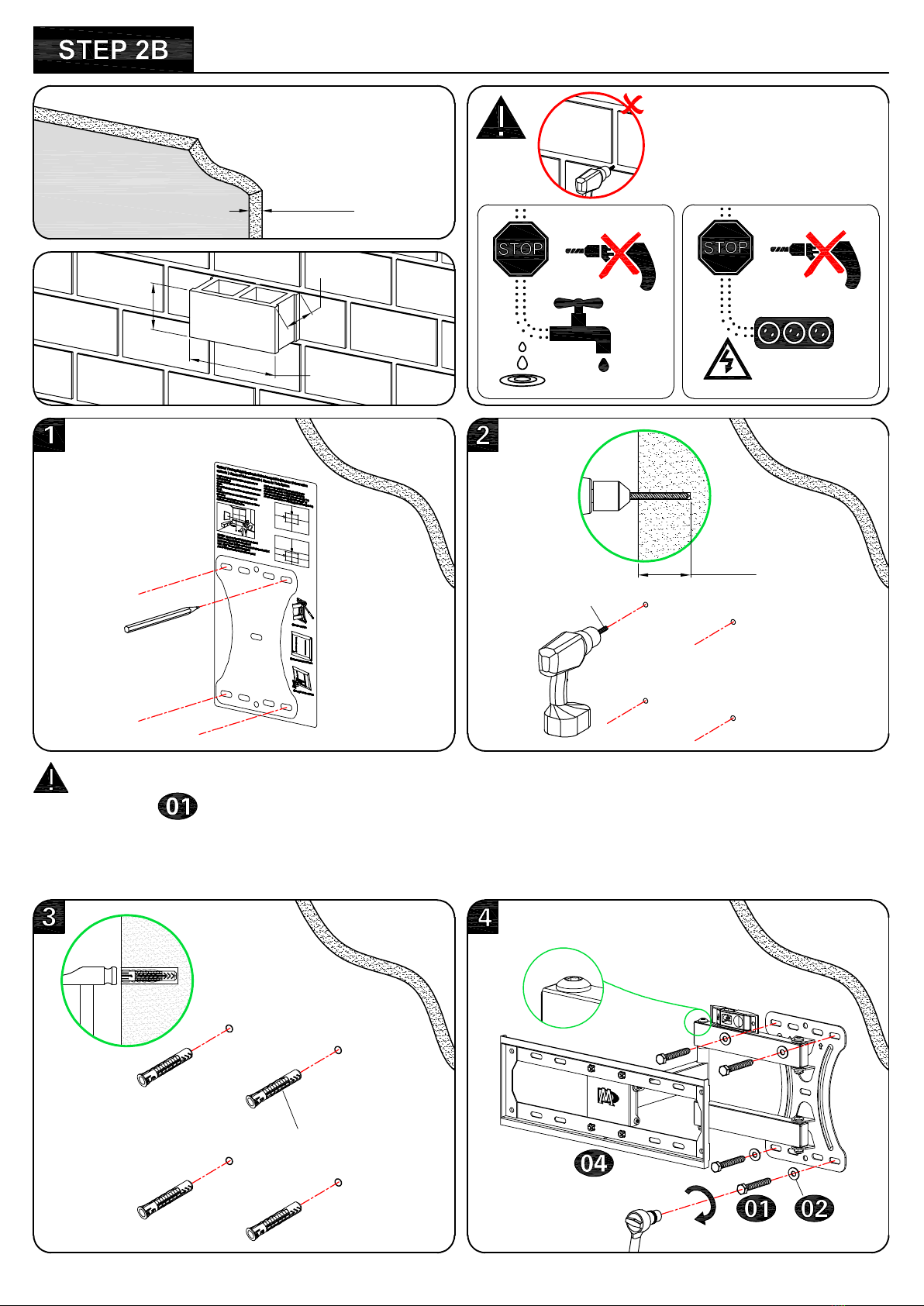

Solid Concrete or Concrete Block Installations

DANGER

2.5"

(64mm)

3/8"

(10mm)

IMPORTANT: Never drill into

the mortar between blocks.

8"(203mm)

16"(406mm)

8"(203mm)

Concrete Wall

Anchor

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Level

Mounting Template

Bolt Head UP!

60 LBS (27 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

4-1 TV leveling adjustment (±3°):

Loosen 4 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

4-2 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

Tilting bolts Tilting bolts

Loosen

Tighten

-15°

+5°

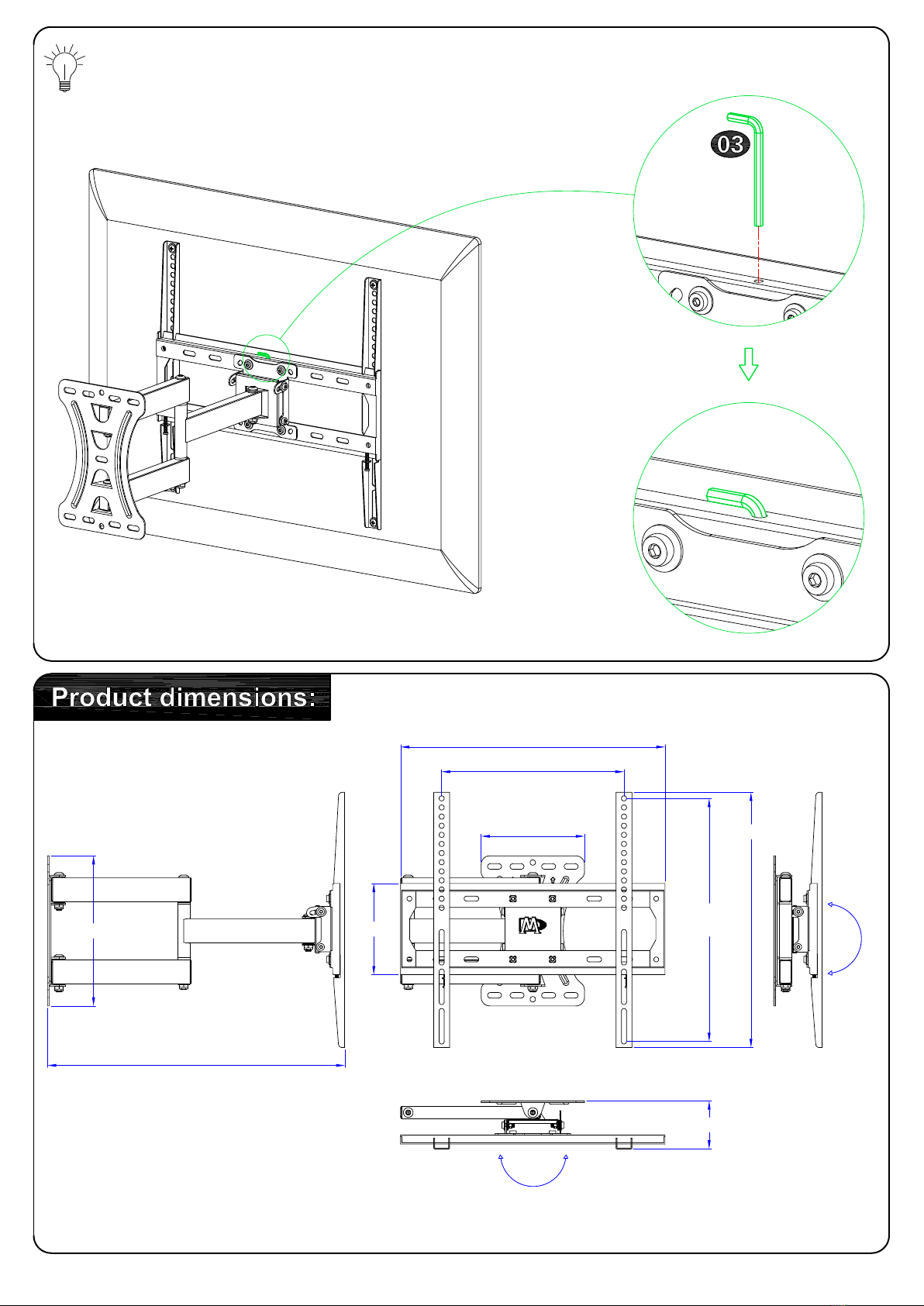

Allen key storage: For easy adjustment, you might put the Allen key on

the wall plate as illustration.

150mm

247mm

489mm

MAX:400mm

170mm

435mm

MAX:400mm

MIN:75mm

420mm

MIN:75mm

79mm

+5°

-15°

+90°/-90°
