Mounting Dream HM2377 Bedienungsanleitung

HM2377 INSTALLATION INSTRUCTION

(A0)

26"~55" Max:400x400mm/16x16"

Min:75x75mm/3x3"

Für die Installationsanweisungen auf deutsch, Siehe Seite 10~11.

Pour l'instruction en français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en español, favor vea la página 14~15.

Per le Istruzioni in italiano, vedi pagina 16~17.

x3 x1

1 2

If you have any questions, please contact us via customerservice@hingear.com

or call us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time).

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3" and

equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

60 LBS (27 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@hingear.com or call us at telephone (626) 645-7128 (USA) Mon - Fri

10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerserv[email protected].

NOTE: Not all hardware included will be used.

TV Brackets

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x50mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 6

Parts and Hardware

Lag Bolt M8x60mm M8 Washer Allen Key

x4 x4 x1

<16mm

(5/8")

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

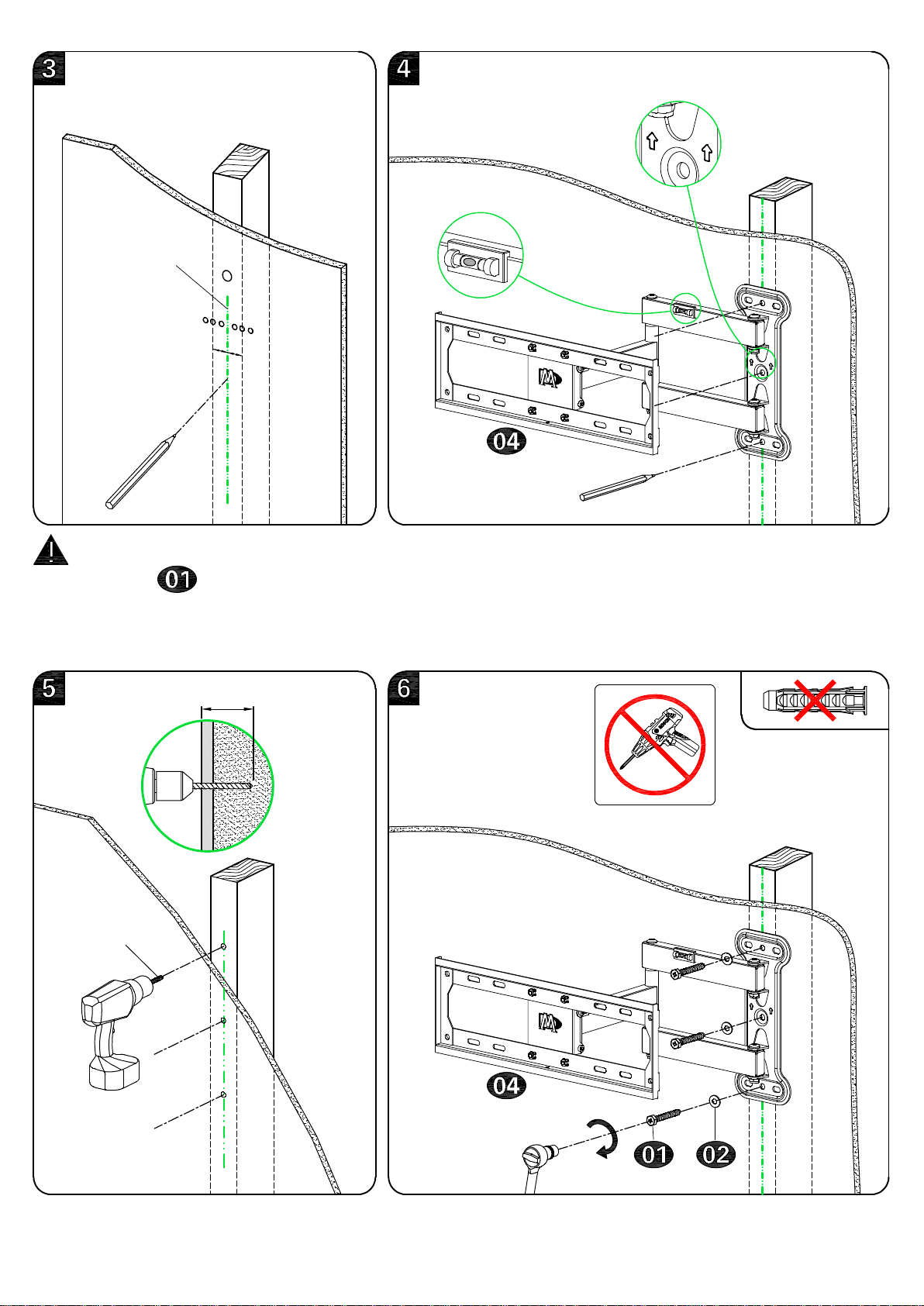

Wood Stud Installation

Concrete Wall Anchor

4pcs

Wall Plate

Unit

these additional pieces shipped directly to you.

by customerservice@hingear.com to have

Mon - Fri 10am - 6pm (Pacific time) or email us

7/32"

(5.5mm)

Go to Step 3 on PAGE 7.

Centre line

2.5"(64mm)

Level

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

No!

Solid Concrete Wall Installation

2.5"

(64mm)

3/8"

(10mm)

Concrete Wall

Anchor

Level

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

No!

60 LBS (27 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

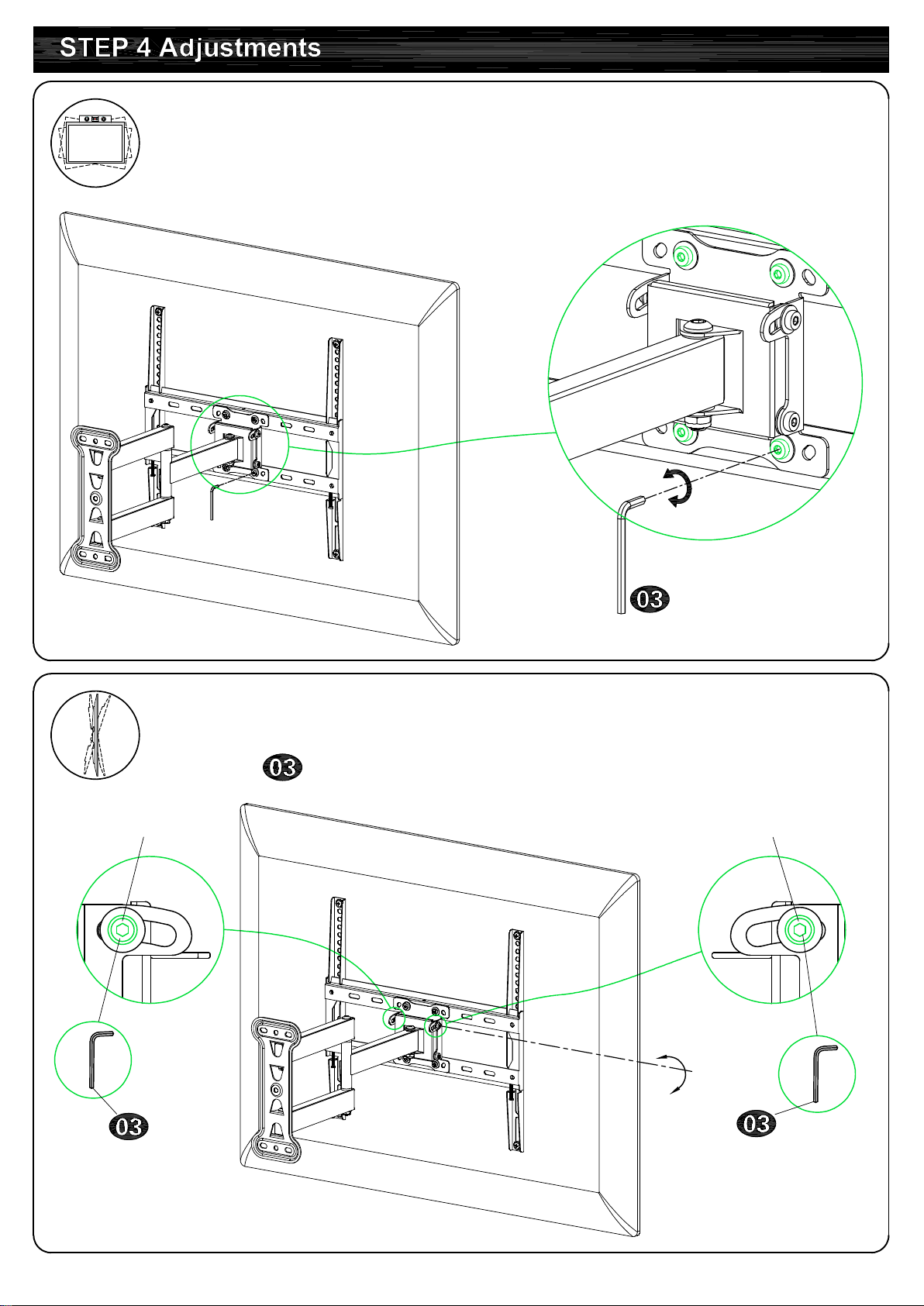

4-1 TV leveling adjustment (±3°):

Loosen 4 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

4-2 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

Tilting bolts Tilting bolts

Loosen

Tighten

-15°

+5°

MAX:400mm

435mm

MAX:

400mm

420mm

492mm 78mm

+90°/-90°

+5°

-15°

Allen key storage: For easy adjustment, you might put the Allen key on

the wall plate as illustration.
