Mountup MU0045 Bedienungsanleitung

10.39~17.32"

264~440mm

0.79~2.76"

20~70mm

12.36~17.72"

314~450mm

75×75mm / 3×3"

100×100mm / 4×4"

MAX:

17.6 lbs (8 kg)

Load

Capacity

Height: 264~440mm

Thickness: 20~70mm

Screen

Do not use

adapter vertically

At least

two people install

1 2

CHOKING HAZARD

Non-VESA Adapter

Installation Instruction DWD1430_V2.0

A (x1)

Bracket

B (x2)

Bracket

C (x12)

Spacer

D (x3)

Knob Nut

E (x3)

Brace

F (x1)

Wrench

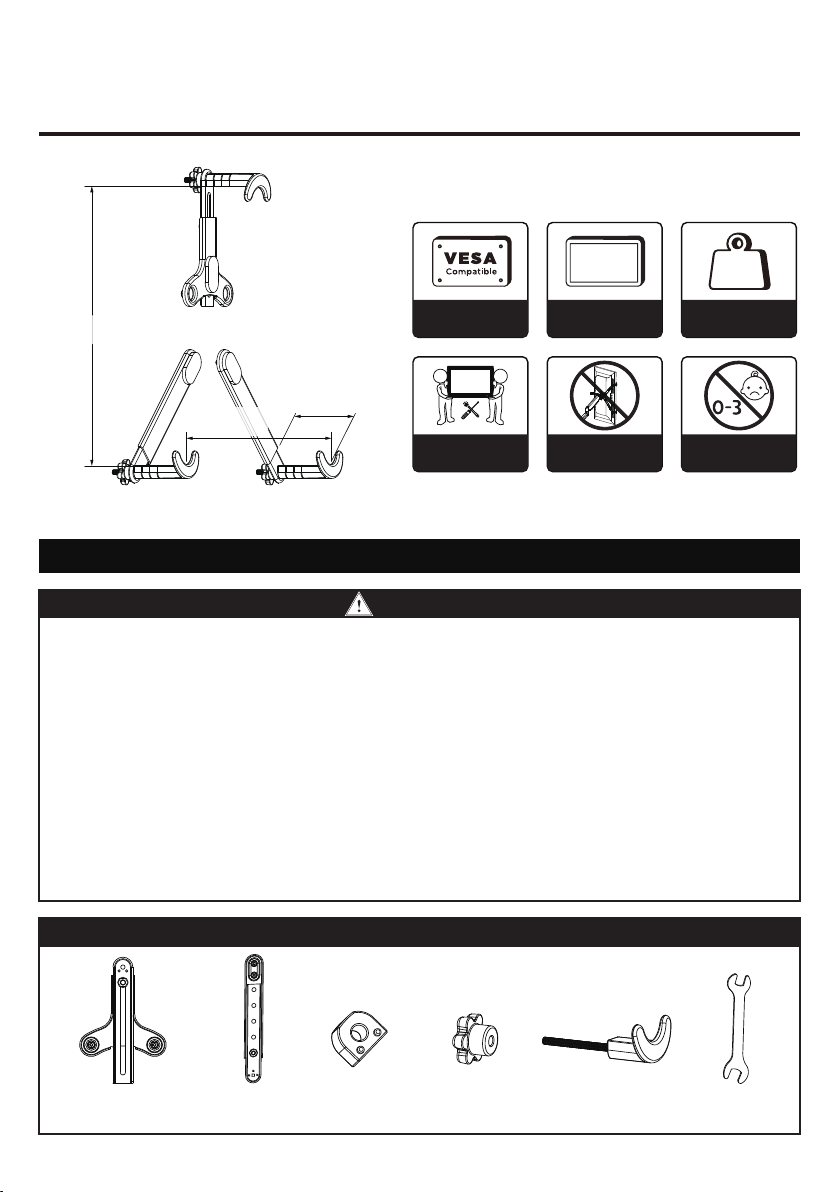

PACKAGE CONTENTS

BEFORE ASSEMBLY

● Please check and make sure all necessary accessories are included and undamaged.

● Please read and understand this manual carefully before installation.

WARNING

● This product contains small items that could be a choking hazard if swallowed.

KEEP AWAY FROM CHILDREN UNDER 3 YEARS OLD. ADULT SUPERVISION IS REQUIRED.

● Improper installation, such as using the product for monitors over its load capacity or for any purpose not explicitly

specified, may cause damage or serious injury. We would not be liable for any damage or injury mounting or caused

by improper inappropriate use.

● At least two people are required to install this product.

● The weight of your screen DO NOT EXCEED 17.6 lbs (8kg).

CAUTION AND MAINTENANCE

● Do not use this adapter vertically.

● Never allow children to climb, stand, hang, or play on any part of screen or adapter.

● Check that the bracket is secure and safe to use at regular intervals (at least every three months).

WARNING

If you have any questions, please feel free to contact Customer Service Via Amazon before returning.

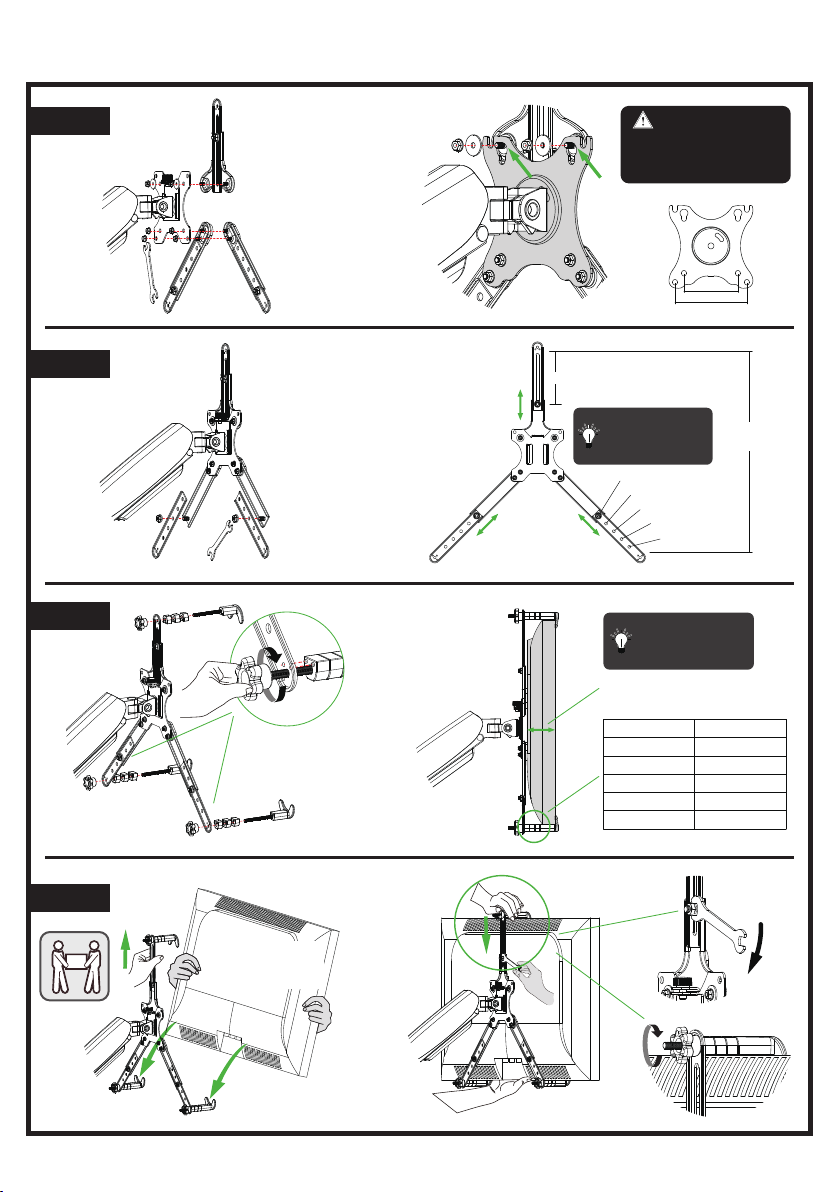

STEP 1

STEP 2

STEP 3

STEP 4

100mm

75mm

H1 = 264~372mm

H2 = 281~389mm

H3 = 298~406mm

H4 = 315~423mm

H5 = 332~440mm

Screen Thickness

T: 20~70mm

Screen Thickness Amount of Spacer

T ≤ 30mm

30mm < T ≤ 40mm

40mm < T ≤ 50mm

50mm < T ≤ 60mm

60mm < T ≤ 70mm

0 pcs

1 pcs

2 pcs

3 pcs

4 pcs

Screen Height

H: 264~440mm

108mm

Attach and screw the

Bracket to VESA plate

with Wrench.

Loose the screws on

the Bracket and adjust

Extension Bar to fit

your screen height.

Choose the amount of Spacer

suitable for the screen thickness,

then assemble the Braces to

Extension Bar.

Tighten

ATTENTION:

Move top bracket upward, and

use upper holes on VESA plate

when Key Holes installation.

NOTE: Five choices

for height adjustment.

(For your reference)

NOTE: Five choices for

thickness adjustment.

(For your reference)

Tighten

Hang screen to the

adapter, then fix and

fasten the kit to screen.

ASSEMBLY STEPS
