MP-Man MP-RUMBA Bedienungsanleitung
DIGITAL VIDEO AND MUSIC PLAYER
MP3, WMA, AMV
USER MANUAL
MP-RUMBA
www.mpmaneurope.com
Please read these instructions completely before you connect, operate or setup this product.
1
GENERAL
1.1 RUMBA Features
Supports the following music formats: MP1, MP2, MP3, WMA
LCD screen
raphical user interface control
Built-in stereo speakers
1.2 The package contents
MP3 player
Stereo earphones
CD-ROM with driver programs and useful software
Quick-start guide
USB cable
1.3 Computer re uirements
Pentium 100 MHz or faster
32 MB RAM or more
CD-ROM
Hard disk with a minimum of 15 MB free space
USB 1.1/2.0
Windows 98/ME/2000/XP, Mac OS 10, Linux 2.4.2
1.4The player interface

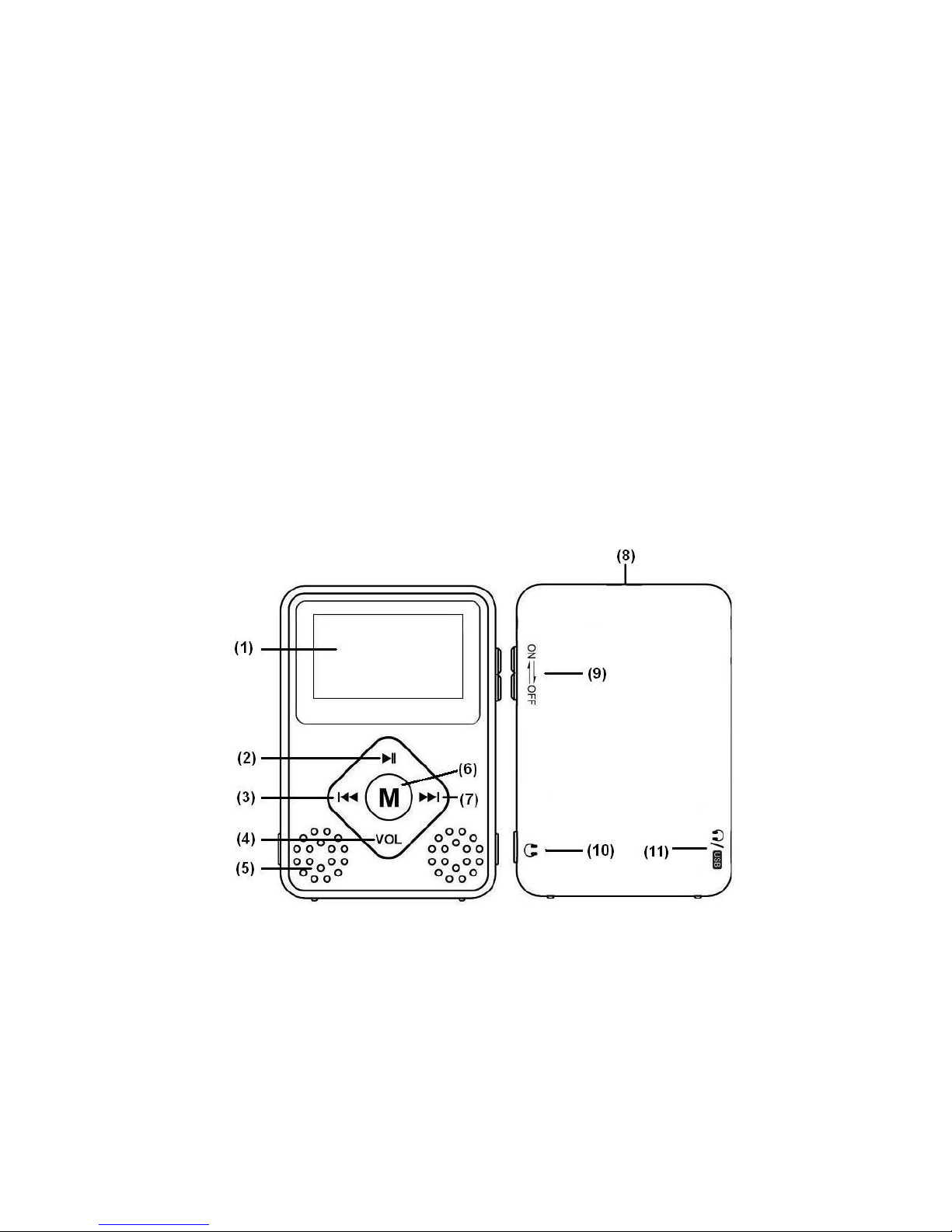

1.5 Layout and controls
(1) LCD screen
(2) PLAY button
(3) PREV/REV or reduce volume
(4) VOL volume mode
(5) SPEAKERS
(6) MENU button (press and hold for 2 seconds to return to the main menu)
(7) NEXT/FWD or increase volume
(8) Attachment point for carrying cord
(9) ON/OFF switch VOL volume mode
(10)Earphone connection
(11)Earphone and USB cable connection
2
1.6 Battery
The RUMBA has an on-screen battery power indicator:
•Charge the battery when the remaining power is low (connect the MP-RUMBA via USB to the PC or optional
charger).
1.7 Switching on and off
Switch the player on and off with the ON/OFF switch.
If you press and hold the PLAY button for 2 seconds, the player will be switched off. If you press and hold
the PLAY button again, the player will be switched on again.
1.7Switching speakers on and off
While playing music, press M button and select “loudspeaker” option
OPERATION
2.0 Main menu
In the main menu you can choose one of three modes with different features:
Music
Setting
You can choose a function with the NEXT and PREV buttons. Press the MENU button to activate the function.
Keep the MENU button pressed for 2 seconds to return to the main menu.
2.1 Music mode
Choose MUSIC mode in the main menu and press MENU to activate it.
You can choose a music file with the NEXT and PREV buttons. Press PLAY to play the file.
MUSIC mode has two sub-modes:
Play mode (available during playback)
Stop mode (available during standby)
Play mode
During playback, press the MENU button to activate Play mode. There are 7 options:
Repeat
Normal All songs will be played once
Repeat One Repeat the current song
Folder Play all the songs in a specific
folder
Repeat
Folder
Repeat all the songs in a specific
folder
Repeat All Repeat all songs
Random Play all the songs in random order
Intro Play the first 10 seconds of each
song
Equalizer
3
Natural
Rock
Pop
Classic
Soft
Jazz
DBB
Tempo rate
Press the NEXT and PREV buttons to change the playback speed.
Note: The Tempo rate option only works with MP3 files!
Replay
A-B replay – you can mark selected music segments for continual replay.
When Replay mode is selected, the icon appears and the letter A flashes.
Press NEXT to set the starting point (A) of the segment to be repeated.
The letter B starts to flash.
Press NEXT to set the end point (B) of the segment to be repeated.
The A–B segment will now be replayed continuously. Press the MENU button to return to
normal playback.
Replay times
Choose how many times the A-B segment must be repeated (1 to 10 times).
Replay gap
Choose the time interval between each A-B-segment (1-10 seconds).
LOUDSPEAKER: on/off
Exit
Stop mode
Press the MENU button briefly while the player is in standby to activate Stop mode. There are 4 options:
Local folder
You can browse files and folders saved on the player here.
Select with the NEXT and PREV buttons and press MENU to activate or confirm the selection.
Delete file
You can delete files and folders saved on the player here.
Select with the NEXT and PREV buttons and press MENU to confirm the deletion.
Delete all
Deletes all the music files on the player.
Exit
4
2.2 Setting mode
Choose SETTIN mode in the main menu and press MENU to activate it.
Backlight
Here you can set how quickly the LCD screen will be switched off.
You can briefly press any button to switch the LCD screen on again.
Choose a duration between 0 and 30 seconds. 0 seconds means that the screen will always be lit.
Language
Here you can choose the interface language.
Power off
Off time - Battery saving function. Here you can set the number of seconds after which the
player will be switched off when it is not being used. (0-60 seconds in 10-second intervals).
Sleep time - Here you can set the time after which the player will be switched off automatically
(0-120 minutes in 10-minute intervals)
Note: 0 seconds /minutes means that automatic switching off or sleep mode are disabled.
Sleep mode must always be set again.
Contrast
Memory info
Here you can see the storage capacity (in MB) of the RUMBA and the percentage capacity used.
F/W version
Here you can find information about the current firmware version.
Exit
SPECIFICATIONS
SCREEN LCD screen
PC CONNECTION USB 2.0, high speed
FLASH MEMORY 1, 2, 4 B
POWER SUPPLY Rechargeable lithium polymer battery
MUSIC FORMAT MP1, MP2, MP3, WMA
DISTORTION Less than 0.1 %
FREQUENCY RAN E 20 Hz~20 KHz
EARPHONE OUTPUT 5 mW (320 Ohm)
OPERATIN SYSTEM Windows 98/ME/2000/XP, Mac OS 10, Linux 2.4.2
TECHNICAL SUPPORT
For more information, please visit our website
w ww.mpmaneurope.com
5
