MP-Man TK 240 Bedienungsanleitung
1
TK240
INSTRUCTION MANUAL
2
1. Please don't open or transform this product by yourself.
2. While cleaning this product, forbid sprinkling water or pouring water.
3. Avoid using this product in the following environments: High temperature, low temperature, moist, much
dust and exposed to the strong sunshine for a long time.
4. Avoid the external force of falling, colliding etc. is struck.
3
2, main function
320X240 dotsfull-color TFT display screen
Support MP3, WMA
Support MPEG-4 (avi) after conversion using MPMANAGER
Support JPEG(jpg) after conversion
Built-in microphone
Multilangual
High speed USB2.0
E-book
Game
4
3, appearance and button
Button explanation:
ON/OFF/HOLD
- Power on : Slide right to turn on the power
- Power off : Slide right and hold for one second or longer to turn off
- Hold function : Slide left to the lock icon. The hold icon is displayed and no button can be
operated.
- Slide the button to the center to release the lock function.
MODE : Press [<< , >>] buttons in the main menu to go to the desired menu, and then [M]
button to confirm. Press [M] button while listening to music, viewing video, photo or text file
5
to move by the order of [File search] –[Current menu]. However, pressing the [M] button for
a long time will make you go back to the main menu.
A-B (AB replies and reads) : In music play mode, press this key to define the starting point A,
press this key again to define the destination B. Music will be played between A and B
points repeatedly. If you want to cancel AB repeat press this key again.
PRE / NEXT :
Fast forward/Rewind
When you press and hold [<<,>>] button while music is playing, the status icon
changeS and it quickly moves to the beginning/end of the music.
(Normally resumed at the point where the button is released).
Moving to the previous/next music.
Pressing the [<<,>>] buttons will make you move to the pre/next music.
6
4, Connecting to PC
Connecting the player to PC will allow you to charge it (please put it on the ON position) and will
allow you also to use your player as a USB external disk to copy any kind of document.
Function introduction
music Movie Radio
Record Photo E-book
Game Setting
7
Music
Choose " Music " in the main menu, press [M] key to confirm.
●Press [>II] button while playing music to pause
Press [>II] button again to play music.
Press [>II] button one more time for 1.5 second and the music would stop immediately.
●Press VOL key and enter ‘Volume menu’ to regulate the volume and press " << " or " >> " to
make sound reduce or increase. (‘VOL’ would only work in playing mode)
●Pressing the [M] button for a long time will make you go back to the main menu.
8
●While you’re in music mode, pressing [M] would make you see the Mp3 file list.
After choosing the Mp3 file you want, press the [>II] button to play.
Movie
Choose " Movie " in the main menu, press [M] key to confirm.
●Press [>II] button while playing movie to pause
Press [>II] button again to play movie.
Press [>II] button one more time for 1.5 second and the movie would stop immediately.
●Press VOL key and enter ‘Volume menu’ to regulate the volume and press " << " or " >> " to
make sound reduce or increase. (‘VOL’ would only work in playing mode)
●Pressing the [M] button for a long time will make you go back to the main menu.
●While you’re in movie mode, pressing [M] would make you see the movie file list.
After choosing movie file you want, press the [>II] button to play.
9
Note : To convert movies please use MPMANAGER software included in your player and
CDROM.

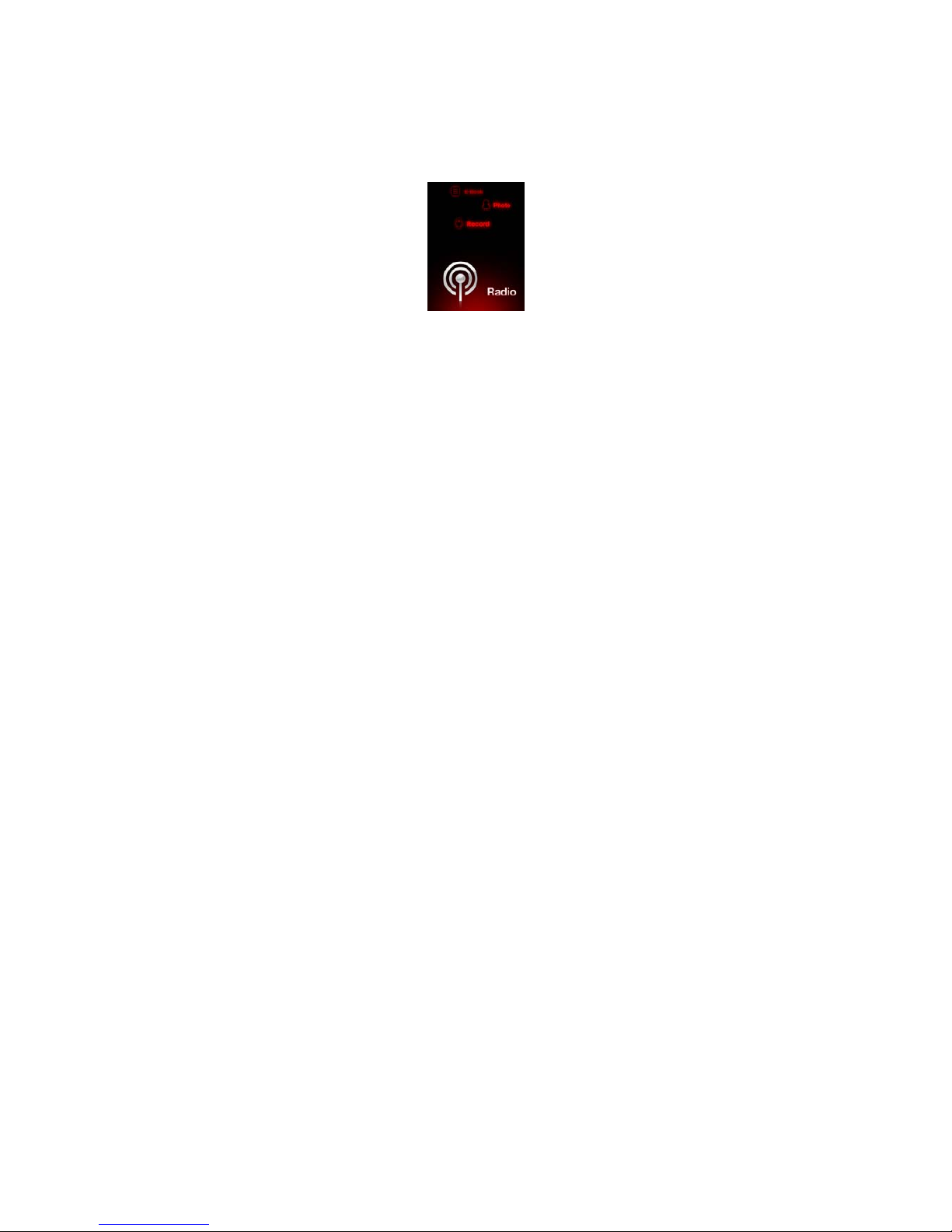

Radio
Choose " Radio " in the main menu, press [M] key to confirm.
●Pressing [<<,>>] keys would make 0.05 MHZ change, go up and down.
●Pressing [<<,>>] keys for a long time would make it find broadcast itself and stop when
it finds one.
●If you press [M] keys, it will turn into PRESET to SCAN. While you are in preset mode, if
you press [>>I] key, automatically Preset Memory would be loading.
●Pressing [A-B] key will record the loading broadcast and one more press would make in
pause recording. Pressing [M] key will save and finish the recording.
●Pressing [M] key for 1 or more second will make you go back to main menu.
Record
10
Choose " Record " in the main menu, press [M] key to confirm.
●In recording mode, you should press [A-B] key to begin recording. If you press the [A-B] key
again, recording would pause. It will begin to record again after you press [A-B] key one
more time.
●Either you were recording or pausing, pressing [A-B] key for 1 or more second will save the
loading file. After saving, recording will restart, however this time, you don’t need to repress
[A-B] key to start.
●Pressing [M] key for 1 or more second will save the loading file. After saving, you will go back
to main menu.
●If you want to listen to the voice you just saved, you should go in to the ‘Music’in the main
menu. Play the file which is inside the ‘VOICE’folder.
