MSI P600 MS-16D3 Montageanleitung

P600 (MS-16D3) Disassembly Guide

■ 1、BATTERY PACK

■ 2、BOTTOM DOOR ASSY

■3、HDD MODULE

■4、ODD MODULE

■ 5、THERMAL-KIT AND RAM

■ 6、SEPARATE UPPER CASE AND LOWER CASE

■7、LOWER CASE ASSY

■8、UPPER CASE ASSY

■9、LCD MODULE ASSY

P600（MS-16D3）Disassembly Guide

1、BATTERY PACK

1.1：Move the “Unlock’ button base on left picture

shows;

1.2：Release the “Release” button and move the

battery pack base on left picture.

Component P/N Qty

Battery Pack S9N-3089200-SB3 1

P600（MS-16D3）Disassembly Guide

2、BOTTOM DOOR ASSY

2.1：Remove the 10 screws (M2.5*4mm), then

remove the Bottom door.

Attention: the screw driver touque is: 2.3Kgf-cm

Component P/N Qty

Bottom door 307-6D2J211-SE0 1

Screw E43-1254002-H29 10

P600（MS-16D3）Disassembly Guide

3、HDD MODULE

3.1：Remove the 3 screws (M2.5*4mm); Then

remove the HDD Module according to the

direction as pic shows.

Attention: the screw driver torque: 3.0Kgf-cm

Component P/N Qty

Screw E43-1254002-H29 3

3.2 ：Remove the 2 screws (M3*3.5mm) that

stabilize the bracket.

Attention: the screw driver torque is 2.3Kgf-cm

Component P/N Qty

Screw E43-1303502-H29 2

3.3：Remove the HDD bracket.

Component P/N Qty

HDD Bracket 307-6910111-A89 1

HDD Module S71-2432538-W36 1

P600（MS-16D3）Disassembly Guide

4、ODD MODULE

4.1：Remove the ODD Module according to the

direction as pic shows.

4.2：Remove ODD Bezel as below.

Component P/N Qty

ODD Bezel 307-6D1F211-SE0 1

4.3：Remove 2pcs screws (M2*3mm). Then remove

ODD Bracket as below.

Attention: the screw driver torque: 2.3Kgf-cm

Component P/N Qty

Screw E43-1203003-H29 2

ODD Bracket E2M-6D10112-A89 1

ODD Module S7D-2170004-H44 1

P600（MS-16D3）Disassembly Guide

5、THERMAL-KIT AND RAM

5.1:Remove the 3 screws(M2.5*4mm) and FAN

cable, after that remove the Fan.

Attention：the screw driver torque is 2.3Kgf-cm

Component P/N Qty

Screw E43-1254002-H29 3

Fan E33-0800140-A32 1

5.2：Remove the 3 screws(M2.5*4mm) ，after that

remove the thermal module.

Attention：the screw driver torque is 2.3Kgf-cm

Component P/N Qty

Screw E43-1254002-H29 3

HEATSINK E31-0801810-TA9 1

5.3：Push the two sides shielding of RAM as pic

Shows, then remove the RAM module; after that

remove the CPU.

Component P/N Qty

CPU A13-2220106-I06 1

RAM Module S7C-S458804-S02 1

P600（MS-16D3）Disassembly Guide

6、SEPARATE UPPER CASE AND LOWER CASE

6.1：Remove 7 screws(M2*3mm)

Attention: the screw driver torque is 2.3Kgf-cm

Component P/N Qty

Screw E43-1203003-H29 7

6.2：Remove 13 screws(M2.5*4mm)

Attention: the screw driver torque is 2.3Kgf-cm

Component P/N Qty

Screw E43-1254002-H29 13

P600（MS-16D3）Disassembly Guide

6、SEPARATE UPPER CASE AND LOWER CASE

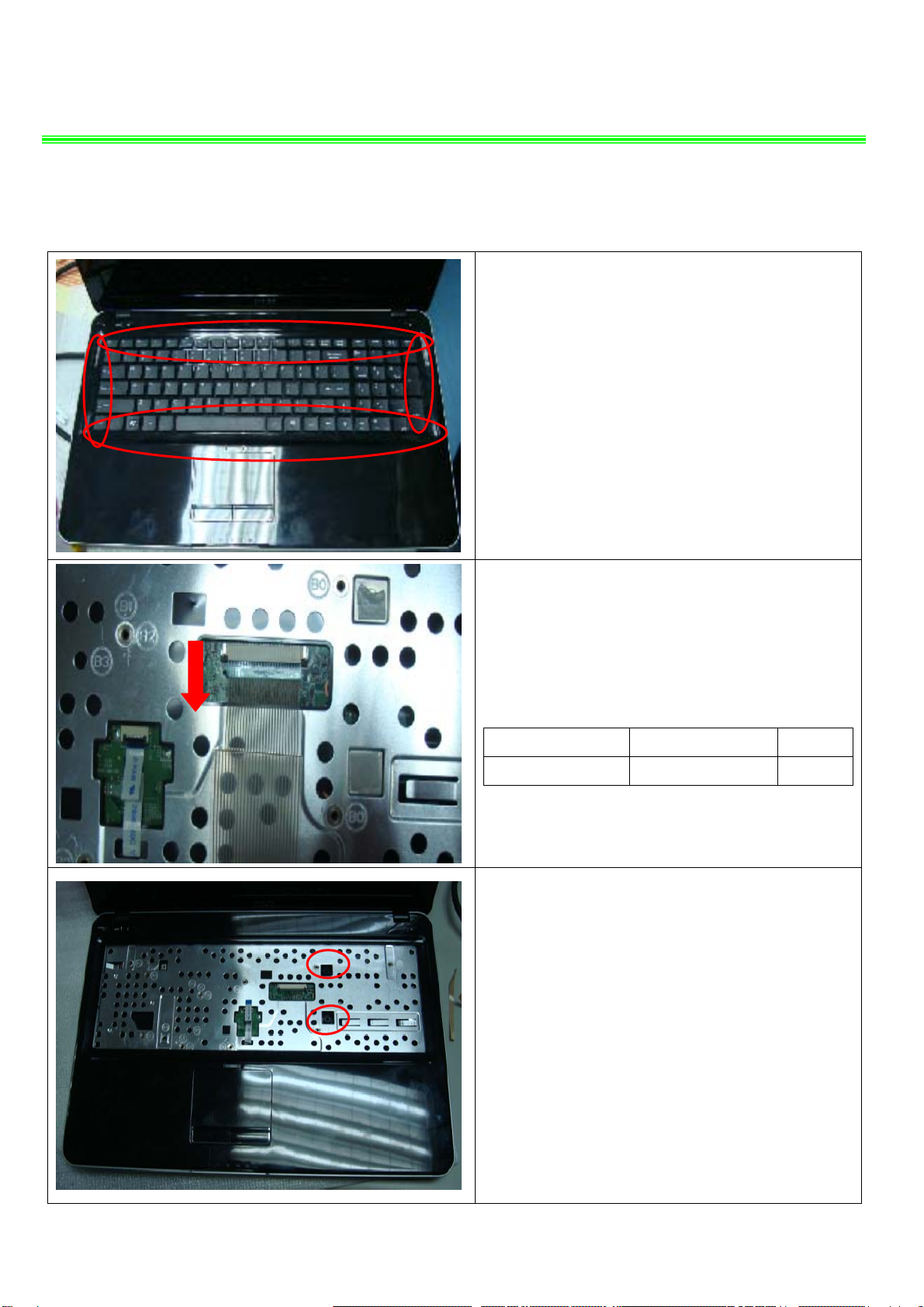

6.3：Before remove K/B, firstly remove the upside,

then remove the two sides, last remove the

downside.

6.4 ：Firstly push connector according to the

direction as pic shows; then remove the cable;

Component P/N Qty

Keyboard S1N-3EUS231-SA0 1

6.5: When remove the keyboard should

notice the two bosses at bottom of the

keyboard. .

P600（MS-16D3）Disassembly Guide

6、SEPARATE UPPER CASE AND LOWER CASE

6.6：Remove the 1 screw(M2.5*4mm);

Attention: the screw driver torque is: 2.0-2.5Kgf-cm

Component P/N Qty

Screw E43-1254002-H29 1

6.7：First release the connector that stabilize the

cable, then remove Touchpad cable according to

the direction that pic shows.

6.8：When remove the Upper case, detach the

Upper case down side from Lower case;

P600（MS-16D3）Disassembly Guide

7、LOWER CASE ASSY

7.1：Remove the Power cable and the LVDS cable

as pic shows.

7.2：Remove 1 screw (M2.5*4mm); then remove

the Power board.

Attention: the screw driver torque is 2.0-2.5Kgf-cm

Component P/N Qty

Power Board 607-16D3C-01S 1

Screw E43-1254002-H29 1

7.3：Remove the 3 screws (M2.5*4mm); then

remove the Audio board.

Attention: the screw driver torque is 2.0-2.5Kgf-cm

Component P/N Qty

Audio board 607-16D3B-01S 1

Screw E43-1254002-H29 3
