CHAPTER 1 INTRODUCTION

1-1

The MS-6182 ATX WH8 mainboard is a high-performance

computer mainboard based on Intel®810 chipset. The MS-6182 is designed

for the Intel®Pentium®II/III or CeleronTM processor for inexpensive

business/personal desktop markets.

The Intel®810 chipset is the first generation Integrated Graphics

chipset for the Intel®Pentium®II/III CeleronTM processor. The graphics

accelerator architecture consists of dedicated multi-media engines executing

in parallel to deliver high performance 3D, 2D, and motion compensation

video capabilities. An integrated centralized memory arbiter allocates

memory bandwidth to multiple system agents to optimize system memory

utilization. A new chipset component interconnect, the hub interface, is

designed into the Intel®810 chipset to provide an efficient communication

channel between the memory controller hub and I/O hub controller.

The Intel®810 chipset contains three core components: the

GraphicsandMemoryControllerHub(GMCH),theI/OControllerHub

(ICHO/ICH)andtheFirmwareHub(FWH). TheGMCHintegratesa 66/

100MHz,P6familysystembuscontroller,2D/3Dgraphicsaccelerator,

100MHz SDRAM controller and high-speed hub interface for communication

withtheICHO/ICH. TheICHO/ICHintegratesanUltraATA/33(ICHO) or

UltraATA/66(ICH) controller,USBhostcontroller, LPC interfacecontroller,

FWHinterfaceconroller, PCI interface controller,AC’97digitalcontrollerand

a hub interface for communication with the GMCH.

The Intel®82802 Firmware Hub (FWH) component is part of the

Intel®810 chipset. The FWH is key to enabling future security and

manageability infrastructure for the PC platform.

Chapter 1

INTRODUCTION

CHAPTER 1 INTRODUCTION

1-2

1.1 Mainboard Features

CPU

lSlot 1 for Intel®Pentium®II/Pentium®III/CeleronTM processor.

lSupports233MHz,266MHz,300MHz,333MHz,350MHz,400MHz,

450MHz,500MHzandfasterprocessor.

Chipset

lIntel®810(GMCH)chipset. (421BGA)

- Integrated Graphics Controller

- Intel DDM Architecture

- SDRAM memory Independent of System Bus

lIntel®ICH/ICH0chipset.(241 BGA)

-AC’97ControllerIntegrated

- 2 full IDE channels, up to ATA66

- 2 full IDE channels, up to ATA33 (ICH0 only)

- Low pin count interface for SIO

FrontSideBus(FSB)

l66/100MHz clocks are supported.

MainMemory

lSupport three 168-pin DIMM sockets.

lSupporta maximummemorysize of256MB(64-bit)or 512MB(128-bit)

SDRAM.

Slots

lOne AMR(Audio Modem Riser) and one PTI(PanelLink TV-Out Interface)

lSix 32-bit PCI Bus slots and one 16-bit ISA slot (wherein one PCI/ISA slot

is shared).

lSupport 3.3v/5v PCI bus Interface.

CHAPTER 1 INTRODUCTION

1-3

On-BoardIDE

lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA/66 operation modes.

lCan connect up to four IDE devices.

On-BoardPeripherals

lOn-BoardPeripheralsinclude:

-1floppyportsupports2FDDwith360K,720K,1.2M,1.44Mand

2.88Mbytes.

-2serialport(COMA+ COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports and 2 USB connectors

- 1 IrDA connector for SIR.

-1VGA port

Video

lGMCH chip integrated

l2D/3DGraphics

lOnboard 4MB Display Cache (optional)

Audio

lICH/ICH0 chip integrated

lCreative®ES1373(optional)

-RunningonPCIBUS.

- Support Direct Sound and Direct Sound 3D

-AC97’ Compliant

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

lAdjustable FSB CPU core voltage.

CHAPTER 1 INTRODUCTION

1-4

Dimension

lATXFormFactor:30.5(L)x19.2(W)x4 layersPCB

Mounting

l8 mounting holes.

SystemHardwareMonitor

lCPU/Power Supply/Chassis Fan Revolution Detect

lCPU Fan Control (the fan will automatically stop when the system enters

suspend mode)

lSystem Voltage Detect

lCPU Overheat Warning.

lDisplay Actual Current Voltage

OtherFeatures

lKeyboard Password Wake-Up (reserved)

lLANWake-Up

lInternal/ExternalModemWake-Up

lSuspend to RAM (STR)

CHAPTER 1 INTRODUCTION

1-5

1.2 Mainboard Layout

MS-6182ATXWH8Mainboard

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

ATX

Power Supply

Intel®

810

Chipset

(GMCH)

SLOT 1

DIMM 2

Top: mouse

Bottom:

keyboard

Top:Port 1

USB

DIMM 3

IDE2

Bottom:

Port2

IDE1

FDD

Intel®

ICH0/ICH

JMDM1

Creative

ES1373

JFP1

JGS1

JGL1

JBAT1

JWOL1

Diagnostic LED

MDM_IN

AUX_IN

COM B

CPUFAN

BATT

Top: LPT

Bottom:

COMA

VGAPort

Top: Midi/

GamePort

Bottom:

Line-Out

Line-In

Mic

CD_IN

SDRAM SDRAM

J16

SYSFAN

J15

PCI SLOT 4

PCI SLOT 5

PCI SLOT 6

J17

USB2

AMR PTI

JKBV1

DIMM 1

FWH

JP3

ISA SLOT

J10

PSFAN

W83627HF-AW

W83628F

CHAPTER 2 HARDWARE INSTALLATION

2-1

Chapter 2

HARDWARE INSTALLATION

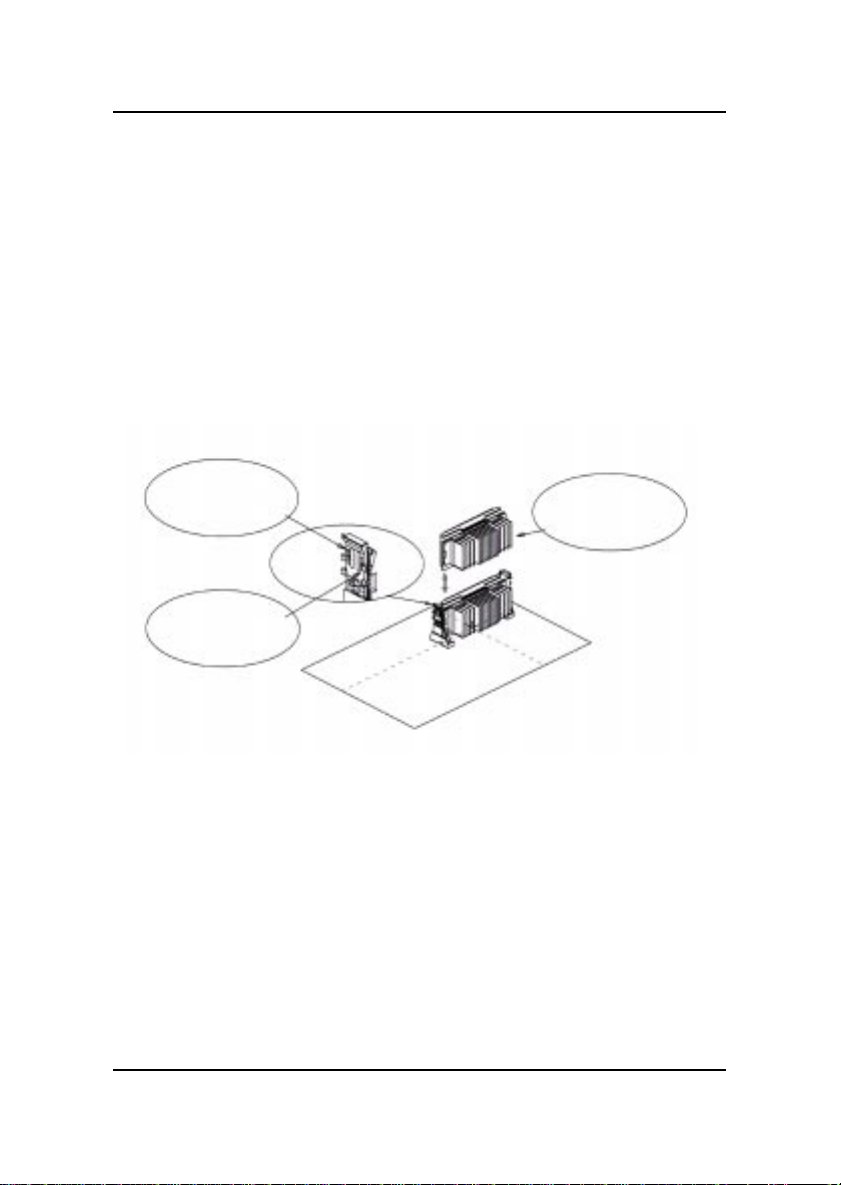

2.1 Central Processing Unit: CPU

Step 1: Install the Retention Mechanism.

Attach the Retention Mechanism to the Mainboard. Push the Plastic

lock to secure the Retention Mechanism into the mainboard.

Secure the processor by

pulling up the Retention

Mechanism Processor

Lock

Insert the processor

like inserting a PCI or

an ISA card

To release the

processor, push the

Retention Mechanism

Processor lock down

Step 2: Install the Processor.

Insert the Processor like inserting a PCI or an ISA card.

Step 3: Lock the Processor.

Lock the processor by pulling up the Retention Mechanism

processor lock shown above.

Note: The Retention Mechanism processor lock can only lock S.E.C.C. 2

and S.E.P.P. processor.

2.1-1 Processor Installation Procedure

CHAPTER 2 HARDWARE INSTALLATION

2-2

The mainboard CPU Bus Frequency can be set through BIOS setup

If CPUClock = 66MHz

Core/Bus ratio = 3.5

then CPU core speed = Host Clock x Core/Busratio

= 66MHzx3.5

= 233MHz

2.1-2 CPU Core Speed Derivation Procedure

2.1-3 Overclocking Jumper: J2

Overclocking is operating a CPU/Processor beyond its specified

frequency. J2 jumper is used for overclocking.

J2 Function

Short

Open

Automatically detect CPU

Bus Frequency

Allows CPU overclocking.

Set 66MHz to 100Mhz

CHAPTER 2 HARDWARE INSTALLATION

2-3

2.1-4 Fan Power Connector: CPUFAN/PSFAN/SYSFAN

These connectors support system cooling fan with + 12V. It supports three

pin head connector. When connecting the wire to the connector, always

take note that the red wire is the positive and should be connected to the

+12V, the black wire is Ground and should be connected to GND. If your

mainboard has System Hardware Monitor chipset on-board, you must use a

specially designed fan with speed sensor to take advantage of this function.

For fans with fan speed sensor, every rotation of the fan will send out 2

pulses. System Hardware Monitor will count and report the fan rotation

speed.

Note: 1. Always consult vendor for proper CPU cooling fan.

2. CPU FAN supports the FAN control. You can install PC Alert

utility. This will automatically control the CPU FAN Speed according

to the actual CPU temperature.

PSFAN

PSFAN: PowerSupplyFan

CPUFAN:ProcessorFan

SYSFAN: System(Chassis) Fan

+12V

SENSOR

GND

SYSFAN

SENSOR +12V GND

SENSOR

+12V

GND

CHAPTER 2 HARDWARE INSTALLATION

2-4

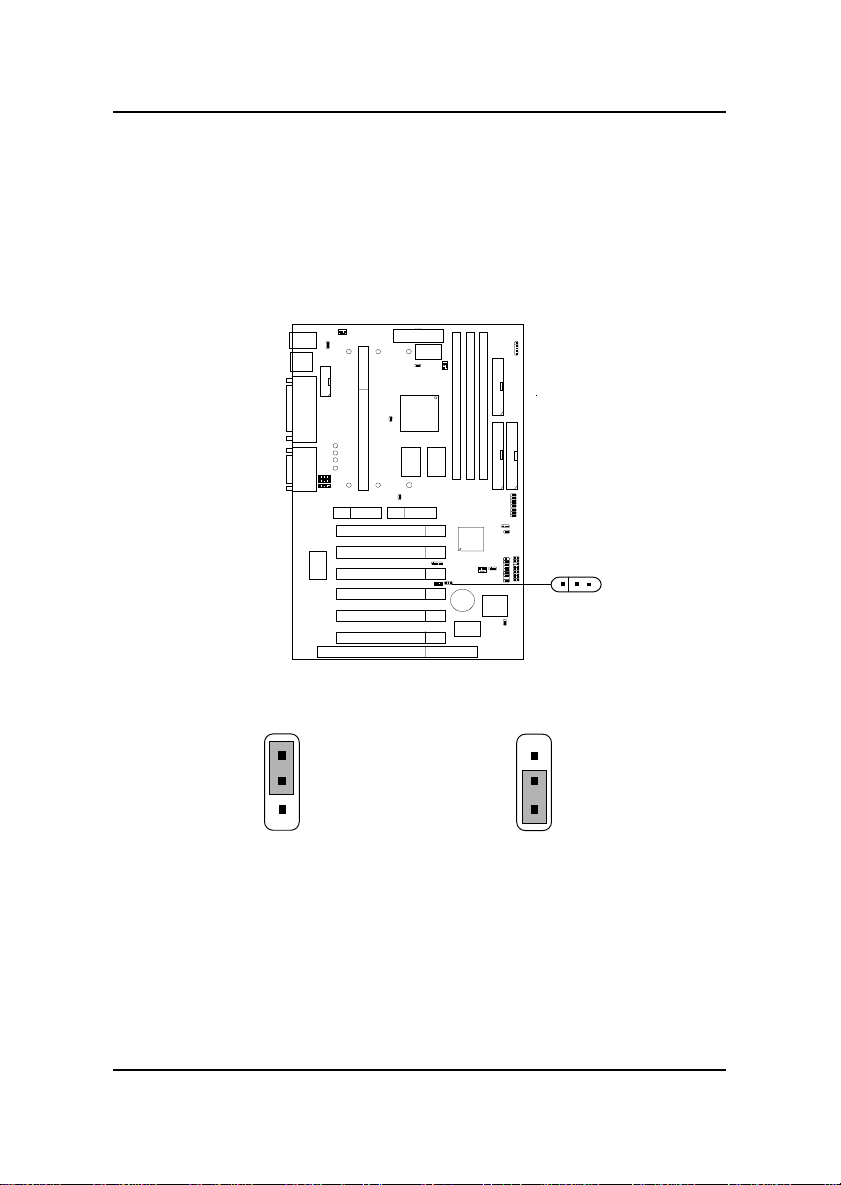

2.2 Clear CMOS Jumper: JBAT1

A battery must be used to retain the mainboard configuration in CMOS

RAM. Short 1-2 pins of JBAT1 to store the CMOS data.

Keep Data Clear Data

Note: You can clear CMOS by shorting 2-3 pin, while the system is off.

Then, return to 1-2 pin position. Avoid clearing the CMOS while

the system is on, it will damage the mainboard. Always unplug

the power cord from the wall socket.

JBAT1

CHAPTER 2 HARDWARE INSTALLATION

2-5

2.3 Memory Installation

2.3-1 Memory Bank Configuration

Themainboardsupportsamaximummemorysizeof 256MB(64-bit technol-

ogy) or 512MB(128-bit technology for SDRAM: It provides three 168-pin

unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports

8 MB to 128 Mbytes DIMM memory module.

DIMM3(Bank3+ Bank2)

DIMM1(Bank0+Bank1)

DIMM2(Bank2+Bank3)

D X

S S

X D

S: SingleBankDIMM

D: Double Bank DIMM

X: Cannot be installed

DIMM 2 DIMM 3

NOTE: When you install Double Bank DIMM or DIMM 2, DIMM 3 will

not be functional and vice versa. To make use of DIMM 2 and

DIMM 3, insert a Single Bank DIMM to each of them. It is

recommended that you use the same type or model of SDRAM.

If you’re going to use only one(1) Single Bank DIMM, install

the Single Bank DIMM on DIMM 2. Using DIMM 3 to install one

Single Bank DIMM will not be functional.
