MSI MS-6378 Bedienungsanleitung

MSI

MICRO-STAR INTERNATIONAL

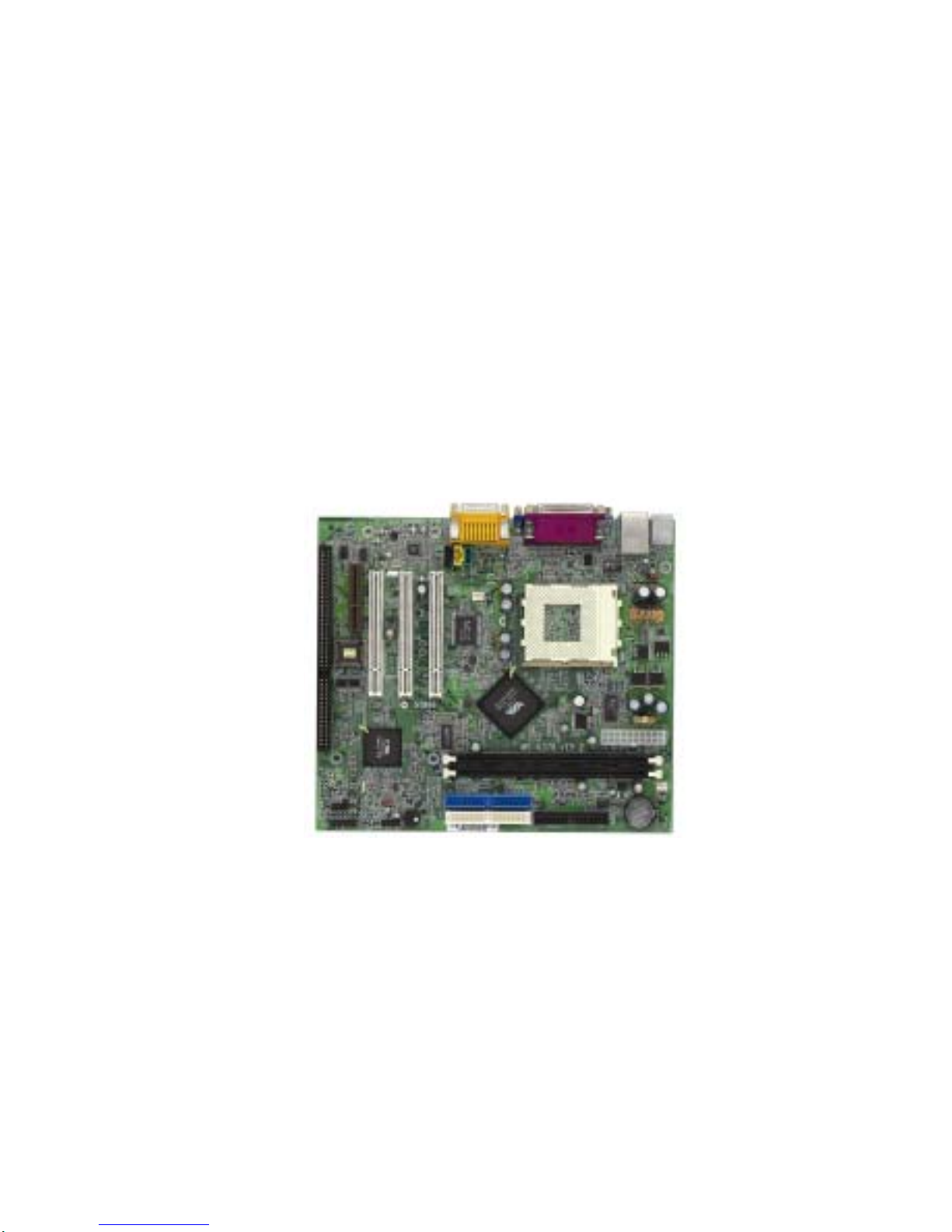

MS-6378 ATX Mainboard

Version 2.0

G52-MA00432

Manual Rev: 2.0

Release Date: July 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference, in which case

the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in

order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER

AU RESEAU.

Micro-Star International MS-6378

For Home or Office Use

Tested to comply

with FCC Standard

Edition

July 2001

The material in this document is the intellectual property of MICRO-

STAR INTERNATIONAL. We take every care in the preparation of

this document, but no guarantee is given as to the correctness of its

contents. Our products are under continual improvement and we reserve

the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

AMD, Athlon and Duron are registered trademark of AMD Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 95 and Windows NT are registered trademarks of Microsoft.

Netware is a registered trademark of Novell.

Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

2.0 First Release for PCB2.X July 2001

Modify BIOS & VGA driver

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly

110/220V before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or

module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause

electrical shock.

11. If any of the following situations arises, get the equipment checked by

a service personnel:

• The power cord or plug is damaged

• Liquid has penetrated into the equipment

• The equipment has been exposed to moisture

• The equipment has not work well or you can not get it work

according to User’s Manual.

• The equipment has dropped and damaged

• If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C

(1400F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Contents

Chapter 1. Introduction ...............................................................1-1

MainboardSpecification ............................................................1-2

MainboardLayout .....................................................................1-4

Quick Components Guide .........................................................1-5

Key Features ............................................................................1-6

MSI Special Features................................................................1-7

PC Alert™ III .......................................................................1-7

Chapter 2. Hardware Setup ........................................................2-1

Central Processing Unit: CPU ...................................................2-2

CPU Installation Procedures ...............................................2-2

CPUCoreSpeedDerivationProcedure................................2-4

CPU Clock Frequency Selection: JFSB1 ............................2-4

Memory ....................................................................................2-5

Introduction to SDRAM .......................................................2-5

DIMM Modules Combination ...............................................2-6

Installing DIMM Modules .....................................................2-6

Power Supply............................................................................2-7

ATX 20-Pin Power Supply....................................................2-7

Back Panel ...............................................................................2-8

MouseConnector................................................................2-8

KeyboardConnector ...........................................................2-9

USB Connectors .................................................................2-9

Parallel Port Connector .....................................................2-10

Serial Port Connector: COM 1........................................... 2-11

VGA DB 15 Pin Connector................................................ 2-11

Joystick/Midi Connectors ..................................................2-12

Audio Port Connectors ......................................................2-12

LAN Jack (RJ-45) ..............................................................2-12

Connectors .............................................................................2-13

Floppy Disk Drive Connector: FDD1 ..................................2-13

USB Front Panel Connector: USB1...................................2-13

Hard Disk Connectors: IDE1 & IDE2 .................................2-14

Case Connector: JFP1 ......................................................2-15

Wake On Ring Connector: JMDM1 ...................................2-17

Wake On LAN Connector: JWOL1 ....................................2-17

Fan Power Connectors: C_FAN1/S_FAN...........................2-18

CD-In/Aux Line-In/Modem-In Connector: CD_IN/AUX_IN/

MODEM_IN.......................................................................2-19

Chassis Intrusion Switch Connector: JCASE ....................2-20

IrDAInfrared ModuleConnector: JIR1 ................................2-20

Front Panel Audio Connector: JAUD1 ...............................2-21

Jumpers ..................................................................................2-22

Clear CMOS Jumper: JBAT1 .............................................2-22

Onboard Audio Codec Jumper: JP1...................................2-23

USB Keyboard Wake-up Jumpers: JBV1 & JBV2 .............2-24

Slots .......................................................................................2-25

PCI Slots ..........................................................................2-25

CNR (Communication Network Riser) Slot ........................2-25

ISA Slot (Optional) ............................................................2-25

PCI Interrupt Request Routing ...........................................2-26

Chapter 3. AWARD® BIOS Setup................................................3-1

Entering Setup ..........................................................................3-2

Control Keys .............................................................................3-2

Getting Help..............................................................................3-3

The Main Menu .........................................................................3-4

Standard CMOS Features .........................................................3-6

AdvancedBIOS Features ..........................................................3-9

Advanced Chipset Features ....................................................3-13

IntegratedPeripherals .............................................................3-17

vii

Power Management Setup ......................................................3-22

PnP/PCIConfigurations...........................................................3-28

PC Health Status ....................................................................3-31

Frequency/Voltage Control ......................................................3-32

Load Fail-Safe/Optimized Defaults ..........................................3-33

Set Supervisor/User Password ................................................3-35

Save & Exit Setup...................................................................3-37

Exit Without Saving.................................................................3-38

Chapter 4. Installing Drivers .......................................................4-1

System Requirements...............................................................4-2

VIA® Chipset ............................................................................4-3

Features .............................................................................4-3

VIA Chipset Driver Installation .............................................4-3

VIA KLE133 VGA Driver Installation ....................................4-5

VIA AC97 PCI Sound Driver Installation...............................4-5

Realtek® 8100 Fast Ethernet Controller ....................................4-8

Features .............................................................................4-8

DriverInstallation.................................................................4-8

Glossary............................................................................................ I

Introduction

1-1

Chapter 1.

Introduction

The MS-6378 Micro-ATX mainboard is a high-performance computer

mainboard based on VIA Apollo KLE133 chipset and designed for the

AMD®Athlon™or Duron™ processor for inexpensive business/personal

desktop markets.

The Apollo KLE133 chipset consists of the VT8361 North Bridge

controller and the VT82C686B South Bridge controller. The VT8361 inte-

grates rich AGP4X graphics capabilities for 2D/3D software and internet

multimedia applications. It supports CPU running at a 200/266MHz FSB

frequency; and provides bandwidth and performance for internet and 3D

graphics needs by supporting advanced memory technologies PC133

SDRAM and VC133 RAM (Virtual Channel RAM) up to 1.0GB.

The VIA®VT82C686B Super I/O PCI integrated Peripheral Controller

(PSIPC) includes PCI-to-ISA bridge controller, 10/100 BaseT Ethernet

controller, AC’97 audio and MC’97 modem (for CNR slot). In addition, it

supports dual bus-master IDE with Ultra DMA 33/66/100, four USB ports,

system hardware monitoring and enhanced power management capabilities.

The KLE133 chipset allows the MS-6378 mainboard to meet specific

needs of internet multimedia and 3D graphics applications.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

CPU

zSupports Socket 462 for AMD®Athlon™ /Duron™ processor

zSupportsCPUfrequenciesat600/650/700/750/800/850/900/950MHz,1GHz

and up to 1.3GHz

Chipset

zVIA®VT8361chipset(552BGA)

-FSB@200/266MHz

- Integrated Trident Blade 2D/3D video accelerator

- PCI advanced high performance memory controller

- Supports PC100/133 SDRAM, VCM & ESDRAM technology

zVIA®VT686Bchipset(352BGA)

- Enhanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2 and IR)

- Dual bus Master IDE Ultra DMA 33/66/100

- Integrated Hardware Soundblaster

- Direct Sound AC97 Audio

-ACPI

ClockGenerator

zSupports 100/133MHz clocks

Main Memory

zSupports four memory banks using 168-pin unbuffered DIMM

zSupports a maximum memory size of 1GB (256 MB DRAM technology)

zSupports 3.3V SDRAM DIMM

Slots

zOne CNR (Communication Network Riser) slot

zThree 32-bit Master PCI Bus slots

zSupports 3.3V/5V PCI bus Interface

zOne ISA slot (optional)

On-Board IDE

zAn IDE controller on the VIA®VT82C686B chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation

Mainboard Specification

Introduction

1-3

modes

zCan connect up to four IDE devices

Audio

zAudio controller integrated in 686B chipset

zSoftware audio codec ALC100P

- Onboard Front Audio Pin Header

Network(Optional)

zRealtek8100

On-Board Peripherals

zOn-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 1 serial port (COM1)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear*2 /Front*2)

- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR

- 1 VGA port

- 1 Audio/Game port

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) func-

tion which records your mainboard specifications.

Dimension

zMicro-ATXFormFactor: 24.3cm (L) x 21.5cm(W)

Mounting

z6 mounting holes

Andere Handbücher für MS-6378

Inhaltsverzeichnis

Andere MSI Hauptplatine Handbücher

MSI

MSI A75MA-P35 series Bedienungsanleitung

MSI

MSI 848PM Bedienungsanleitung

MSI

MSI 3200 Master Series Bedienungsanleitung

MSI

MSI Z590-S01 Bedienungsanleitung

MSI

MSI PRO Z690-A WIFI DDR4 Bedienungsanleitung

MSI

MSI K9N4 - Ultra-F Motherboard - ATX Bedienungsanleitung

MSI

MSI MS-7504 Bedienungsanleitung

MSI

MSI MAG B660M BAZOOKA Bedienungsanleitung

MSI

MSI MS-98I0 Bedienungsanleitung

MSI

MSI z170a GAMING M9 ACK Bedienungsanleitung

MSI

MSI X670E GAMING PLUS WIFI Bedienungsanleitung

MSI

MSI B85M GAMING Bedienungsanleitung

MSI

MSI A520M PRO Bedienungsanleitung

MSI

MSI X58A-GD45 series Bedienungsanleitung

MSI

MSI B75A-E33 Series Bedienungsanleitung

MSI

MSI Z77IA-S01 Series Bedienungsanleitung

MSI

MSI Z170A SLI PLUS Bedienungsanleitung

MSI

MSI MS-6380 Bedienungsanleitung

MSI

MSI 7B28-002R Bedienungsanleitung

MSI

MSI Wind Board 330 Bedienungsanleitung

MSI

MSI H81M-P33 Series Bedienungsanleitung

MSI

MSI MS-6315 Bedienungsanleitung

MSI

MSI KT4A-V Bedienungsanleitung

MSI

MSI 865GVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
