Introduction

1-1

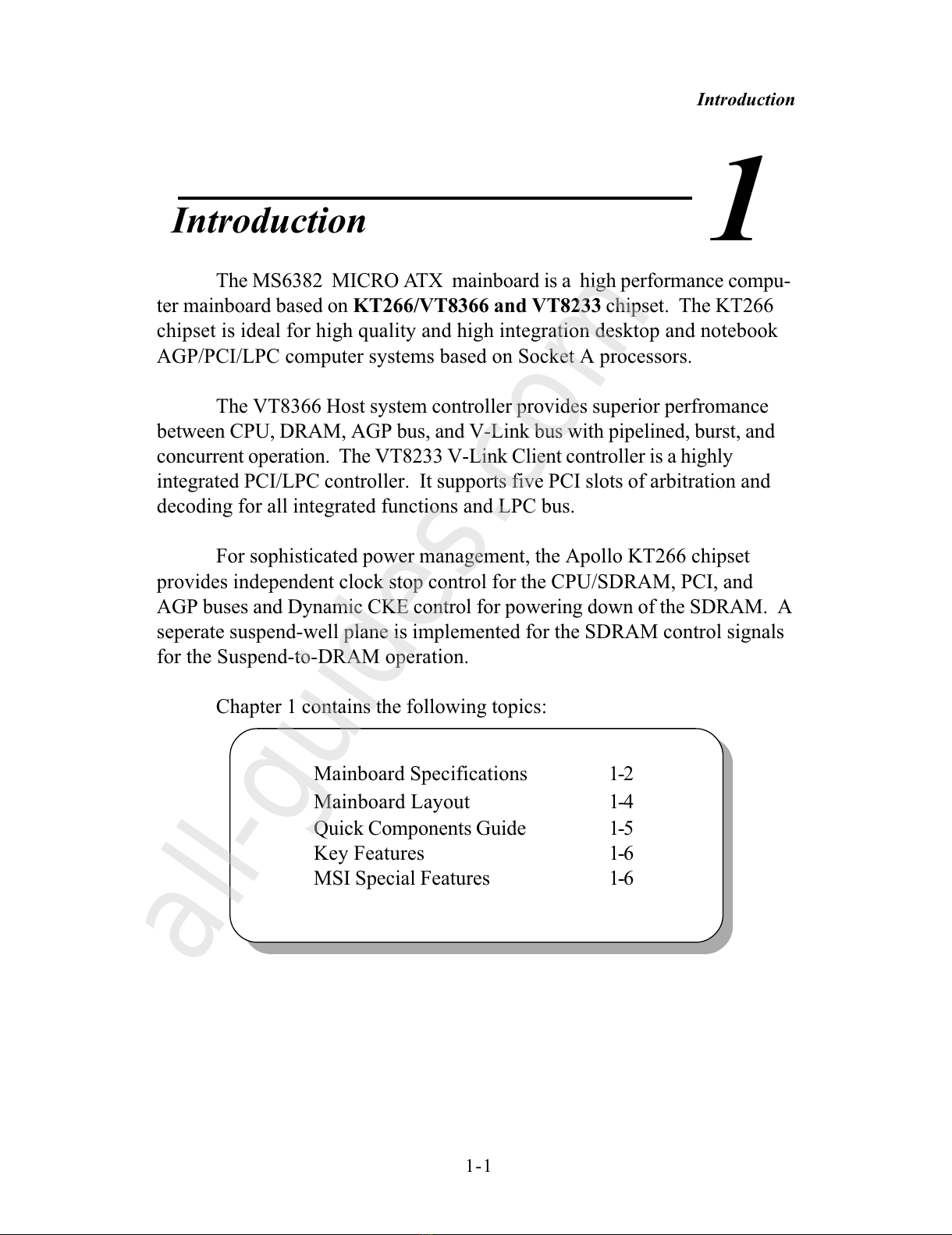

The MS6382 MICRO ATX mainboard is a high performance compu-

er mainboard based on KT266/VT8366 and VT8233 chipse . The KT266

chipse is ideal for high quali y and high in egra ion desk op and no ebook

AGP/PCI/LPC compu er sys ems based on Socke A processors.

The VT8366 Hos sys em con roller provides superior perfromance

be ween CPU, DRAM, AGP bus, and V-Link bus wi h pipelined, burs , and

concurren opera ion. The VT8233 V-Link Clien con roller is a highly

in egra ed PCI/LPC con roller. I suppor s five PCI slo s of arbi ra ion and

decoding for all in egra ed func ions and LPC bus.

For sophis ica ed power managemen , he Apollo KT266 chipse

provides independen clock s op con rol for he CPU/SDRAM, PCI, and

AGP buses and Dynamic CKE con rol for powering down of he SDRAM. A

sepera e suspend-well plane is implemen ed for he SDRAM con rol signals

for he Suspend- o-DRAM opera ion.

Chap er 1 con ains he following opics:



Mainboard Specifica ions 1-2

Mainboard Layou 1-4

Quick Componen s Guide 1-5

Key Fea ures 1-6

MSI Special Fea ures 1-6

Introduction

All manuals and user guides at all-guides.com

all-guides.com

Chapter 1

1-2

CPU

!Socke A for AMD® DuronTM/A hlonTM processor.

!Suppor 600MHz up o 1.5GHz processor

Chipset

! VIA® VT8366 chipse . (552 BGA)

- FSB @200/266MHz

- AGP 4x and high bandwid h Vlink hos con roller

- Advanced memory con roller suppor PC200/266 DDR echnology

!VIA® VT8233 chipse . (376 BGA)

- High bandwid h Vlink clien con roller

- In egra ed fas er E herne con roller

- Direc sound ready AC97 digi al audio con roller

- Ul ra DMA 33/66/100 mas er mode EIDE con roller

- Suppor bo h ACPI and legacy APM power managemen

Clock Generator

!100MHz/133MHz clocks are suppor ed.

Main Memory

!Suppor four memory banks using wo 184-pin DDR DIMM

!Suppor a maximum memory size of 2GB

Slots

!One (Accelera ed Graphics Por ) AGP slo .

- AGP specifica ion complian

- Suppor AGP 2.0 1x/2x/4x

!One CNR (Communica ion Ne work Riser) slo .

!Three 32-bi Mas er PCI Bus slo s

!Suppor s 3.3v/5v PCI bus In erface.

n-Board IDE

!Dual Channel mas er mode IDE con roller on he VIA® VT8233 Chipse

provides IDE HDD/CD-ROM wi h PIO, Bus Mas er and Ul ra DMA 33/66/

100 opera ion modes.

!Can connec up o four IDE devices.

Mainboard Specifications

All manuals and user guides at all-guides.com

Introduction

1-3

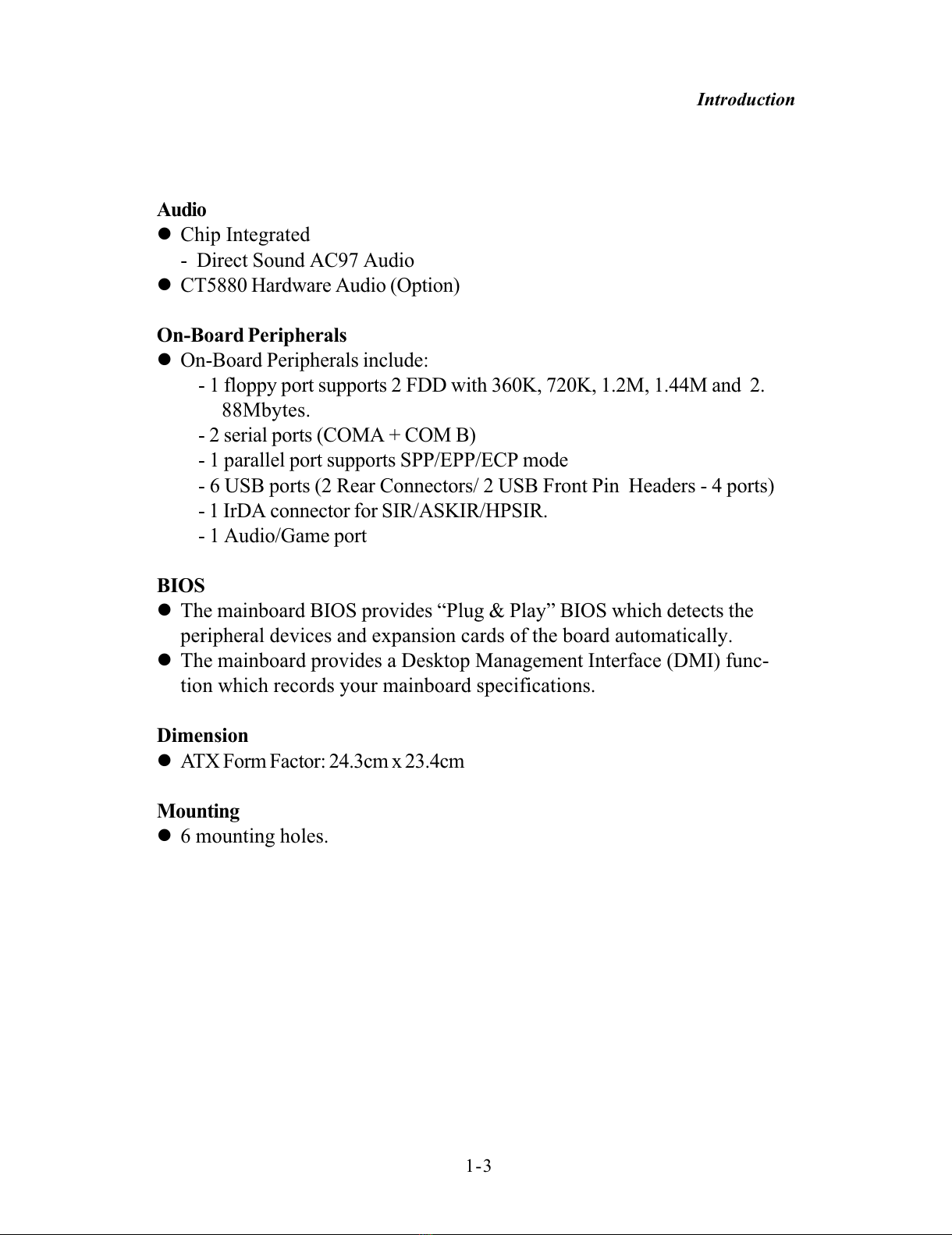

Audio

!Chip In egra ed

- Direc Sound AC97 Audio

!CT5880 Hardware Audio (Op ion)

n-Board Peripherals

!On-Board Peripherals include:

- 1 floppy por suppor s 2 FDD wi h 360K, 720K, 1.2M, 1.44M and 2.

88Mby es.

- 2 serial por s (COMA + COM B)

- 1 parallel por suppor s SPP/EPP/ECP mode

- 6 USB por s (2 Rear Connec ors/ 2 USB Fron Pin Headers - 4 por s)

- 1 IrDA connec or for SIR/ASKIR/HPSIR.

- 1 Audio/Game por

BI S

!The mainboard BIOS provides Plug & Play BIOS which de ec s he

peripheral devices and expansion cards of he board au oma ically.

!The mainboard provides a Desk op Managemen In erface (DMI) func-

ion which records your mainboard specifica ions.

Dimension

!ATX Form Fac or: 24.3cm x 23.4cm

Mounting

!6 moun ing holes.

All manuals and user guides at all-guides.com

Chapter 1

1-4

Mainboard Layout

MS-6382 MICRO ATX Mainboard

SOCKET 462

Top : mous e

Bottom: ke

board

USB

Top : port 1

Bottom: port 2

CD_IN

MODEM_IN

AGP Slot

BATT

BIOS

86& !!

86&!$$

,,4

,,4

1,-

1,- .,,

PC I Slot

CNR JMDM1 JUSB2 JUSB1

SW1

CPU FAN

ATX

Power Suppy

JFP1

SFAN1

J10JGL1

JBAT1

JGS1

To p :

Midi / Game port

Bottom:

Line- ut

Line-In

Mic

To p : L PT

Bottom:

C M A

C M B

JAU1

+6#&&

CD_IN

AUX_IN

All manuals and user guides at all-guides.com

Introduction

1-5

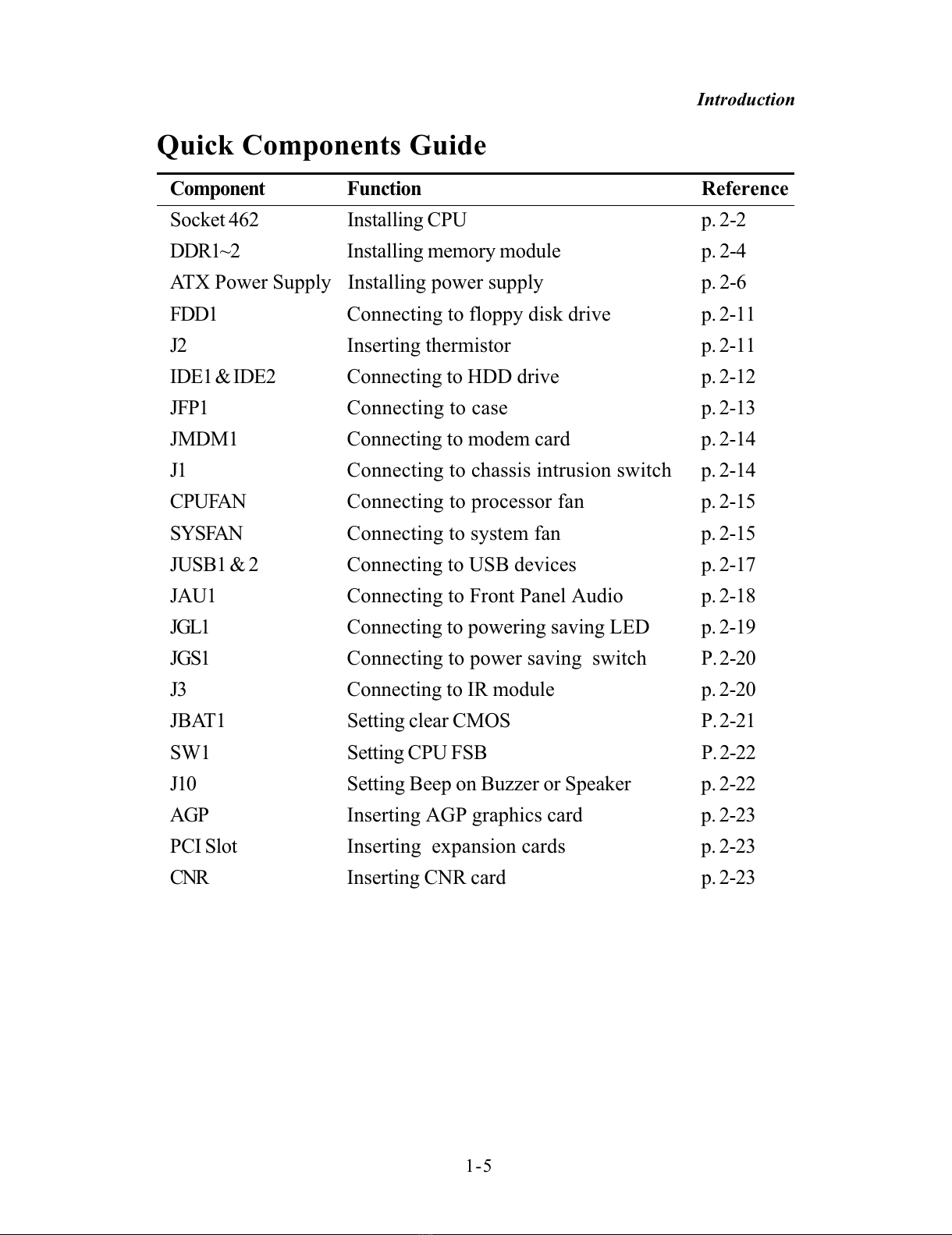

Component Function Reference

Socke 462 Ins alling CPU p. 2-2

DDR1~2 Ins alling memory module p. 2-4

ATX Power Supply Ins alling power supply p. 2-6

FDD1 Connec ing o floppy disk drive p. 2-11

J2 Inser ing hermis or p. 2-11

IDE1 & IDE2 Connec ing o HDD drive p. 2-12

JFP1 Connec ing o case p. 2-13

JMDM1 Connec ing o modem card p. 2-14

J1 Connec ing o chassis in rusion swi ch p. 2-14

CPUFAN Connec ing o processor fan p. 2-15

SYSFAN Connec ing o sys em fan p. 2-15

JUSB1 & 2 Connec ing o USB devices p. 2-17

JAU1 Connec ing o Fron Panel Audio p. 2-18

JGL1 Connec ing o powering saving LED p. 2-19

JGS1 Connec ing o power saving swi ch P. 2-20

J3 Connec ing o IR module p. 2-20

JBAT1 Se ing clear CMOS P. 2-21

SW1 Se ing CPU FSB P. 2-22

J10 Se ing Beep on Buzzer or Speaker p. 2-22

AGP Inser ing AGP graphics card p. 2-23

PCI Slo Inser ing expansion cards p. 2-23

CNR Inser ing CNR card p. 2-23

Quick Components Guide

All manuals and user guides at all-guides.com

Chapter 1

1-6

!Micro ATX Form Fac or wi h PC99 color connec or

!Suppor Accelera ed Graphic Por (AGP) Add-On Card

!Suppor AMD® PGA Socke A Duron/A hlon processors a 200/

266MHz Sys em Bus Frequencies

!Chip In egra ed Audio (CT5880 hardware op ion)

!PC Aler Sys em Hardware Moni or

!Suppor DMI (Desk op Managemen In erface) hrough BIOS

!LAN Wake Up Func ion

!Modem (In ernal/Ex ernal) Ring Wake Up Func ion

!Suppor PCI 2.2

!Suspend o RAM/Disk

Key Features

MSI Special Features

The MSI special fea ures are designed by MSI R&D which are only

available in MSI mainboards. The 6382 mainboard is equipped wi h PC Aler TM

III.

All manuals and user guides at all-guides.com

all-guides.com

Introduction

1-7

Features:

!Ne work Managemen

- Moni oring & remo e con rol

!Basic Sys em U ili ies

- Scandisk & Defragmen o main ain your HDD

!3D Graphics Design

- Enables a more friendly user in erface

!Sof ware U ili ies

- Sof Cooler Op imized Cooling

- Doc or Y2K diagnoses Y2K problems

- BusRacing func ion adjus s F.S.B under Windows 95/98

- MoSpeed speeds up your modem ransmission

PC Alert III

The PC Aler TM III is a u ili y you can find in he CD-ROM. The u ili y

is jus like your PC doc or ha can de ec he following PC hardware s a us

during real ime opera ion:

* moni or CPU & sys em empera ure

* moni or fan speed

* moni or sys em vol age

* moni or chassis in rusion

If one of he i ems above is abnormal, he program main screen will be imme-

dia ely shown on he screen, wi h he abnormal i em highligh ed in red. This

will con inue o be shown un il user disables warning.

All manuals and user guides at all-guides.com

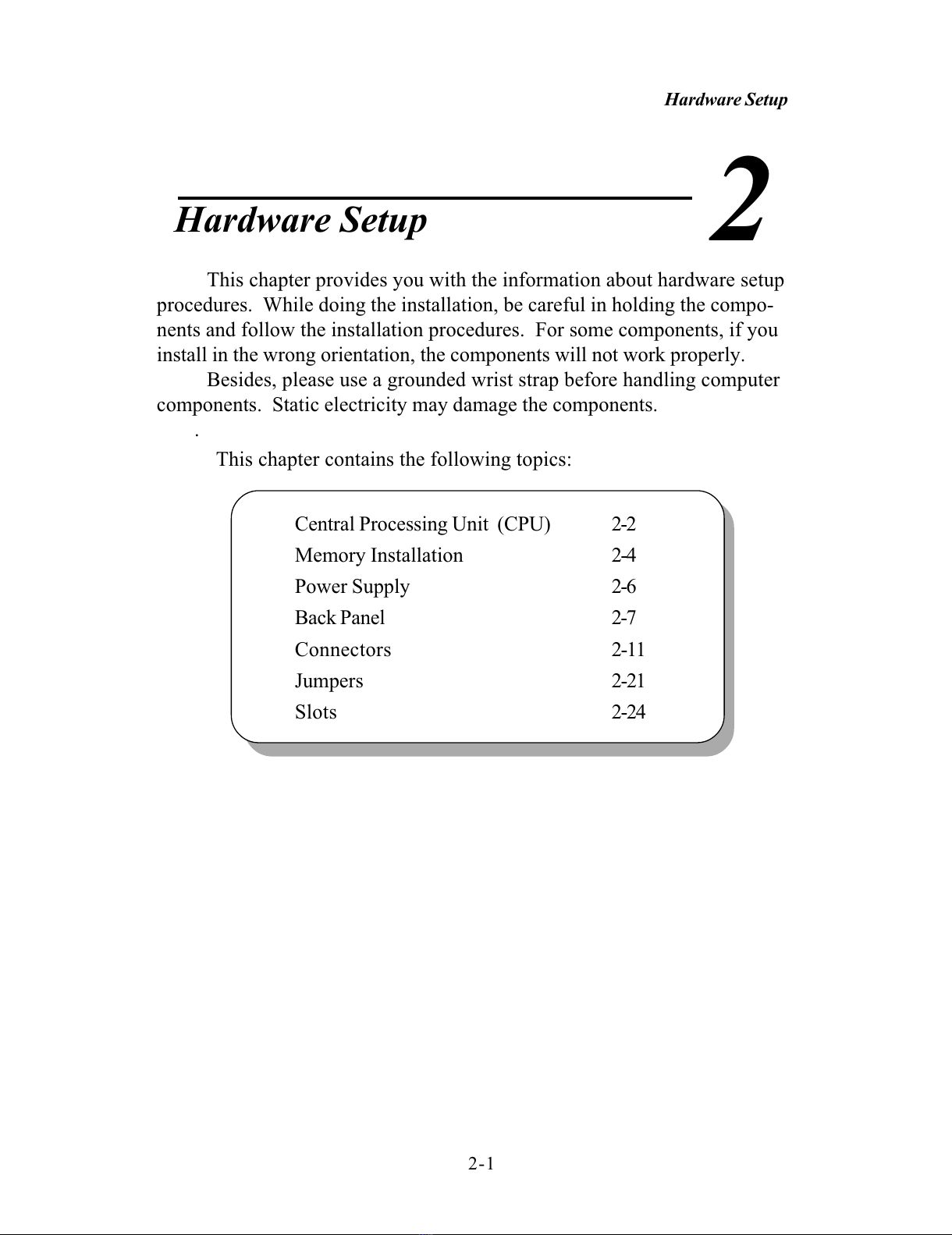

Hardware Setup

2-1

This chapter provides you with the information about hardware setup

procedures. While doing the installation, be careful in holding the compo-

nents and follow the installation procedures. For some components, if you

install in the wrong orientation, the components will not work properly.

Besides, please use a grounded wrist strap before handling computer

components. Static electricity may damage the components.

This chapter contains the following topics

Central Processing Unit (CPU) 2-2

Memory Installation 2-4

Power Supply 2-6

Back Panel 2-7

Connectors 2-11

Jumpers 2-21

Slots 2-24

Hardware Setup

All manuals and user guides at all-guides.com

Chapter 2

2-2

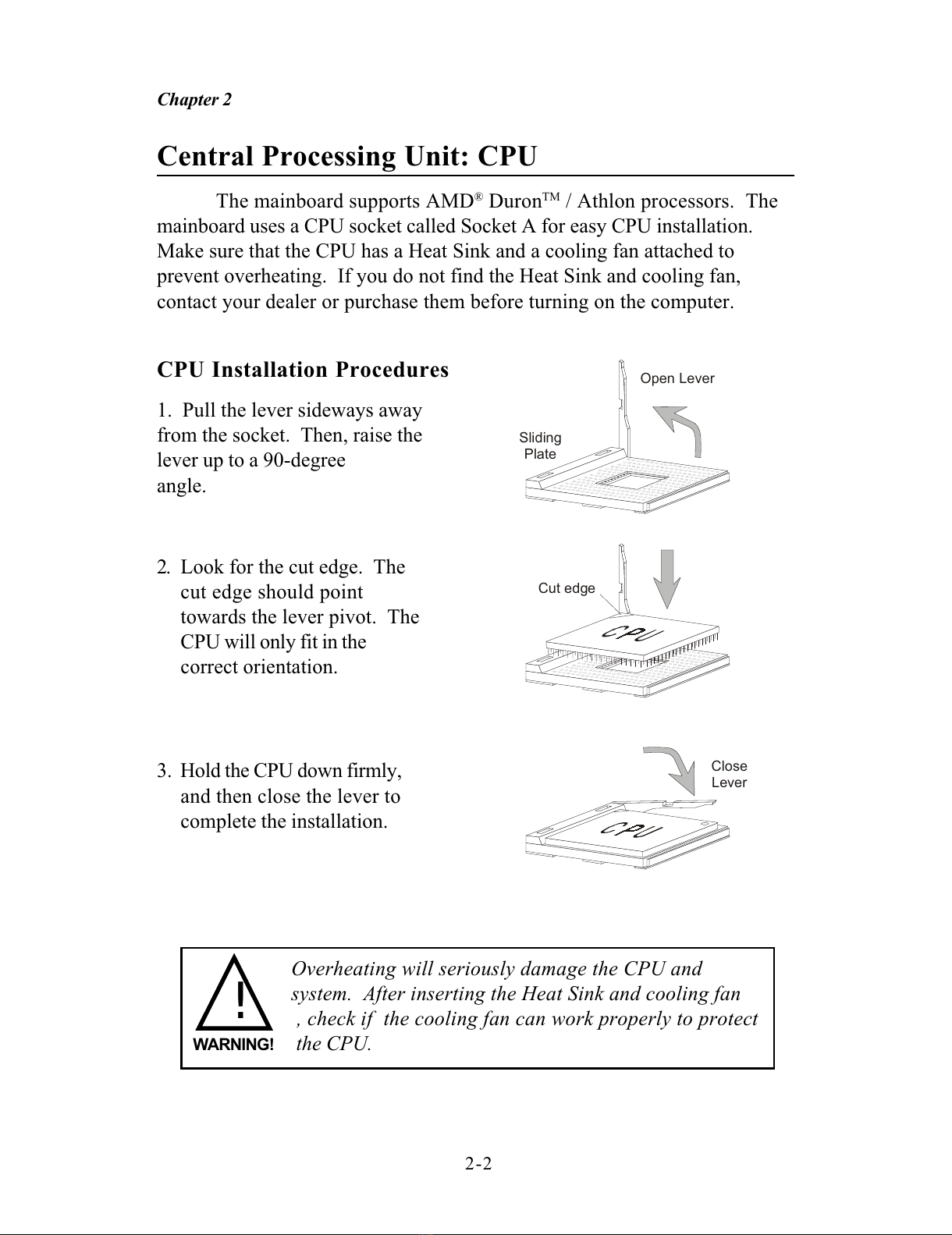

Central Processing Unit: CPU

The mainboard supports AMD® DuronTM / Athlon processors. The

mainboard uses a CPU socket called Socket A for easy CPU installation.

Make sure that the CPU has a Heat Sink and a cooling fan attached to

prevent overheating. If you do not find the Heat Sink and cooling fan,

contact your dealer or purchase them before turning on the computer.

Overheating will seriously damage the CPU and

system. After inserting the Heat Sink and cooling fan

, check if the cooling fan can work properly to protect

the CPU.

WARNING!

1. Pull the lever sideways away

from the socket. Then, raise the

lever up to a 90-degree

angle.

2. Look for the cut edge. The

cut edge should point

towards the lever pivot. The

CPU will only fit in the

correct orientation.

3. Hold the CPU down firmly,

and then close the lever to

complete the installation.

CPU Installation Procedures Open Lever

Cut edge

Sliding

Plate

Lever

All manuals and user guides at all-guides.com

Hardware Setup

2-3

OVERCLOCKING

he motherboard are designed to support overclocking.

Make sure your components are able to tolerate such

abnormal setting while doing overclocking. Any attempt to

operate beyond product specifications is not recommended.

We do not guarantee the damages or risks caused by

inadequate operation or beyond product specification.

WARNING!

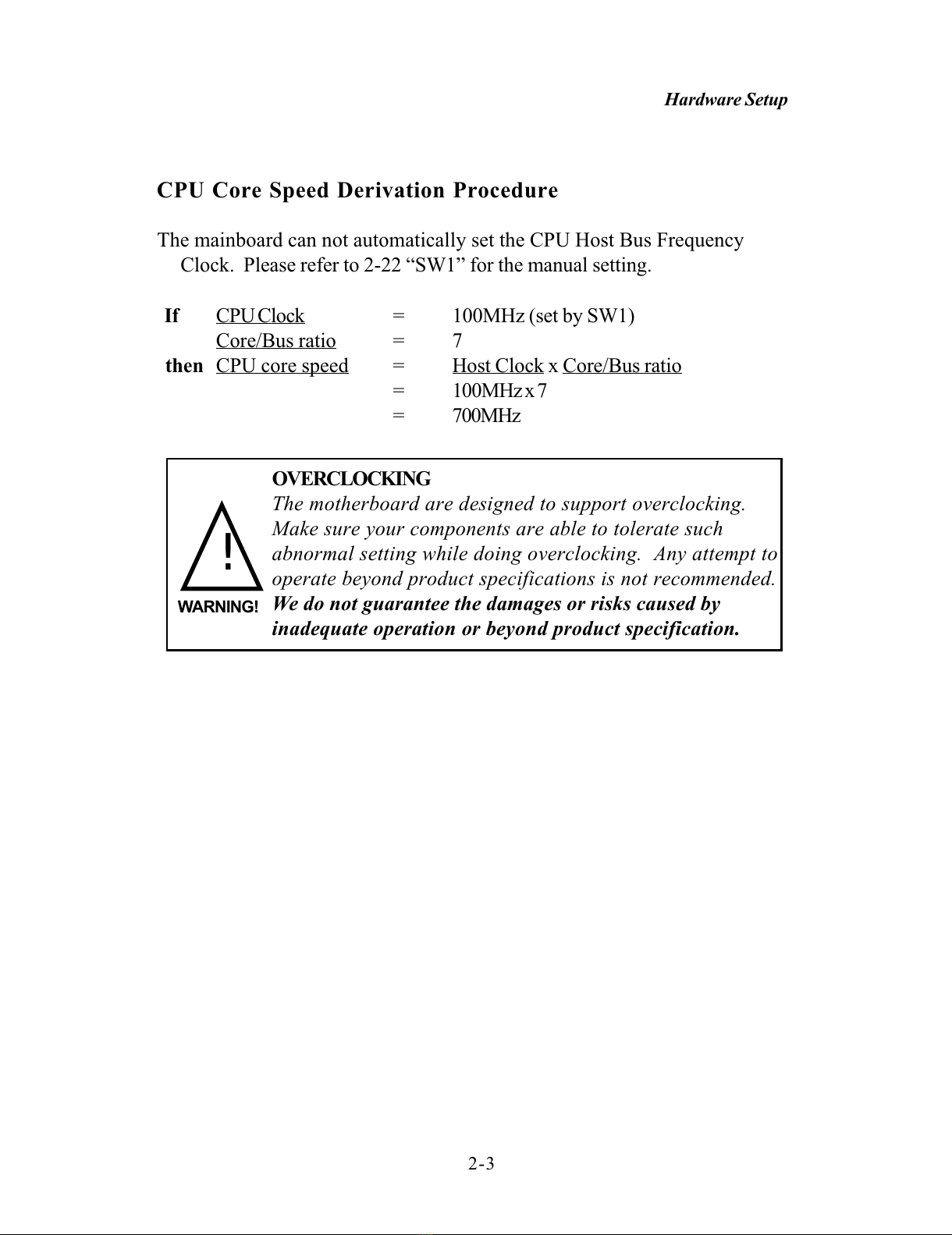

CPU Core Speed Derivation Procedure

The mainboard can not automatically set the CPU Host Bus Frequency

Clock. Please refer to 2-22 SW1 for the manual setting.

If CPU Clock = 100MHz (set by SW1)

Core/Bus ratio = 7

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 7

= 700MHz
