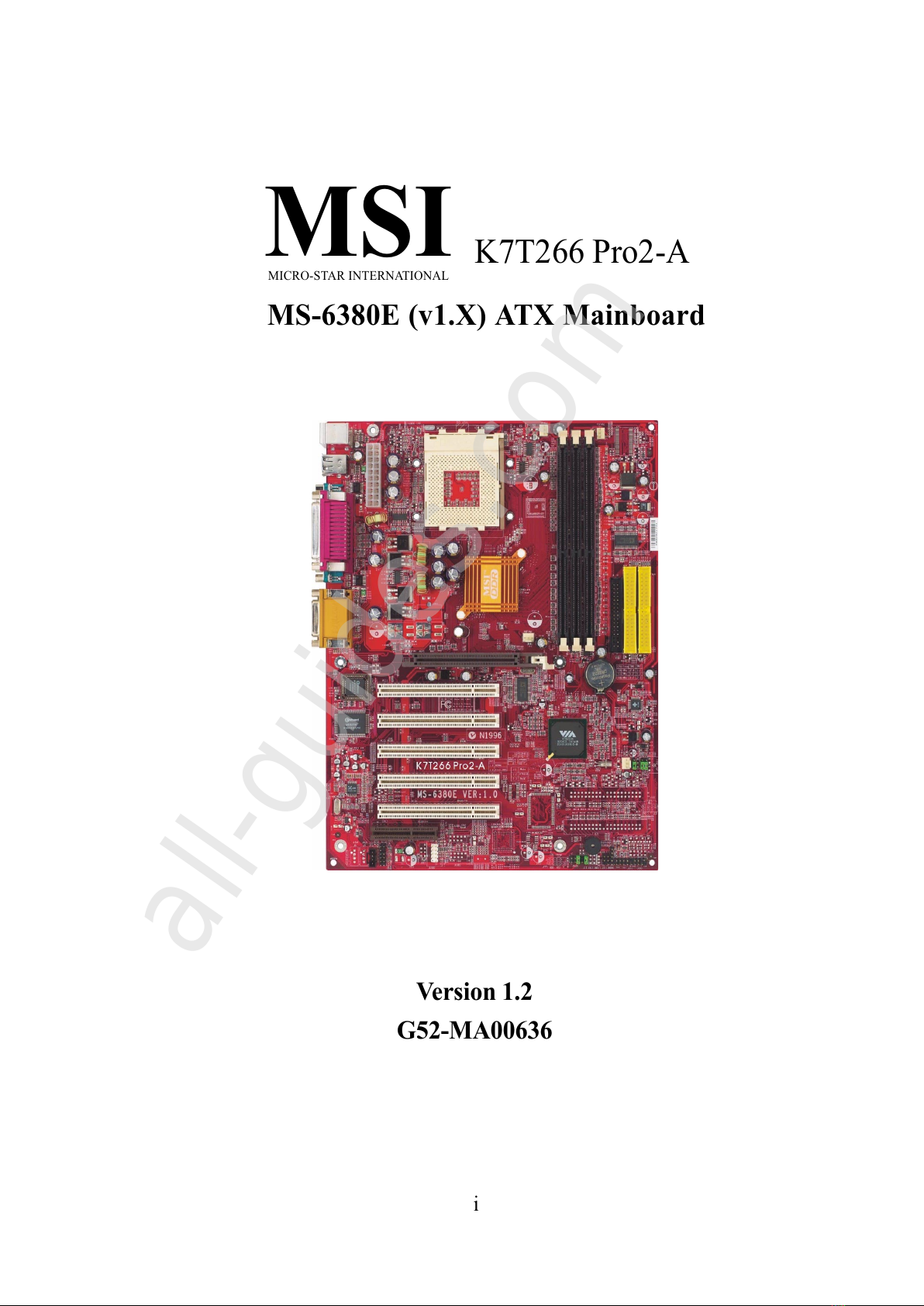

MSI K7T266Pro2-A Bedienungsanleitung

MSI

Version 1.2

G52-MA00636

MS-6380E (v1.X) ATX Mainboard

K7T266 Pro2-A

MICRO-STAR INTERNATIONAL

All manuals and user guides at all-guides.com

all-guides.com

Manual Rev: 1.2

Release Date: May 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the users authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE DINSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6380E

Tested to comply

with FCC Standard

For Home or Office Use

All manuals and user guides at all-guides.com

iii

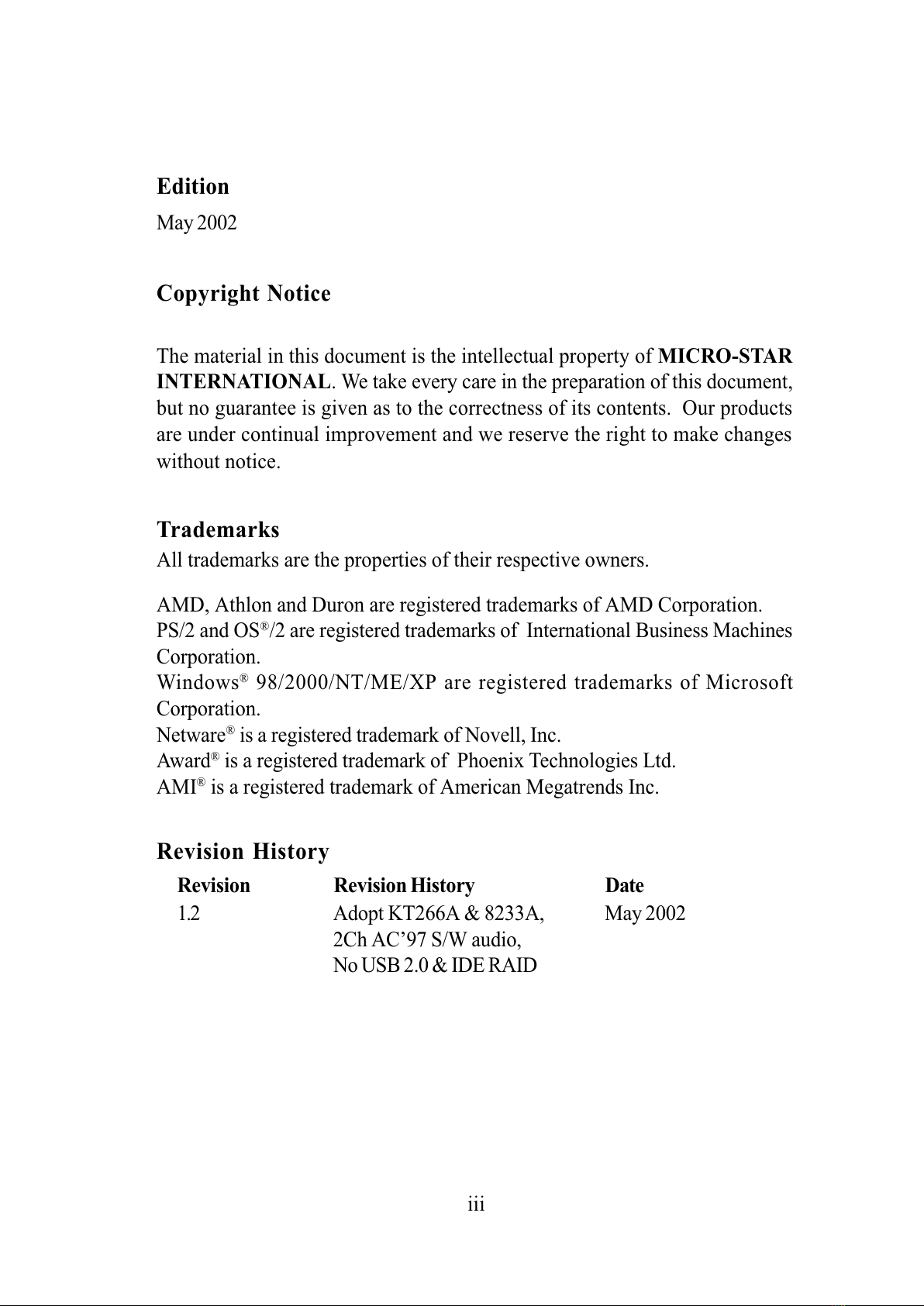

Edition

May 2002

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products

are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon and Duron are registered trademarks of AMD Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.

Windows®98/2000/NT/ME/XP are registered trademarks of Microsoft

Corporation.

Netware®is a registered trademark of Novell, Inc.

Award®is a registered trademark of Phoenix Technologies Ltd.

AMI®is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

1.2 Adopt KT266A & 8233A, May 2002

2Ch AC97 S/W audio,

No USB 2.0 & IDE RAID

All manuals and user guides at all-guides.com

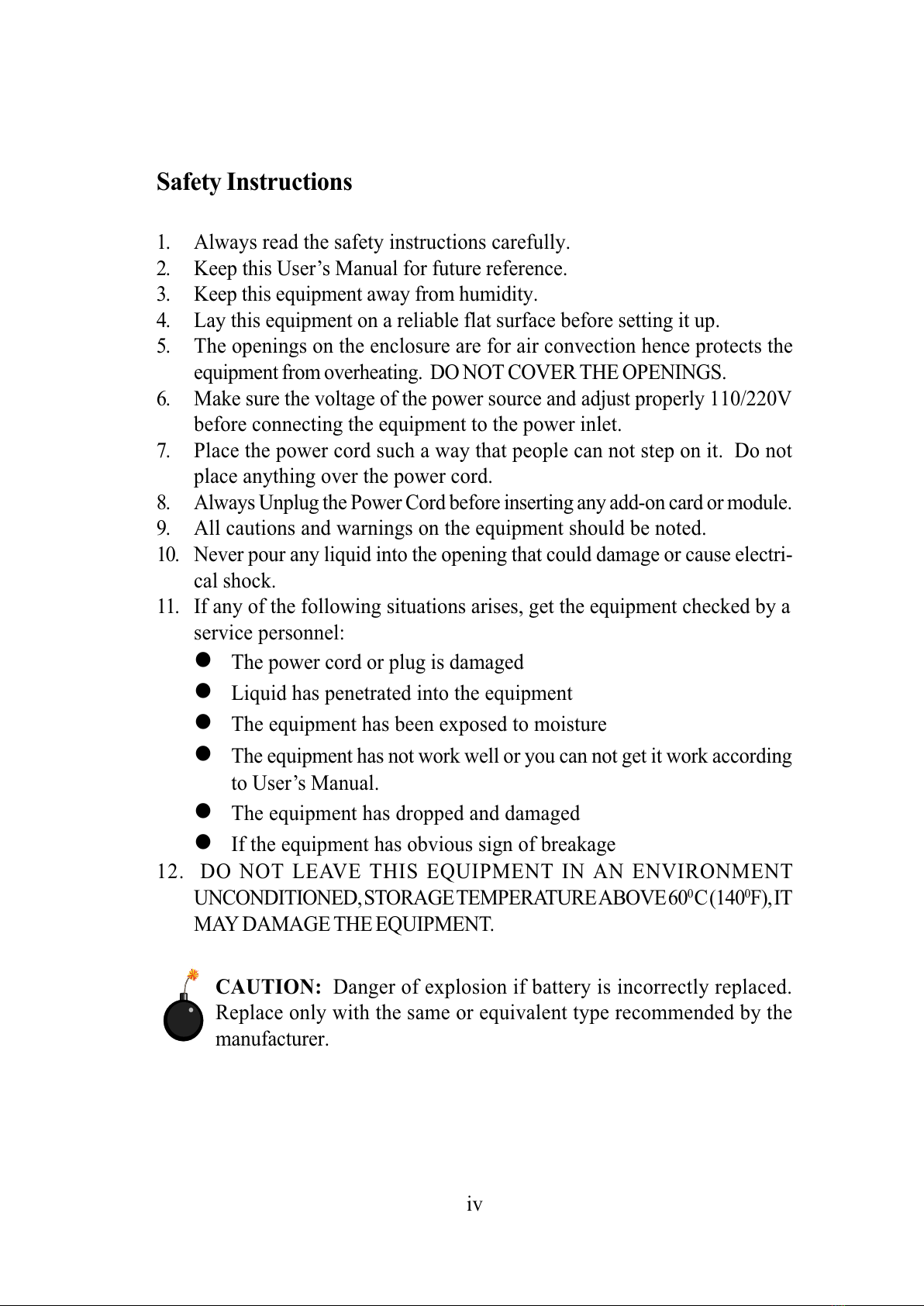

1. Always read the safety instructions carefully.

2. Keep this Users Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

lThe power cord or plug is damaged

lLiquid has penetrated into the equipment

lThe equipment has been exposed to moisture

lThe equipment has not work well or you can not get it work according

to Users Manual.

lThe equipment has dropped and damaged

lIf the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED,STORAGETEMPERATUREABOVE600 C(1400F),IT

MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

All manuals and user guides at all-guides.com

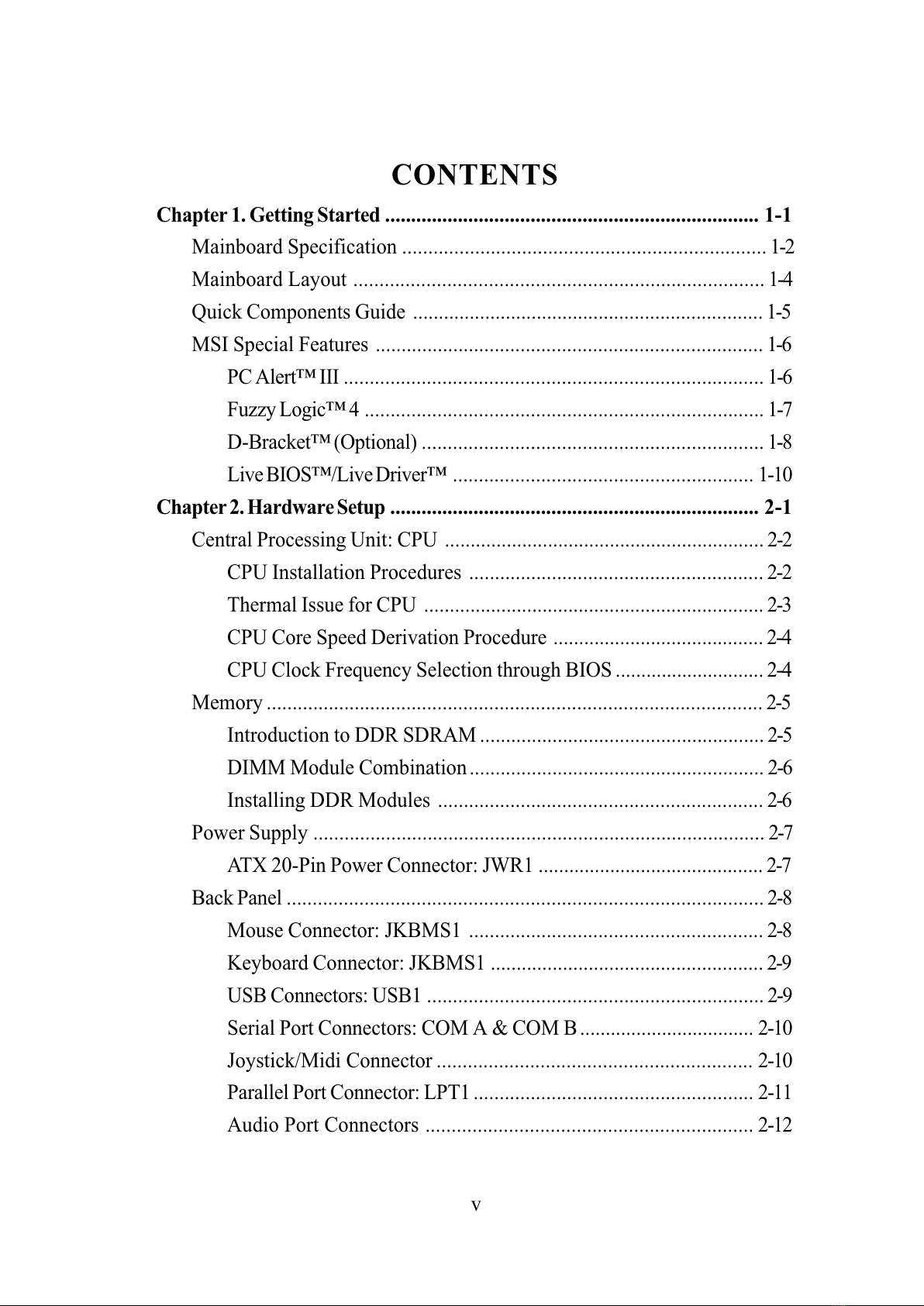

CONTENTS

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specification ...................................................................... 1-2

Mainboard Layout ............................................................................... 1-4

Quick Components Guide .................................................................... 1-5

MSI Special Features ........................................................................... 1-6

PC Alert III ................................................................................. 1-6

Fuzzy Logic 4 ............................................................................. 1-7

D-Bracket (Optional) .................................................................. 1-8

LiveBIOS/LiveDriver .......................................................... 1-10

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU .............................................................. 2-2

CPU Installation Procedures ......................................................... 2-2

Thermal Issue for CPU .................................................................. 2-3

CPU Core Speed Derivation Procedure ......................................... 2-4

CPU Clock Frequency Selection through BIOS ............................. 2-4

Memory ................................................................................................ 2-5

Introduction to DDR SDRAM ....................................................... 2-5

DIMM Module Combination......................................................... 2-6

Installing DDR Modules ............................................................... 2-6

Power Supply ....................................................................................... 2-7

ATX 20-Pin Power Connector: JWR1 ............................................ 2-7

Back Panel ............................................................................................ 2-8

Mouse Connector: JKBMS1 ......................................................... 2-8

Keyboard Connector: JKBMS1 ..................................................... 2-9

USB Connectors: USB1 ................................................................. 2-9

Serial Port Connectors: COM A & COM B.................................. 2-10

Joystick/Midi Connector ............................................................. 2-10

Parallel Port Connector: LPT1 ...................................................... 2-11

Audio Port Connectors ............................................................... 2-12

All manuals and user guides at all-guides.com

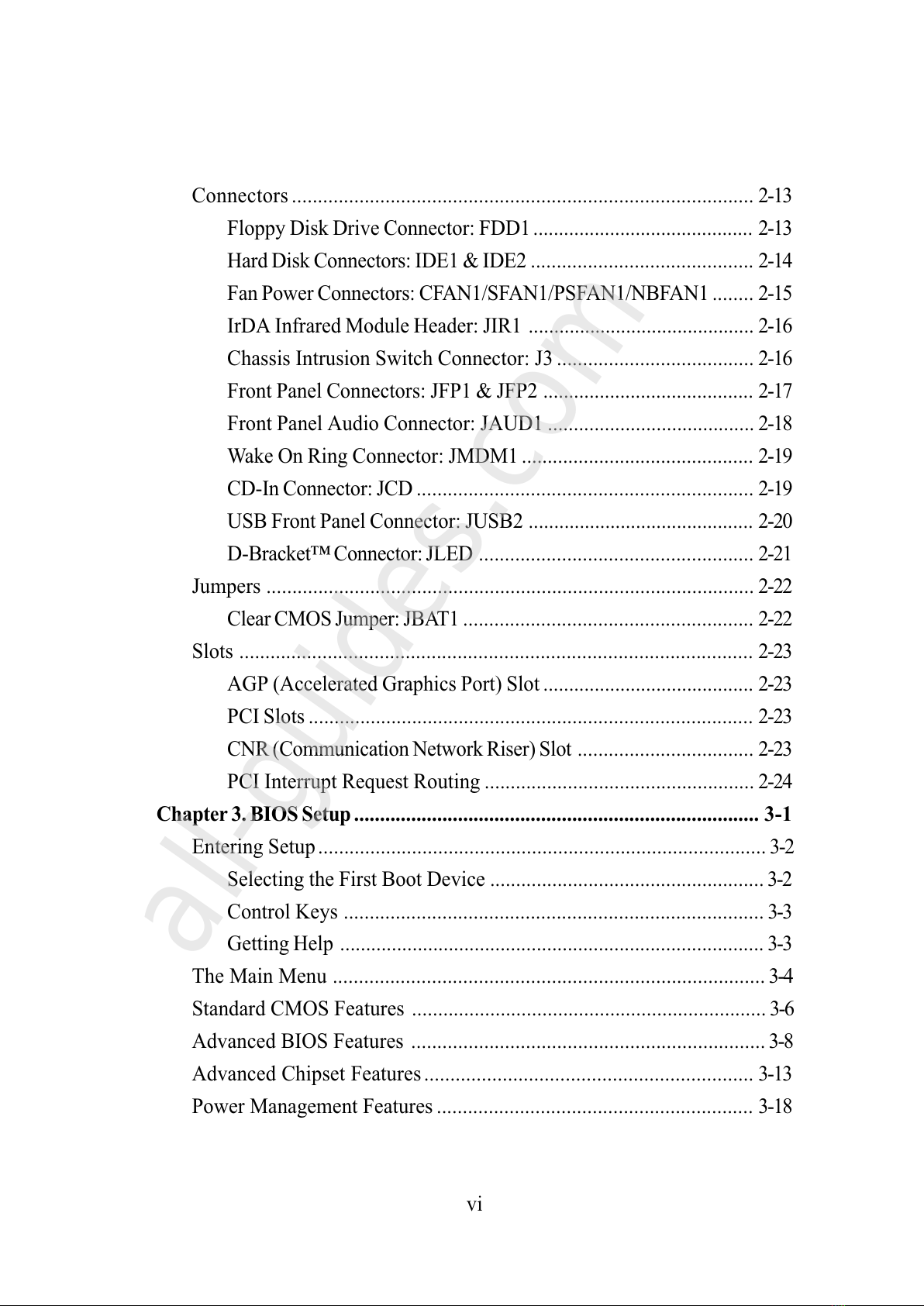

Connectors ......................................................................................... 2-13

Floppy Disk Drive Connector: FDD1........................................... 2-13

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-14

Fan Power Connectors: CFAN1/SFAN1/PSFAN1/NBFAN1 ........ 2-15

IrDA Infrared Module Header: JIR1 ............................................ 2-16

Chassis Intrusion Switch Connector: J3 ...................................... 2-16

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-17

Front Panel Audio Connector: JAUD1 ........................................ 2-18

Wake On Ring Connector: JMDM1 ............................................. 2-19

CD-In Connector: JCD ................................................................. 2-19

USB Front Panel Connector: JUSB2 ............................................ 2-20

D-Bracket Connector: JLED ..................................................... 2-21

Jumpers .............................................................................................. 2-22

Clear CMOS Jumper: JBAT1 ........................................................ 2-22

Slots ................................................................................................... 2-23

AGP (Accelerated Graphics Port) Slot ......................................... 2-23

PCI Slots ...................................................................................... 2-23

CNR (Communication Network Riser) Slot .................................. 2-23

PCI Interrupt Request Routing .................................................... 2-24

Chapter 3. BIOS Setup .............................................................................. 3-1

Entering Setup...................................................................................... 3-2

Selecting the First Boot Device ..................................................... 3-2

Control Keys ................................................................................. 3-3

Getting Help .................................................................................. 3-3

The Main Menu ................................................................................... 3-4

Standard CMOS Features .................................................................... 3-6

Advanced BIOS Features .................................................................... 3-8

Advanced Chipset Features............................................................... 3-13

Power Management Features ............................................................. 3-18

All manuals and user guides at all-guides.com

all-guides.com

vii

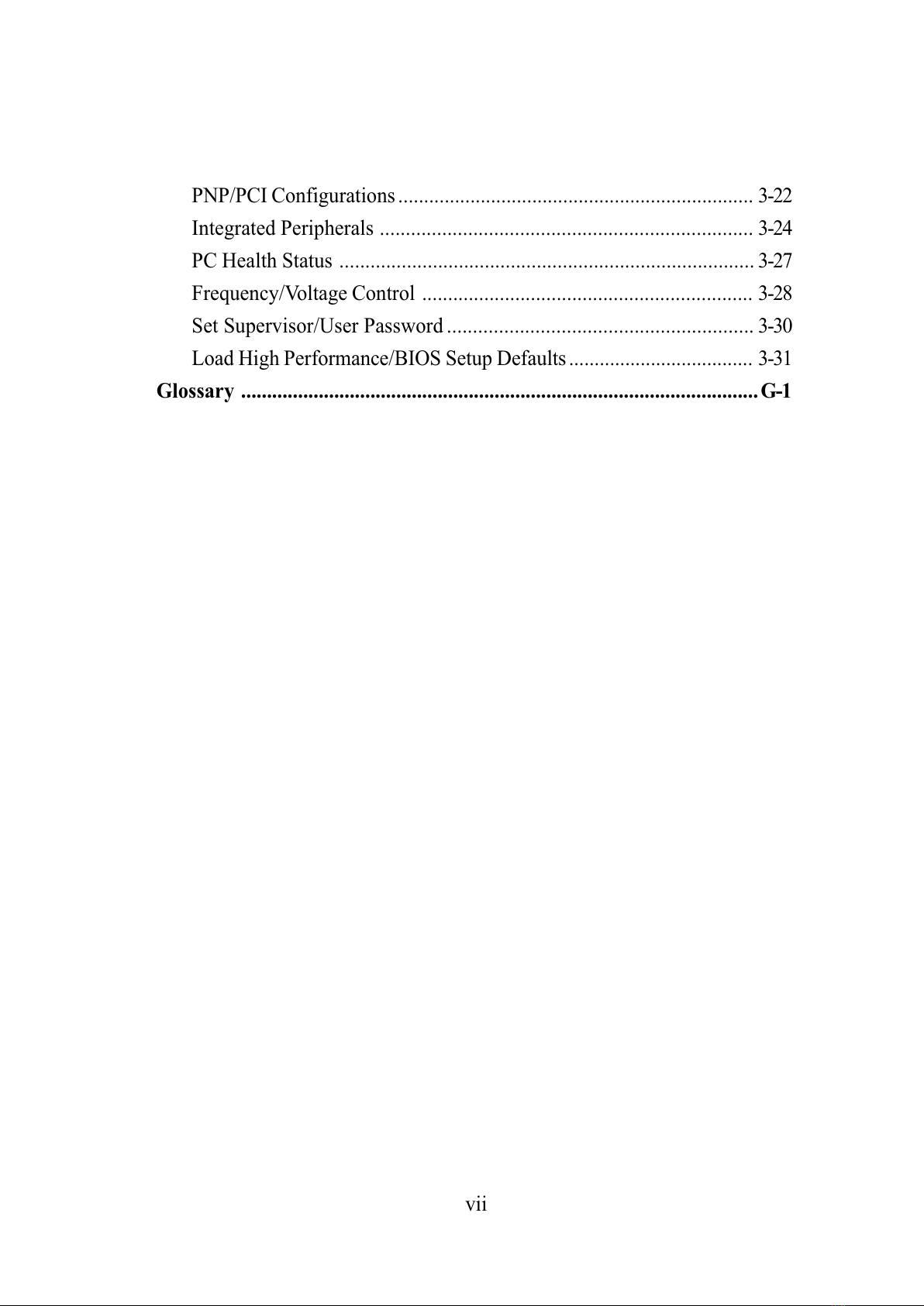

PNP/PCI Configurations..................................................................... 3-22

Integrated Peripherals ........................................................................ 3-24

PC Health Status ................................................................................ 3-27

Frequency/Voltage Control ................................................................ 3-28

Set Supervisor/User Password ........................................................... 3-30

Load High Performance/BIOS Setup Defaults.................................... 3-31

Glossary .................................................................................................... G-1

All manuals and user guides at all-guides.com

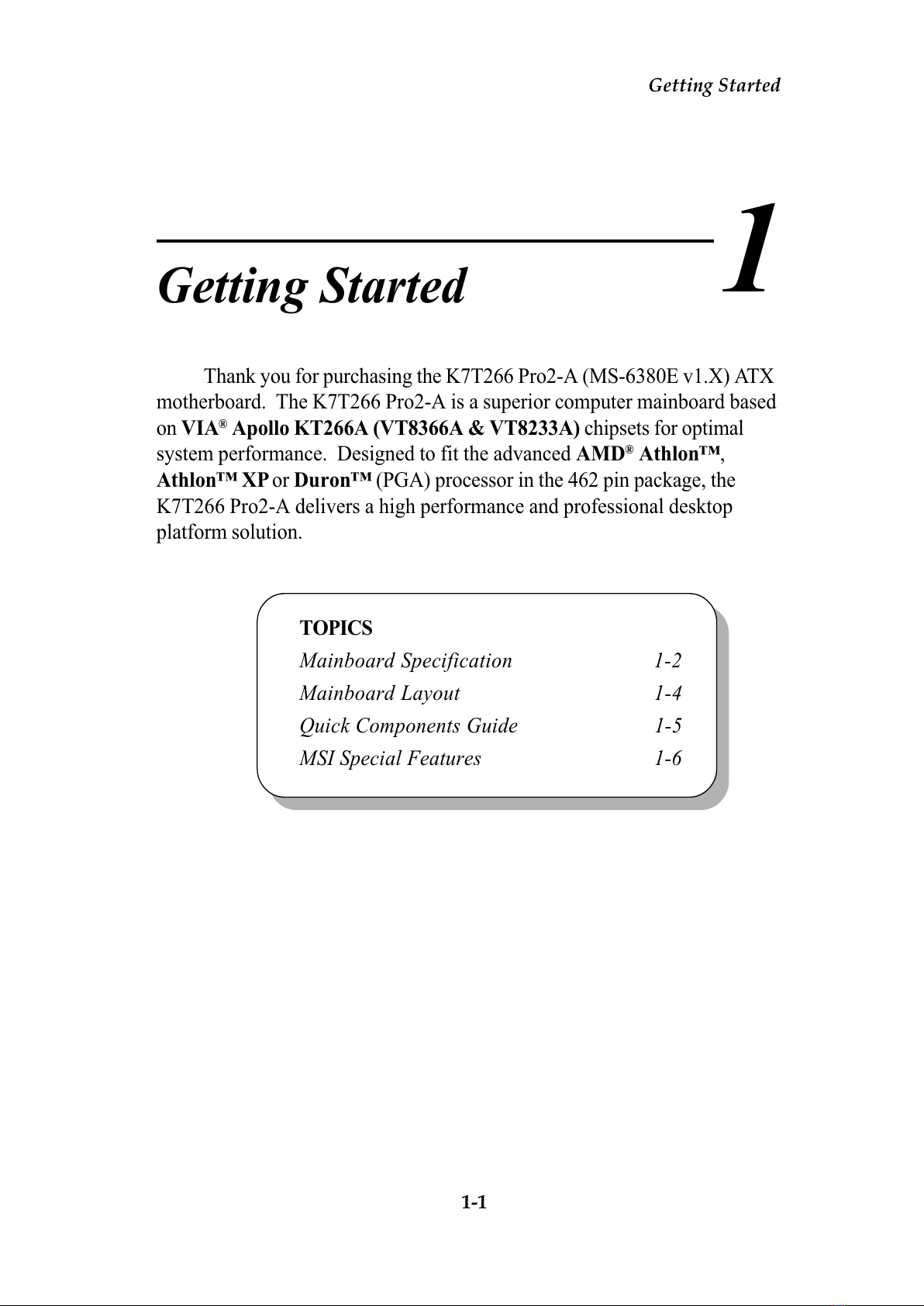

Getting Started

1-1

Chapter 1. Getting Started

Thank you for purchasing the K7T266 Pro2-A (MS-6380E v1.X) ATX

motherboard. The K7T266 Pro2-A is a superior computer mainboard based

on VIA®Apollo KT266A (VT8366A & VT8233A) chipsets for optimal

system performance. Designed to fit the advanced AMD®Athlon,

Athlon XP or Duron (PGA) processor in the 462 pin package, the

K7T266 Pro2-A delivers a high performance and professional desktop

platform solution.

Getting Started

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

MSI Special Features 1-6

All manuals and user guides at all-guides.com

Chapter 1

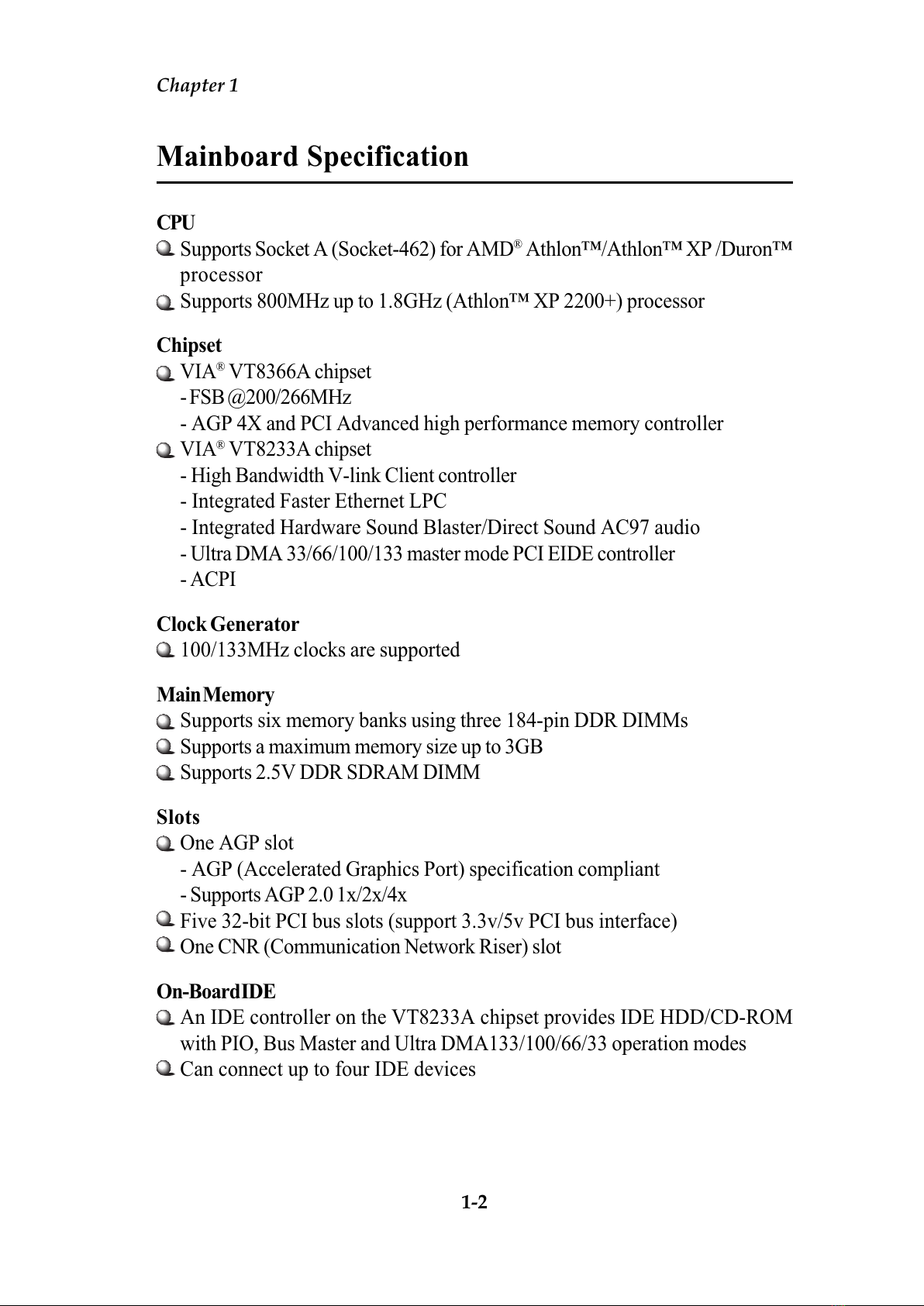

1-2

CPU

Supports Socket A (Socket-462) for AMD®Athlon/Athlon XP /Duron

processor

Supports 800MHz up to 1.8GHz (Athlon XP 2200+) processor

Chipset

VIA®VT8366A chipset

-FSB@200/266MHz

- AGP 4X and PCI Advanced high performance memory controller

VIA®VT8233A chipset

- High Bandwidth V-link Client controller

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 33/66/100/133 master mode PCI EIDE controller

- ACPI

Clock Generator

100/133MHz clocks are supported

MainMemory

Supports six memory banks using three 184-pin DDR DIMMs

Supports a maximum memory size up to 3GB

Supports 2.5V DDR SDRAM DIMM

Slots

One AGP slot

- AGP (Accelerated Graphics Port) specification compliant

- Supports AGP 2.0 1x/2x/4x

Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

One CNR (Communication Network Riser) slot

On-BoardIDE

An IDE controller on the VT8233A chipset provides IDE HDD/CD-ROM

with PIO, Bus Master and Ultra DMA133/100/66/33 operation modes

Can connect up to four IDE devices

Mainboard Specification

All manuals and user guides at all-guides.com

Getting Started

1-3

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 1 IrDA connector for SIR/ASKIR/HPSIR

- 1 audio/game port

- 1 D-Bracket pinheader

USB Interface

Supports USB 1.1

Audio

2 Channel AC97 S/W audio

BIOS

The mainboard BIOS provides Plug & Play BIOS which detects the pe-

ripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function

which records your mainboard specifications.

Dimension

ATX Form Factor: 30.4 cm (L) x 23.5 cm (W)

Mounting

6 mounting holes

All manuals and user guides at all-guides.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MSI Hauptplatine Handbücher

MSI

MSI H170A PC MATE Bedienungsanleitung

MSI

MSI B350M MORTAR ARCTIC Bedienungsanleitung

MSI

MSI 870S-C45 Series Bedienungsanleitung

MSI

MSI 870A Fuzion Power Edition series Bedienungsanleitung

MSI

MSI 915PM Bedienungsanleitung

MSI

MSI B760 GAMING PLUS WIFI Bedienungsanleitung

MSI

MSI MEG B550 UNIFY Bedienungsanleitung

MSI

MSI K9NBPM2-FID Series Bedienungsanleitung

MSI

MSI Z97M GAMING Bedienungsanleitung

MSI

MSI 845PE Max Bedienungsanleitung

MSI

MSI 970A SLI Krait Edition Bedienungsanleitung

MSI

MSI MEG Z390 GODLIKE Bedienungsanleitung

MSI

MSI MS-S3361 Bedienungsanleitung

MSI

MSI MS-5153 Bedienungsanleitung

MSI

MSI X570-A PRO Bedienungsanleitung

MSI

MSI B75A-G43 series Bedienungsanleitung

MSI

MSI B560M PRO-VDH WIFI Bedienungsanleitung

MSI

MSI MS-6567 Bedienungsanleitung

MSI

MSI MAG B660M MORTAR WIFI DDR4 Bedienungsanleitung

MSI

MSI Z170A KRAIT GAMING Bedienungsanleitung

MSI

MSI MSI-5149 Bedienungsanleitung

MSI

MSI Wind Board 330 Bedienungsanleitung

MSI

MSI G31M2 V2 Bedienungsanleitung

MSI

MSI MAG B560M MORTAR WIFI Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
