MSI MS-6382 Bedienungsanleitung

Version 2.0

G52-MA00563

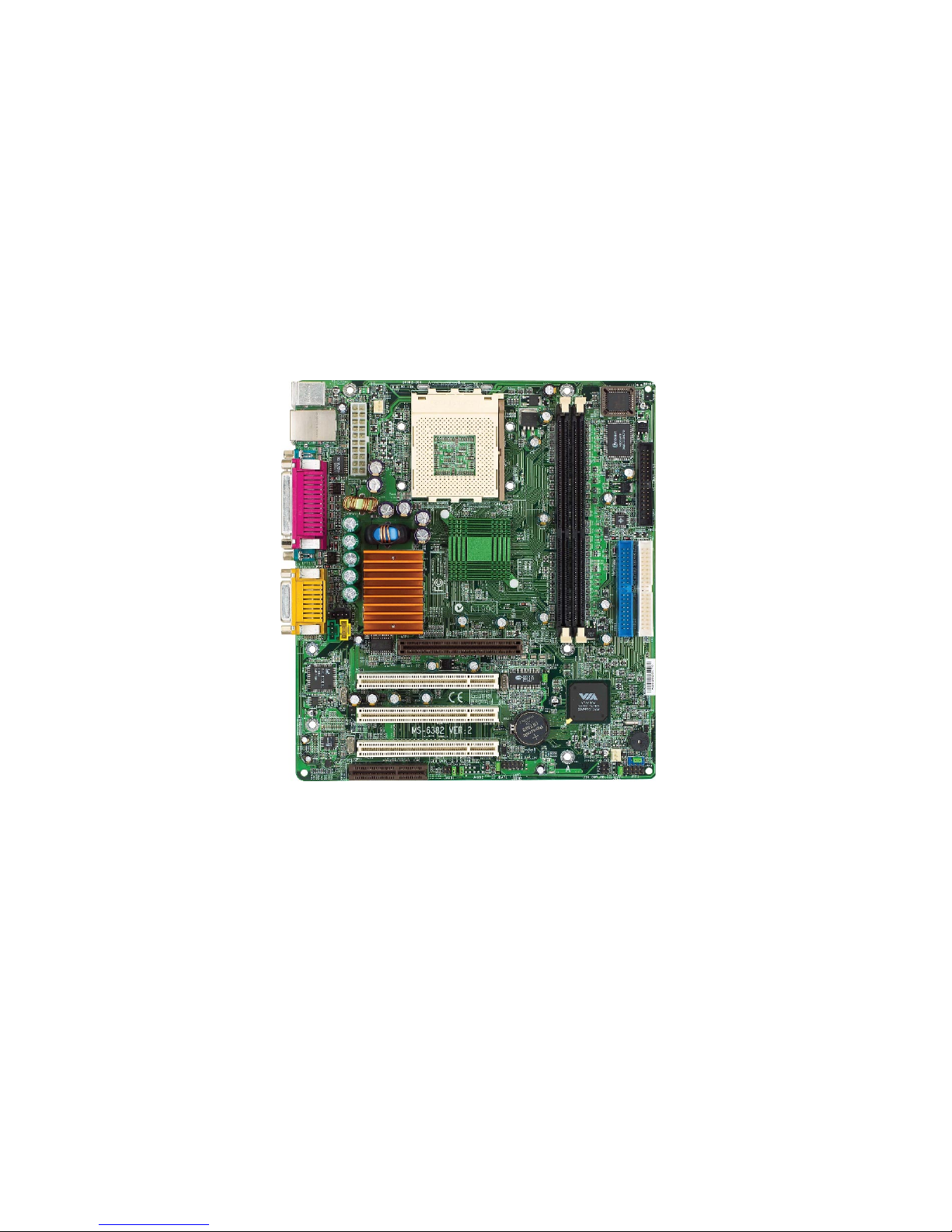

MS-6382 (v2.X) Micro ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

Micro-Star International MS-6382

Tested to comply

with FCC Standard

For Home or Office Use

Manual Rev: 2.0

Release Date: March 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the users authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE DINSTALLATION AVANT DE RACCORDER AU

RESEAU.

iii

Edition

March 2002

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products

are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks are the properties of their respective owners.

Intel®and Pentium®are registered trademarks of Intel Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.

Windows®95/98/2000/NT/XP are registered trademarks of Microsoft

Corporation.

Netware®is a registered trademark of Novell, Inc.

Award®is a registered trademark of Phoenix Technologies Ltd.

AMI®is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

2.0 First Release for PCB 2.X March 2002

Safety Instructions

1. Read the safety instructions carefully.

2. Save this Users Guide for possible use later.

3. Keep this equipment away from humidity.

4. Lay this equipment on a stable and flat surface before setting it up.

5. The openings on the enclosure are used for air convection and to prevent

the equipment from overheating. Note: Do not cover the openings.

6. Make sure that the power voltage is within its safety range and has been

adjusted properly to the value of 110/220V before connecting the equip-

ment to the power inlet.

7. Place the power cord in a way that people are unlikely to step on it. Do not

place anything on the power cord.

8. Always unplug the power cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage the equipment

or cause an electrical shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

lthe power cord or plug is damaged

lliquid has penetrated into the equipment

lthe equipment has been exposed to moisture

lthe equipment has not work well or you can not get it work according

to Users Guide

lthe equipment was dropped and damaged

lthe equipment has obvious signs of breakage

12. Do not leave the equipment in an unconditioned environment with a stor-

age temperature of 600 C (1400F) or above, which may damage the

equipment.

CAUTION: To prevent explosion caused by improper battery

replacement, use the same or equivalent type of battery recommended

by the manufacturer only.

CONTENTS

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specification ...................................................................... 1-2

Mainboard Layout ............................................................................... 1-4

Quick Components Guide .................................................................... 1-5

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU .............................................................. 2-2

CPU Installation Procedures ......................................................... 2-2

Thermal Issue for CPU .................................................................. 2-3

CPU Core Speed Derivation Procedure ......................................... 2-3

Memory ................................................................................................ 2-4

Introduction to DDR SDRAM ....................................................... 2-4

DDR Module Combination ............................................................ 2-5

Installing DDR Modules ............................................................... 2-5

Power Supply ....................................................................................... 2-6

ATX 20-Pin Power Connector: JWR1 ............................................ 2-6

Back Panel ............................................................................................ 2-7

Mouse Connector ......................................................................... 2-7

Keyboard Connector ..................................................................... 2-8

USB Connectors ............................................................................ 2-8

Serial Port Connectors: COM A & COM B.................................... 2-9

Joystick/Midi Connectors ............................................................. 2-9

Audio Port Connectors ................................................................. 2-9

Parallel Port Connector: LPT1 ...................................................... 2-10

RJ-45 LAN Jack (optional) ........................................................... 2-11

Connectors ......................................................................................... 2-12

Floppy Disk Drive Connector: FDD1........................................... 2-12

Chassis Intrusion Switch Connector: J1 ...................................... 2-12

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-13

CD-In Connector: CD_IN ............................................................ 2-14

Aux Line-In Connector: AUX_IN ................................................ 2-14

Modem-In Connector: MODEM_IN ........................................... 2-14

Fan Power Connectors: CFAN1/SFAN1 ...................................... 2-15

Power Saving LED Connector: JGL1 ........................................... 2-16

Power Saving Switch Connector: JGS1........................................ 2-17

IrDA Infrared Module Header: FPIR ........................................... 2-17

Front Panel Audio Connector: JAUD1 ........................................ 2-18

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-19

Front USB Connector: USB1 ....................................................... 2-20

Jumpers .............................................................................................. 2-21

Clear CMOS Jumper: JBAT1 ........................................................ 2-21

CPU Clock Frequency Selection: SW1 ........................................ 2-22

Slots ................................................................................................... 2-23

AGP Slot ...................................................................................... 2-23

PCI Slots ...................................................................................... 2-23

CNR (Communication Network Riser) ......................................... 2-23

PCI Interrupt Request Routing .................................................... 2-24

Chapter 3. AWARD® BIOS Setup ............................................................ 3-1

Entering Setup...................................................................................... 3-2

Control Keys ................................................................................. 3-2

Getting Help .................................................................................. 3-3

The Main Menu ................................................................................... 3-4

Standard CMOS Features .................................................................... 3-6

vii

Advanced BIOS Features .................................................................... 3-8

Advanced Chipset Features............................................................... 3-12

Integrated Peripherals ........................................................................ 3-16

Power Management Setup ................................................................. 3-21

PNP/PCI Configurations..................................................................... 3-26

PC Health Status ................................................................................ 3-29

Frequency/Voltage Control ................................................................ 3-30

Load Fail-Safe/Optimized Defaults ..................................................... 3-31

Set Supervisor/User Password ........................................................... 3-32

Glossary .................................................................................................... G-1

Getting Started

1-1

Chapter 1. Getting Started 1

Getting Started

The MS6382 v2.X Micro-ATX mainboard is a high performance

computer mainboard based on VIA KT266A & VT8233A chipsets. The

KT266A chipset is ideal for high quality and high integration desktop and

notebook AGP/PCI/LPC computer systems based on Socket A processors.

The VT8233A V-Link Client controller is a highly integrated PCI/LPC

controller. It supports three PCI slots of arbitration and decoding for all

integrated functions and LPC bus.

For sophisticated power management, the KT266A chipset provides

independent clock stop control for the SDRAM, PCI buses and Dynamic

CKE control for powering down of the SDRAM. A seperate suspend-well

plane is implemented for the SDRAM control signals for the Suspend-to-

DRAM operation.

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Chapter 1

1-2

Mainboard Specification

CPU

Socket 462 (Socket A) for AMD®DuronTM/AthlonTM processor with 200/

266MHzFSB

Support 600MHz up to 1.5GHz processor

Chipset

VIA®KT266A Chipset

- Support 66MHz V-Link Host interface with peak bandwidth of 266MB/s

- Advanced ECC memory controller supporting PC133/PC100 SDR

SDRAM and PC2100/1600 DDR SDRAM

- Full featured AGP Controller: AGP v2.0 compliant

VIA®VT8233A Chipset

- High bandwidth V-Link client controller

- Integrated faster Ethernet controller

- Direct sound ready AC97 digital audio controller

- Ultra DMA 33/66/100/133 master mode EIDE controller

- Support both ACPI and legacy APM power management

Clock Generator

Cypress CY28341OC rev. D (support 2 DDR DIMM)

MainMemory

Support four memory banks using two 184-pin (100/133MHz) DDR DIMM

Support a maximum memory size of 2GB

Slots

One (Accelerated Graphics Port) AGP slot

One CNR (Communication Network Riser) slot

Three 32-bit Master PCI Bus slots

- 3rd PCI with MEDION specification reserved

Supports 3.3v/5v PCI bus Interface

On-BoardIDE

Dual Channel master mode IDE controller on the VIA®VT8233A Chipset

provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/

100/133 operation modes

Can connect up to four IDE devices

Getting Started

1-3

Audio

2 channels S/W Audio CODEC, Realtek ALC201A

AC97s digital link controller was integrated in VIA VT8233A

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.

88Mbytes.

- 2 serial ports (COMA + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (2 x Rear / 2x Front)

- 1 Audio/Game port

- 1 optional RJ-45 LAN jack (Reaktek RTL8100BL)

BIOS

The mainboard BIOS provides Plug & Play BIOS which detects the

peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) func-

tion which records your mainboard specifications.

Dimension

M-ATX Form Factor: 9.6 in. x 8.25 in.

Mounting

6 mounting holes

Others

Support STR/STD (S3/S4)

Support PS2/USB KBD/Mouse Wakeup function in S3 mode

PC 2001 Compliance

Support Chassis Intrusion Detection & SIR

Andere Handbücher für MS-6382

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MSI Hauptplatine Handbücher

MSI

MSI PRO Z790-A WIFI Bedienungsanleitung

MSI

MSI KT3 Ultra2-C MS-6593 Bedienungsanleitung

MSI

MSI A88X-G41 PC Mate Bedienungsanleitung

MSI

MSI K8M Neo-V Bedienungsanleitung

MSI

MSI Z97 GAMING 7 Bedienungsanleitung

MSI

MSI MS-6315 Bedienungsanleitung

MSI

MSI FM2-A55M-E33 series Bedienungsanleitung

MSI

MSI 845E Max2 Series Bedienungsanleitung

MSI

MSI A55-G35 Series Bedienungsanleitung

MSI

MSI MS-6577 Bedienungsanleitung

MSI

MSI X470 GAMING PLUS Bedienungsanleitung

MSI

MSI MAG Z490 TOMAHAWK Bedienungsanleitung

MSI

MSI H170A PC MATE Bedienungsanleitung

MSI

MSI X99S GAMING 9 AC Bedienungsanleitung

MSI

MSI MPG Z490 GAMING PLUS Bedienungsanleitung

MSI

MSI 645 Ultra MS-6547 Bedienungsanleitung

MSI

MSI MS-6390 Bedienungsanleitung

MSI

MSI 845E Neo-V Bedienungsanleitung

MSI

MSI MS-6309 Handbuch

MSI

MSI Z170A SLI PLUS Bedienungsanleitung

MSI

MSI MAG B660 TOMAHAWK WIFI DDR4 Bedienungsanleitung

MSI

MSI 890FXA-GD70 series Bedienungsanleitung

MSI

MSI A75MA-P35 series Bedienungsanleitung

MSI

MSI 880GM-E43 Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
