MTL WIO-800LR Bedienungsanleitung

Quick Start Guide

QSG 800LR

WIO-800LR

wireless I/O receiver unit

2QSG 800LR-1.8

May 2010

ABOUT THIS DOCUMENT

This is the Quick Start Guide for the MTL WIO-800LR Wireless I/O Receiver

Unit and contains the following sections:

Section Read this section if you want to …

1Basic steps for

using your unit

Learn the basic steps for installing and using

your unit.

2Factory default

conﬁguration

Understand how the transmitter sends

information to the receiver.

3 Unit components Understand the different parts of your unit.

4 Antenna installation Learn how to install an antenna with your unit.

5Resetting factory

defaults

Reset your unit to the original factory default

settings.

6 Linking Tx and Rx units Link your units to work as a dedicated pair.

7 Safety information

Understand important safety information related

to your unit.

NOTE: You must read this information before

installing your unit.

8 Speciﬁcations See the technical information.

For more information, see the following sections.

1 Basic steps for using your unit

This document describes how to conﬁgure your unit using the default factory

conﬁguration that lets you easily setup your network as a simple send/receive

network using a dedicated pair of transmitter and receiver units.

The basic steps for using your unit are:

1. Connect the antenna power supply and transducer signals using the

instructions in this document. Power supply and transducer connection

is described in the section Unit components and connections. Antenna

connection is described in the section Antenna installation. For more

information, see the WIO-800L Installation Manual.

2. Reset the transmitter and receiver units to the factory default conﬁgurations.

3. Link the transmitter and receiver units to work as a dedicated pair.

4. Bench test your conﬁguration before deploying.

NOTE: You can also conﬁgure your network using a user-deﬁned customised

conﬁguration that lets you set speciﬁc information about your network. For

more information on setting a user-deﬁned customised conﬁguration, see the

WIO-800L User Manual on the enclosed CD.

2 Factory default conﬁguration

When you conﬁgure the units using the conﬁguration in this document, the

inputs from the transmitter are sent to the outputs at the receiver as follows

WIO-800LT(Transmitter) Sends WIO-800LR (Receiver)

Digital Input 1 _ Digital Output 1

Digital Input 2 _ Digital Output 2

Analogue Setpoint _ Digital Output 3

Analogue input (4-20 mA) _ Analog output (4-20 mA)

Thermocouple Input (Not used) Communication Failure

(Comes on if no messages

from WIO-800LT)

Setpoint Output (Local indication)

System OK (On if system OK) System OK (On if system OK)

QSG 800LR-1.8

May 2010

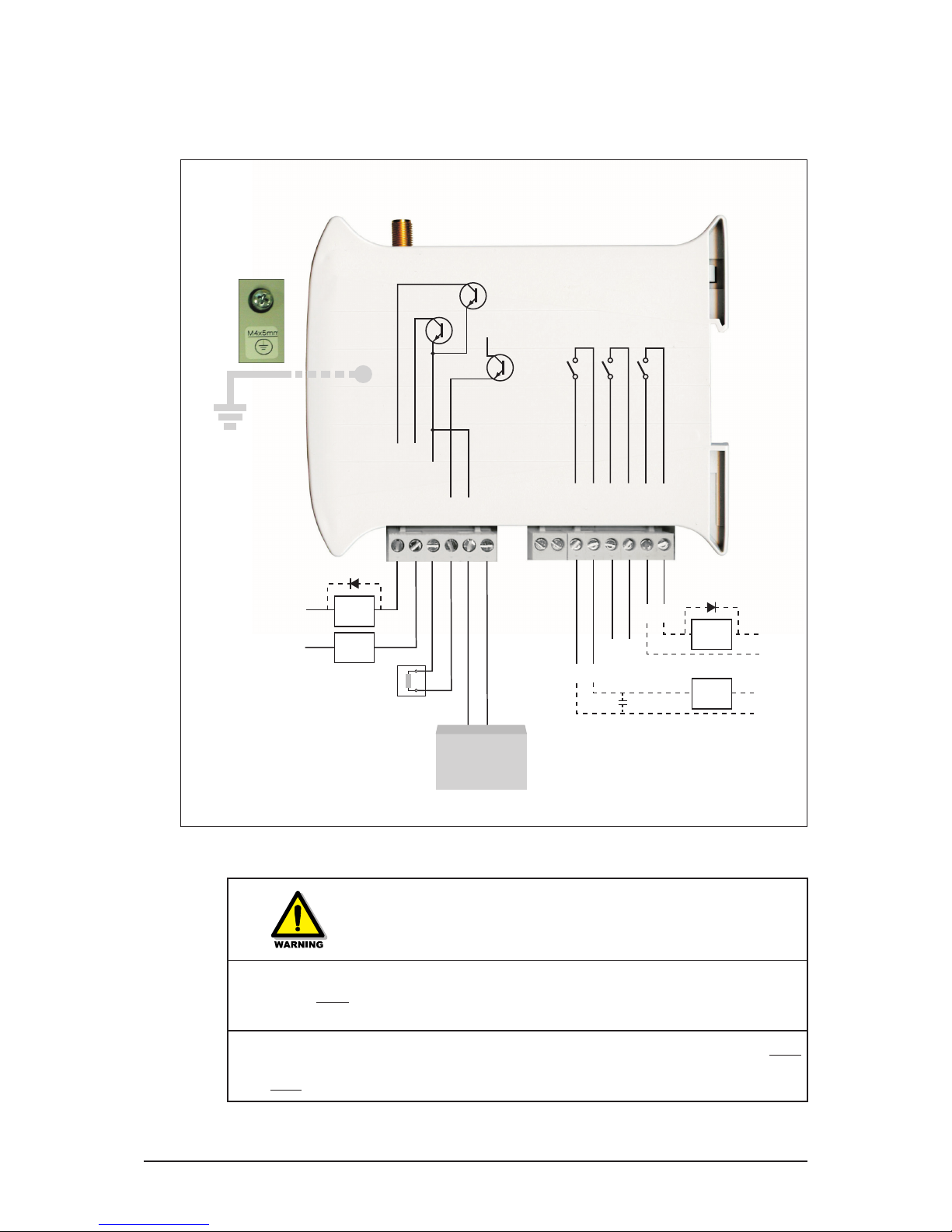

3 Unit components and connections

Your WIO-800LR receiver unit has the following components and terminal

connections:

IMPORTANT ELECTRICAL SAFETY INFORMATION

In order to comply with Electrical Safety Regulations, this module must be installed in

an Electrical AND Fire enclosure. This enclosure may be a single or multiple enclosures.

Access to the module is to be made by a Service Person only.

In order to comply with Electrical Safety Standards, when connecting SELV AND

voltages which are greater than SELV (30VAC or 60VDC) together, then Relay Output 2

must NOT be used in order to provide sufﬁcient isolation between the outputs.



















































































4QSG 800LR-1.8

May 2010

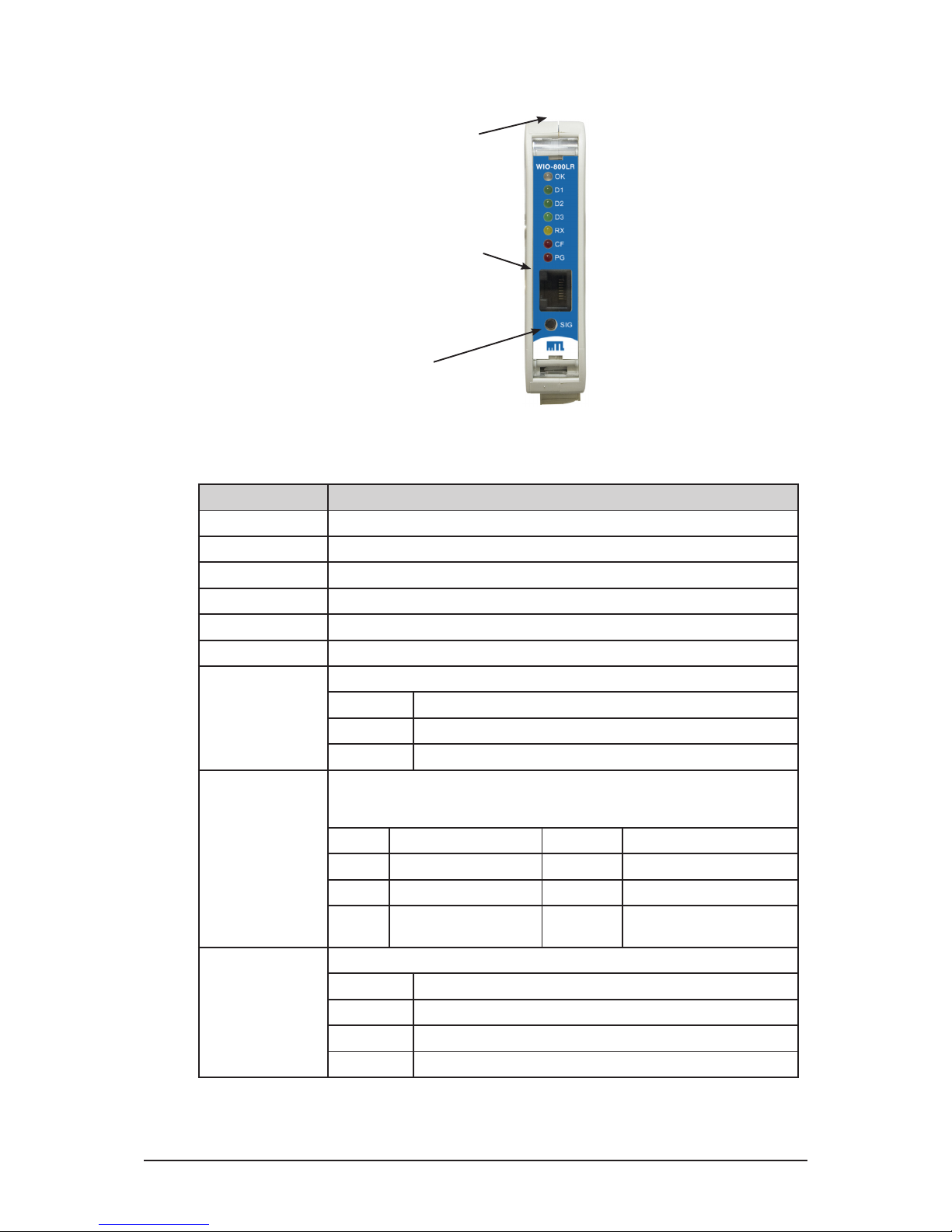

The front panel provides the following components:

The LEDs on the front panel indicate the unit status:

LED Status Indicates

None No power supply.

OK Green Current status of the unit OK.

OK Red Fault condition detected in unit.

RX Flashes Receiving Message.

CF ON Module Communication Failure Output is active.

PG ON Conﬁguration Cable Connected.

D1, D2, D3 ON The Output LEDS (D1, D2, D3) light when the corresponding output is active.

D1 Relay output D1 is ON (i.e. contact closed).

D2 Relay Output D2 is ON.

D3 Relay Output D3 is ON.

LEDs with RSSI

Push Button

Pressed

When you press the RSSI push button, the unit shows the signal strength by

lighting the LEDs from the bottom to the top. Signal strength is the strength

of the last message received that was addressed to this station.

LED Signal Strength LED Signal Strength

D1 Better than -85 dBm RX Better than -100 dBm

D2 Better than -90 dBm CF Better than -105 dBm

D3 Better than -95 dBm PG Always on during RSSI

test

Output LED

ﬂashing quickly

If an output is in communication failure, the corresponding LED ﬂashes at 5 Hz.

D1 Relay Output D1 is in communication failure.

D2 Relay Output D2 is in communication failure.

D3 Relay Output D3 is in communication failure.

PG Analog output is in communications failure.

SMA antenna connector

at top of unit

RS232 conﬁguration port

RSSI push button

QSG 800LR-1.8

May 2010

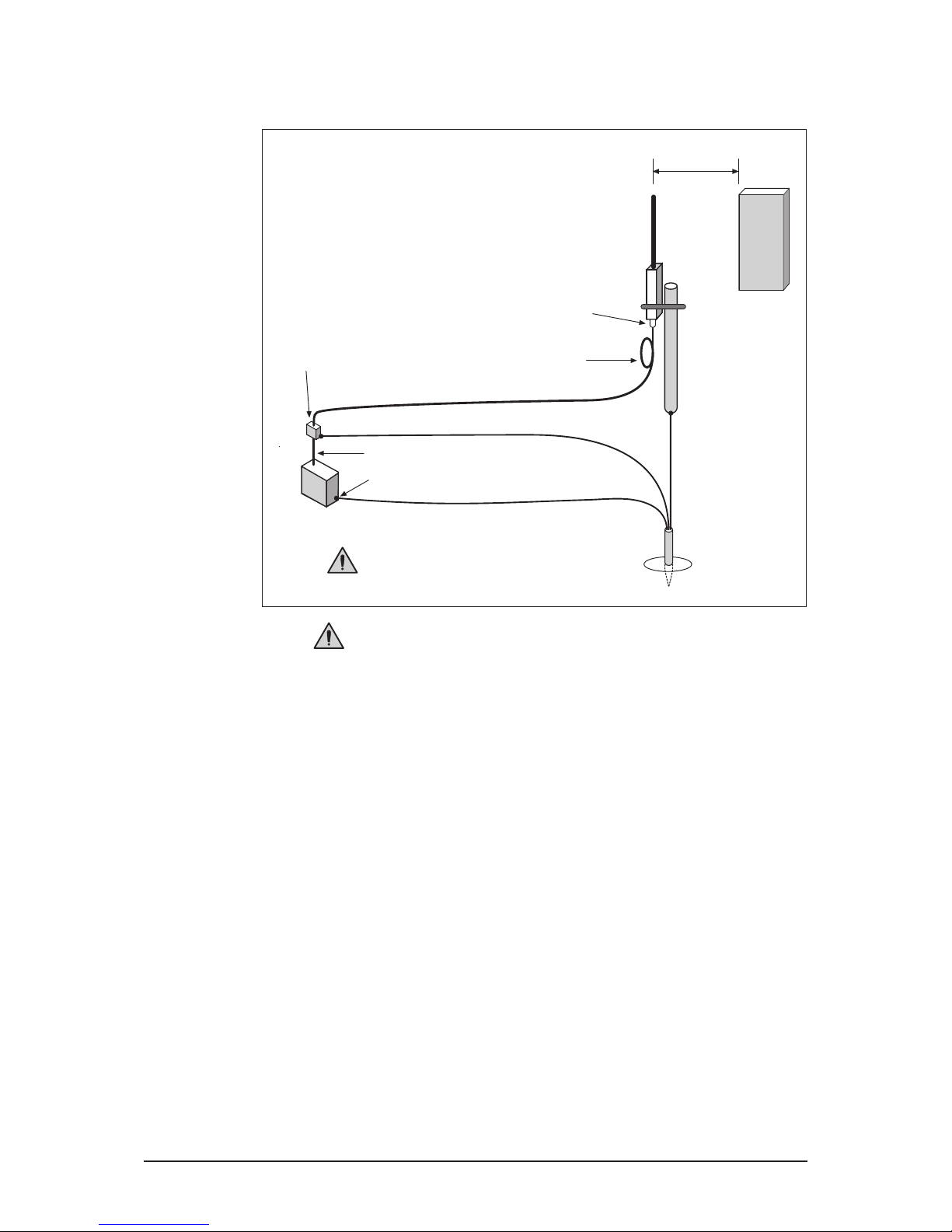

4 Antenna installation





 



























The antenna must be be installed above all local obstructions

5 Resetting your unit to factory defaults

You must reset the receiver unit to factory defaults before linking the

transmitter and receiver units.

To reset the default factory conﬁguration:

1. Press and hold the RSSI push button.

2. Power on the WIO-800LR receiver.

3. The WIO-800LR receiver ﬂashes all LEDs at medium ﬂash (i.e. 1.6 Hz).

NOTE: If the LEDs do not ﬂash, you must repeat steps 1 and 2 until the LEDs

ﬂash before continuing.

4. Release the RSSI push button within 5 seconds.

5. Within a further 60 seconds, press and hold the RSSI push button for 5

seconds (until the LEDs stop ﬂashing) and then release.

6. The WIO-800LR receiver lights all LEDs for 2 seconds before returning to

normal operation.

NOTE: If the LEDs do not light, you must repeat the process from step 1 until

the LEDs light before continuing.

7. You can now link the transmitter and receiver units.

6QSG 800LR-1.8

May 2010

6 Linking your transmitter and receiver units

You must reset the transmitter unit to factory defaults (to disable encryption)

before linking the transmitter and receiver units. For more information, see

the WIO-800LT Transmitter Quick Start Guide.

NOTE: You must complete the linking process in 60 seconds.

To link the transmitter and receiver units:

1. Press and hold down the RSSI Pushbutton on the receiver.

2. Power on the receiver while holding down the RSSI Pushbutton

3. Release the RSSI Pushbutton as soon as the Receiver LEDS ﬂash (within

5 seconds of powering the receiver).

4. The receiver will ﬂash all LEDs for a maximum 60 seconds while it tries to

link to the transmitter.

5. Power on the transmitter. The transmitter sends a special “Link” message

to allow the receiver to recognise the transmitter.

6. When the units link, the receiver lights all LEDs for 2 seconds before

returning to normal operation.

NOTE: If the receiver LEDs continue ﬂashing within the 60 seconds, the

units are not linked and you should retry the linking process by powering the

transmitter off and on again. If you exceed the 60 seconds, you must restart

the linking process from step 1.

You can now bench test your conﬁguration before deploying.

7 Safety information

Thank you for selecting the WIO-800LR receiver for your telemetry needs.

We trust it will give you many years of valuable service. To ensure your

WIO-800LR receiver enjoys a long life, double-check ALL your connections

with the user’s manual before powering on the unit.

WARNING: Incorrect termination of supply wires may cause internal damage

and will void warranty.

QSG 800LR-1.8

May 2010

8 Unit speciﬁcations

Input/output Number Additional information

Digital outputs 3 Voltage-free contacts rated at 250 VAC 1A,

30VDC 1A.

2 for digital inputs and 1 for setpoint.

Status outputs 2 Separate System OK and communication

failure output.

Analog output 1 16-bit resolution, 0.1% accuracy, single-

ended source output.

Power supply 1 9-30 VDC 0.25 Amp CSA certiﬁed Class

2 power supply. For use in Class 1 Div 2

hazardous areas, the power supply must

be approved for Class 1 Div 2 use.

WARNING: Explosion hazard - do not

connect or disconnect while circuit is live

unless area is known to be non-hazardous.

Radio receiver 1 High sensitivity DFSK Fixed Frequency

receiver.

Frequency 868.525 MHz

869.875MHz

Actual frequency range depends on Paired

Transmitter.

Sensitivity -111 dBm At PER 8%.
