Side Panels for MTC-LAT1 or MTC-LVW2

Side Panels

The device has connectors on both sides of the housing.

The right side of the device contains Auxiliary (for Diversity), GPS, and

Cellular connectors. Depending on the model, the GPS connector may or

may not be present.

The left side of the serial device includes an RS-232 connector and the

power receptacle.

The left side of the USB device includes a USB connector.

Installing the Cellular Modem

1. Connect a suitable antenna to the antenna connector.

2. To connect to a serial interface:

■Connect the DE-9 connector (9-pin) of the RS-

232 cable to the RS-232 connector on the

cellular modem. Then connect the other end to

the serial port on the desired device.

■Screw on the power lead from the power supply

module into the power connection on the cellular

modem.

■Plug the power supply into your power source.

3. To connect to a USB interface:

■Connect the micro-USB connector end of the

cable to the USB connector on the back of the

cellular modem.

■Connect the other end to your computer, either

directly or through a hub

4. The B02 models support the use of a GPS receiver. If you

are using a GPS receiver with the modem, attach the GPS

cable to the GPS connector on the cellular modem.

5. After power is applied:

■The POWER LED lights after the device powers

up.

■When the STATUS LED begins to blink, the

device is ready for use.

Mounting Device

1. Locate the groove on the bottom of the cellular modem.

2. Slide the mounting rod through the groove.

3. To secure the rod to the desired surface, place and tighten

two screws in the holes on either end of the mounting rod.

Refer to the user guide for an illustration of the mounting

rod, as well as the dimensions for placement of the screws.

MultiConnect®Cell 100 Series Cellular Modem (MTC-

LAT1 or MTC-LVW2)

Document Part Number: 82102200L Rev. A

This publication may not be reproduced, in whole or in part, without the

specific and express prior written permission signed by an executive

by Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties,

whether express, implied or by estoppels, with respect to the content,

information, material and recommendations herein and specifically

disclaims any implied warranties of merchantability, fitness for any

particular purpose and non-infringement. Multi-Tech Systems, Inc.

reserves the right to revise this publication without obligation to notify any

person or organization of such revisions or changes.

MultiConnect, MultiTech and the MultiTech logo are registered

trademarks of Multi-Tech Systems, Inc. All other brand and product

names are trademarks or registered trademarks of their respective

companies.

Quick Start Quick Start Quick Start Quick Start

Overview

The MultiConnect®Cell 100 Series Cellular Modem (MTC-LAT1 or MTC-

LVW2) provides secure data communication between many types of

devices that use legacy and the latest communication technologies.

Regulatory Information

For additional regulatory information, see your device’s user guide or go

to your device’s page on www.multitech.com

47 CFR Part 15 Regulation Class B Devices

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

■Reorient or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

■Consult the dealer or an experienced radio/TV technician for

help.

Warning: Changes or modifications to this unit not expressly approved by

the party responsible for compliance could void the user’s authority to

operate the equipment.

Package Contents

Your MultiConnect®Cell 100 Series Cellular Modem (MTC-LAT1 or MTC-

LVW2) typically includes the following (varies with model):

Power

Supply

1 - 9 VDC power supply with removable blades, 1 -

NAM blade/plug, 1 - EURO blade/plug, 1 - UK

blade/plug, 1-AU/NZ blade/plug

Cables 1 - Power cable from power supply

Antennas 2 - CELL, AUX , LTE external antennas, and 1- GPS

external antenna (for B02)

Documents 1 - Quick Start Guide, 1 - Warranty Plans, 1 -

Activation, Support & Regulatory Information

Other Items 1 - Mounting rod, 4 - Clear adhesive bumpons or

mounting feet

Device 1- MultiConnect®Cell 100 Series Cellular Modem

(LTE) 4.169" x 3.00" x 1.163" Blue enclosure

includes:

■7-32 VDC power connector

■RS-232 (DE 9-pin, female-D) connector

■AUX Cellular auxiliary female SMA

connector (Diversity)

■GPS GPS female SMA connector (for

B02)

■CELL cellular female SMA connector

Additional Information

For more information on your device, refer to the appropriate user guide:

http://www.multitech.com/brands/multiconnect-cell-100-series

LED Descriptions

The top panel contains the following LEDs:

■Power and Status LEDs - The Power LED indicates that DC

power is present and the TR LED blinks when the unit is

functioning normally.

■Modem LEDs - Two modem LEDs indicate carrier detection

and link status (for serial models only).

■Signal LEDs - Three signal LEDs display the signal strength

level of the wireless connection.

Installing a SIM Card

If you want to operate the modem on a particular cellular network, install a

mini-SIM card [or mini SIM (2FF) form factor].

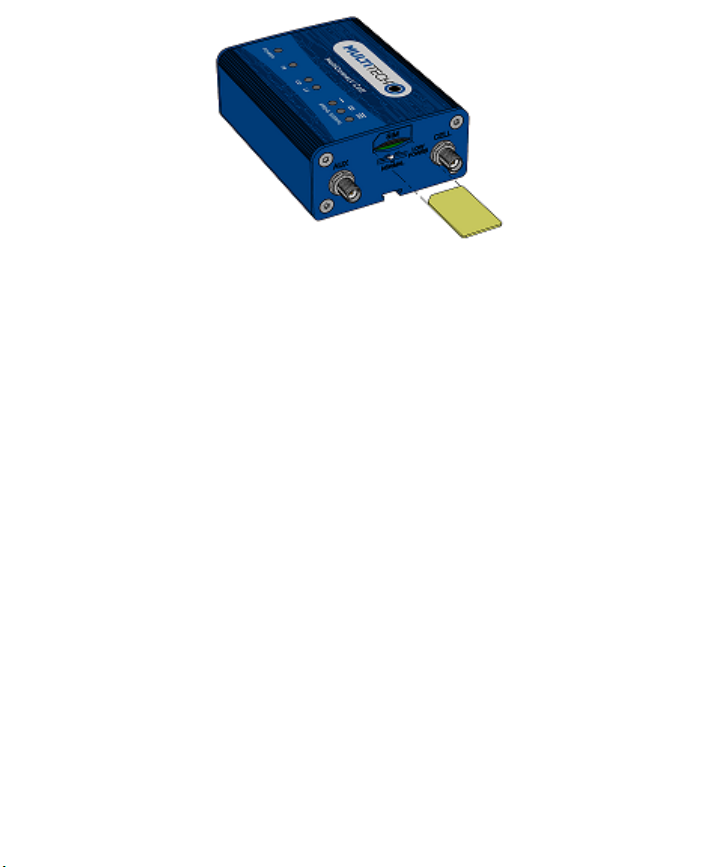

To install the mini-SIM card:

1. Locate the mini-SIM card slot on the side of the cellular

modem. The slot is labeled SIM.

2. Push the mini-SIM card into the slot until it snaps into place.
