MultiModem®ZBA

MT9234ZBA-USB

User Guide

2 Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B)

MultiModem ZBA

MULTIMODEM PRODUCT User Guide

S000419B Revision B

written permission from Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and

specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes in

the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such

revisions or changes. Check Multi-Tech’s Web site for current versions of our product documentation.

Record of Revisions

Revision Date Description

A 11/05/07 Initial release

B 04/24/08 Add Vista Operating System support and removed support for Windows 2000.

Trademarks

MultiModem, Multi-Tech, and the Multi-Tech logo are registered trademarks of Multi-Tech Systems, Inc.

Microsoft Windows 2003, XP, and Vista Operating Systems are registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

Patents

This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794;

5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589;

D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649;

5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859;

5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; D361,764; D355,658; D355,653; D353,598;

D353,144; 5,355,365; 5,309,562; 5,301,274;7082106;7082141;7092406 . Other patents pending.

Technical Support

Country By Email By Phone

Europe, Middle East, Africa: [email protected]k +(44) 118 959 7774

U.S., Canada. all others: [email protected]m (800) 972-2439 or +763-717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112 U.S.A

Telephone (763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

Internet http://www.multitech.com

Chapter 1 – Description and Specification

Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B) 3

CONTENTS

CHAPTER 1 – DESCRIPTION AND SPECIFICATION ......................................................4

Features include:............................................................................................................................................................. 4

Universal Serial Bus (USB)............................................................................................................................................ 4

Package Contents ........................................................................................................................................................... 4

AT Commands Info.......................................................................................................................................................... 4

Technical Specifications................................................................................................................................................. 5

CHAPTER 2 – INSTALLATION..........................................................................................6

Safety Warning Telecom................................................................................................................................................ 6

Connect the Modem to Your PC.................................................................................................................................... 6

Install the Modem Driver ................................................................................................................................................... 7

Country Configuration with Global Wizard..................................................................................................................... 22

CHAPTER 3 - OPERATION............................................................................................ 24

Front Panel..................................................................................................................................................................... 24

Connecting to the Internet............................................................................................................................................ 24

Internet Connection....................................................................................................................................................... 25

CHAPTER 4 - REMOTE CONFIGURATION ....................................................................26

Basic Procedure............................................................................................................................................................. 26

Setup ............................................................................................................................................................................... 26

CHAPTER 5- TROUBLESHOOTING................................................................................27

None of the Indicators Light......................................................................................................................................... 27

The Modem Does Not Respond to Commands........................................................................................................ 27

The Modem Dials But Cannot Connect...................................................................................................................... 27

The Modem Disconnects While Online...................................................................................................................... 28

The Modem Cannot Connect When Answering........................................................................................................ 28

The Modem Doesn’t Work with Caller ID................................................................................................................... 29

Fax and Data Software Can’t Run at the Same Time.............................................................................................. 29

APPENDIX A – REGULATORY COMPLIANCE .............................................................. 30

FCC Part 68 Telecom ................................................................................................................................................... 30

FCC Part 15.................................................................................................................................................................... 31

Canadian Limitations Notice........................................................................................................................................ 31

Industry Canada............................................................................................................................................................. 31

International Modem Restrictions................................................................................................................................32

EMC, Safety, and R&TTE Directive............................................................................................................................ 32

South African Notice...................................................................................................................................................... 32

APPENDIX B – WARRANTY & REPAIR POLICIES....................................................... 33

APPENDIX C – WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT..................... 35

APPENDIX D - C-ROHS HT/TS SUBSTANCE CONCENTRATION ................................ 36

APPENDIX E - LINUX INSTALLATIONS.........................................................................37

Introduction...................................................................................................................................................................... 37

Installation in Computers Using the Linux 2.4 Kernel..................................................................................................... 37

Installation in Computers Using the Linux 2.6 Kernel..................................................................................................... 43

Installation in Computers Using the Linux 2.6.20 Kernel................................................................................................ 48

APPENDIX F – ASCII CONVERSION .............................................................................. 50

Chapter 1 – Description and Specification

4 Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B)

Chapter 1 – Description and Specification

Congratulations on your purchase of the MultiModem ZBA-USB modem. Your MultiModem productdata/fax

modem supports remote configuration and dial-up connections. It offers V.34/33.6K fax and Error Correction

Mode, that reduces fax transmission time by more than half when compared to traditional fax modems. In

addition, they are globally approved for use in many countries around the world. This means one model can

ship virtually anywhere.

This User Guide will help you install, configure, test, and use your modem.

Check the Multi-Tech’s Web site for current versions of our product documentation.

Features include:

•V.92/56K download speeds and 48K upload speeds when connecting with V.92 servers

•V.44 compression improves data throughput rates

•Class 1.0 and Class 2.1 faxing at speeds to V.34/33.6K bps (Super G3)

•Error Correction Mode (ECM) provides fast and reliable fax transmissions

•Windows Plug-and-Play operation

•Linux compatible

•U.S. Caller ID reporting

•Remote configuration for centralized setup and control

•Globally approved models for use in many countries worldwide

•Small footprint and stackable design

•Self-resetting lightning protection

•Flash memory for easy updates

•USB cable included

•Ten-year warranty

Universal Serial Bus (USB)

Universal Serial Bus (USB), defined by a consortium of industry leaders, permits connection of multiple low-

speed and medium speed computer peripheral devices such as telephones, modems, printers, keyboards,

mice, and scanners; all from a single personal computer port. The specification, based on an open

architecture is quickly becoming a standard feature in new desktop and notebook computers.

Package Contents

The MultiModemUSB package contains:

•An MultiModem productdata/fax modem

•A set of four self-adhesive plastic feet

•A printed Quick Start Guide

•One Product CD

•One USB cable

•One modular telephone cable

AT Commands Info

The AT Commands for the MultiModem are published in a separate Reference Guide included on your

product CD and posted on the Multi-Tech web site.

Chapter 1 – Description and Specification

Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B) 5

Technical Specifications

Your MultiModemZBA-USB modem meets the following specifications:

Trade Name MultiModem® ZBA

Model Number MULTIMODEM PRODUCT

Server-to-Client Data Rates V.90 speeds when accessing a V.90 or V.92 server (actual speed

depends on server capabilities and line conditions)

Client-to-Server Data Rates Up to 50Kbps when accessing a V.92 server (actual speed depends

on server capabilities and line conditions); otherwise, the same as

client-to client data lines.

Client-to-Client Data Rates 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400,

12000, 9600, 7200, 4800, 2400, 1200, 0-300 bps

Fax Data Rates 33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400,

12000, 9600, 7200, 4800, 2400, 1200, 0-300 bps

Data Format Serial, binary, asynchronous

Modem Compatibility ITU-T V.92, V.90, V.34 enhanced, V.34, V.34bis, V.32, V.32bis,

V.22; Bell 212A and 103; ITU-T V.21, V.42, V.42bis, V.44

Fax Compatibility ITU-T “Super” Group 3, Class 1.0, 2.0, 2.1, T.4, T.30, V.21, V.27ter,

V.29, V.34, V.17; TIA/EIA 578 Class 1, 2, TR29.2

Error Correction ITU-T V.42

Data Compression ITU-T V.44 (4:1 throughput), V.42bis (4:1 throughtput), MNP 5 (2:1

throughput)

Flow Control XON/XOFF (software), RTS/CTS (hardware)

Intelligent Features Plug and play; fully AT command compatible; autodial, redial, repeat

dial; pulse or tone dial; dial pauses; auto answer; caller ID; EIA

extended automode; adaptive line probing; automatic symbol and

carrier frequency during start-up, retrain, and rate renegotiation;

DTMF detection; call status display, auto-parity and data rate

selections; keyboard-controlled modem options; non-volatile

memory; on-screen displays for modem option parameters;

command lines of up to 40 characters each; remote configuration

Command Buffer 40 characters

Transmit Level -12dBm )Euro/NAM) – varies by country/region setting

Lightning Protection FCC Part 68 A/B surge

Frequency Stability ±0.01%

Receiver Sensitivity -43 dBm under worst-case conditions

AGC Dynamic Range 43 dB

Connectors USB connector; two RJ-11 phone jacks

Cables One RJ11 phone cable

One USB cable

Note: Any cables connected to the computer should be shielded to

reduce interference.

Diagnostics Power-on self test, local analog loop, local digital loop, remote digital

loop.

Environmental Temperature range -40°– 60°C (-40°–140°F); humidity range 20–

90% (non-condensing)

Dimensions 10.9 cm wide x 14.5 cm long x 2.5 cm high (4.3”x 5.7”x 1.10”)

Weight 227 g (8 oz)

Limited Warranty 10 year

Chapter 2 - Installation

6 Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B)

Chapter 2 – Installation

This chapter shows you step-by-step how to set up your Multi-Tech MultiModem productmodem.

Safety Warning Telecom

•Use this product only with UL and cUL listed computers.

•To reduce the risk of fire, use only 26 AWG (.41mm) or larger telephone wiring.

•Never install telephone wiring during a lightning storm.

•Never install a telephone jack in wet locations unless the jack is specifically designed for wet

locations.

•Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

•Avoid using a telephone during an electrical storm. There is a risk of electrical shock from lightning.

•Do not use a telephone in the vicinity of a gas leak.

•This product must be disconnected from the telephone network interface when servicing.

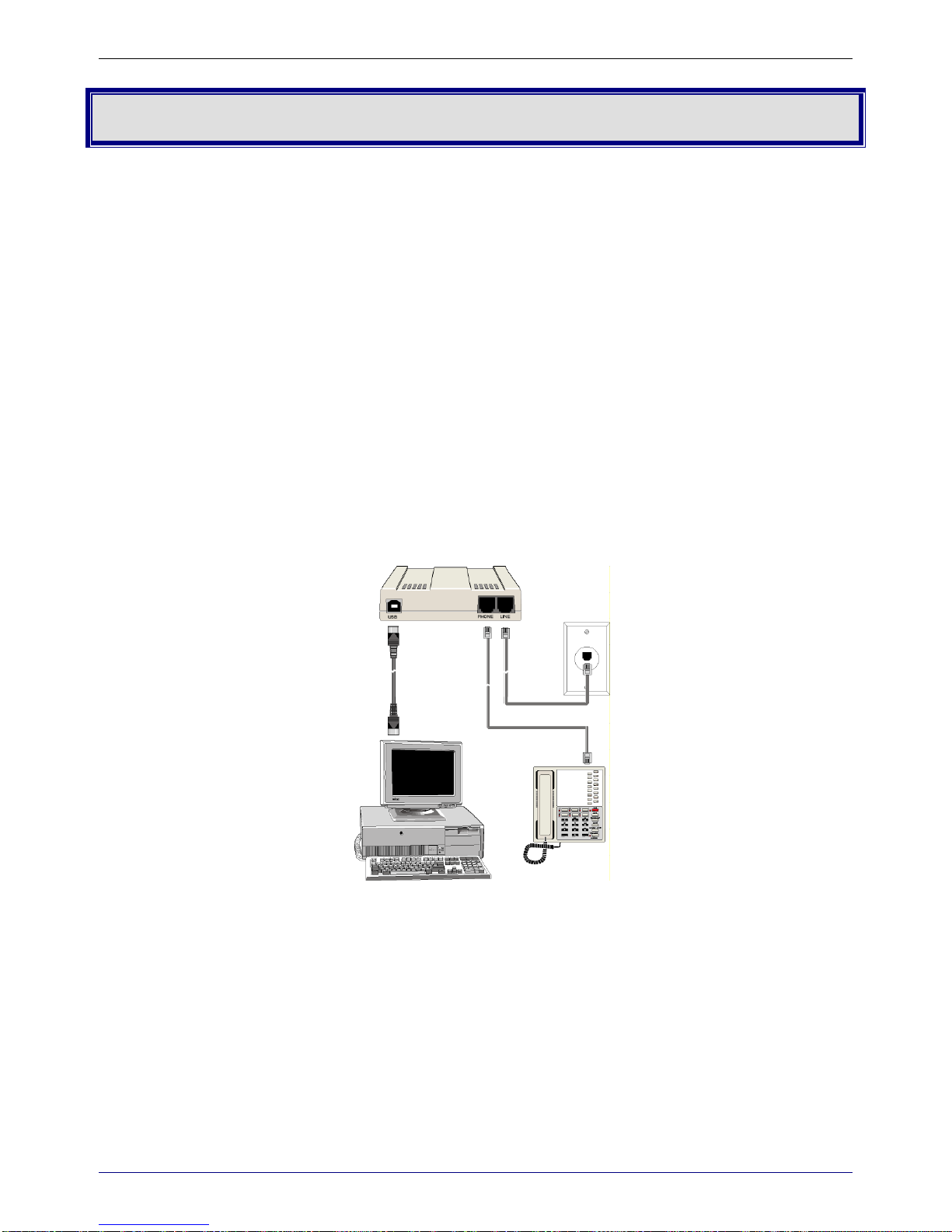

Connect the Modem to Your PC

Placing the modem in a convenient location, connect it to your computer’s USB port, to the telephone line,

and, optionally, to your telephone.

USB Connection

Plug one end of the USB cable into the USB connector on the modem, and the other end into a USB port

connector on your computer.

Line Connection

Plug one end of the phone cable into the modem’s LINE jack and the other end into a phone line wall jack.

Note: The LINE jack is not interchangeable with the PHONE jack. Do not plug the phone into the LINE jack

or the line cable into the PHONE jack.

Note: The Federal Communications Commission (FCC), and Industry Canada impose certain restrictions on

equipment connected to public telephone systems. See Appendix A for more information.

Phone Connection

For voice-only calls, you can optionally plug a telephone into the modem’s PHONE jack.

Chapter 2 - Installation

Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B) 7

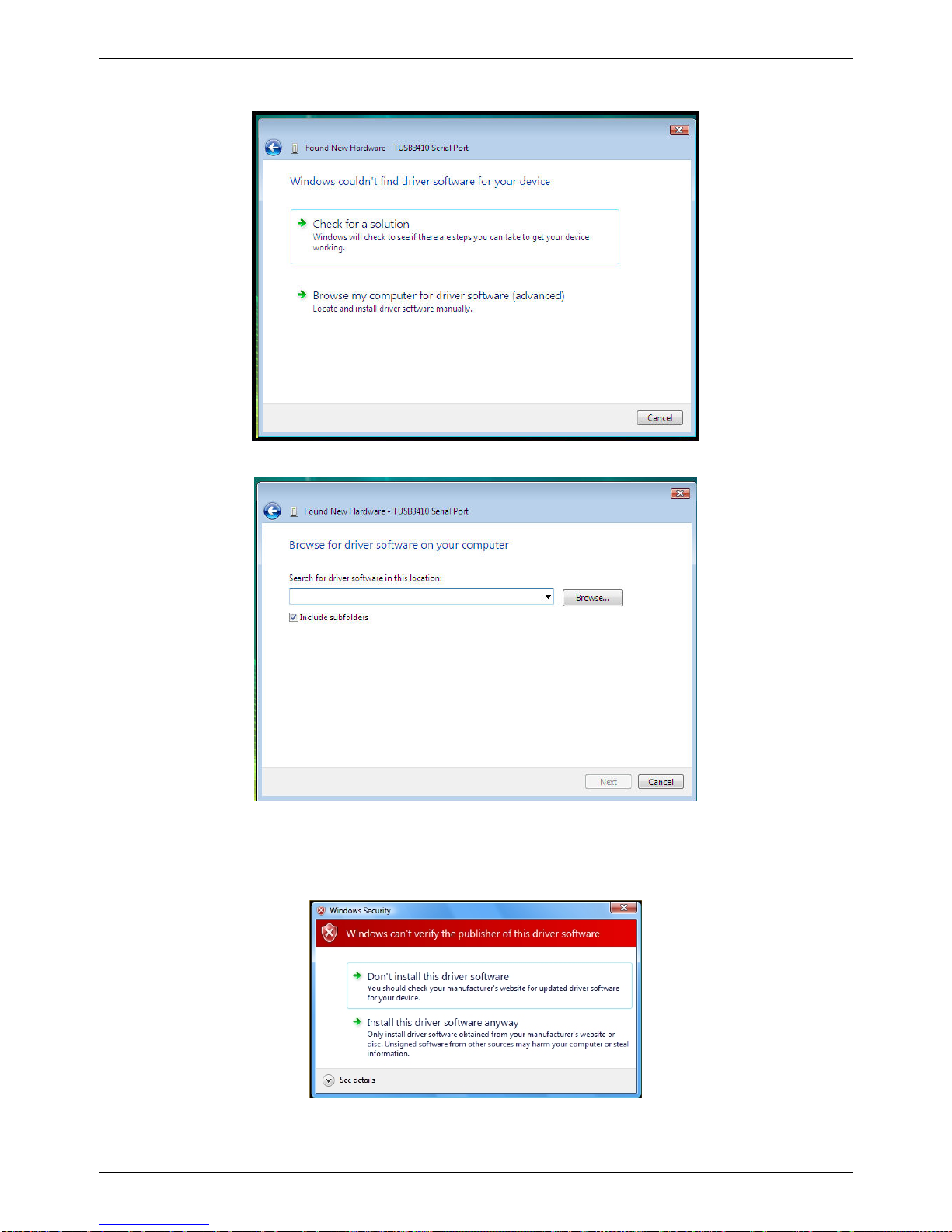

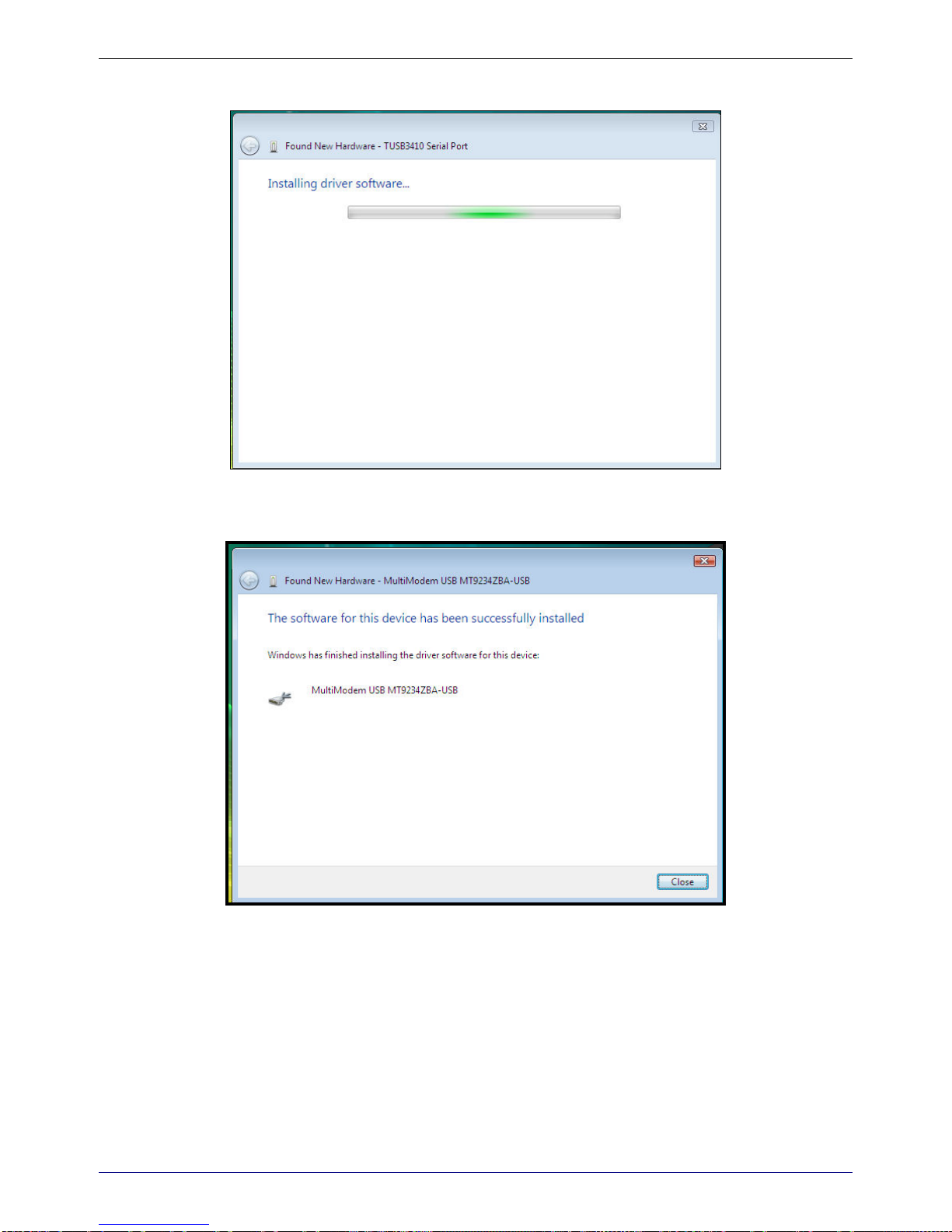

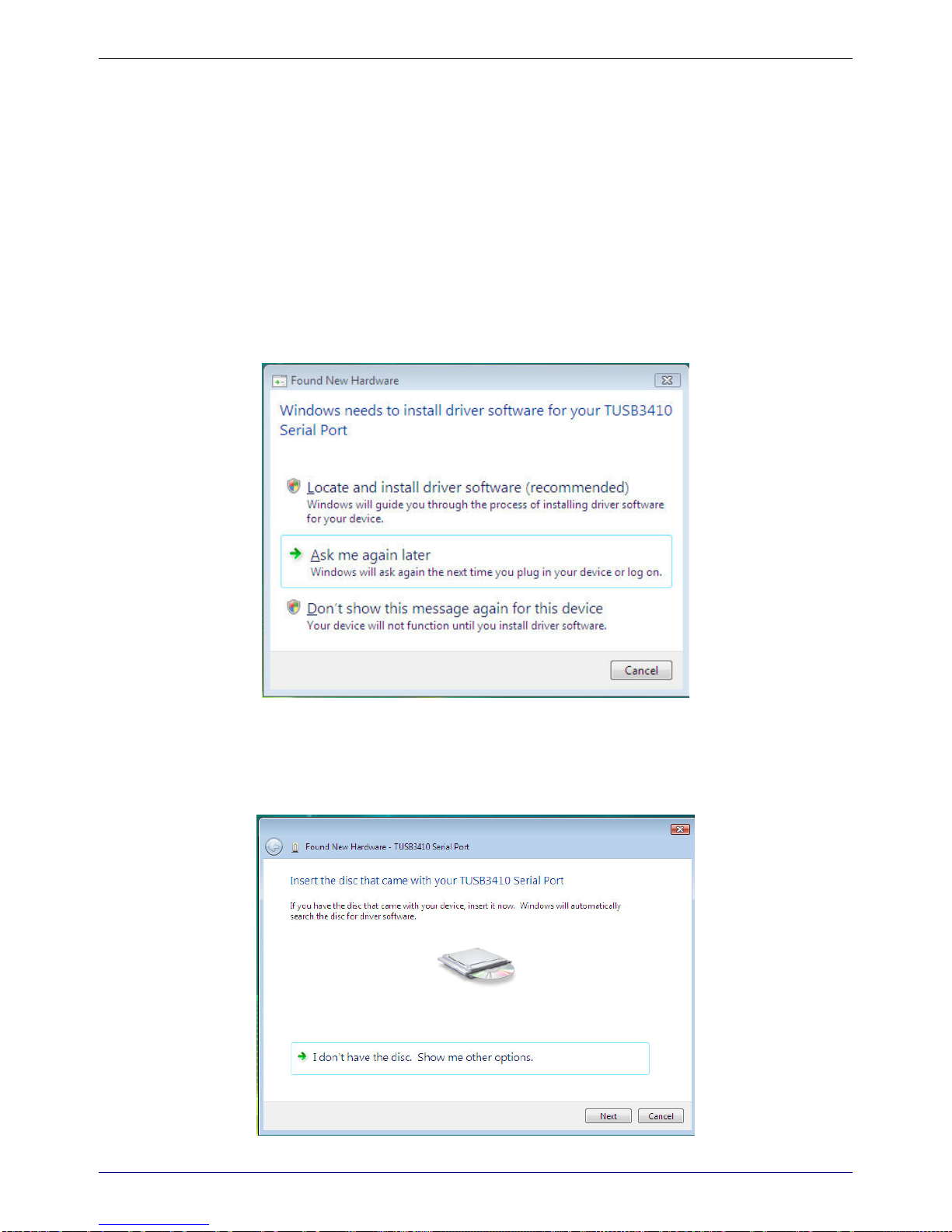

Install the Modem Driver

Introduction

Compatibility: This MultiModem is compatible with Windows Operating Systems Vista/XP/2003/2000

and Linux.

Windows Drivers: The MultiModem productdriver must be installed in your computer’s program

directory. The Windows drivers are located on the MultiModem productCD in the Drivers I Windows

Drivers folder. A complete set of drivers for each operating system is organized into Vista and XP with

either 32-bit or 64-bit processor. Most users will select either the 32-bit Vista or 32-bit XP drivers

(Windows 2003 also use the XP drivers). Windows 2000 users must select the drivers from the Drivers I

Windows_2000 directory. Server users can select either 32-bit or 64-bit depending on their application.

For server users to determine whether they have a 32-bit or 64-bit operating system, go to Start I All

Programs I Accessories I System Tools I Computer and click on the System Properties button.

Under System you will see System Type: 64-bit Operating System.

When installing the 64-bit version of the Vista driver, a person will have to disable the “signed” driver

check in order to install it. Two methods are available, choose one:

•First Method

Boot your PC, press F8 and choose “Disable driver signature enforcement option”.

•Second Method

•Create a shortcut on the desktop to cmd.exe using the following steps:

•Right click on an empty space on the desktop to open the context menu

•Select New

•Select Shortcut with a left-click

•In the Location box type cmd /k

•Right-click on the shortcut and select Run as administrator

•When the command window opens, type or paste the following and press ENTER:

•Reboot your PC and install the driver

Linux Drivers: Linux Operating System drivers are also located on the CD in the Drivers I Linux

Folder. Refer to the Readme file (also in the Linux directory) for the correct driver file and installation

guide for your distribution/version of Linux.

Overview of Windows Driver Installation: Three install wizards guide you through the software

Installation in this order:

Part A installs the USB Driver.

Part B associates the PC port with the USB Driver, and finally

Part C installs the modem driver.

Chapter 2 - Installation

8 Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B)

Installing the Modem Driver in Windows Vista

Preliminaries

1. Power up your computer.

2. If you have not already done so, connect the modem’s USB cable to a USB port on the

computer and connect the phone line between the modem and a telephone wall jack.

3. Windows will detect that the new modem is present.

Driver Installation of your TUSB3410 Serial Port

4. The Found New Hardware screen appears with Windows needs to install driver software for

your TUSB3410 Serial Port.

Click on Locate and install driver software (recommended). Windows will guide you through the

process of installing driver software for your device.

5. The next screen prompts you to insert the disc that came with your MultiModem product. If you

have the disc that came with your device, insert it now. Then, click on I don’t have the disc.

Show me other options. Windows may prompt you to search online, but this is not necessary.

Chapter 2 - Installation

Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B) 9

6. Choose Browse my computer for driver software (advanced).

7. At the Browse for driver software on your computer screen, click the Browse button.

8. Browse to the Drivers folder on your MultiModem productCD , then select the Windows_Drivers

folder and then the Vista32 folder. If you were installing drivers on a Vista 64-bit Operating

System, you would browse to the Vista64 folder. Click OK, then Click Next.

9. Windows can’t verify the publisher of this driver software screen appears.

Select Install this driver software anyway.

Chapter 2 - Installation

10 Multi-Tech Systems, Inc. MT9234ZBA-USB User Guide (S000419B)

10. Installing driver software… screen appears.

11. When the software for this device has been successfully installed screen appears with

Windows has finished installing the driver software for this device: MultiModem USB

MT9234ZBA-USB.

Click Close.

Andere Handbücher für MultiModem ZBA MT9234ZBA

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Multitech Modem Handbücher

Multitech

Multitech MultiModem MT5634ZBA-V.92 Bedienungsanleitung

Multitech

Multitech QuickCarrier USB-D MTD-MVW1 Bedienungsanleitung

Multitech

Multitech MultiModem ZBA USB MT5634ZBA-USB Bedienungsanleitung

Multitech

Multitech MultiModem ISDN MT128ISA-UV Bedienungsanleitung

Multitech

Multitech Wireless EDGE Bedienungsanleitung

Multitech

Multitech MultiMobile MT9234MU Bedienungsanleitung

Multitech

Multitech Multimodem MTCBA-G-F1 Bedienungsanleitung

Multitech

Multitech BL-Series Bedienungsanleitung

Multitech

Multitech MT56DSU-S Bedienungsanleitung

Multitech

Multitech MT128NTZLX Bedienerhandbuch

Multitech

Multitech MultiMobile MT9234MU Bedienungsanleitung

Multitech

Multitech QuickCarrier USB-D Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZPX-V.92-ISA Bedienungsanleitung

Multitech

Multitech MultiConnect Cell MTC-G3 Bedienungsanleitung

Multitech

Multitech MT5634HD16 Bedienungsanleitung

Multitech

Multitech MT9234ZBAUSBCDC Bedienungsanleitung

Multitech

Multitech MultiModem ISIHP-2S Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZBA-V.92 Bedienungsanleitung

Multitech

Multitech MultiModem MT5634ZPX Bedienungsanleitung

Multitech

Multitech MTC-LEU4 Bedienungsanleitung

Multitech

Multitech MultiModem MT5600ZDX Bedienungsanleitung

Multitech

Multitech MultiConnect MTPCIE-H5 Bedienungsanleitung

Multitech

Multitech MultiModem MT2834MR6 Bedienungsanleitung

Multitech

Multitech MultiConnect Cell 100 series Bedienungsanleitung

Beliebte Modem Handbücher anderer Marken

Davicom

Davicom DM562AP Bedienungsanleitung

EpiValley

EpiValley TATA indicom SXC-1080 Bedienungsanleitung

Zte

Zte WiMAX Bedienungsanleitung

Intelimax

Intelimax MA-2060 Bedienungsanleitung

SMC Networks

SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch

Telstra

Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Bedienungsanleitung

Samsung

Samsung AceLink SAM-335A Bedienungsanleitung

Enfora

Enfora Enabler-G Kurzanleitung zur Einrichtung

iRZ

iRZ ATM2-232 Bedienungsanleitung

Zhone

Zhone 6310 Bedienungsanleitung

Paradyne

Paradyne Hotwire 7976 Bedienungsanleitung

US Robotics

US Robotics 3453C Bedienungsanleitung

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung

Zte

Zte MF823 Bedienungsanleitung

Four-Faith

Four-Faith F1403 Bedienungsanleitung

Sierra Wireless

Sierra Wireless AIRLINK MP595W Bedienungsanleitung

Gemtek

Gemtek WiMAX WIXFBR-103 Bedienungsanleitung
