MXL AC-83 Bedienungsanleitung

AC-83

Bluetooth LE 5.0 Enable Boundary Microphone

User Manual

MXL AC83

2 3

Windows PC Pairing Procedure

Open the Bluetooth and other devices system settings on

your Windows PC. These settings can be found by typing

“Bluetooth and other devices” in the search box at the bot-

tom of the screen and pressing Enter.

Use the Bluetooth toggle slider to turn Bluetooth ON, then

click the Add Bluetooth or other device button. The Blue-

tooth Add a device window will then appear on screen.

Next you will want to initiate pairing mode on the MXL AC83.

Press and hold the Bluetooth Power Button for 6-8 seconds

to enable pairing mode.

The blue and yellow LEDs will begin ashing to indicate that

the unit is in pairing mode.

Next click on the Bluetooth option in the Add a device window.

Bluetooth devices within range will begin appearing in the

window. Select MXL AC83 once it appears on screen.

The PC and microphone will now attempt to establish a

Bluetooth connection. Once the device has been success-

fully paired, the ashing on the MXL AC83 will stop and the

yellow LED will remain illuminated. A message will pop up on

screen indicating that the pairing was successful.

CLICK HERE

User Manual

2 3

Now that a microphone has been successfully paired with

the computer, you will need to select the correct settings in

the Sound settings control panel. Type “sound settings” in

the search box at the bottom of the screen and press enter

to open the Sound settings control panel window.

The Sound settings control panel window will appear show-

ing your currently active sound devices. You will need to se-

lect the correct devices for both Input and Output.

For the Input device, select Headset Microphone (MXL AC83

Hands-Free AG Audio).

For the Output device, you can enable the AC83 headphone

output by selecting Speakers (MXL AC83 Stereo). You can

alternatively select your current speakers or your computer’s

headphone output.

Your MXL AC83 microphone is now ready to use with your

Windows PC.

Important note if you are having problems with the AC83

headphone output:

There are two different Bluetooth proles that Windows will

automatically switch between: Mono output and Stereo

output. Mono output is chosen when you are simultane-

ously using the microphone input. When there is no micro-

phone input present, the higher quality Stereo prole is used

instead. Unfortunately, some Windows applications may not

switch Bluetooth proles correctly, requiring you to manu-

ally select the appropriate output.

To select the correct audio output, nd your desktop icons

on the bottom right corner of the screen and left click the

audio icon.

Left click the text showing your current output device.

For high quality stereo output with no microphone input, se-

lect Speakers (MXL AC83 Stereo)

For mono output with simultaneous microphone input, select

Headset Earphone (MXL AC83-A Hands-Free AG Audio).

MXL AC83

4 5

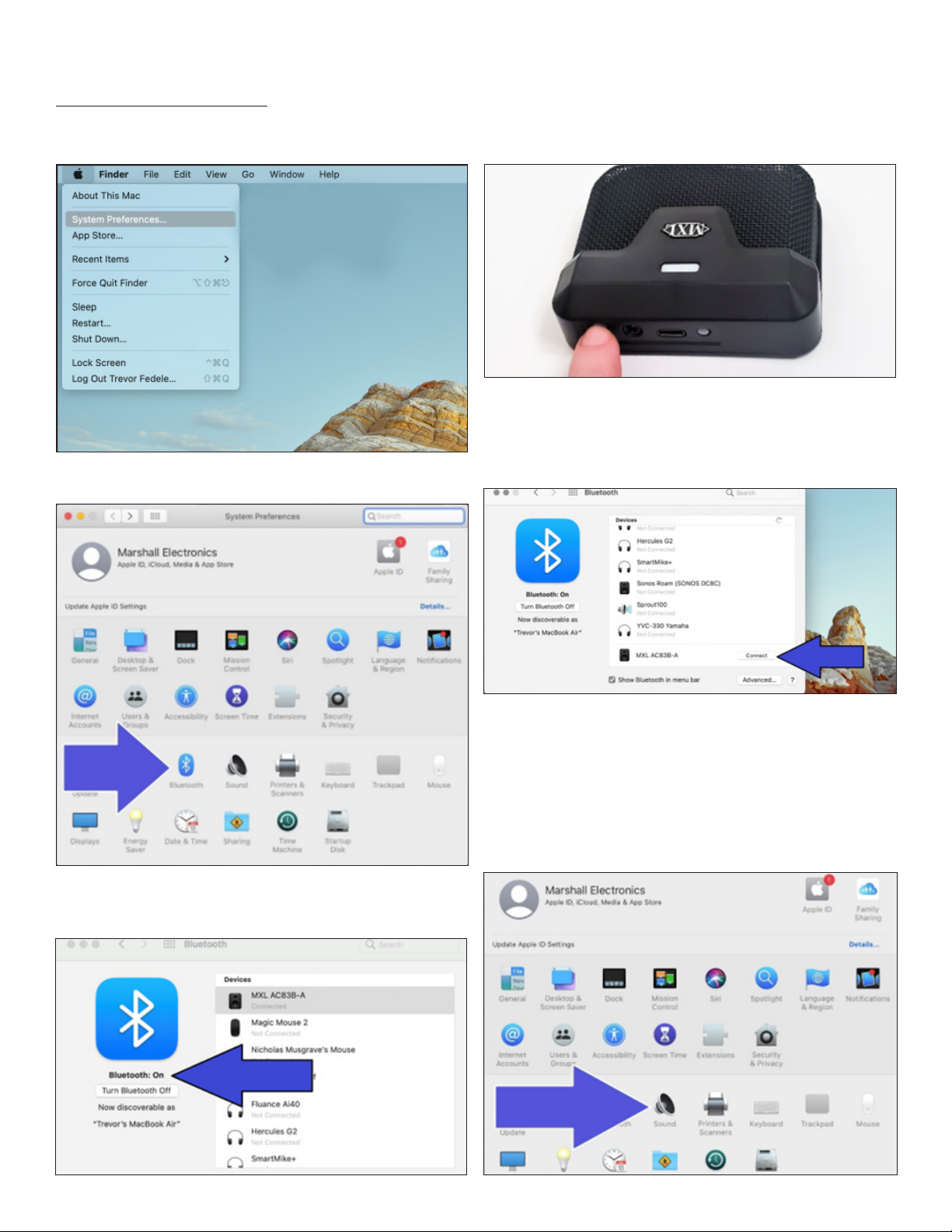

Mac Pairing Procedure

Open the Apple menu the at the top-left corner of the

screen and select System Preferences.

Select the Bluetooth icon in the System Preferences panel.

Conrm that Bluetooth is set to On. If Bluetooth is Off, click

the Turn Bluetooth On button.

Next you will want to initiate pairing mode on the MXL AC83.

Press and hold the Bluetooth Power Button for 6-8 seconds

to enable pairing mode.

The blue and yellow LEDs will begin ashing to indicate that

the unit is in pairing mode.

MXL AC83-A should now appear in the Bluetooth menu. Click

the Connect button to initiate a Bluetooth connection.

The computer and microphone will now attempt to estab-

lish a Bluetooth connection. Once the device has been suc-

cessfully paired, the ashing on the MXL AC83 will stop and

the yellow LED will remain illuminated.

Now that a microphone has been successfully paired with

the computer, you will need to select the correct sound set-

tings. Return to the System Preferences panel and select

the Sound icon.

User Manual

4 5

For the Input device, select MXL AC83.

For the Output device, you can enable the AC83 headphone

output by selecting MXL AC83. You can alternatively select

your current speakers or any other output device.

Your MXL AC83 microphone is now ready to use with your

Mac computer.

Turning Bluetooth ON/OFF

Briey press the Bluetooth Power Button to turn Bluetooth

ON or OFF. When turning Bluetooth ON, LED 1 will begin ash-

ing to indicate the microphone is attempting to link back

with the most recently paired device. Once the unit has re-

connected with the most recently paired device, LED 1 will

illuminate solid yellow and LED 3 will turn on.

USB-C Audio

To enable USB audio, simply connect the microphone to a

computer using a standard USB-C cable.

Headphone Output

3.5mm headphone connector for audio output

Mute Button

The capacitive mute button can be used to mute both

Bluetooth audio as well as USB audio. To mute the device,

briey press the MXL logo. The LED will change from Blue to

Red indicating the device has been muted.

LED 1 – Bluetooth Status

The Bluetooth Power Button has a built-in yellow LED to

indicate that Bluetooth is enabled or if the device is pairing.

Solid Yellow – Bluetooth is enabled

Flashing Yellow – Bluetooth pairing

OFF - Bluetooth is disabled

LED 1 will also very briey ash after pressing the Bluetooth

Power Button.

LED 2 – Battery Status

LED 2 is used to indicate the current status of the battery.

Solid Blue – Battery is charging. Once the battery is fully

charged LED 2 will turn off.

Flashing Blue – Bluetooth pairing

(only when unit is not being charged)

Red – Low battery

Purple – The battery is low and is currently being charged

LED 2 will also very briey ash after pressing the Bluetooth

Power Button.

LED 3 – Mute Status

LED 3 indicates the mute status of the microphone. This LED

will only turn on if USB audio is connected or if Bluetooth

has successfully paired with another device.

Red – The Mic is muted

Blue – The Mic is ON

OFF – There is no Bluetooth connection or USB audio present

A Division of Marshall Electronics

Phone: 310-333-0606 800-800-6608 Fax: 310-333-0688

www.mxlmics.com [email protected]
