Clever by design, the KICKSPACE®unit fits neatly

within a unit plinth or floor cavity providing a fresh

thinking, innovative heating solution. Where traditional

radiators take up precious wall space and restrict

design possibilities, the KICKSPACE®heater allows

freedom to tailor your home around your lifestyle.

Central heating, electric and duo models available. All

units are now supplied complete with a white grille.

The KICKSPACE®can also be used alongside the

MYSON INNOKO towel rail to provide the perfect

drying and heating solution for any kitchen. For

information on the MYSON range of towel warmers

please contact Customer Services.

KICKSPACE®

The space saving solution.

Before.

After.

06 KICKSPACE®

KICKSPACE®works by drawing room air over the

heated fins of the unit heat exchanger and projecting

warm air back into the room. Controls are situated on

the front grille, with the unit having a choice of heating

fan speeds (winter setting) as well as a fan-only

(summer setting) operation. Alternatively, a remote

control wall switch can be fitted to central heating and

duo models for extra control and convenience.

Effective climate control.

KICKSPACE®07

08 KICKSPACE®

The kitchen is often where space is most at a premium

and the KICKSPACE®can deliver the most benefits

but equally, the bathroom or hallway can offer

alternative applications. All versions, except the floor

model, are designed to be installed horizontally into

recessed locations. They require an adequate supply

of inlet air and the axis of the motor must remain

horizontal.

KICKSPACE®Applications.

KICKSPACE®Floor model.

KICKSPACE®09

The unit grille and remote wall switch can be

customised to suit any room décor with a variety of

metallic and colour finish options. The remote room

thermostat is supplied white as standard and is

suitable for the 500, 600 & 800 hydronic models.

Accessories.

Central Heating

500

600

800

Floor

600-12V

Electric

500E

600E

Duo

(Central Heating/Electric)

500 Duo

For technical information please refer to pages 17-21.

Model details

Grilles.

Remote wall switch.

Remote room thermostat.

System Design for Fan Convectors

Fan convectors are intended to be connected to central heating

systems in the same way as radiators, and offer advantages

and benefits not available from traditional emitters. To ensure

optimum fan convector performance, great care must be taken

to ensure that the choice of unit and the heating system design

are considered. The following factors must be taken into

consideration:

lFan convectors should only be used on closed

circulation, two pipe, pump assisted central heating systems.

lFan convectors should be correctly sized to match the heat

loss requirement of the room with the unit operating at its

lowest fan speed.

lThe heating system must be capable of providing

sufficient hot water through the heat exchanger. This

means that:

lThe minimum pipe size should be 15mm.

lFan convectors are not suitable for use on microbore

pipe-work.

lFan convectors are not suitable for one-pipe systems.

lWhere the unit is fitted onto a system with other

emitters, a separate circuit for the fan convector should

be considered to ensure an adequate water flow

through it.

lThe heating system water temperature must be greater

than 43°C in heating mode for the unit to operate

(lower temperatures possible for heat pump

applications on wall mounted units).

lOptimum performance of the fan convector will

require effective balancing of the whole system.

lFan convectors should not be used to replace

radiators in existing systems unless pipe-work sizing,

system design and system balancing can guarantee an

adequate flow of water through the fan convector.

lThe maximum working pressure through the heat

exchanger is 10 bar (150 lb/in2). The maximum

allowable water temperature through the heat

exchanger is 90oC.

lWall mounted units should be mounted on a flat wall,

and stud or partition walls should be avoided to

minimise the possibility of noise transmission.

16 System Design for Fan Convectors

KICKSPACE®Product Range

Model Flexible Hoses* Electric Cable Transformer Fan Only Option

KICKSPACE®500 Supplied Supplied N/A Yes

KICKSPACE®600 Supplied Supplied N/A Yes

KICKSPACE®800 Supplied Supplied N/A Yes

KICKSPACE®Floor Supplied Supplied N/A Yes

Isolating Valves

(15mm)

2 metres

(mains fitted)

2 metres

(mains fitted)

2 metres

(mains fitted)

2 metres

(mains fitted)

Model Flexible Hoses* Electric Cable Transformer Fan Only Option

KICKSPACE®500E N/A N/A N/A Yes

KICKSPACE®600E N/A N/A N/A Yes

Isolating Valves

(15mm)

2 metres

(mains fitted)

21/2metres

(mains fitted)

Model Flexible Hoses* Electric Cable Transformer Fan Only Option

KICKSPACE®500 Duo Supplied Supplied N/A Yes

Isolating Valves

(15mm)

2 metres

(mains fitted)

Model Flexible Hoses* Electric Cable Transformer Fan Only Option

Supplied Supplied Yes

Isolating Valves

(15mm)

1 metre

(low voltage fitted) Supplied

(external from product)

1 metre

(mains fitted)

KICKSPACE®

600-12V

*750mm x 10mm bore, EPDM hoses, sheathed in AISI 304 stainless steel braid.

Please note that KICKSPACE®600E grilles are an integral part of the product and can not be changed.

KICKSPACE®Technical Information 17

Electric Product Range

Duo (Hydronic-Electric) Product Range

Low Voltage Hydronic Product Range

Hydronic Product Range

Hydronic (KICKSPACE® 500, 600, 800, 600-12V)

Fan Speed - Normal/off/boost.

Summer/Winter - Fan only/heating option.

Hydronic Electric (KICKSPACE® 500 Duo)

Summer/Off/Winter - Fan only/off/heating options.

System Selector - Central heating/electric heating.

Fan Speed - Normal/boost.

Electric (KICKSPACE® 500E)

Summer/Off/Winter - Fan only/off/heating option.

Power Selector - 1kW or 2kW.

Fan Speed - Normal/boost.

Electric (KICKSPACE® 600E)

Summer/Winter/Output.

KICKSPACE® Controls

KICKSPACE® Performance Data

Heat outputs tested in accordance with BS 4856 Part 1.

Flow Rate: 340 ltr/h (75 gal/h).

Flow Rate Correction Factors:

455 ltr/h (100 gal/h) multiply output by 1.03.

227 ltr/h (50 gal/h) multiply output by 0.96.

113 ltr/h (25 gal/h) multiply output by 0.85.

Duo (Hydronic/Electric) Heating Performance Data - Electric Mode

The unit will operate on either fan speed to provide 1kW of heating.

ltr/h 500 600 800 Floor 600-12V 500 Duo 500 600 800 Floor 600-12V 500 Duo

455 788 1046 911 448 1046 652 7.7 10.3 8.9 4.4 10.3 6.4

340 488 625 544 258 625 380 4.8 6.1 5.3 2.5 6.1 3.7

227 231 326 258 136 326 204 2.3 3.2 2.5 1.3 3.2 2.0

113 82 95 82 54 95 68 0.8 0.9 0.8 0.5 0.9 0.7

Approximate Hydraulic Resistance

18 KICKSPACE®Technical Information

Model

40° 45° 50° 55° 60° 40° 45° 50° 55° 60°

500 Normal 733 815 896 976 1056 2501 2781 3057 3331 3603

Boost 923 1044 1166 1289 1412 3150 3564 3980 4397 4817

600 Normal 890 1048 1213 1384 1562 3036 3575 4138 4723 5329

Boost 1279 1451 1625 1800 1977 4363 4952 5545 6143 6744

800 Normal 1396 1552 1707 1860 2012 4763 5296 5824 6346 6864

Boost 1738 1964 2192 2420 2649 5930 6702 7478 8257 9039

Floor Normal 622 711 802 894 987 2122 2427 2736 3049 3366

Boost 1035 1178 1322 1468 1615 3531 4018 4510 5008 5510

Heat Output (watts) Heat Output (Btu/h)

Hydronic Heating Performance Data

Heat outputs tested in accordance with BS 4856 Part 1.

Hydronic Models

It is preferable to select the model with an output capable of

maintaining the calculated heat losses of the room when

operating at normal speed. This will enable the boost fan speed

and the higher temperature differences to be used to greater

advantage for rapid warming of the room from cold in excessive

conditions.

When establishing the temperature difference, i.e. mean water to

room temperature, allowance should be made for temperature

drop in the system. It is the water temperature at the convector

which dictates the output.

mm wg kPa

Temperature Difference (°C)

Fan

Speed

Model

40° 45° 50° 55° 60° 40° 45° 50° 55° 60°

600 - 12V Normal 890 1048 1213 1384 1562 3036 3575 4138 4723 5329

Boost 1279 1451 1625 1800 1977 4363 4952 5545 6143 6744

Heat Output (watts) Heat Output (Btu/h)

Low Voltage Hydronic Heating Performance Data

Heat outputs tested in accordance with BS 4856 Part 1.

Temperature Difference (°C)

Fan

Speed

Model

40° 45° 50° 55° 60° 40° 45° 50° 55° 60°

500 Duo Normal 636 734 835 938 1043 2169 2505 2849 3201 3560

Boost 835 958 1083 1210 1340 2849 3268 3696 4130 4571

Heat Output (watts) Heat Output (Btu/h)

Duo (Hydronic/Electric) Heating Performance Data - Hydronic Mode

Temperature Difference (°C)

Fan

Speed

KICKSPACE® Performance Data (continued)

Available Finishes: White, Chrome, Brass, Brushed Stainless.

All remote wall switches are supplied with 3 metres of cable.

All models are equipped to facilitate direct wiring.

Suitable for uses with standard single gang surface or recessed

mounting box (not supplied). The switch must only be used to

operate a single KICKSPACE®unit.

For use on Hydronic and Hydronic-Electric (Duo) models only.

Not suitable for Electric only models.

N.B: When a remote wall switch is fitted, the fan speed control switch

on the KICKSPACE®facia grille becomes inoperable and must be

disconnected.

Model Motor

Power (W)

Water

Content (l)

Unit Weight

(kg)

Air Flow

Model Normal NormalBoost Boost

Noise Levels

Weight, Water Content and Motor Power

Model

500 25.7 38.1

600 26.4 37.2

800 28.5 49.8

Floor 27.4 56.1

600-12V 29.4 39.0

500 Duo 25.7 38.1

Sound Pressures at 2.5m (dBA)

Normal Boost

Air Flow (m3/h) Air Flow (ft3/h)

KICKSPACE® Remote Wall Switch (optional)

KICKSPACE®Technical Information 19

500 25 0.26 4.3

600 40 0.30 5.0

800 40 0.34 5.5

Floor 28 0.15 5.5

600-12V 40 0.30 7.9*

500 Duo 25 0.26 4.5

500 70 90 2471 3177

600 106 138 3742 4872

800 139 210 4908 7415

Floor 76 169 2684 5968

600-12V 106 138 3742 4872

500 Duo 70 90 2471 3117

Air Flow

Model Low LowHigh High

Air Flow (m3/h) Air Flow (ft3/h)

500E 70 90 2471 3177

600E 210 N/A 7560 N/A

Electric Heating Performance Data

Model Low HighMedium

Heat Output (watts)

500E 1000 N/A 2000

600E 1000 2000 3000

* Includes transformer

Noise Levels

Noise levels tested in accordance with EN 23741.

Model Sound Pressures at 2.5m (dBA)

500E 27.2 40.2

600E 38.0 N/A

Low High

Weight

Model Unit Weight

(kg)

500E 3.0

600E 3.5

Noise levels tested

in accordance with

EN 23741.

Electric Models

The remote room thermostat is supplied white as standard and is

suitable for 500, 600 & 800 Hydronic models.

KICKSPACE® Remote Thermostat

KICKSPACE®models 500, 600, 800, 600-12V, 500 Duo and 500E

are supplied with a White (RAL 9003) grille. All these models are

also available in Brown (RAL 8017), Black (RAL 9011), Chrome,

Brushed Stainless Steel and Aluminium. The 600E facia grille is

an integral part of the product and can not be removed and is

supplied with either a White or Brown grille. The floor unit

model is only available with a Beige grille.

KICKSPACE® Grille Colour Options

KICKSPACE® Electrical Data

All KICKSPACE®models require an electrical supply of

220-240V-50Hz. All models can be used in conjunction with a

room thermostat, however it is essential that the thermostat used

is capable of carrying the electrical load.

Hydronic (KICKSPACE® 500, 600 & 800)

Supplied with 2 metres of cable (0.75mm²).

Requires a supply fused at 3A.

Low Voltage Hydronic (KICKSPACE® 600-12V)

Supplied with 2 metres of cable (0.75mm²).

Requires a supply fused at 3A.

N.B: Low voltage models comply with BS 7671 section 601 (IEE Safety

Extra Low Voltage wiring regulations for bathrooms). The transformer

complies with BS 3535. Where a remote switch or thermostat is used, the

line voltage to both is 12 volts maximum.

Hydronic Electric (KICKSPACE® 500 Duo)

Supplied with 2 metres of cable (0.75mm²).

Requires a supply fused at 5A.

Electric (KICKSPACE® 500E & 600E)

500E supplied with 2 metres of cable (1.0mm²).

Requires a supply fused at 10A.

600E supplied with 2½ metres of cable (1.0mm²).

Requires a supply fused at 13A.

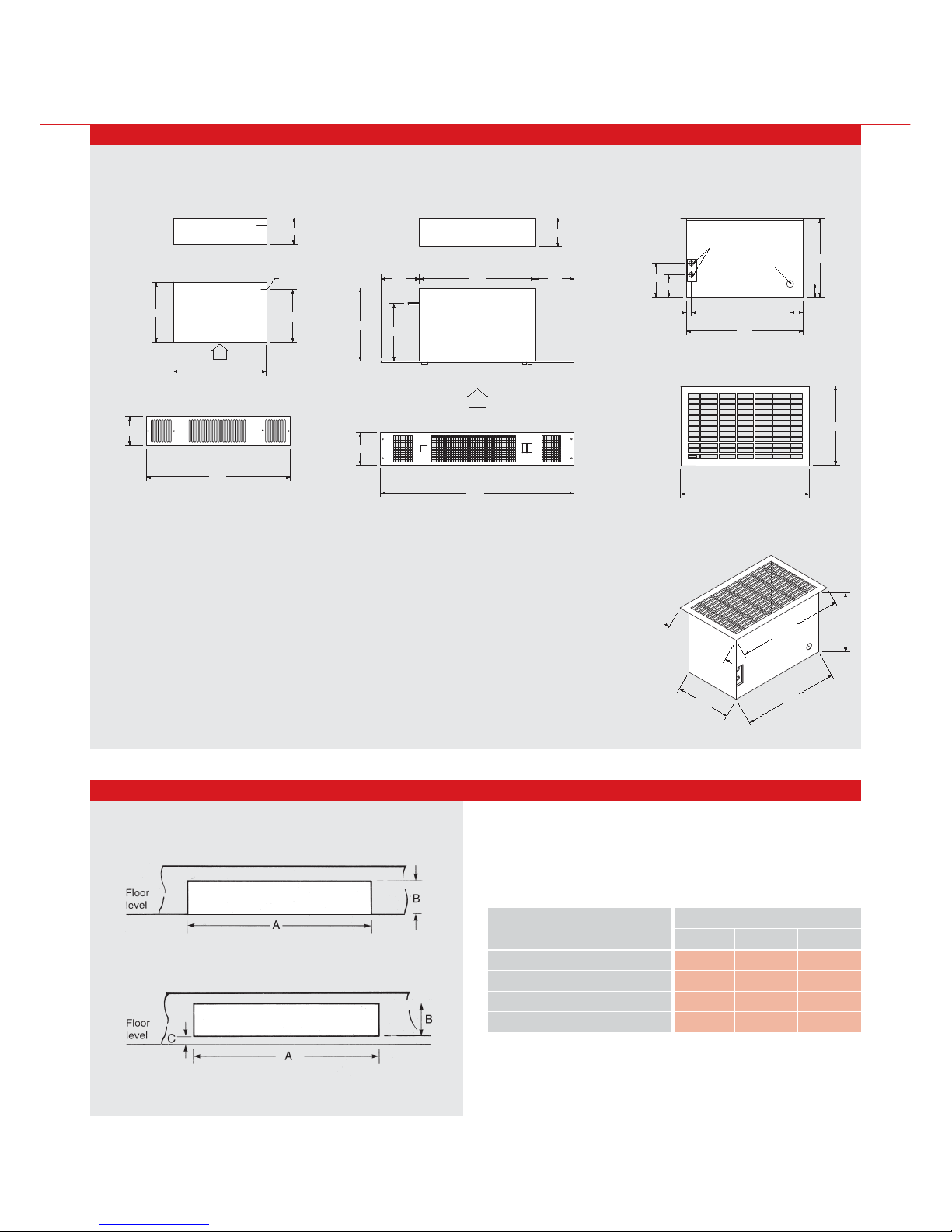

KICKSPACE®Dimensions

KICKSPACE®800KICKSPACE®600KICKSPACE®500

KICKSPACE®500 Duo KICKSPACE®600-12V

N.B: Add 4.5mm to the chassis height of the above models to allow for rubber mountings and screws.

496

101

309

129

322

54 6793

View on arrow

Cable Entries

Top view

Mains Cable

Cable Entry

FRONT GRILLE

159.5

496

101

318

54 70 93

321

142 177

FRONT GRILLE

Cable Entry

Mains Cable

Top view

Cable entries

View on arrow

550

101

54 93

View on arrow

Cable Entries

FRONT GRILLE

129

309

376

Mains Cable

Top view

Cable Entry

550

101

54 93

View on arrow

Cable Entries

FRONT GRILLE

129

309

376

Mains Cable

Top view

Cable Entry

101

603

FRONT GRILLE

Top view

54 93

View on arrow

Cable Entries

129

309

447

Mains Cable

Cable Entry

20 KICKSPACE®Technical Information

KICKSPACE®Dimensions (continued)

KICKSPACE® Kickboard Dimensions

Dimensions of opening to be cut in Kickboard -

KICKSPACE®500, 600, 600-12V, 800, 500 Duo,

500E, 600E

Option A (Excluding 500E)

Option B (Excluding 600E)

Model ABC

500, 500 Duo, 500E 466 99 17

600, 600-12V 520 99 17

800 573 99 17

600E 540 95 N/A

KICKSPACE®Floor

Connections

Dimensional View

KICKSPACE®600EKICKSPACE®500E

496

101

321

203 177

FRONT GRILLE

Mains Cable

Top view

Cable entries

View on arrow

225

120 360 120

600

100

175

Cable entry

View on arrow

105

240

362

402

248

Cable entry

Flow and Return

connections

244

422 240

362

210

Flange depth

Flange width

N.B: All connections accessible

from the top of unit.

KICKSPACE®Technical Information 21

Dimensions (mm)

N.B: KICKSPACE®500E: Add 4.5mm

to the chassis height of the above

models to allow for rubber mountings

and screws.

Andere Handbücher für Kickspace 500

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Myson Heizung Handbücher

Myson

Myson FINESSE SC. Bedienungsanleitung

Myson

Myson DÉCOR KH11 Bedienungsanleitung

Myson

Myson T6 Series Bedienungsanleitung

Myson

Myson iV080 Bedienungsanleitung

Myson

Myson Kickspace 500 Montageanleitung

Myson

Myson iV080 Bedienungsanleitung

Myson

Myson Kickspace 500 Bedienungs- und Wartungshandbuch

Myson

Myson Kickspace 500E Bedienungs- und Wartungshandbuch

Myson

Myson 40G Bedienungsanleitung

Myson

Myson WHISPA III 5000 WM Bedienungsanleitung

Myson

Myson HEK Bedienungsanleitung

Myson

Myson RIO Series Bedienungsanleitung

Myson

Myson WHISPA III 5000 Bedienungsanleitung

Myson

Myson SLIM-LINE RC Bedienungsanleitung

Myson

Myson Kickspace 500E ECO Montageanleitung

Myson

Myson KICKSPACE 500 DUO Montageanleitung

Myson

Myson DECOR Bedienungsanleitung

Myson

Myson WHISPA WE50K Bedienungsanleitung

Myson

Myson 6-4 Bedienungsanleitung

Myson

Myson WHISPA III 9000 WM Bedienungsanleitung

Myson

Myson 2-Pipe Bedienungsanleitung

Myson

Myson Finesse EC Kurzanleitung

Myson

Myson Kickspace 500 Montageanleitung

Myson

Myson LO-LINE RC 9-6 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
