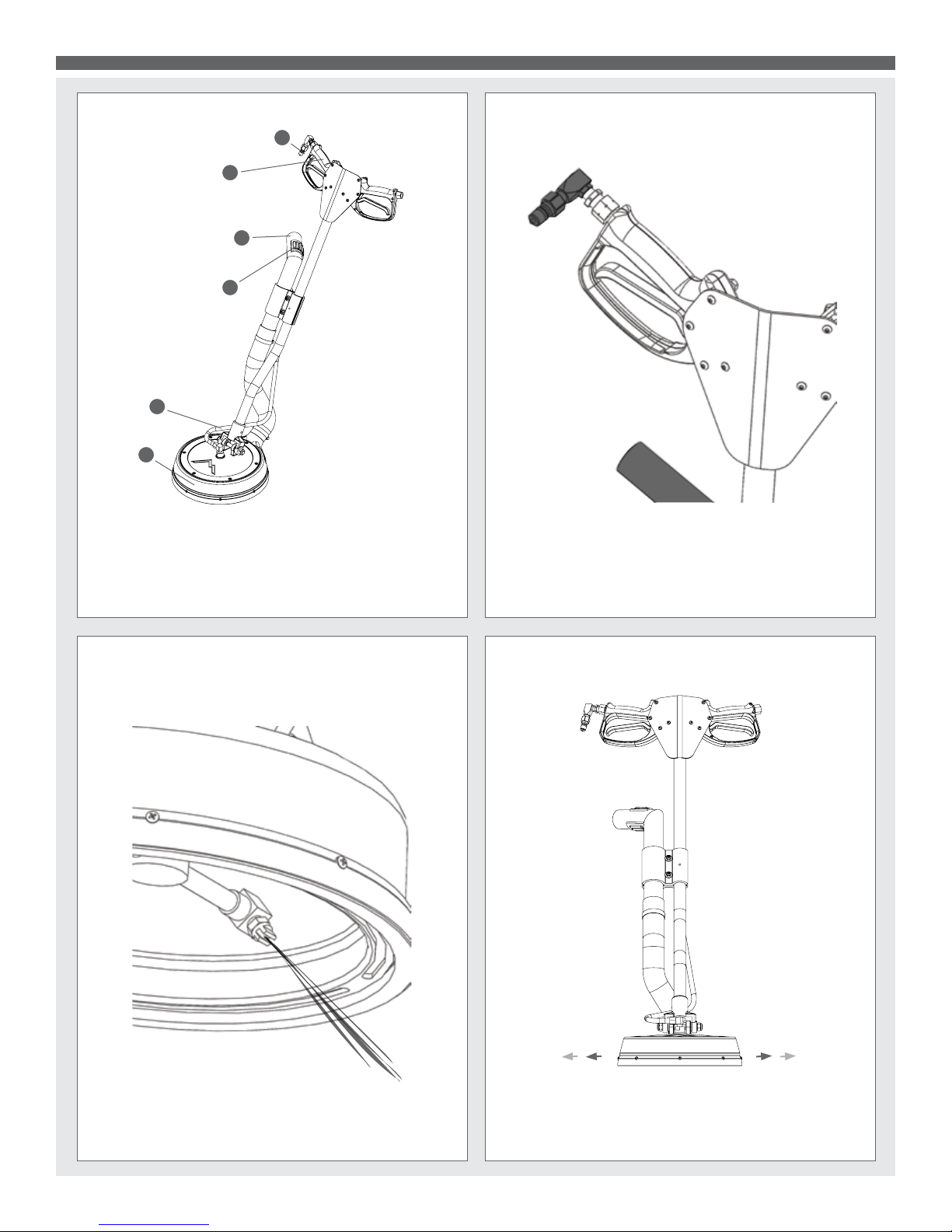

Mytee Spinner 8901 Bedienungsanleitung









8901 p. 2

8902 p. 4

8903 p. 6

8904 p. 8

8907 p.10

8908 p.12

General information p.14























 

































































16 17 18 19

ITEM

NO.

PART NO.

DESCRIPTION

QTY.

MSRP

H505

jet, s/s, 1/8", 1501

2 $9.99 ea

H441

bar, t, straight, 42 deg, 10"

1 $129.99 ea

G080 brush, spinner, 12"

1 $34.99 ea

H882

screw, 8 x 3/4" phil pan head

14 $0.99 ea

P689A

manifold, spin 12", blue

1 $51.99 ea

H230

screw, 10-32 x 1/2 phil pan

3 $0.99 ea

H926

swivel, flange

1 $198.99 ea

H289

washer, #10 flat, s/s

9 $0.99 ea

H465A

casting, 12" low profile spinner

1 $84.99 ea

B103

elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt 1 $4.49 ea

H216

nut, lock, 1/4-20 nylon insert

2 $0.99 ea

H210

washer, 1/4" flat, s/s

4 $0.99 ea

AH195

sol hose, 57 x 1/4", (OAL), m

1 $37.99 ea

B130

45 deg, street elbow, brass, 1/4" male NPTF

1 $5.49 ea

H458

nut, lock, 10-32, thin pattern

6 $0.99 ea

H540

gun, high pressure, (batt spray/ counter)

1 $41.99 ea

H461

filter, mesh screen 3/8"

1 $0.99 ea

H462

housing, filter, 2 pc

1 $2.99 ea

B101

qd, brass, 1/4" m

1 $8.49 ea

H457

screw, 10-32 x 1-1/2", p-pan

6 $0.99 ea

H614

clamp, angled valve, 2" tube

1 $16.99 ea

H600

grip, 2", bentley

1 $19.49 ea

G082A

sleeve, vac relief, 2", spin

1 $1.99 ea

H616A

tube, 2" spinner, upper handle

1 $89.99 ea

G147

strap, velcro 1.5" x 12"

1 $3.49 ea

H342

bolt, 1/4-20 x 1" hex head, s/s 2 $0.99 ea

H613

clamp, spinner handle , 2" x 1.25"

2 $17.99 ea

H616B

tube, 1.25" spinner, lower handle, w/ yolk

1 $42.99 ea

H475

rod, threaded, 4.65 x 1/2"

1 $5.99 ea

H217

clamp, hose, 2-1/4 dia

2 $1.49 ea

PH628-24

vac hose, 2", wire reinforced, gray

$8.99/ft

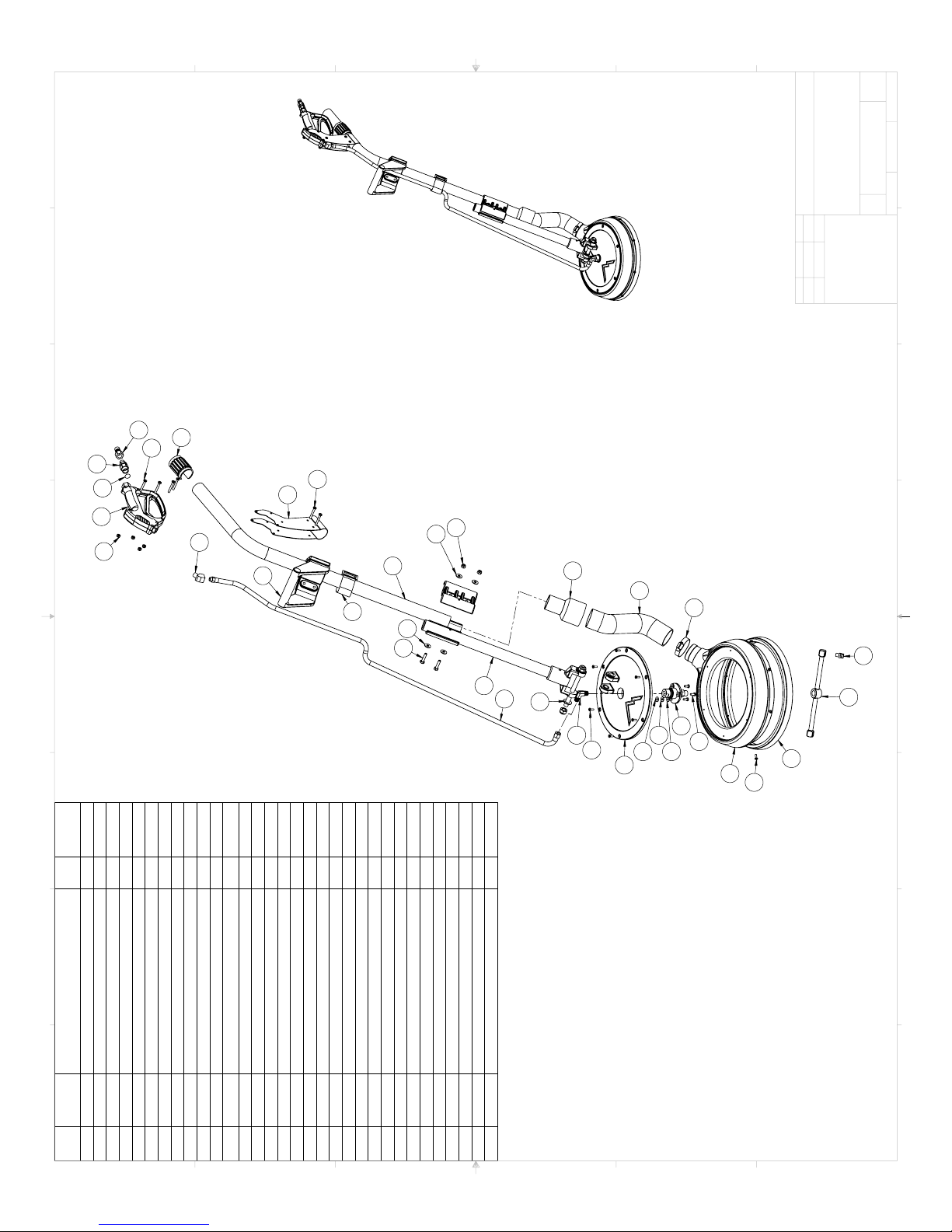

8901

SHEET 1 OF 1

Spinner, Wand Style, 2"

3/11/11

SCALE: 1:6

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

PROPRIETARY AND CONFIDENTIAL

DO NOT

SCALE DRAWING

858-679-1191

mytee

PRODUCTS, INC.

J. Cash

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

MYTEE PRODUCTS, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

MYTEE PRODUCTS, INC. IS

PROHIBITED.





























































20 21

12 27

ITEM

NO.

PART NO.

DESCRIPTION

QTY.

MSRP

H505

jet, s/s, 1/8", 1501

$9.99 ea

H441

bar, t, straight, 42 deg, 10"

1 $129.99 ea

G080 brush, spinner, 12"

1 $34.99 ea

H882

screw, 8 x 3/4 phil pan head, type a, s/s

$0.99 ea

P689A

manifold, spin 12", blue

1 $51.99 ea

H230

screw, 10-32 x 1/2 phil pan

$0.99 ea

H926

swivel, flange

1 $198.99 ea

H289

washer, #10 flat, s/s

$0.99 ea

H465A

casting, 12" low profile spinner

1 $84.99 ea

B136

elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt

$4.99 ea

H216

nut, lock, 1/4-20 nylon insert

$0.99 ea

H210

washer, 1/4" flat, s/s

$0.99 ea

H613

clamp, spinner handle , 2" x 1.25"

2 $17.99 ea

H093

tube, vac elbow, 2" dia, spinner

1 $52.99 ea

AH206

sol hose, black 48" (OAL), fsw 1/4" x m 1/4"

1 $21.99 ea

G082A

sleeve, vac relief, 2", spin

$1.99 ea

H457

screw, 10-32 x 1-1/2", p-pan

$0.99 ea

B101

qd, brass, 1/4" m

$8.49 ea

B107 nipple, brass, 1/4"m, hex

$3.19 ea

B100 swivel, 90 degrees x 1/4 fm x 1/4 ml, viton seals

1 $26.99 ea

B105

bushing, brass, 3/8"mpt x 1/4" 1

$3.19 ea

H461

filter, mesh screen 3/8"

$0.99 ea

H540

gun, high pressure, (batt spray/ counter)

1 $41.99 ea

H540A

angled gun, no trigger

1 $20.99 ea

H458

nut, lock, 10-32, thin pattern

$0.99 ea

H092

two handed spinner handle

1 $139.99 ea

H203

bolt, 1/4-20 x 1-1/4" hex head, s/s

$0.99 ea

H475

rod, threaded, 4.65 x 1/2"

$5.99 ea

PH628-20

vac hose, 2", wire reinforced, gray

$8.99/ft

H217

clamp, hose, 2-1/4 dia

$1.49 ea

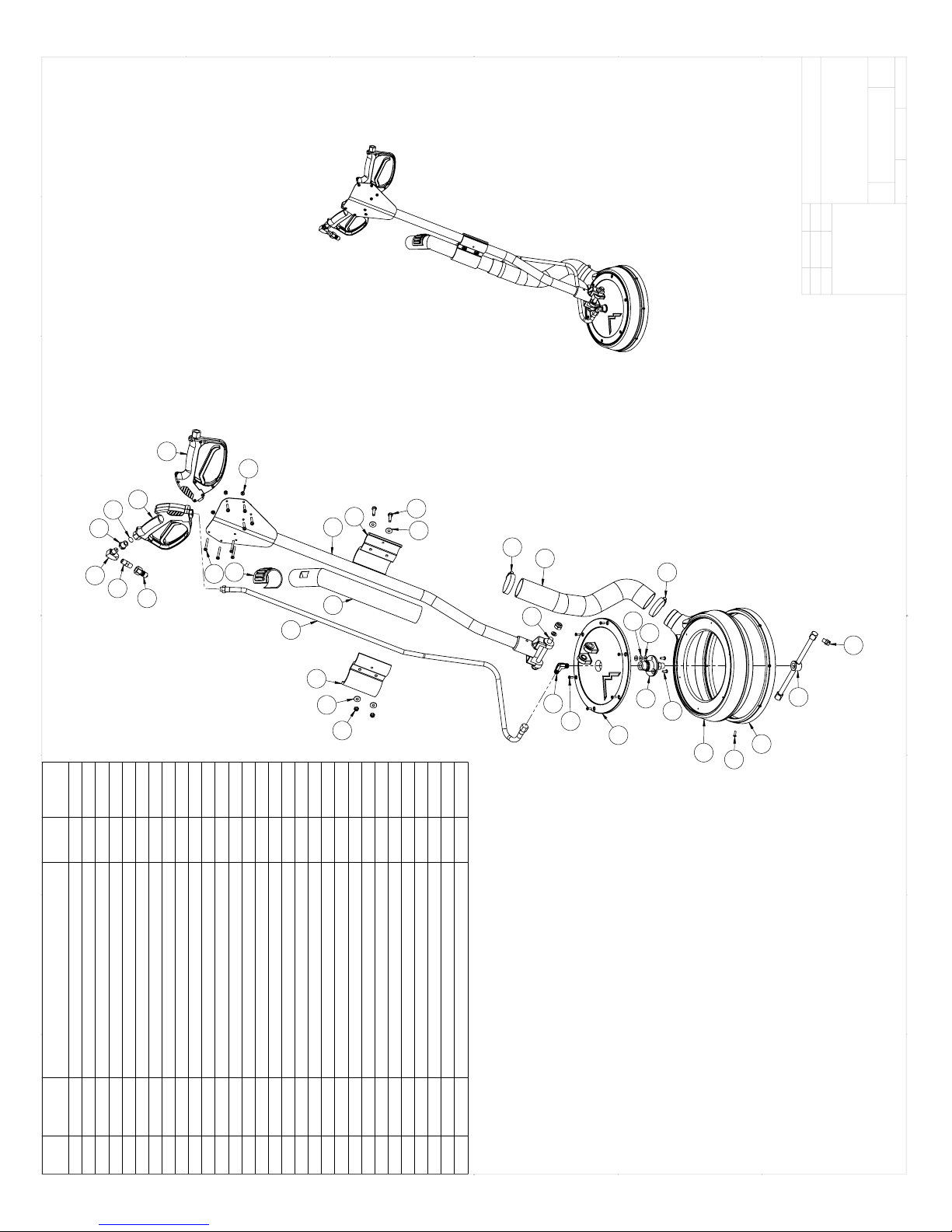

8902

SHEET 1 OF 1

Spinner, "T"

Style, 2"

8/22/11

SCALE: 1:6

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

PROPRIETARY AND CONFIDENTIAL

DO NOT

SCALE DRAWING

858-679-1191

mytee

PRODUCTS, INC.

M. LaBarbera

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

MYTEE PRODUCTS, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

MYTEE PRODUCTS, INC. IS

PROHIBITED.

































































30 31

ITEM

NO.

PART NO.

DESCRIPTION

QTY.

MSRP

H505

jet, s/s, 1/8", 1501

$9.99 ea

H441

bar, t, straight, 42 deg, 10"

1 $129.99 ea

G080 brush, spinner, 12"

$34.99 ea

H882

screw, 8 x 3/4 phil pan head, type a, s/s

$0.99 ea

P689A

manifold, spin 12", blue

$51.99 ea

H230

screw, 10-32 x 1/2 phil pan

$0.99 ea

H926

swivel, flange

1 $198.99 ea

H289

washer, #10 flat, s/s

$0.99 ea

H465A

casting, 12" low profile spinner

$84.99 ea

B136

elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt

$4.99 ea

H475

rod, threaded, 4.65 x 1/2"

$5.99 ea

AH206

sol hose, black 48" (OAL), fsw 1/4" x m 1/4"

$21.99 ea

H616B

tube, 1.25" spinner, lower handle, w/ yolk

$42.99 ea

H498A

cuff, 2" thread x 1-1/2" slip

$14.99 ea

PH628-24

hose, vac wire reinforced 2"

$8.99/ft

H217

clamp, hose, 2-1/4 dia

$1.49 ea

H216

nut, lock, 1/4-20 nylon insert

$0.99 ea

H210

washer, 1/4" flat, s/s

$0.99 ea

H203

bolt, 1/4-20 x 1-1/4" hex head, s/s

$0.99 ea

H613A

clamp, spinner handle , 1.5" x 1.25"

$11.99 ea

H616

tube, 1.5" spinner, upper handle

$81.99 ea

G147

strap, velcro 1.5" x 12"

$3.49 ea

H785

grip, 1.5" dia, wand

$7.99 ea

H614A

clamp, angled valve, 1.5" tube

$16.99 ea

H457

screw, 10-32 x 1-1/2", p-pan

$0.99 ea

B130

45 deg, street elbow, brass, 1/4" male NPTF

$5.49 ea

H458

nut, lock, 10-32, thin pattern

$0.99 ea

H540

gun, high pressure, (batt spray/ counter)

$41.99 ea

G082

sleeve, vac relief, 1.5", spin

$3.25 ea

H461

filter, mesh screen 3/8"

$0.99 ea

H462

housing, filter, 2 pc

$2.99 ea

B101

qd, brass, 1/4" m

$8.49 ea

8903

SHEET 1 OF 1

Spinner,

Wand Style, 1.5"

8/22/11

SCALE: 1:6

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

PROPRIETARY AND CONFIDENTIAL

DO NOT

SCALE DRAWING

858-679-1191

mytee

PRODUCTS, INC.

M. LaBarbera

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

MYTEE PRODUCTS, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

MYTEE PRODUCTS, INC. IS

PROHIBITED.































































31 29

ITEM

NO.

PART NO.

DESCRIPTION

QTY.

MSRP

H505

jet, s/s, 1/8", 1501

$9.99 ea

H441

bar, t, straight, 42 deg, 10"

1 $129.99 ea

H882

screw, 8 x 3/4 phil pan head, type a, s/s

$0.99 ea

G080 brush, spinner, 12"

$34.99 ea

P689A

manifold, spin 12", blue

$51.99 ea

H926

swivel, flange

1 $198.99 ea

H230

screw, 10-32 x 1/2 phil pan

$0.99 ea

H289

washer, #10 flat, s/s

$0.99 ea

H465A

casting, 12" low profile spinner

$84.99 ea

B136

elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt

$4.99 ea

AH206

sol hose, black 48" (OAL), fsw 1/4" x m 1/4"

$21.99 ea

H475

rod, threaded, 4.65 x 1/2"

$5.99 ea

H217

clamp, hose, 2-1/4 dia

$1.49 ea

H498A

cuff, 2" thread x 1-1/2" slip

$14.99 ea

PH628-20

vac hose, 2" wire-reinforced

$8.99/ft

H092

two handed spinner handle

1 $139.99 ea

H203

bolt, 1/4-20 x 1-1/4" hex head, s/s

$0.99 ea

H210

washer, 1/4" flat, s/s

$0.99 ea

H613A

clamp, spinner handle , 1.5" x 1.25"

$11.99 ea

H094

tube, vac, elbow, 1.5" dia, spinner

$48.99 ea

G082

sleeve, vac relief, 1.5", spin

$3.25 ea

H216

nut, lock, 1/4-20 nylon insert

$0.99 ea

H458

nut, lock, 10-32, thin pattern

$0.99 ea

H457 screw, 10-32 x 1-1/2", p-pan

$0.99 ea

H540A

angled gun, no trigger

$20.99 ea

H540

gun, high pressure, (batt spray/ counter)

$41.99 ea

H461

filter, mesh screen 3/8"

$0.99 ea

B105

bushing, brass, 3/8"mpt x 1/4" 1

$3.19 ea

B100 swivel, 90 degrees x 1/4 fm x 1/4 ml, viton seals

$26.99 ea

B107 nipple, brass, 1/4"m, hex

$3.19 ea

B101

qd, brass, 1/4" m

$8.49 ea

8904

SHEET 1 OF 1

Spinner,

"T" Style, 1.5"

8/22/11

SCALE: 1:6

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

PROPRIETARY AND CONFIDENTIAL

DO NOT

SCALE DRAWING

858-679-1191

mytee

PRODUCTS, INC.

M.LaBarbera

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

MYTEE PRODUCTS, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

MYTEE PRODUCTS, INC. IS

PROHIBITED.


























































