Nanoplanes Shark Bedienungsanleitung

Please review this entire manual before

beginning assembly. Please visit our website

www.nanoplanes.net for more information.

This is not a toy. It is meant for use by the

experienced Radio Control Hobbyist

BUILDING INSTRUCTIONS

NANO

SHARK

INCLUDED ITEMS

YOU WILL NEED THE FOLLOWING ITEMS TO GET FLYING

NANO SHARK KIT

CONTENTS

of the



All Depron Parts with Graphics

Elevator and Aileron Push-rod wire

Three Micro Control Horns

All necessary wood parts

Carbon fiber wing spar and elevator spars

Fully illustrated building instructions



Little Screamers Brushless motor and 12 amp brushless speed controller

Four channel radio receiver and 2 micro/parkflyer servos

APC prop 6 x 5.5 and 3mm prop adapter

900 - 1320 mah 3 cell lipoly battery pack or similar - high discharge 12C +

Foam safe / odorless CA (UFO brand highly recommended)

Lightweight Spackling or hobby filler

Hinge tape or Scotch tape

Please note:

The graphics on this kit may vary in color and

design from the photos used in this manual

You will need to

detach the ailerons

and elevator from

both wing halves and

both elevator halves.

Flip over the elevator

on the table with the

graphic side face

down. With a hobby

knife carefully cut

down the hinge line to

cut the graphic tape.

If done correctly it

should be a clean cut.

Repeat this for the

other elevator as well.

The same process

needs to be done for

the ailerons. Place

one wing half face

down. You will need to

make two cuts.

The first cut shown

here.

The second cut

shown here.

Repeat this process

again for the remain-

ing wing half.

Again if done correctly

and with a sharp

hobby knife you

should have a clean

cut as shown.

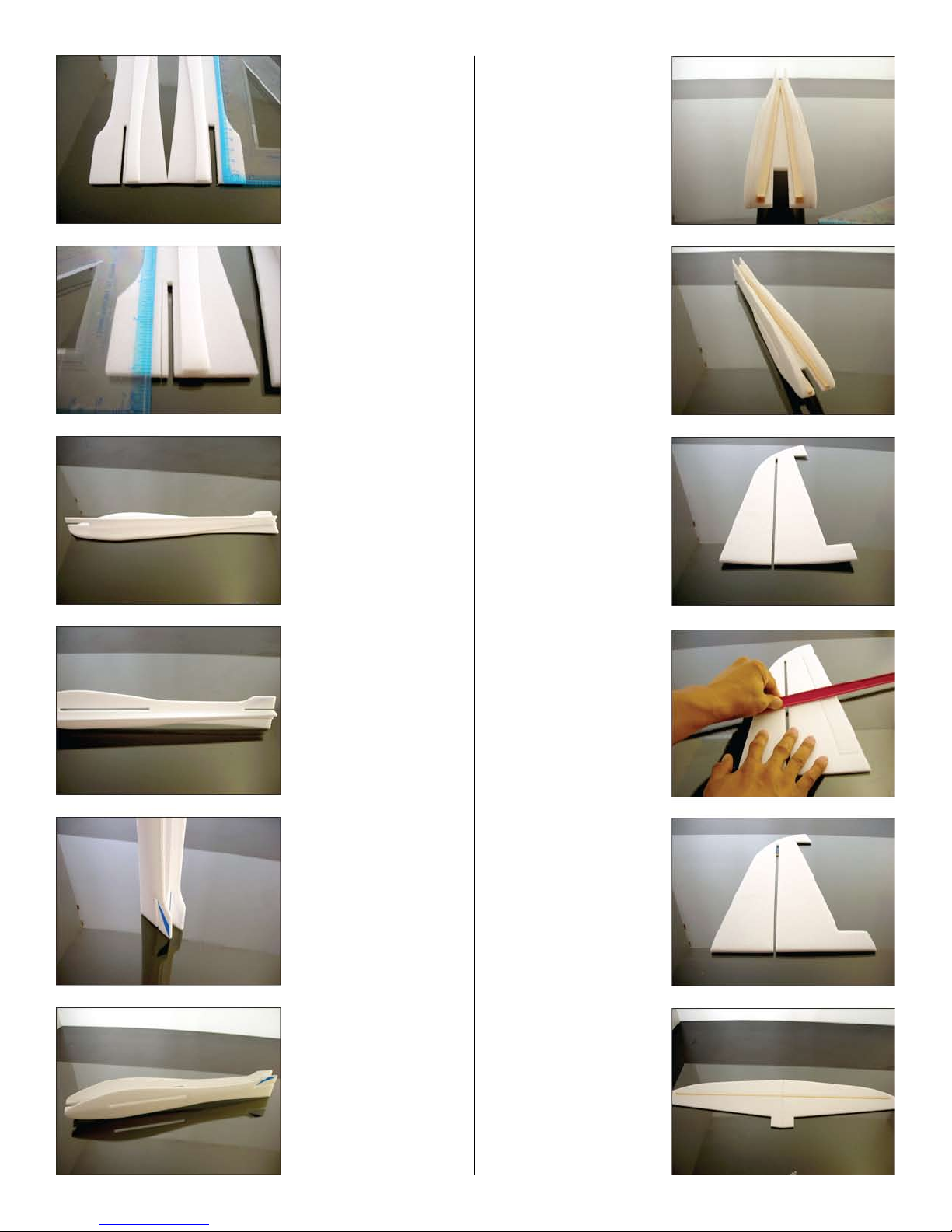

Find the following

parts and lay out on

your work table as

shown. This will

ensure you build a

right and a left side.

Glue the half fuselage

to the former as

shown. There will be

about 3mm edge at

the slot. This is the

way it should look.

Make sure it stays

straight with no warps

until glue sets. Stack

books on top to be

sure it stays true.

A closer view shows

the positioning as it

should be.

A closer view of the

positioning as it

should be in the aft

section of the fuse-

lage half.

Complete both the left

and right fuselage

halves as shown.

You will need to widen

the slot for the eleva-

tor. Cut off about 3mm

from the top side.

The new slot should

be widened enough to

allow the 6mm eleva-

tor to slide in without

breaking the Depron.

Repeat this for the

other side. Make sure

you cut from the top

side. The side oppo-

site the fuselage

doubler.

Glue the center piece

as shown. Make sure

it is laying completely

flat onto the edge of

the fuselage doubler.

Make sure you do not

cover up the wing

slots.

Glue the remaining

fuselage half to the

assembly. Stand on

end as shown to

ensure it is lined up

properly before

gluing.

Your fuselage assem-

bly should be straight

with no warps or

bends or twists.

Take two of the wood

sticks and glue them

to the underside of

the fuselage as

shown. Sand a taper

to the tail end pieces

to make it fit.

Make sure both sticks

of wood are pressed

securely into the

corner for the full

length of the fuse

while gluing.

If you find that your

wings are curled then

you must straighten

them out using ruler

or hard flat tool.

Press with a sweep-

ing action all the way

across the wing. Be

sure to hold the wing

firmly on both sides of

the spar line so that

you do not to break

the Depron. Pick up

the wing to see if it

still has a warp. If you

pressed too hard you

might find that the

warp has changed

directions. If this is the

case flip over the wing

and lightly sweep the

wing again to

straighten it out. After

a few swipes you

should find it easy

enough to make your

wing straight and true.

Try to make it as flat

as possible.

Although in this photo

this spar is wood,

your kit will include a

Carbon fiber spar.

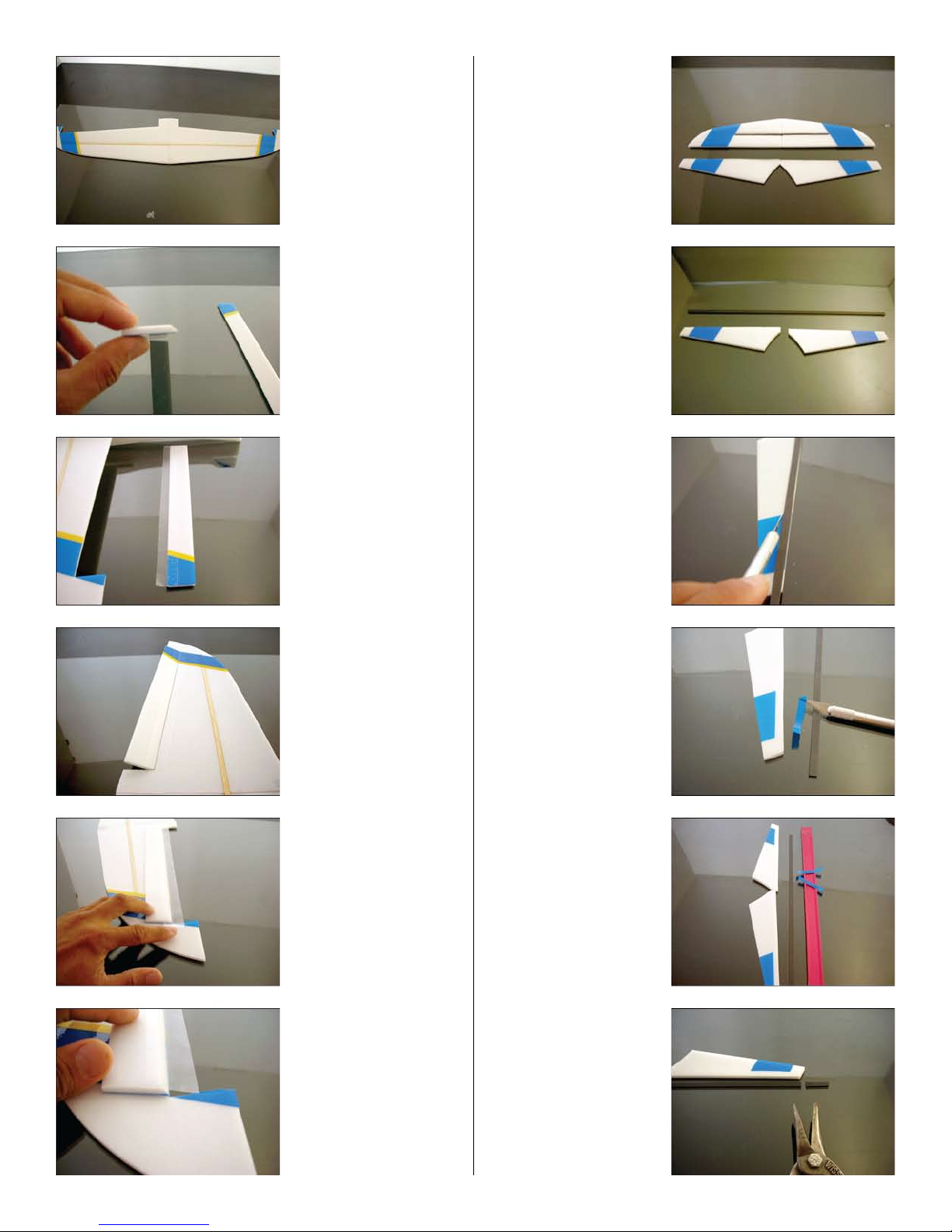

Glue the wing halves

as shown and glue in

the wing spar as

shown.

Make sure you glue

the spar while the

assembly is on a flat

surface. Make sure

your wing stays

straight.

Sand a 45 degree

bevelled edge on the

ailerons. Make sure

you are sanding the

correct aileron and

you are sanding the

bottom side of it.

Apply Hinge tape or

Scotch tape to the

aileron top side first.

Trim the ends then

attach it to the wing.

Complete this for both

sides.

Then flip over the

ailerons all the way on

its back as shown.

Apply hinge tape to

the bottom as shown.

Trim the ends and

seal the aileron hinge

over the bottom side

of the wing.

Trim the end before

folding over the tape

to finish sealing the

aileron hinge.

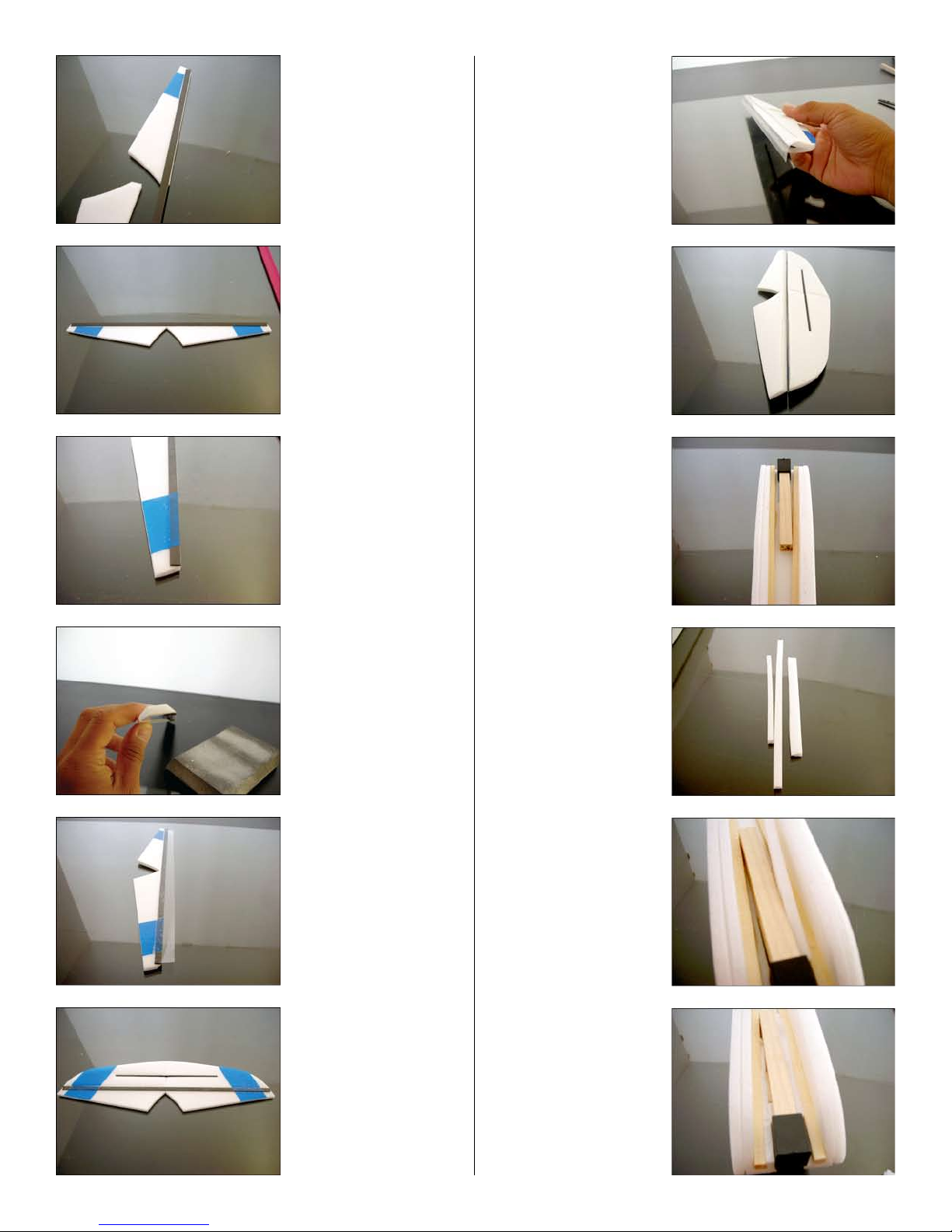

Locate the 4 elevator

parts. Glue the to

halves together and

glue in the carbon

fiber spar. Work on

the elevator control

surfaces next.

Find the flat spar

about 13 inches and

the elevator section.

Place the spar over

the top of the elevator

as shown. Use it as a

guide to cut away the

color graphic tape.

Don’t discard the

tape. Peel it away

carefully as you will

re-apply it later.

Repeat the process

for both sides.

Remember save the

tape for re-

application.

Measure the flat spar

to length of the eleva-

tor spanwise. Cut the

length to match the

elevator span. Use

cutting shears. Be

careful of slivers and

splinters from the

carbon fiber.

Bend back the eleva-

tor all the way back

and tape the bottom

side to finish off this

hinge.

Your completed

elevator should have

3/8 inch travel free-

dom both up and

down.

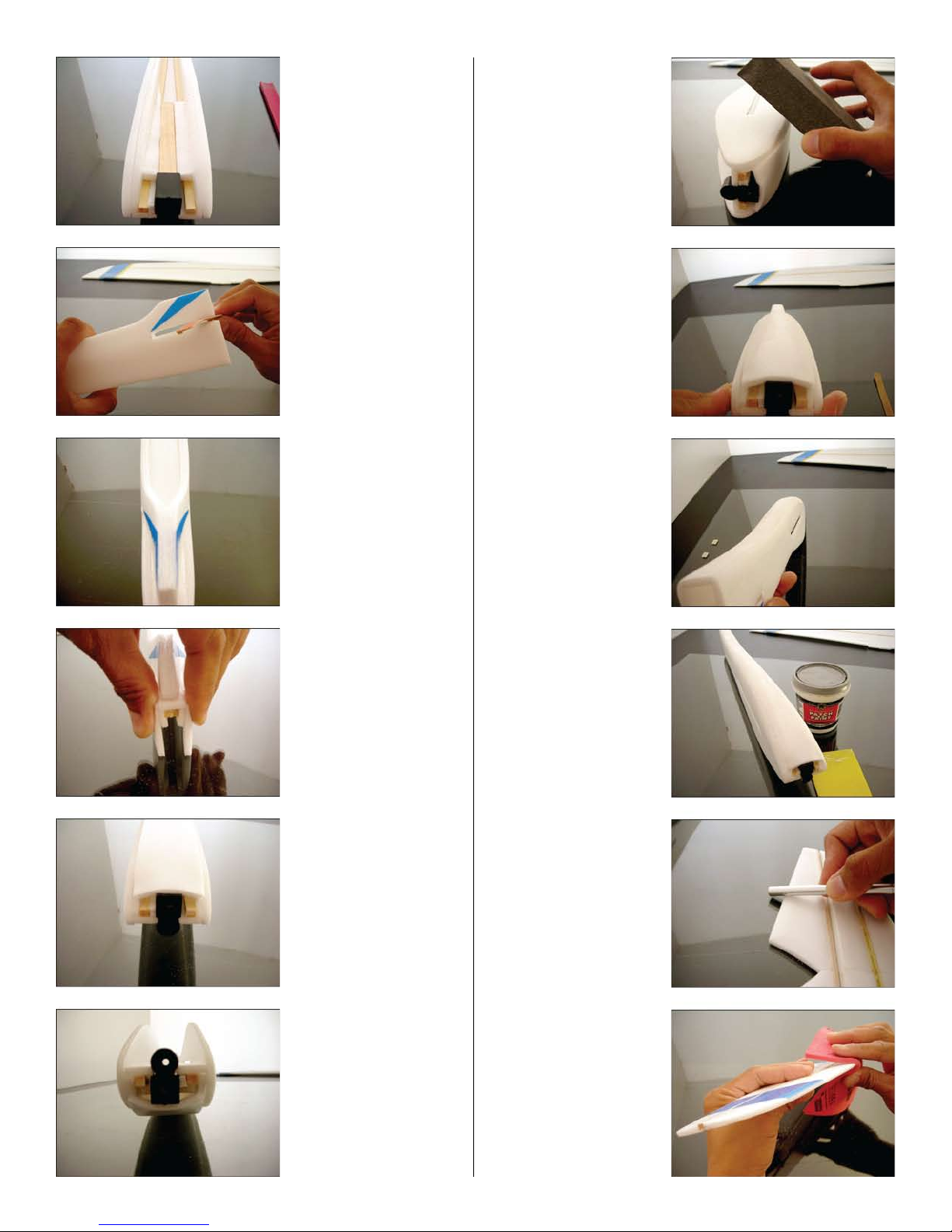

Turn over your fuse-

lage belly side up and

front pointing away

from you. Glue the

motor mount as

shown. This will give

you the proper right

thrust needed.

Cut various strips

from the scrap

Depron included in

the kit.

Using the scrap strips

fill in the gaps where

the motor mount has

been glued. Try to

make it a tight fit

wherever possible.

After filling the gaps

on both side use Thin

foam safe CA and

glue in the scraps.

This will help secure

the motor mount to

the fuse.

Glue the flat spar to

the front edge of the

elevator as shown.

Make sure it is flush

with the edge.

Glue the remaining

elevator half. Make

sure it is straight and

flush with the front

edge for the full span

of the elevator edge.

Re-apply the tape cut

off earlier over the

carbon fiber flat spar

as shown. Do both

sides.

Take this assembly

and place it on the

edge of the table on

its back, carbon fiber

and graphic side face

down. Sand a 45

degree bevel as

shown.

Use hinge tape or

Scotch tape on the

top first.

Attach the elevator

with the tape.

Continue with one

more level of filling

the sides with scrap

depron. Try to make it

from one piece on

each side. Secure

with more Thin foam

safe CA.

Sand the elevator slot

wider to accept the

elevator without

breaking the depron if

needed.

Glue the top part

together as shown.

Pinch it together with

your fingers without

cracking the depron.

Be gentle yet firm.

Squeeze the bottom

part as shown and

apply glue to fill any

poor glue adhesion.

The front of the

fuselage shown here

while belly side up.

The upright front view

of the fuselage.

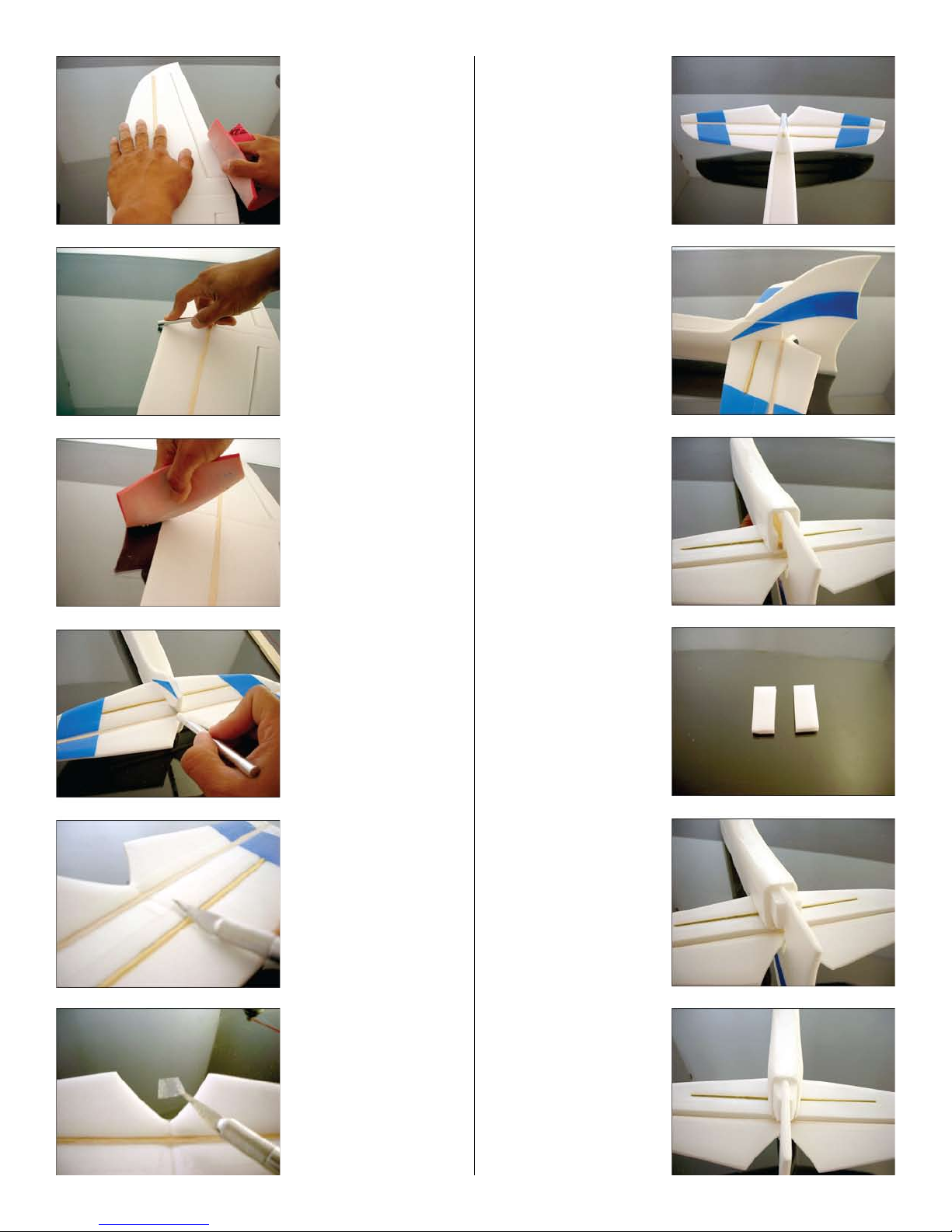

With a sponge type

sanding block smooth

down the corners to

make a rounded

fuselage bottom.

Sand it round for the

full length of the

fuselage bottom.

This will help your

fuselage be more

streamlined and resist

drag better.

Fill any remaining

cracks and gaps with

lightweight spackling.

Let it dry and sand

smooth with fine sand

paper.

Use the end of an

Exacto knife and cold

crush all trailing

edges and leading

edges top & bottom

for all flying surfaces.

Wings, elevator and

rudder.

After cold crushing

the edges use a fine

sponge sand paper

and round smooth all

flying surfaces leading

and trailing edges.

Continue with this

process for all the

wings.

Just a reminder. It

makes it easier to

round the edges if

your first cold crush a

slight bevel to the

edges first.

It also helps to place

the wing on a flat

surface and sand with

a sponge sander to

bevel the edge first

then sand round

second.

Trial fit the elevator

and then make some

very light cuts to

remove the hinge

tape in order to allow

a better glue joint.

Carefully cut out

some hinge tape to

expose the Depron.

This will facilitate a

foam to foam glue

bond at this part of

the elevator.

Remove the cut out

tape. (Please note

that your kit will not

have wood as shown

in these pictures. Just

ignore this difference)

Attach the elevator

and make sure it is

squared up to the

fuselage. Once you

are sure it is aligned

then glue it with Thin

foam safe CA. Apply a

few drops and let it

seep into the joint.

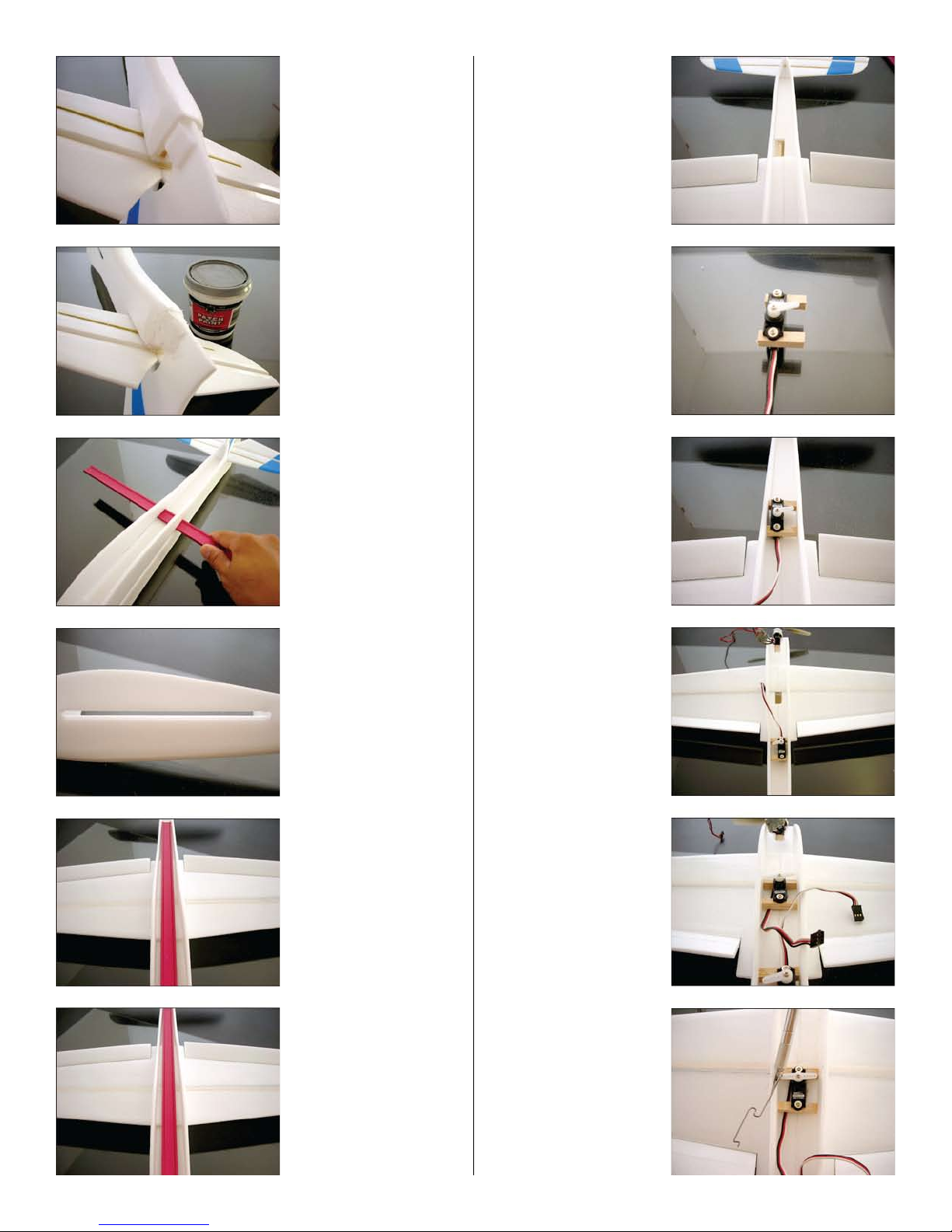

Attach the rudder as

shown.

You will realize that

the bottom part of the

rudder does not reach

the fuselage.

It will look like this if

done correctly.

Do not glue this part

yet.

Cut out a couple of

scrap pieces sized to

fit into the tail open-

ings and to create a

secure fitting for the

rudder.

Make sure your scrap

parts create a snug fit

into the open tail end

of the fuselage and

that it also creates a

secure grip of the

rudder.

Use more thin foam

safe CA to lock in the

rudder and then sand

a tapered effect as

shown.

Be careful not to

accidentally sand

other parts of the

plane.

Fill in the rest of the

fuselage end to make

a smooth airflow over

the fuselage. The

smooth shape of the

fuse helps reduce

drag greatly.

Use a ruler or hard

flat object to make

sure the main wing

slot is wide enough to

fit the wing. Press

while moving forward

and back along the

slot.

Make sure it is at

least 5 - 6mm thick for

a snug fit of the wing.

Use a file sander if

needed to widen this

slot.

After sliding in the

wing you might notice

that the fuselage may

have warped a bit.

Use a straight edge to

straighten it out.

It should be very easy

to line it up as shown.

Make sure the wing is

squared up properly

and glue it in place.

Again thin foam safe

CA works great.

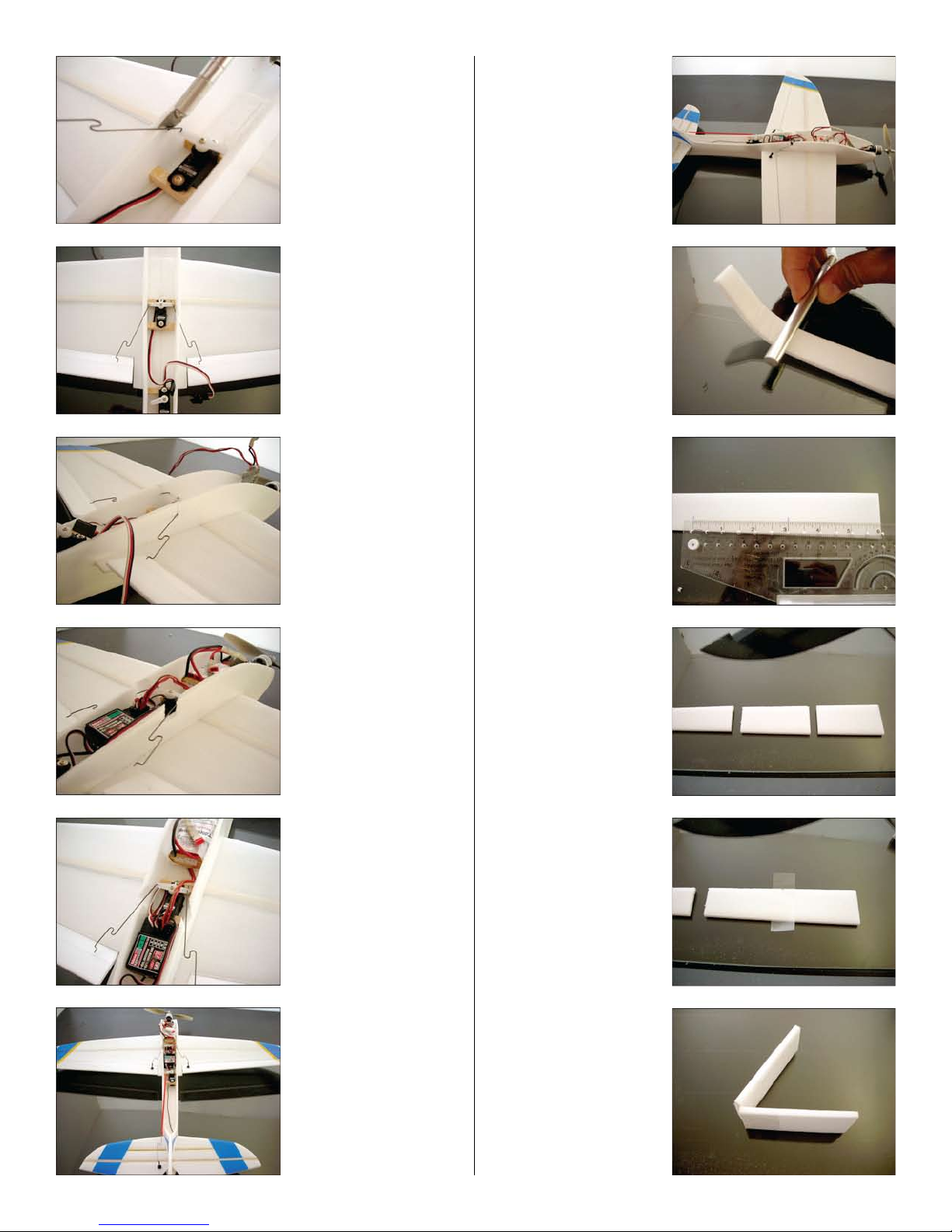

Cut out a servo hole

to fit your servos. Do

not cut through the

wood as you will

weaken the fuselage

if you do. Just cut

away the Depron.

Measure the width of

your fuse and cut two

pieces of wood to

length. Attach your

servo first to the wood

as shown. Then glue

the wood to the fuse

with the servo

attached.

Make sure you line up

your servo to fit into

the hole you cut out.

This should bring your

servo arm just outside

the fuselage top.

Cut out the aileron

servo hole behind the

main spar line and

keep it centered as

well.

Again measure the

width of the fuselage

and cut to length the

two servo mounts.

Again attach the

mounts first to the

servo then insert and

glue into the fuselage

as shown.

Attach the push-rod to

the servo arm then

use the pushrod as a

guide for cutting a slot

down the side of the

fuselage.

Cut down to the

height of the servo

arm as shown.

Repeat this for both

sides.

Make sure the future

positions of the

control horns are

evenly line up for both

sides.

Install your Rx behind

the aileron servo. Also

Cut out about 1/2 in.

to 3/4 in. to allow free

movement of the

aileron pushrods.

The Battery position is

in front of the aileron

servo. Install your

motor and ESC in

front of the battery.

Attach your control

horns on the ailerons

and elevator along

with the elevator

pushrod.

At this point your

should trial fit all your

gear and test if all

surfaces are moving

as they should and

check if the battery

position is right in

order to find the CG.

Which is about 1/4 in.

in front of the main

wing spar.

Cold crush the tail

end of the fuselage

cover and curve it

upwards as shown.

Measure and mark

from the front of the

cover piece at 3

inches and at 6

inches.

Cut off at the 3 and 6

inch points. You are

making a battery

hatch here.

Apply hinge tape to

the top side and trim

the edges.

Flip over and tape the

bottom. This is similar

to the aileron and

elevator hinges

except there is no

taper edge needed.

This hatch only needs

to move one direction.

Inhaltsverzeichnis

Andere nanoplanes Spielzeug Handbücher

nanoplanes

nanoplanes Baby Shark Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung

nanoplanes Shark Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken
