7403‐K141/K142/K144/K145

MagneticStripeReader

KitInstructions



IssueC

Revision Record

Issue Date Remarks

ANov2008Firstissue

BFeb2009AddedJISmodel

CFeb2012Addedprogrammableversions



1

Introduction

ThiskitprovidesanMSRmodulethatmountsonthesideofthe7403display.There

arefourversions.Thehardwareinstallationproceduresarethesameforall.

7403‐K141–3‐Track,ISO,OPOSMode

7403‐K142–3‐Track,JIS

7403‐K144–3‐Track,ISO,Programmable,Pre‐ProgrammedforKeyboard/Magtek

Mode

7403‐K145–3‐Track,ISO,Programmable,Pre‐ProgrammedforOPOSMSRMode

3

12

0

1

MSR Front Housing

497-0467264 (Charcoal)

Screw, 4-20 x 0.500, Phil, Pan, Plastite

006-8613828

MSR Module

497-0463844 (ISO)

497-0462863 (JIS)

497-0477020 (ISO Programmable)

MSR USB Harness

497-0437531



Installation Procedures

Caution: StaticElectricityDischargemaypermanentlydamageyoursystem.

Dischargeanystaticelectricitybuildupinyourbodybytouchingyourcomputer’s

caseforafewseconds.Avoidanycontactwithinternalpartsandhandlecardsonly

bytheirexternaledges.

1. Disconnectpowertotheterminal.

Caution: DisconnecttheACpowercordbeforedisassemblingtheterminal.The

ON/OFFswitchdoesNOTremovepowertotheunit.

2

a. RemovetheFrontCover.

b. InserttheSecurityKeyandturnit90degreesclockwise.

26124

Security Key

Front Base Cover



c. PivotthetopoftheFrontBaseCovertowardthefrontoftheunitandremove

itfromtheterminal.

26032 

3

d. DisconnectthePowerCordfromthePowerSupply.

26135

AC Power Cord



2. DisconnecttheDisplayCable.

3. LoosentheDisplaythumbscrews(2).

26464

Display Cable

Thumbscrews



4

4. DepresstheDisplayReleaseLatches(2)andslidetheDisplayHeadtowardthe

rearoftheterminaltodisengageitfromthechassis.

26151a

Display Latches



5

5. LaytheDisplayHeadonaflat,non‐scratchsurfacetoavoidscratchestothe

TouchscreenandFrontBezel.

6. Loosenthecaptivescrews(2)thatsecuretheNoMSRCover(2screws)

26281a

No MSR Cover



6

7. Loosenthecaptivescrews(2)thatsecuretheTopAccessCoverandthenremove

thecoverfromtheRearCabinet.

26282

Top Access Cover



8. RemovetheMSRRearHousing(2captivescrews)

26278b 

7

9. RoutetheMSRCablethroughthetunnelintheRearCabinetandconnectittothe

MSRConnectorontheBackPanel(ControllerBoard).

26466

MSR Connector

Ground Cable



8

10. ConnecttheGroundCabletothechassis(1screw).

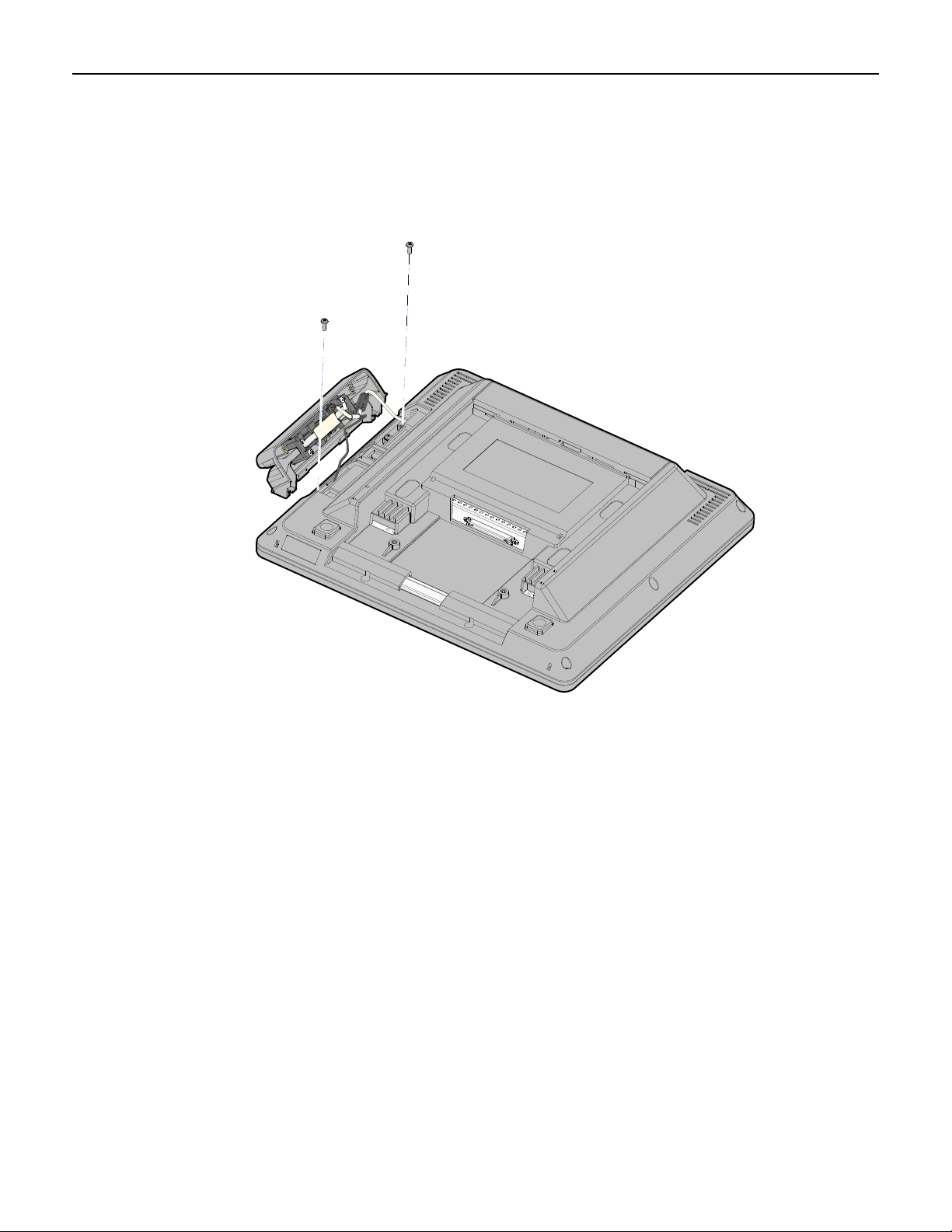

11. InstalltheMSRAssemblytotheDisplayHead(2screws).Thebottomedgeofthe

MSRhousingisplacedontotheDisplayHeadfirst,andthentheMSRisrotated

upintoplace.

26154 
