E-Money Terminal Mount (WAONRW)

This publication provides procedures for installing an E-Money Terminal Mount for a

WAONRW E-Money Terminal on an NCRSelfServ™ Checkout (7707) unit.

Note: The WAONRW E-Money Terminal is supplied by the customer.

Kit Contents

Part Number Description

497-0524690 7707-K903 E-Money Terminal Mount (WAONRW)

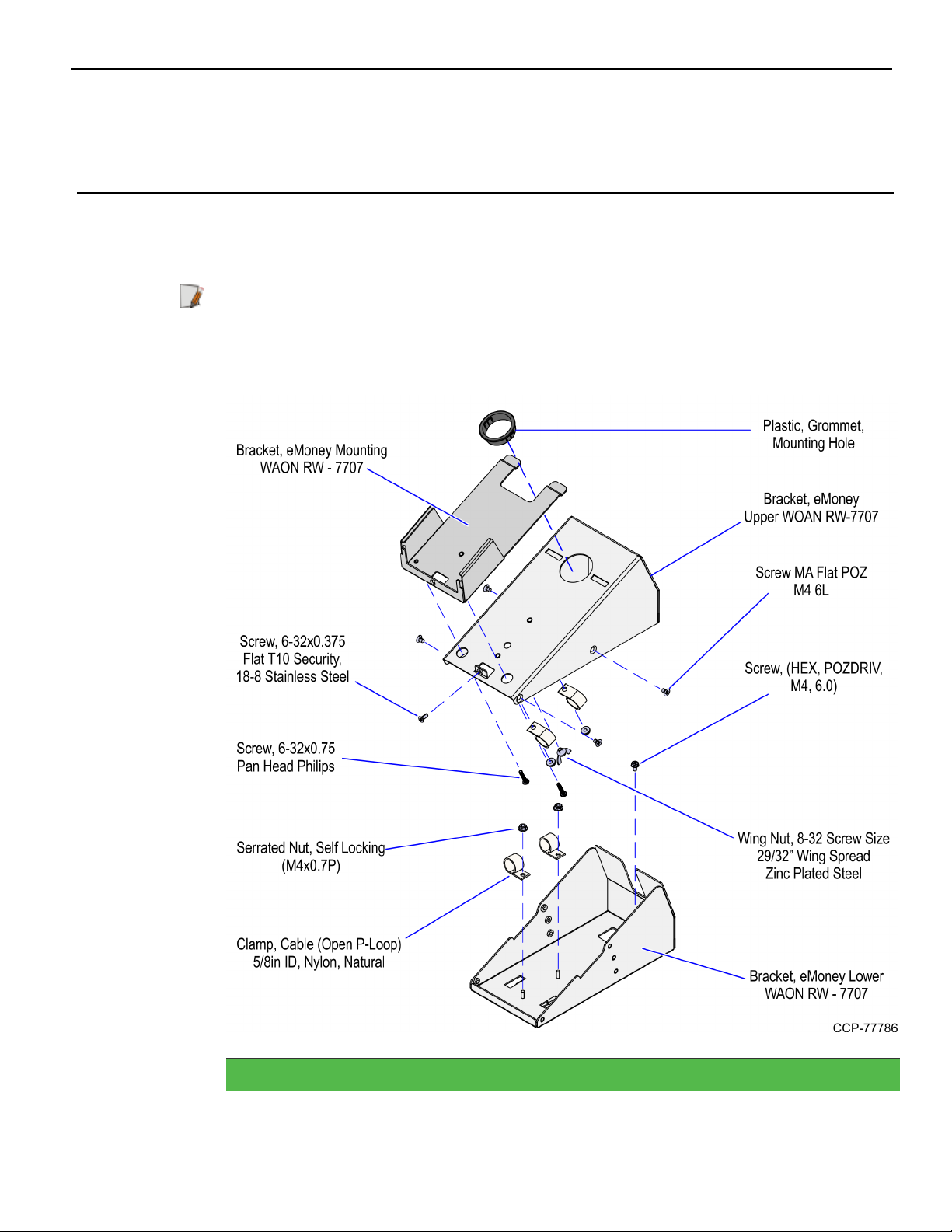

2 E-Money Terminal Mount (WAONRW)

Part Number Description

006-8613853 Screw -6-32 x 0.75 in Pan Head Phillips Machine, Zinc-Pltd Stl

(2 pcs)

497-0524692 Bracket - eMoney Upper WAON RW - 7707

006-8616845 Clamp - Cable (Open P-Loop), 5/8 in ID, Nylon, Natural (4 pcs)

497-0524691 Bracket - eMoney Lower WAON RW - 7707

497-0525092 Bracket - eMoney Mounting WAON RW - 7707

006-8612735 Wing Nut - 8-32 Screw Size, 29/32" Wing Spread, Zinc-

Plated Steel

006-8625144 Plastic - Grommet - Mounting Hole Diameter 1.5 in

006-8627187 Screw - 6-32 X 0.375 FLAT T10 Security, 18-8 Stainless Steel

006-8627665 Screw (HEX, POZDRIV, M4, 6.0)

006-8627664 Serrated Nut - Self Locking (M4 X 0.7P) (4 pcs)

006-8627666 Screw MAFlat POZ M4 6L (4 pcs)

* 497-0423108 Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.

E-Money Terminal Mount (WAONRW) 3

Installation Procedures

To install WAONRW E-Money Terminal Mount on an NCRSelfServ™ Checkout (7707)

unit, follow these steps:

Note: Use a #2 Phillips Magnetized Screwdriver to easily handle the screws.

1. Do either of the following:

• Remove the existing E-Money Terminal, if necessary. For more information, refer

to NCRSelfServ™ Checkout (7707) Hardware Service Guide (BCC5-0000-5237).

• For units with no E-Money Terminal, remove the Blanking Plate. For more

information, refer to Removing E-Money Terminal Blanking Plate on page9.

2. Install the WAONRW E-Money Terminal on the E-Money Terminal Mount by

doing the following:

a. Connect the power and data cables to the E-Money Terminal.

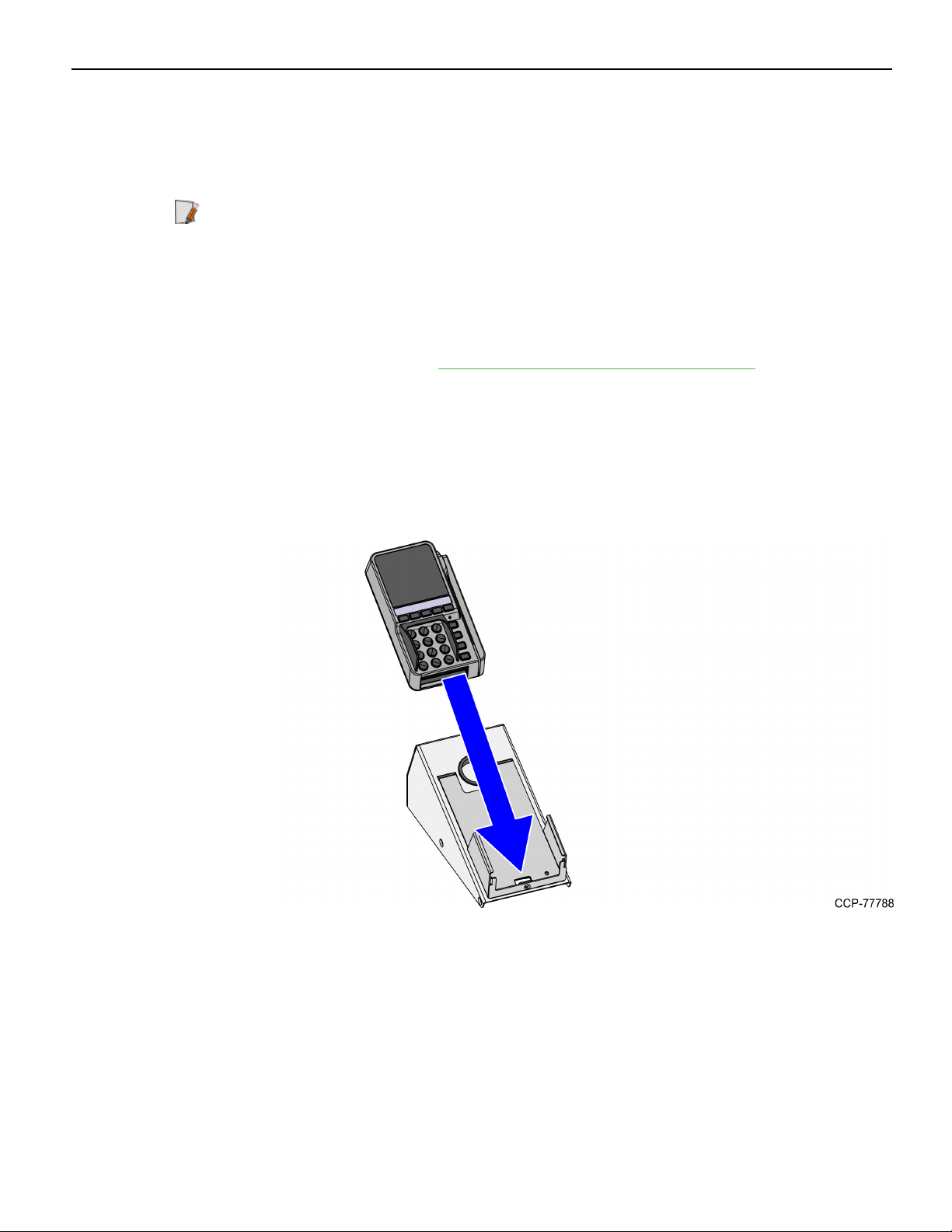

b. Insert the E-Money Terminal onto the Upper Mounting Bracket, as shown in the

image below.

4 E-Money Terminal Mount (WAONRW)

c. Secure the E-Money Terminal on the UpperMounting Bracket using two (2) M4

pan head screws.

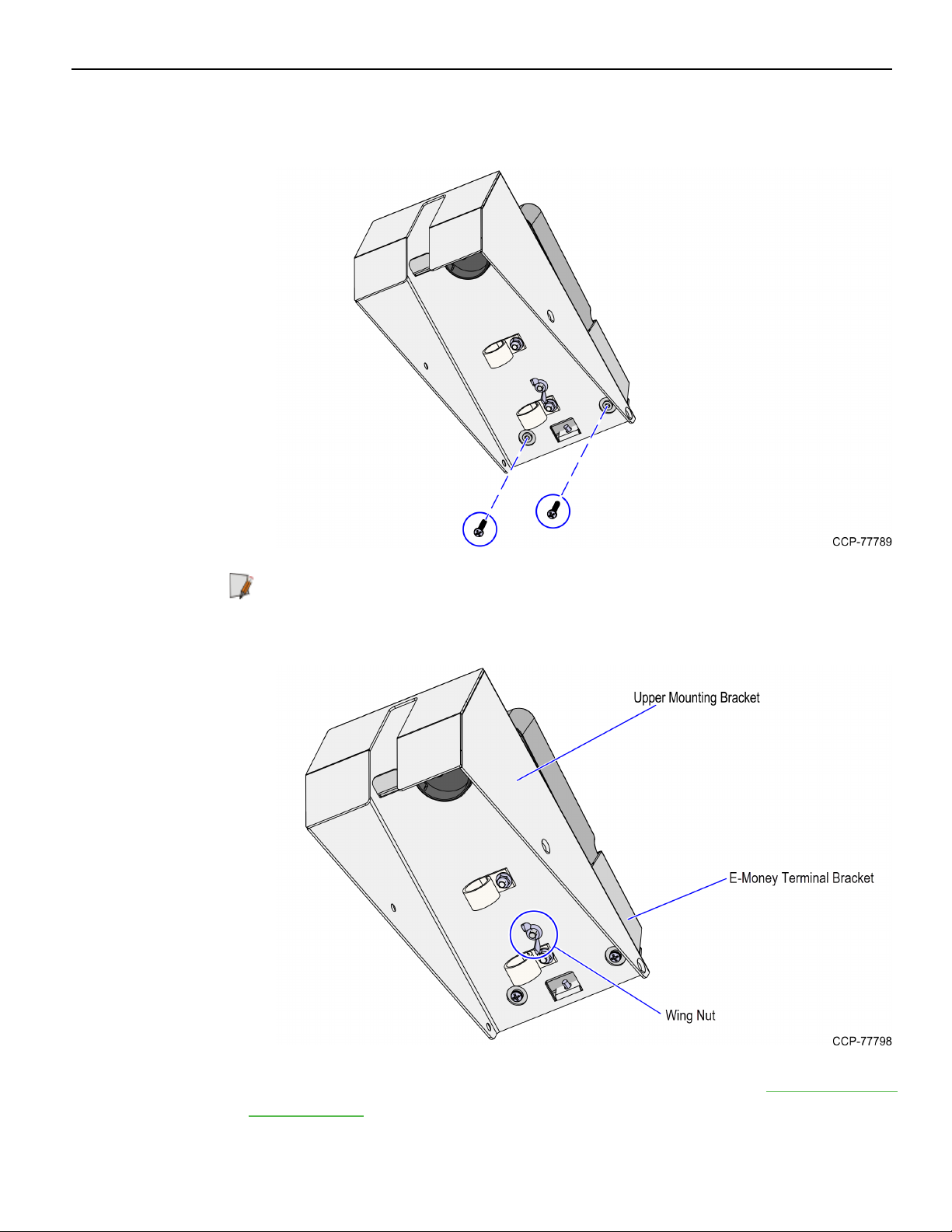

Note: To remove the E-Money Terminal Bracket from the outside, remove the

wing nut located inside the Upper Mounting Bracket, as shown in the image

below.

3. Route the E-Money Terminal cables. For more information, refer to Routing E-Money

Terminal Cables on page7.

E-Money Terminal Mount (WAONRW) 5

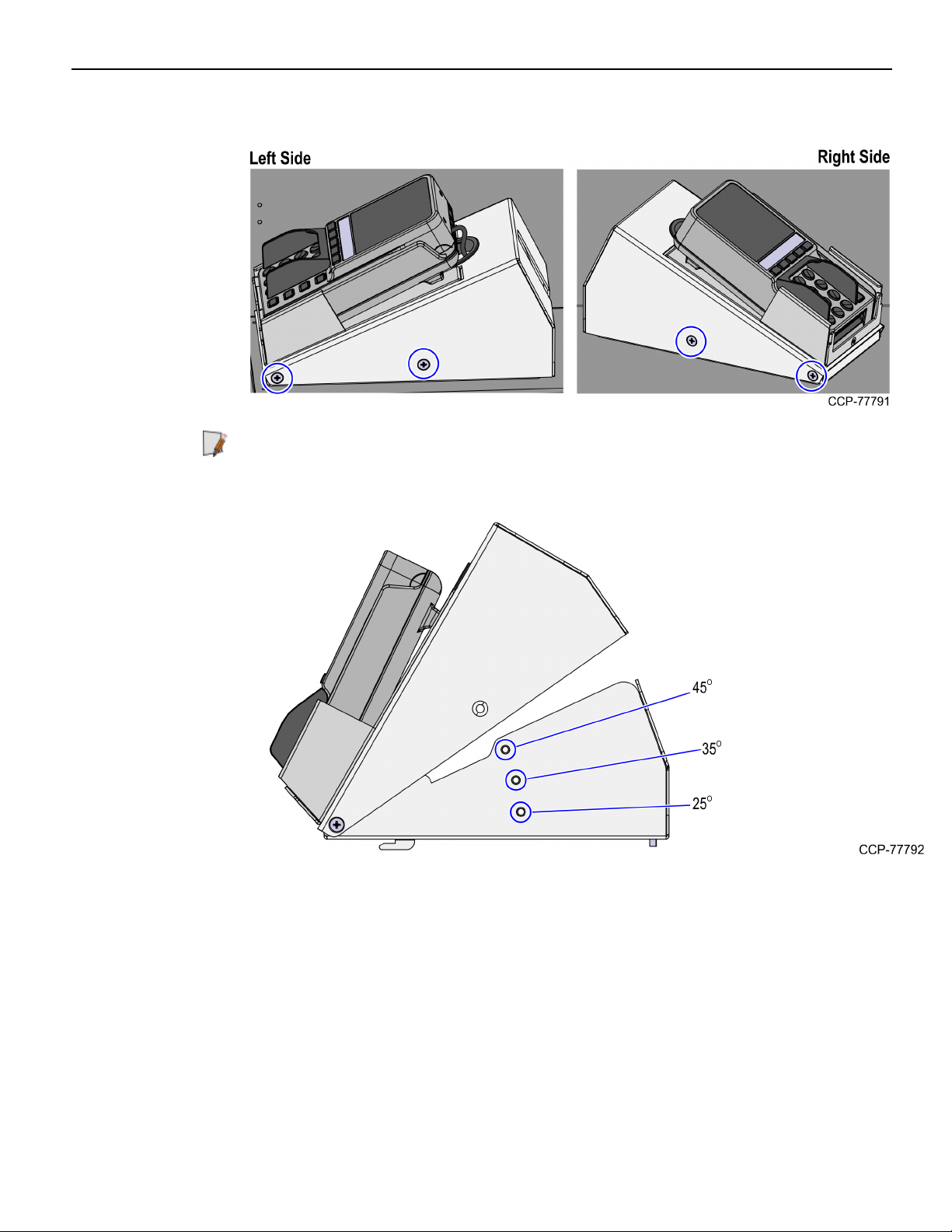

4. Secure the Upper Mount to the Lower Mounting bracket using four (4) screws.

Note: The angle of the Upper Mount can be adjusted by aligning and securing the

two (2) rear screw slots to any of the three (3) screw slots on the Lower Mounting

Bracket using two (2) screws, as shown in the image below.

6 E-Money Terminal Mount (WAONRW)

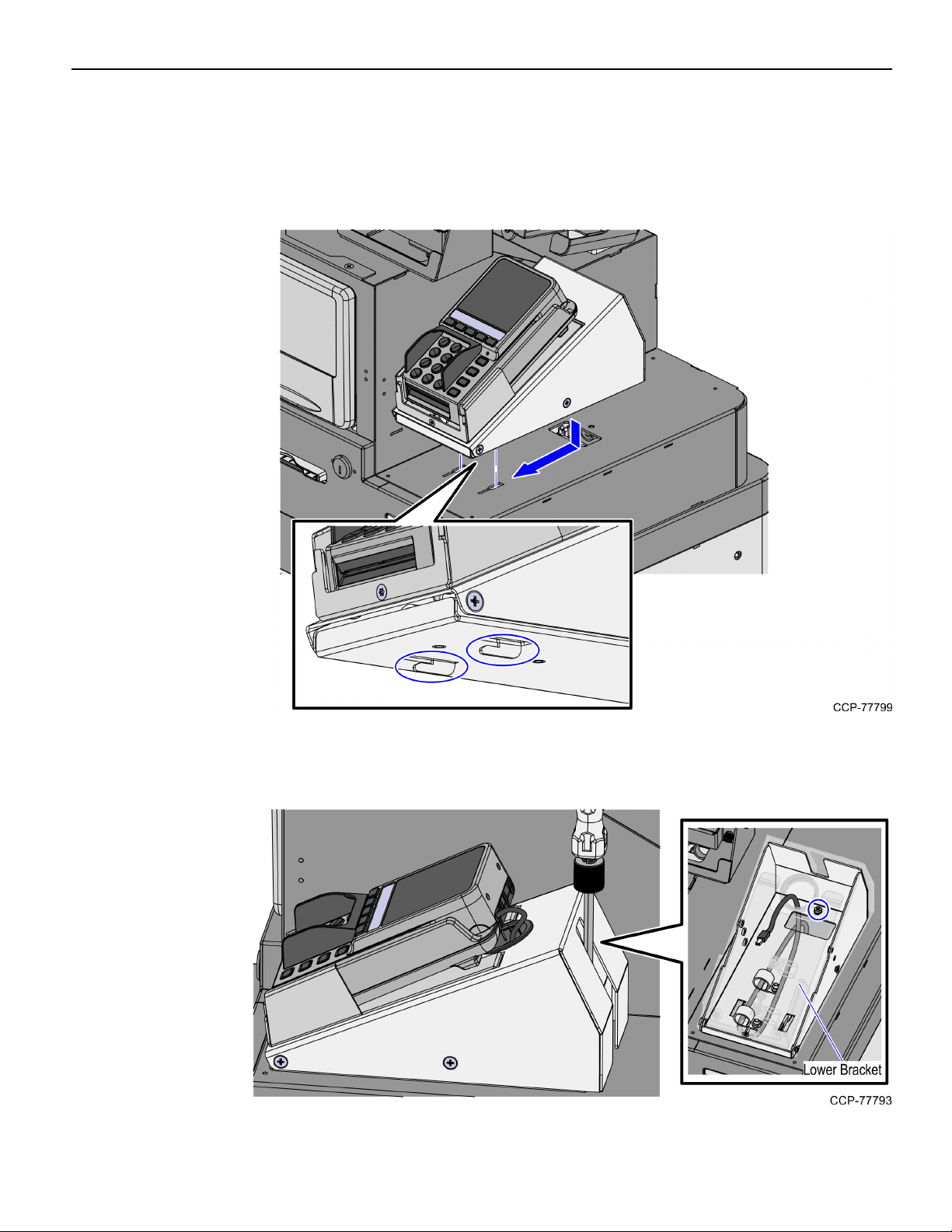

5. Mount the E-Money Terminal assembly to the SelfServ Checkout unit by doing the

following:

a. Mount the hooks of the E-Money Terminal assembly to the SelfServ Checkout

Upper Enclosure to lock in place.

b. Secure the E-Money Terminal assembly using a screw, as shown in the image

below.

E-Money Terminal Mount (WAONRW) 7

Routing E-Money Terminal Cables

To route the E-Money Terminal cables in the R6-Japan unit, follow these steps:

1. Do the following:

a. Route the cables through the hole on the Upper Mounting Bracket.

b. Route the cables through the P-Loops on both Upper and Lower Mounting

Brackets.

c. Continue routing the cables through the hole on the Lower Mounting Bracket.

2. Route the cables through the cable access hole on the Upper Enclosure.
