NEC PDWHM-M Bedienungsanleitung

ORDER CODE: PDWHM-M 100013378, PDWHM-L 100013377

HIGH-END WALLMOUNT, HEIGHT-ADJUSTABLE, MANUAL - PDWHM

High-end manual height-adjustable wall mount for NEC Large

Format Displays

Mechanical height-adjustable wall mount for large format displays from

46” to 80” offering ergonomic interactivity for corporate and education.

The mechanical height-adjustment makes it easy to adopt the screen to

different users.

Delivering Genuine Benets

Mechanical height-adjustment

Especially designed for usage with large format touch displays

Universal VESA mounting

Handle allows you to easily adopt the display to different users

Lock release mechanism on handle

Well balanced solution uses springs instead of counterweights

Highly preassembled to make installation quick and easy

Available as medium (PDWHM-M) and large (PDWHM-L) version

Optional cover PD01COV needed when used with displays less

than 800mm in height

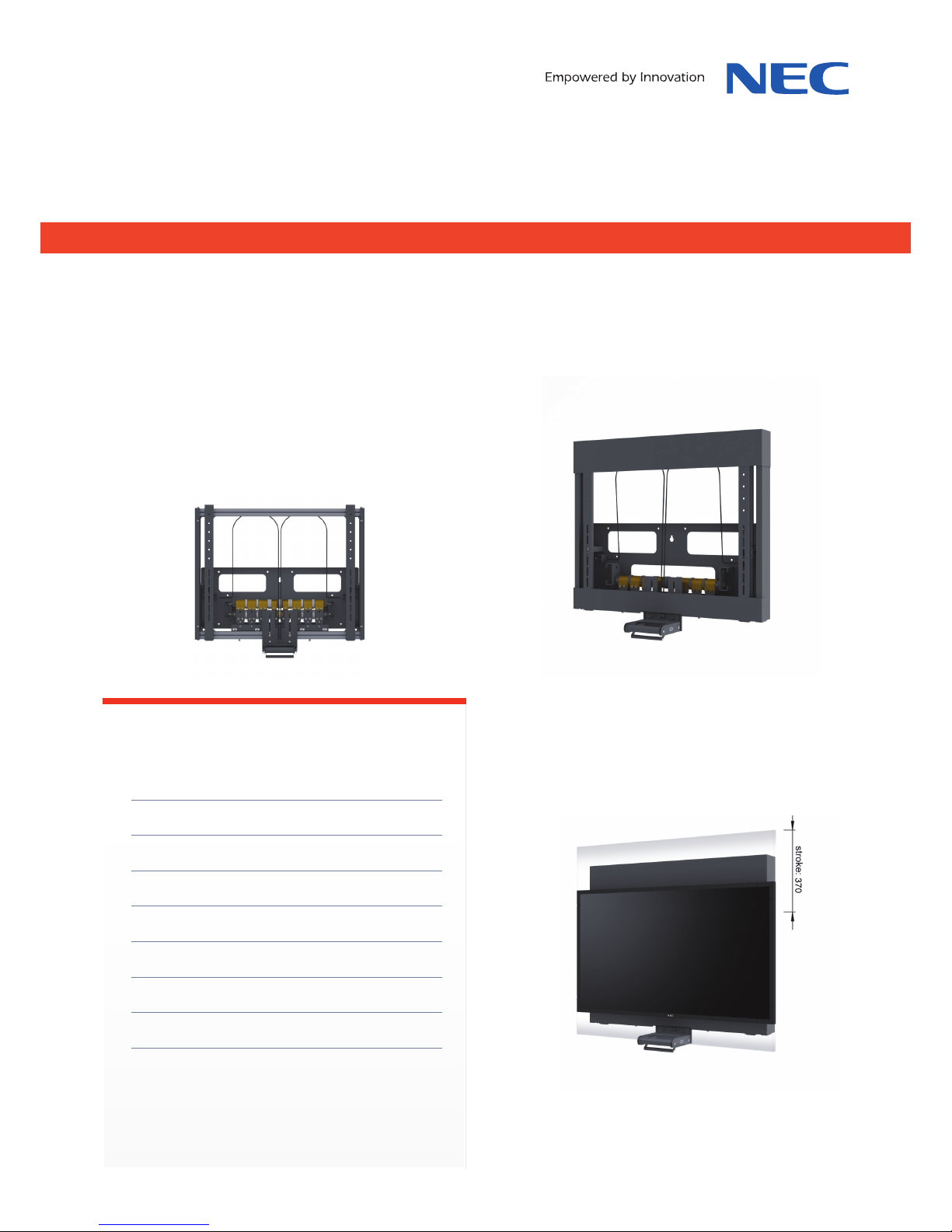

PDWHM-M side view with optional cover

PDWHM-L front view

PDWHM-M with 46” display and optional cover

thereof, should not be copied, adapted, redistributed, or otherwise used without the prior written permission of NEC Display Solutions Europe GmbH. This

document is provided “as is” without warranty of any kind whatsoever, either express or implied. Errors and omissions are excepted.

NEC Display Solutions Europe GmbH may make changes, revisions or improvements in, or discontinue the supply of any product described or referenced in

this document at any time without notice. 16 July 2013

NEC Information:

Call: +49 (0)89/99 699-0

Email: [email protected]

www.nec-display-solutions.com

TECHNICAL SPECIFICATIONS

TECHNICAL DRAWINGS

ORDER CODE: PDWHM-M 100013378 PDWHM-L 100013377

HIGH-END WALLMOUNT, HEIGHT-ADJUSTABLE, MANUAL - PDWHM

130

min 100 - max 600

min 300 - max 800

35 (6x)

50 (5x)

8,2 (6x)

R4,1 all

50 (5x)

Lowest position

348

361,5

238,5

773,5

Stroke appr 370

Highest position

186,5

103

960

263

280 140 280

135165

60050

700

9 (8x)

R4,6

857 + 130

130

min 100 - max 600

min 300 - max 800

8,2 (6x)

50 (5x)35 (6x)

50 (5x)

R4,1 all

Lowest position

361,5

348

238,5

773,5

Stroke appr 370

Highest position

186,5

103

960

263

280 140 280

135165

60050

700

9 (8x)

R4,6

857 +130

ORIENTATION

HEIGHT ADJUSTMENT (MM)

VESA PATTERN (MM)

MODEL PDWHM-M PDWHM-L

ORDER CODE 100013378 100013377

COVER PD01COV 100013429

MAX. LOAD CAPACITY (KG) 45 115

RECOMMENDED DISPLAY SIZE 46” to 55” 65” to 80”

ORIENTATION Landscape

HEIGHT ADJUSTMENT (MM) 370

VESA PATTERN (MM) 200x200 to 800x400

PRODUCT WEIGHT (KG) 30 35

SHIPPING WEIGHT (KG) 33 38

PACKAGE DIMENSION (MM) 990 x 820 x 120

SHIPPING CONTENT Wall mount frame, Handle, VESA mounting rails

FINISH Painted metal, anthracite

SUPPORTED NEC PUBLIC DISPLAYS V462-TM, V463-TM and all Large Format Displays

from 46” and 55”

V651-TM, V652-TM and all Large Format

Displays from 65” to 80”

WARRANTY 5 years

For additional pictures and Solutions overview,

Visit www.nec-display-solutions.com for details.

PDWHM-L PDWHM-M
