NEC SL1100 Bedienungsanleitung

Before using Your Terminal…

Thank you for purchasing NEC SL1100 system.

Due to the flexibility built into the system, your Dialing Codes and Feature Capacities may differ

from those in this guide. Check with your NEC Authorized Supplier / System Administrator and

make a note of any differences.

Installing the Handset and Line Cord

When installing the handset :

1. Make sure the handset cord is plugged into

the handset jack on the telephone base.

2. The line cord is plugged into the LINE jack

on the telephone base.

3. The line cord routes through the channel on

the telephone base.

4. Headset is optional.

Handset Cord

Headset

Adjust the Viewing Angle and Height

To set the LCD viewing angle:

1. Pull the LCD as desired.

To set the leg height:

1. Adjust the legs to the desired height.

NEC Corporation reserves the right to change the specifications, functions, or features at any time without notice.

NEC Corporation has prepared this document for use by its employees and customers. The information contained

herein is the property of NEC Corporation and shall not be reproduced without prior written approval of NEC

Corporation.

Printed in Japan

Line cord

For Your Convenience

Programmable Function Keys

Programmable Function Keys can be assigned as “Trunk”Key and/or other Function Keys. You can just

press the function key to activate the assigned function without dialing the Service Code.

Function Code & Add Data

Function Key

Speaker

There are 2 levels of Function Keys. (General Keys : assigned by 851, Appearance Keys : assigned by

852)

Appearance Keys have priority. You can overwrite the Appearance Key at the General Key.

If you want to overwrite the General Key at the Appearance Key, you have to erase the Appearance Key by

dialing “852 + 000”before General Key assignment.

In the default setting, Programmable Function Key No. 1 to 12 is assigned as “Trunk”Key. If you want to

assign Function Keys (General) at the unused Trunk Keys, these unused keys should be erased by “852 +

000”operation.

Programmable Function Keys can be erased by dialing “852 + 000”or “851 + 00”.

Programmable Function Keys can be assigned by Soft Key operation as well.

DSS / One-Touch Keys

Programmable Function Keys can be assigned as DSS (Direct Station Selection) or One-Touch Keys. You

can place an Outside / Intercom Call by just pressing this key without dialing the number.

Function Key

Speaker

Telephone Number

Trunk Access Code

Extension Number

Hold

To change the Trunk Access Code, Ask your NEC Authorized Supplier for the details.

In the default setting, Programmable Function Key No. 1 to 12 is assigned as “Trunk”Key. If you want to

assign DSS Keys at the unused Trunk Keys, these unused keys should be erased by “852 + 000”operation

before the above operation.

In case of DSS Key, the extension status can be indicated on the BLF. (idle : extinguished, Busy : lit)

When you register a telephone number, the Trunk Access Code should be added in front of the number.

Up to 36 digits dialing can be registered, but the name can not be registered.

If you want to continue the operation, press Programmable Function Key instead of Speaker Key to finish.

One-Touch Keys can be assigned by Soft Key operation as well.

For Your Convenience

Abbreviated Dial (Speed Dial) Registration

Speaker

Telephone Number

Hold

Common ABB

Group ABB

ABB Bin Number

Name

Hold

The digit of Bin No. depends on the system setting. (0-9<Only Group ABB> / 00-99 / 000-999)

System setting is necessary for Group ABB function. Ask your NEC Authorized Supplier for the details.

Name can be entered by Dial Pad Keys. (See below)

Up to 36 digits dialing can be registered, and up to 12 characters can be registered as name.

If you want to continue the operation, dial Bin No. instead of Speaker Key to finish.

You can skip to enter the name. (No enter any character, then press “Hold” Key).

You can erase the registered number & name by pressing “Exit” Key after dialing Bin No..

Common Abbreviated Dial can be registered by Soft Key / Cursor Key operations as well.

“

‘

(

)

[

]

‘

{

}

;

∞

When you enter a name, use Dial Pad Keys to enter letters as below. For example, press “2”key once for “A”,

twice for “B”, etc…

Accepts a character and move

the cursor one place to the right.

Press twice to insert a “space”.

Clear the character entry to the

left, one character at a time.

(Backspace)

Entering Alphanumeric Characters

Feature

Placing Calls

Place an Outside Call <Quick Access>

Telephone Number

Place an Intercom Call <Dial Access>

Extension Number

Trunk Key

Listen to the Dial Tone before dialing a Telephone Number.

You can have function keys for Trunks or Trunk Groups. Ask your NEC Authorized Supplier for the details.

Place an Outside Call <Access by Code>

Speaker

Telephone Number

Trunk Access Code

(e.g. : 005 = Trunk No.5)

Trunk Group No.

Trunk No.

To change the Trunk Access Code, Ask your NEC Authorized Supplier for the details.

Listen to the Dial Tone before dialing a Telephone Number.

In case the number of Trunk Group is more than 10, you should enter 2 digits (e.g. 11 : Group 11) after

dialing “804”. Ask your NEC Authorized Supplier for the details.

For the dial digit of Trunk No., ask your NEC Authorized Supplier for the details.

Speaker

Your call will ring or voice-announce. If you hear ringing, wait for an answer. If you hear a beep, begin

speaking. Dialing “1” changes voice/ring mode. (in case the destination is Multi-line Terminal)

Placing Calls Quickly

Directory Dialing

On-Hook

Condition

Press several times to search

Last Number Dialing

On-Hook

Condition

Press several times to search

Redial List

Quick Redial

Speaker

Callback by Received Number

The system retains the last 10 numbers dialed which can be reviewed and redialed.

To cancel the Redial List operation, press “Exit”Key.

Caller-ID function is required to use this operation for outside calls. Ask your NEC Authorized Supplier for

more details.

To cancel the Callback operation, press “Exit”Key.

Directory Dialing [A]

ABC Ltd

COMM.xxx NEC CORP

0312345678

REDIAL[#] / ABB

0987654321

Redial-01 NEC CORP

012345678

2-8 TUE 3:03PM

List Dir ICM Prog

List.Menu

Redial CID

On-Hook

Condition

Press several times to search

After searching the desired destination, place the call by lifting the handset or pressing Speaker.

You can enter more Characters (up to 12) to make desired destination’s search even more specific.

You can also search the desired destination without entering the Characters. (press Cursor Keys only)

To cancel the Directory Dialing operation, press “Exit”Key.

Directory Dialing can be activated by Soft Key operation as well.

1st Character

you want to search

Select Soft Key - List

Select Soft Key

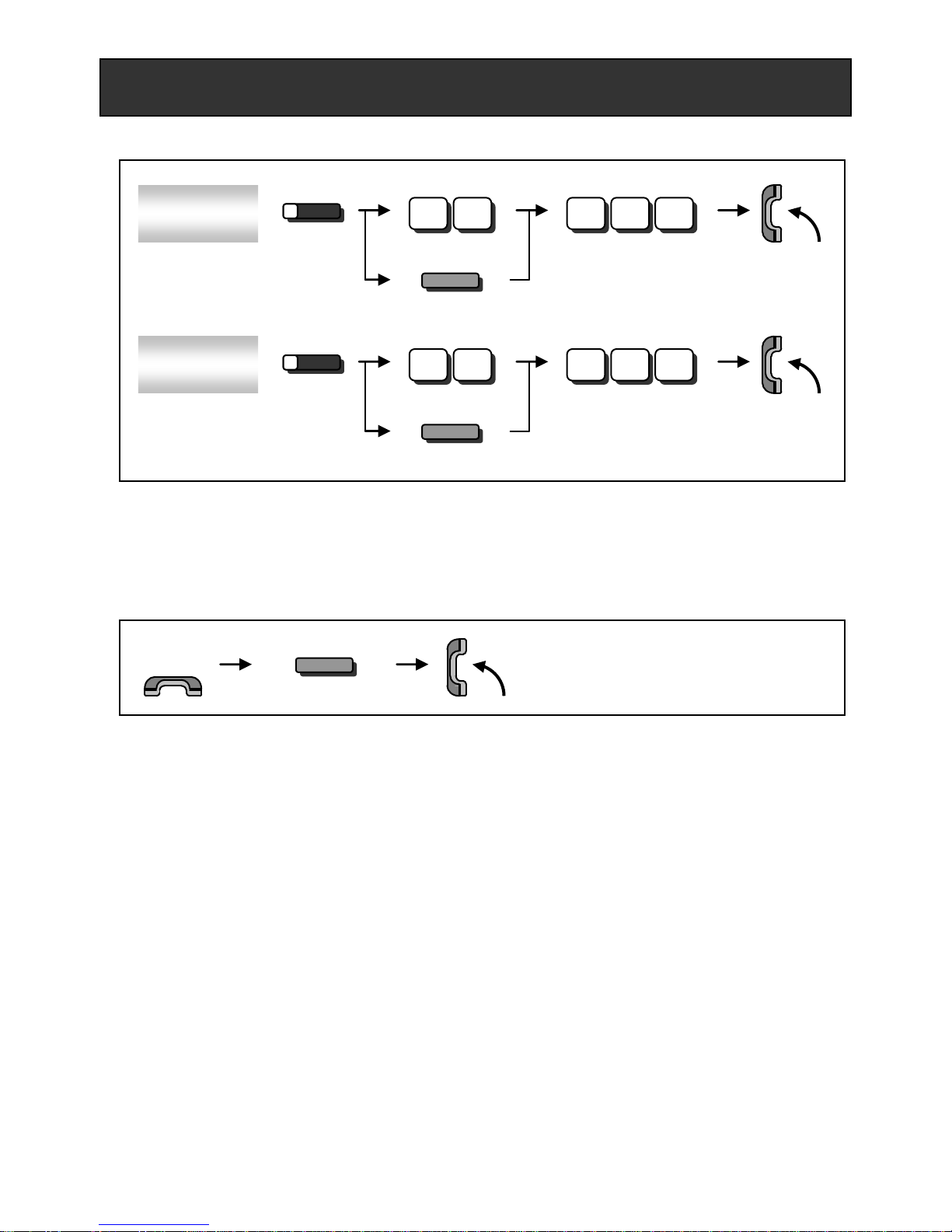

Abbreviated (Speed) Dialing <for Outside>

Common

ABB

Group

ABB

Common ABB Bin Number

Group ABB Bin Number

Speaker

Common ABB Key

(SC851+27)

Group ABB Key

(SC851+28)

The digit of Bin No. depends on the system setting. (0-9 <Only Group ABB> / 00-99 / 000-999)

Telephone Numbers shall be pre-registered to the system.

System setting is necessary for Group ABB function. Ask your NEC Authorized Supplier for the details.

When you assign the Common ABB Key on the Programmable Function Key, “Press HOLD”is required

after dialing the Function Code 27.

Placing Calls Quickly

One-Touch / DSS Call

One-Touch / DSS Key

(SC851+01)

Telephone / Extension number should be pre-registered to a One-Touch / DSS Key.

Trunk Access Code should be added in front of the Telephone number.

On-Hook

Condition

Set Camp On / Callback

Camp On

Hear Busy Tone

or No Answer

Callback

Wait without

hanging up

Wait for the

System to call

you back

Camp On In case of Intercom Call, when you hear ringing, wait for the called party to answer.

In case of Outside Call, when you hear Dial Tone, begin telephone number dialing.

Callback In case of Intercom Call, when your terminal starts the ringing, lift handset and wait for the

called party to answer.

In case of Outside Call, when your terminal starts the ringing, lift handset, hear Dial Tone, and

begin telephone number dialing.

This function is applicable in case all trunks are busy condition. (not applicable for dialed outside party

busy)

Cancel Camp On / Callback

(In case of Camp On)

If your call doesn’t go through…

Camp On Key

(SC851+35)

Repeat Dialing <Outside Call Only>

Hear Busy Tone

or No Answer

Repeat Dial Key

(SC851+29)

When the Repeat Dialing is set, Repeat Dial Key shall flash and the system automatically and periodically

redials a call. Repeat duration is programmable. Ask your NEC Authorized Supplier for the details.

You should lift the handset when the called party answered.

Press flashing Repeat Dial Key to cancel.

LINE 03

Conf Rpt Save Trf

Press “↓”to find “Camp”

LINE 03

Camp

Set a Message Waiting

Hear Busy Tone

or No Answer

Cancel Message Waiting

Extension Number

Individual

Cancel

(originated extension)

All Cancel

(at any extension)

MW Key

(SC851+38)

MW Key

(SC851+38)

On-Hook

Condition

Help

When you set a MW, the called party’s Indicator starts to flash, and your Indicator is lit in Green.

Answer a Message Waiting (Your terminal’s Indicator is flashing in Green)

Check & Answer

Quick Answer

If your call doesn’t go through…

When you answer a MW, the Indicator shall automatically be off when the called party answers.

You can select the desired party by pressing Up Key after dialing “, 0”, if several number of Message

Waiting has been set.

2-8 TUE 3:03PM

Voice Msg ↓
