2U rack server featuring up to two 64-bit

Intel

Xeon

Processors and optimized

for clustering and application server use

Offers Application Service Providers

and Internet Service Providers

outstanding expandability and manageability

for their Internet andWeb application

hosting services

Allows wide-range enterprises to

consolidate their applications and

infrastructure services

The NEC Express5800/120Rh-2 features up to two 64-bit

Intel

Xeon™Processors 3.60Hz/3.40GHz/3.20GHz with a

800MHz system bus and 1MB 2nd cache (2MB on the 3.60GHz

model).

The latest 2U rack model offers up to 16GB DDR2-400

SDRAM memory with ECC and Chipkill™.

The NEC Express5800/120Rh-2 supports Ultra 320 SCSI

hard disks, with a large-scale capacity of up to 1.8TB (300GB

x 6).To prevent loss of important data and to deliver higher

system availability in the event of a disk failure, on-board

RAID 0, 1 and RAID 1 spanning are enabled as standard.

RAID 5 is enabled using an optional disk array controller.

With six PCI-X expansion slots (64bit/100MHz PCI-X x3 and

64bit/66MHz PCI-X x3), the 120Rh-2 supports a wide variety

of option boards to further customize the slot mix and to meet

particular needs.By replacing the standard riser card

(64bit/100MHz PCI-X x3) with an optional riser card*, one of

the following slot options becomes available:

- 64bit/133MHz PCI-X x3

- 64bit/133MHz PCI-X x1 and PCI EXPRESS™(x4) x2

- 64bit/33MHz PCI (5V) x3.

* Three different optional riser cards are available for 120Rh-2.

To ensure continuous system operation, optionally hot-swap

redundant power supply and fans are supported.

The 120Rh-2 is designed to support Microsoft

Windows

Server™2003 x64 Edition, which allows both 32-bit and 64-

bit applications on the same system and enables faster data

processing and greater memory access.

To enhance system reliability and availability, the 120Rh-2

comes standard with a Remote Management Controller,

which enables server management and monitoring from a

remote console.

NEC ESMPRO, bundled for easy system management,

monitors and controls system operation from a remote

console, and assists the system administrator in

troubleshooting a system.

For simple system installation, NEC EXPRESSBUILDER is

attached as an installation support tool.

Product Highlights

■

NEC

Express5800

120Rh-2

www.necam.com/servers/

Express5800

120Rh-2

NEC

Express5800

120Rh-2

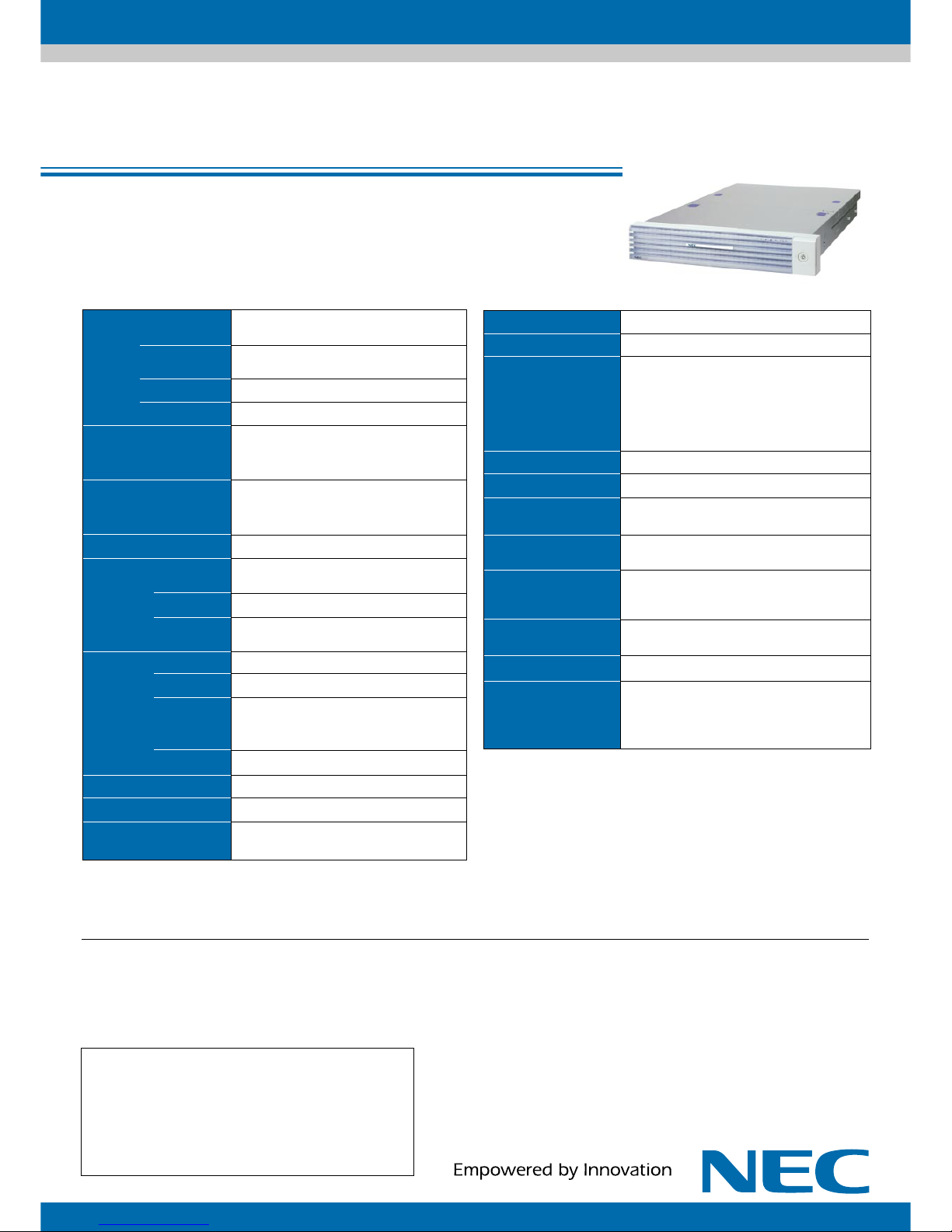

Hardware Specification

64-bit Intel®XeonTM Processor

3.60GHz/3.40GHz/3.20GHz

Supported

Intel®E7520

1MB

2MB (3.60GHz model only)

1GB (512MB x 2)

800MHz

1-2

Supported

3.5”x 1

X 24, ATAPI

1000BASE-T x 2

(100BASE-TX and 10BASE-T are supported.)

Intel®

HyperThreading

Technology

Intel®

Extended Memory 64

Technology

Chipset

CPU 2

Cache

Front Side Bus

No. of CPU

FDD

CD-ROM

Network

Standard

Max

I/O

RAID

Memory

Internal

HDD

DDR2-400 SDRAM DIMM

ECC, Chipkill

On-board : SCSI RAID 0, 1,

RAID 1 spanning

Option : RAID 5

16GB (2GB x8)

(when standard DIMMs are removed)

Ultra 320 SCSI

Hot-Plug

1.8TB (300GB x 6)

Power Supply

Cooling Fan

External Interface

Dimensions (mm)

Weight

Support OS

Power Consumption

1[1]

(3.5”backup device is supported.)

6[6]

64bit/100MHz PCI-X x3

64bit/66MHz PCI-X x3

Option 1

: 64bit/133MHz PCI-X x3

Option 2

: PCI EXPRESSTM (x4) x2

64bit/133MHz PCI-X x1

Option 3

: 64bit/33MHz PCI(5V) x3

Expansion Slots

Graphics

Standard: 1, Not redundant

Option : Up to 2, redundant, hot-swap

Standard: Not redundant

Option : Redundant, hot-swap

Display x1, Keyboard/ Mouse x1

USB2.0 x4, 1000BASE-T x2, SCSI x1

Serial x2

483W x 887D x 88H

(including front bezel and objects on the chassis)

21kg (standard), 30kg (max)

Windows

2000 Server/Advanced Server

Windows ServerTM 2003,

Standard Edition / Enterprise Edition

Red Hat Linux

Device Bays [Free]

Disk Drive Bays [Free]

ATI RADEON 7000 (16MB)

610VA/600W

Operate at 66MHz if all three slots are used.

Replace standard Riser Card with optional Riser Card [N8116-02].

Replace standard Riser Card with optional Riser Card [N8116-03].

Replace standard Riser Card with optional Riser Card [N8116-04].

Use a Y-cable provided with the system.

Windows Server 2003 x64 Edition is to be supported when available.

•

Microsoft, Windows and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

•

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

•

Linux is a trademark of Linus Torvalds.

•

Red Hat is a registered trademark of Red Hat, Inc. in the U.S.

•

All other products, brands, or trade names used in this document are trademarks or registered trademarks of their respective holders.

•

Specifications are subject to change without notice.

Cat.No. E05BS7
