New Pos Technology NEW 8210 Bedienungsanleitung

Contents Checklist

1 NEW8210 EFT-POS

2 AC Power Supply

3 AC Power Cable

4 Li-ion Battery

5 Thermal paper roll

6 Product Manual

7 Telephone Cable

8 Ethernet Cable

9 Stylus cable

The following items should be found inside the box:

For you safety

Use only approved power supply for NEW8210, using other power supply may

damage the device.

How to use rechargeable Li-ion battery properly.

Use only approved rechargeable battery.

Do not dispose of battery in fire or water.

Do not expose battery to temperature above 60℃, Store it in the environment

between -20 ℃ and 60 ℃.

Charge with a charger designated for the device.

Keep the contact surface of battery away from metal to avoid battery short.

Recycle or dispose of expired battery properly complying with local environment

requirement.

Do not use ethanol and other corrosive liquid to clear the device.

NEW POS Technology limited

NEW8210

Product manual

1PCS

(Optional)

1PCS (Optional)

1PCS

NEW 8210

Mobile payment terminal

PRODUCT MANUAL

NEW POS TECHNOLOGY LIMITED

USB Port

Interface Figure

Parts function description

Paper holder lid: Holding thermal paper roll ( Φ38X57mm)

Handle:

LCD display:

Antenna inductive zone:

Key pad:

User smart card slot:

Magnetic stripe card reader :

Rubber pad:

Tag label:

Barcode Label:

Band Label:

Back cover:

Power port:

LED indicator:

RS-232 port:

LAN/PSTN port:

USB Port:

NEW8210

Product manual

LED Indicator

NEW POS Technology limited

Pull handle to open the paper holder lid

2.8 inch and 320*240 TFT LCD .Optional signature capture function.

The zone for tapping contactless card

10 alphanumeric keys,8 functional keys,1 power switch key.

Supporting EMV card with contact surface facing up.

ISO7812,1/2 Tracks or 2/3 Tracks or 1/2/3 Tracks, bi-directional swiping with

the magnetic stripe facing LCD .

Four pads, anti-vibration/non-slip.

Showing model name、rated device parameter.

Indicating device serial number.

Indicating the frequency of communication module.

Remove the cover to install battery or SIM/UIM/SAM card.

It only connects approved power supply for NEW8210.

It indicates the power status of device.

1 RS-232(up to 2), output: 5VDC, 500mA .

An optional communication between LAN Port and PSTN Port.

USB communication interface.

NEW8210

Product manual

RS-232 Port

LAN/PSTN

Port

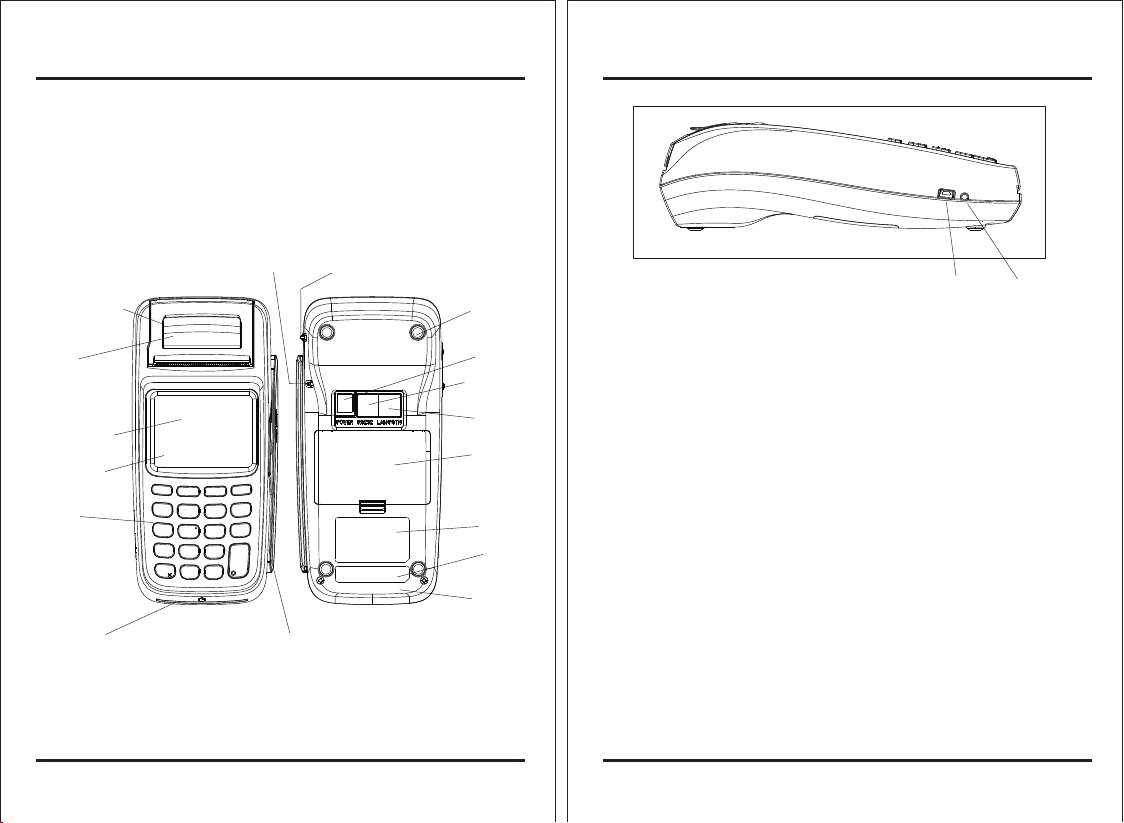

Top view Back view

Paper holder Lid

LCD display

Keypad

User smart card slot Magnetic stripe card

Rubber pad

Tag Label

Back cover

NEW8210 Figure

Product Introduction

NEW8210 is a powerful PCI approval,EMV approval payment terminal , with

extraordinary performance in data intensive、multiple applications and EMV transactions.

The terminal supports GPRS、CDMA 、Wi-Fi or GPRS &Wi-Fi and remote terminal program

download. It allows merchants to accept payment anywhere.

mobile

Power Port

NEW POS Technology limited

Top Antenna

inductive zone

Band Label

Barcode

Label

handle

Stylus pen Lanyard hole

3. Install the SIM/UIM card

* Remove the back cover of device;

* Insert the card into the SIM/UIM card slot .

4. Remove the SIM/UIM card

* Remove the back cover of device;

* Draw the SIM/UIM card out the slot.

Note

Make sure that the device is in power off status when installing or removing SIM/UIM

card.

If the battery is in the holder, Remove the battery in advance.

NEW8210

Product manual

NEW POS Technology limited

5. Switch the device on

* Press the power key" ", and the LCD backlight is switched on. Hold the power key for

more than two seconds, then the buzzer of device beeps to show device boots

successfully and LCD shows the corresponding program launch menu;

* The device can be powered by battery or AC power supply.

"SYSTEM HALT " and the device is switched off successfully.

Switch the device off

Press the power key" " , and hold the key for more than two seconds. LCD prompts with

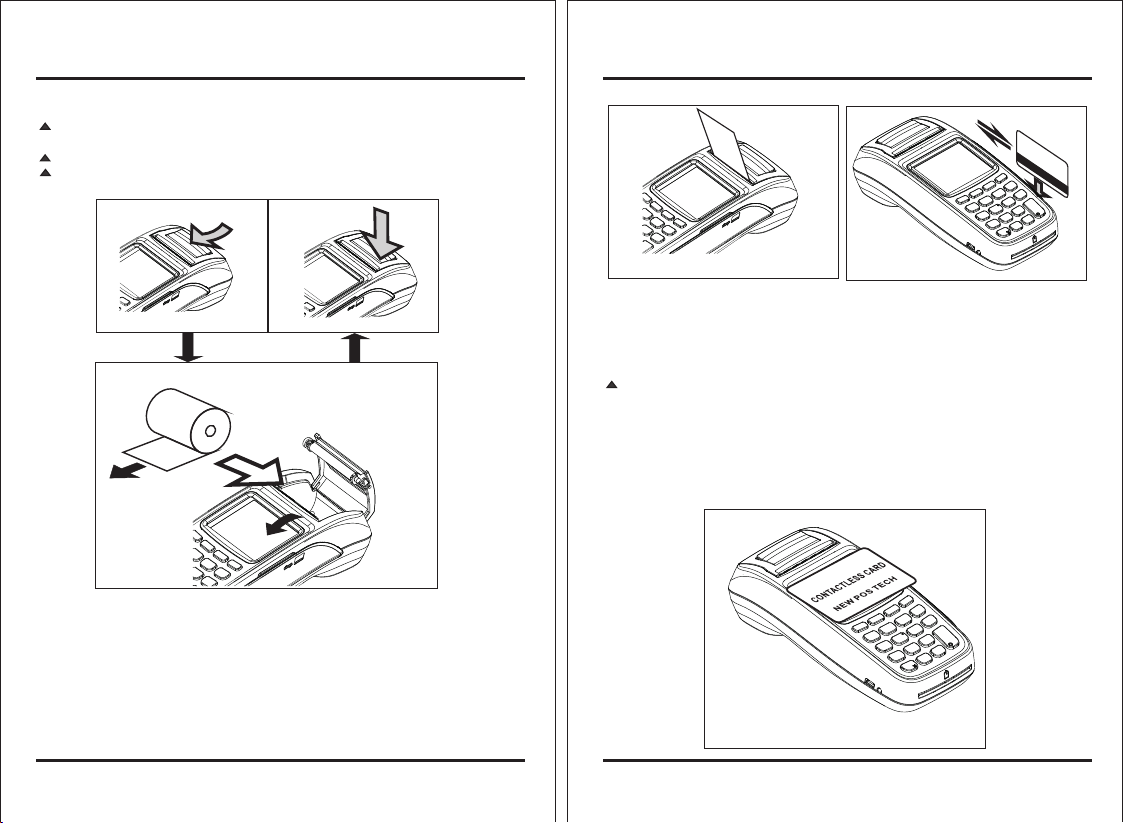

7. Loading thermal Paper roll

* Put the designated position on the paper holder lid and open the lid up;

* Load the paper roll into the paper holder and extend the paper 2-3 cm above paper cutter ;

* Close the paper holder lid;

* Please take out the paper shaft and replace the print paper timely when it runs out.

Install

card figure

SIM/UIM

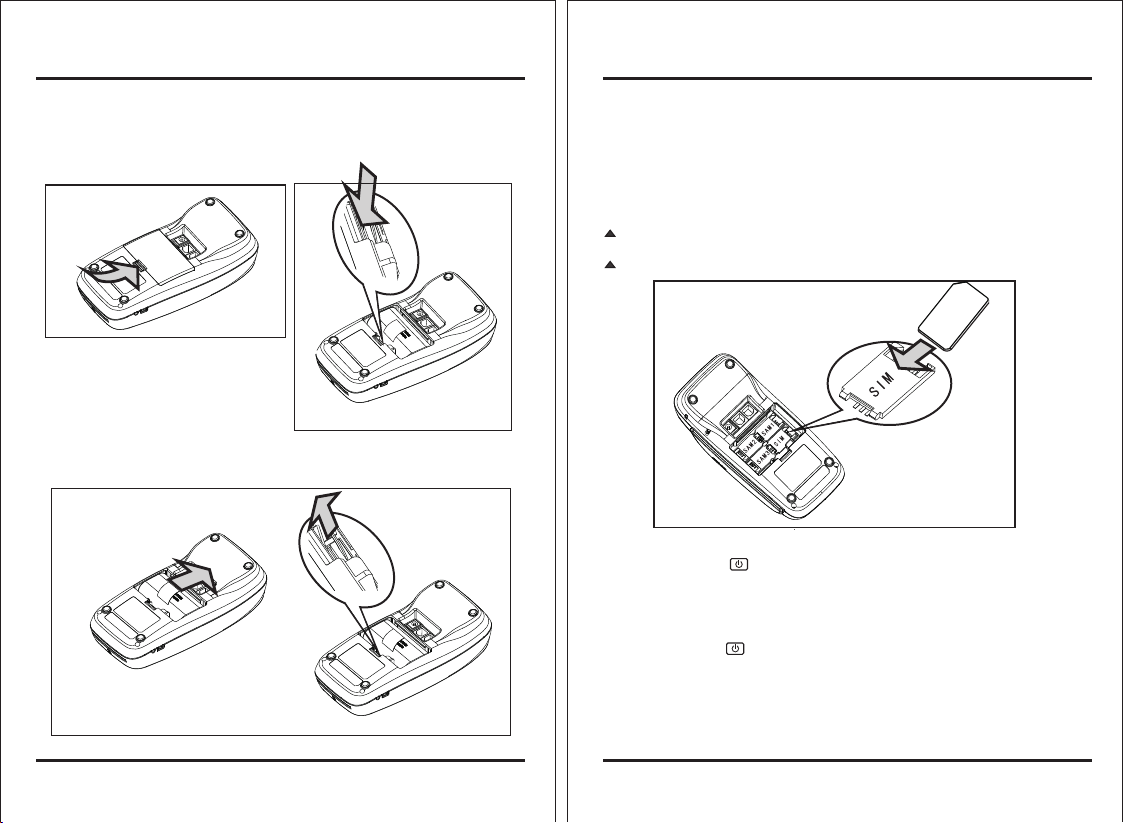

1. Install the Battery

* Remove the back cover of the device;

* Connect the cable of the battery and put the battery to its place ;

* Slide the back cover into its place.

Open the back

cover figure

2. Remove the Battery

* Remove the back cover of the device;

* Hold the battery brace and lift the battery gently;

* Remove the battery.

Open the back cover ,

NEW8210

Product manual

NEW POS Technology limited

Remove the battery

figure

Install the battery

figure

Plug cable

figure

Installation Guidance

How to tear off paper How to swipe card

9. Swiping a Magnetic Stripe Card

* During card swiping, the magnetic stripe should be downward and face the LCD of terminal,

swipe it through the slot located on the right side of the terminal bidirectionally;

* Swipe the card at steady speed.

Note

During swiping, keep the lower edge of the magnetic stripe card horizontally with the card

guiding surface. Or it maybe lead to swiping card error.

NEW8210

Product manual

10. Contactless card (optional)

* For top tapping card,contactless card antenna inductive zone is located on the space on the

LCD. Tap the contactless card above the LCD horizontally for some seconds. The buzzer

will prompt the cardholder the completion of transaction.

NEW POS Technology limited

Top tapping contactless card

8. Tearing off the paper

* Hold the thermal paper edge, keep the paper at 45 degree angle with the LCD surface,

tear off the paper from left to right with steady speed.

Note

During loading paper roll, keep the thermal sensitive film of paper (external side of paper

roll) facing the thermal head of printer to ensure normal printing.

After long term printing, keep away from thermal printer head for high temperature.

Keep away from the thermal printer paper cutter for the sharp edge.

NEW8210

Product manual

NEW POS Technology limited

Loading thermal

paper roll figure

Environment

Working Environment:

Temperature: 0 ~ 50 ( 32 ~ 122 ). Humidity: 10% ~ 90%

(non-condense).

Storage Environment:

Temperature: -20 ~ 60 ( -4 ~140 ). Humidity: 5% ~ 95%

(non-condense).

℃ ℃ ℉ ℉

Technical Specifications

NEW8210

Product manual

NEW POS Technology limited

Processor:

Memory:

Display：

Keypad：

Magnetic Card Reader:

IC Card Reader:

PSAM Slots:

Contactless Card Reader:

(Optional)

Internal PIN PAD:

Internal wireless(optional):

Internal Modem:

(optional)

Other module(Optional):

Remote download：

Peripheral Ports：

Printer:

Language：

Dimensions:

Weight:

Power Supply:

Battery:

Optional:

Identification:

32 bit secure ARM11 CPU, 400MHz.

128MB FLASH, 64MB SDRAM.

2.8 inch , 320*240 TFT LCD. Optional signature capture function.

10 alphanumeric keys, 8 functional keys, 1 power switch key.

Compliant with ISO78I1, ISO7812; Track1/2/3, bi-directional

swipe, supports smart error correcting.

1 user card(EMV4.3), supports SLE4442/SLE4428 memory card.

2(optional 3)PSAM slots, compliant with ISO7816. Supports PPS

protocol.

Supports Mifare classic, Mifare Ultralight, Mifare DESFire,ISO

14443A&B, SONY Felica, Compatible with the Top tapping.

Supports MK/SK, Fixed, DUKPT, Supports dual and triple length

TDES. Supports RSA,AES.

GPRS/CDMA/Wi-Fi, GPRS/CDMA&Wi-Fi/3G, supports SSLv2/3

TLSv1.

Synchronous: V.22bis, V.29, Supports 1200/2400/9600bps.

Asynchronous: V.92, up to 56kbps.

GPS, 1D or 2D scanner.

Supports NewTMS remote download.

1 RS-232(up to 2), output:5VDC, 500mA, 1 mini USB OTG.

Easy-load stlye.

Supports Chinese(GB2312/GB18030), English, French, German,

Latin, Russian, Aranbic, Vietname etc.

190mm*89.5mm*56mm(L*W*H).

495g.

Input: 100~240VAC, 50Hz/60Hz. Output: 9.5VDC, 2.5A.

2600mAh, 7.4V, more than 72 hours standby time, supports 400

transactions.

Leather case, backup battery, car jack charger, dock charger.

CCC, CE, RoHS, PCI PTS5.X, EMV4.3 level 1&2, PBOC3.0.

Terminal characteristics

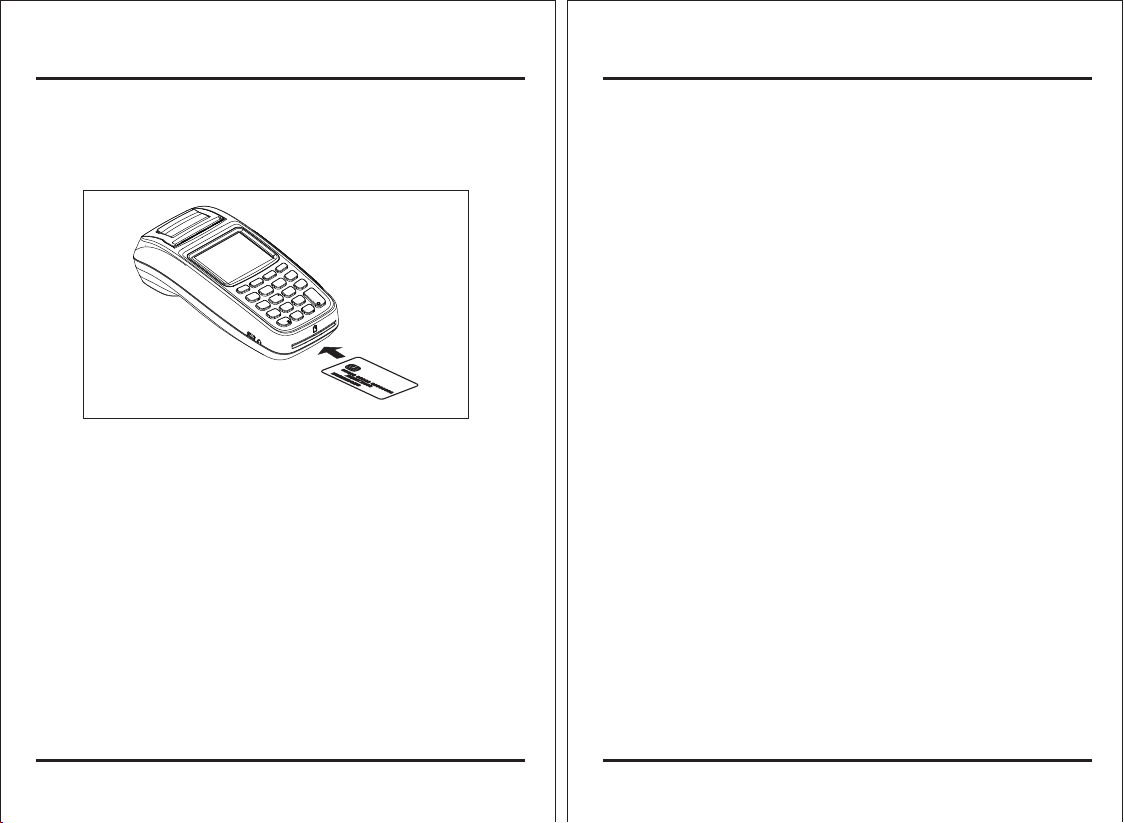

11. Insert user smart card

* Insert smart card with the gold-colored contact surface facing up into the card slot.

View LCD Icc card icon to determine if IC card is inserted into its place. If the IC card icon is

switched on, it indicates OK. While the icon is off, please confirm whether gold-colored

contact surface of card is facing up and IC card is inserted into its place.

12. Battery Charge

* Remove the back cover of the device . Insert the rechargeable battery.Slide the back cover

into its place.(If the rechargeable battery is in the device, the step is unnecessary.)

* Connect the power supply to the power port on the side of the device. And connect the AC

plug of power supply to the wall socket. LED indicator on the side of device shows red

indicating that battery is in charging status. If the LED indicator shows green, it indicates

battery charge completes.

Note

If the device is in powered-off state, Only LED indicator on the side of device shows battery

charge status. While the device is in powered-on state, Battery icon on the LCD display also

indicates the battery charge status.

NEW8210

NEW POS Technology limited

Insert user smart card

Product manual

13. How to connect the stylus to the terminal

* Take out the cable from the bag with specification,and connect the stylus and terminal with

the cable to prevent the loss of stylus.

NEW8210

Product manual

NEW POS Technology limited

NEW POS TECHNOLOGY LIMITED

Address: 14/A,Financial Technology Building,Science & Technology

Park,No.11,Keyuan Rd,Nanshan District,ShenZhen,China

Tel: +86-4006-520589 Fax: +86-755-82790632

E-mail: Sales@newpostech.com Postalcode: 518057

WebSite: www.newpostech.com

1. Warranty valid for 12 months after purchasing date.

2. This warranty will be voided if the product is damaged due to natural disaster, fire,

unauthorized alteration or improper usage.

3. Free Warranty covers original parts only.

4. Warranty service will not be provided if no the dealer's stamp or this card is missing.

Note:

NEW8210

Product manual

NEW POS Technology limited reserves the right to substitute, add or alter any item in the

manual. NEW POS Technology limited tries best to avoid literal error and does not accept any

responsibility for it.

NEW POS Technology limited undertakes no responsibility for any loss and harms that result

frommisuse the device not complying with the instruction of product manual.

All rights reserve.

Special statement

Security guidance during PIN-entry

NEW POS Technology limited

NEW8210 belongs to attended device.

Install the device on an adjustable stand that allows consumers to swivel the terminal side

ways and/or tilt it forwards/backwards to a position that makes visual observation of the

PIN-entry process difficult.

Place the in-store security cameras where PIN-entry keypad is not visible.

Card holder had better use his/her body and hands to prevent visual observation of PIN-entry

process.

Do not outlet PIN to others or write the password on card.

Inhaltsverzeichnis

Andere New Pos Technology Zahlungsterminal Handbücher

New Pos Technology

New Pos Technology NEW7110 EFT-POS Bedienungsanleitung

Beliebte Zahlungsterminal Handbücher anderer Marken

PAX

PAX D180SRF Bedienungsanleitung

LinkPoint

LinkPoint AIO Bedienungsanleitung

Moneris

Moneris hispeed 6200 Bedienungsanleitung

Moneris

Moneris iWL220 Bedienungsanleitung

Ingenico

Ingenico iUC280 Bedienungsanleitung

Ingenico

Ingenico Tetra Move/5000 Bedienungsanleitung

Ingenico

Ingenico iWL250B Bedienungsanleitung

Optimum

Optimum M4230 Bedienungsanleitung

Triton

Triton RL5000 Bedienungsanleitung

Ingenico group

Ingenico group Lane/8000 Bedienungsanleitung

Gilbarco

Gilbarco FlexPay IV CRIND Installations- und Betriebshandbuch

Infinite Peripherals

Infinite Peripherals Infinea Tab Lite Bedienungsanleitung

PAX

PAX S920 Bedienungsanleitung

Ingenico

Ingenico iCT220, iCT250 Bedienungsanleitung

dejavoo

dejavoo Z Series Bedienungsanleitung

VeriFone

VeriFone VX 520 Series Bedienungsanleitung

Optomany

Optomany axept S900 Bedienungsanleitung

Skyzer

Skyzer iWL252 BLUETOOTH Bedienungsanleitung
