USER’S MANUAL

We congratulate you on your purchase of V-MIX 2000.

Before you proced using this product it should be necessary to read

carefully the following user’s manual to install it correctly and to get the

best of its potentialities.

FRONT PANEL

CHASE 1 CHASE 2 CHASE 3 CHASE 4

123456789101112

ext

12/24 channels Versatile DMX light desk12/24 channels Versatile DMX light desk

MIN

CHASE

MASTER

PAGE

SOLO

FLASH

STEP

0.4

0.8

234

CHASE

SPEED

MIC

MUSIC

16 32

FADE

TIME

SEC

XFADER

CHASE

EDIT

STEP

ENGTH

SCENE

MONITOR

PAGE

COPY

MAN

GRAB

OUTPUT

15 16

19 20

17 18

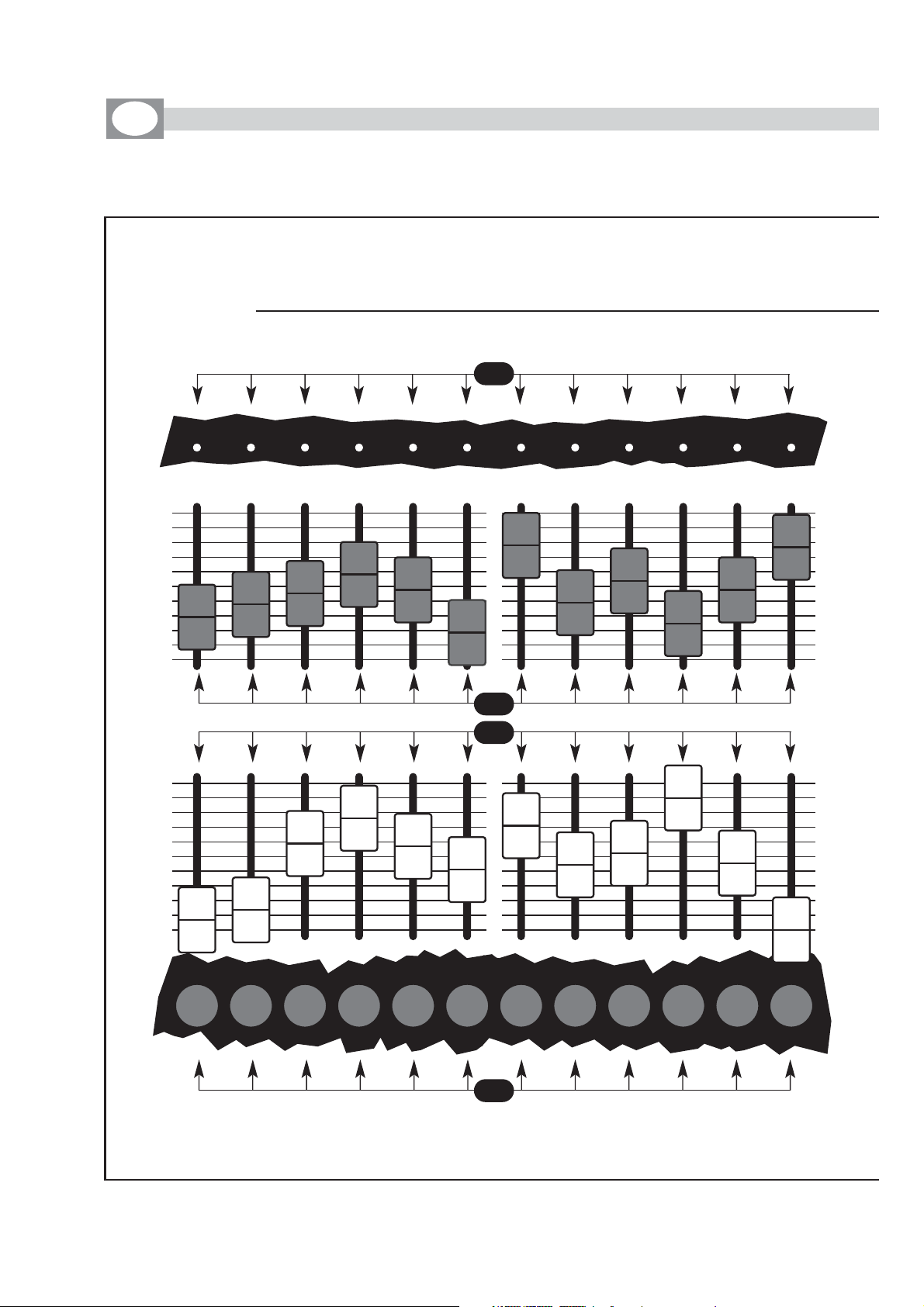

1OUTPUTS MONITOR

212 UP FADERS “A”

312 DOWN FADERS “B”

412 FLASH KEYS

5FADE TIME KNOB

6SPEED KNOB

7MUSIC/DIRECT KEY

8CHASE/EDIT KEY

9STEP/LENGTH KEY

SCENE MODE FLASH/SOLO/XFADER KEY

11 SCENE/MONITOR KEY

12 MAN KEY

13 PAGE/COPY KEY

14 GRAB KEY

15 PRESET A FADER

16 PRESET B FADER

17 CHASE FADER

18 MASTER FADER

19 PRESET A KEY

20 PRESET B KEY

Sets of the equipment

1.1

Unpacking of the equipment

1.2

Acessories issued with the equipment and relative documentation

Description of the rear panel and installation

2.1

Description of the rear panel

2.2

DMX 512 output connection

2.3

Input connection for power supply

2.4

Connection of the AC adapter to the electric system

Use of the equipment - modes of operation

3.1 24 Channels

SINGLE PRESET ( WIDE )

Operation

3.2 12 Channels

DOUBLE PRESET

Operation

3.3

MAN

Operation

3.4

“ GO ”

Function

4.1

GRAB

Function

4.2

4.3

FLASH

Operation

4.4

SOLO

Operation

4.5

XFADER

Operation

4.6 Modification of the

4.7

DIRECT

Function

4.8

PAGE

Function

4.9

PAGE COPY

Function

5.1

CHASE

Section

5.2

CHASE

Function

5.3

LENGTH

Function

5.4

EDIT CHASE

Function

5.5

MUSIC

Function

6.1

Example of working

6.2

Copy of the registers

USER’S MANUAL

Verify the contens of the packing.

If one of the following parts of the packing is missing or damaged, please,

contact your dealer immediately.

A) User’s manual

B) VM2K Ballast

Open the box; take the AC adapter and the documentation out.

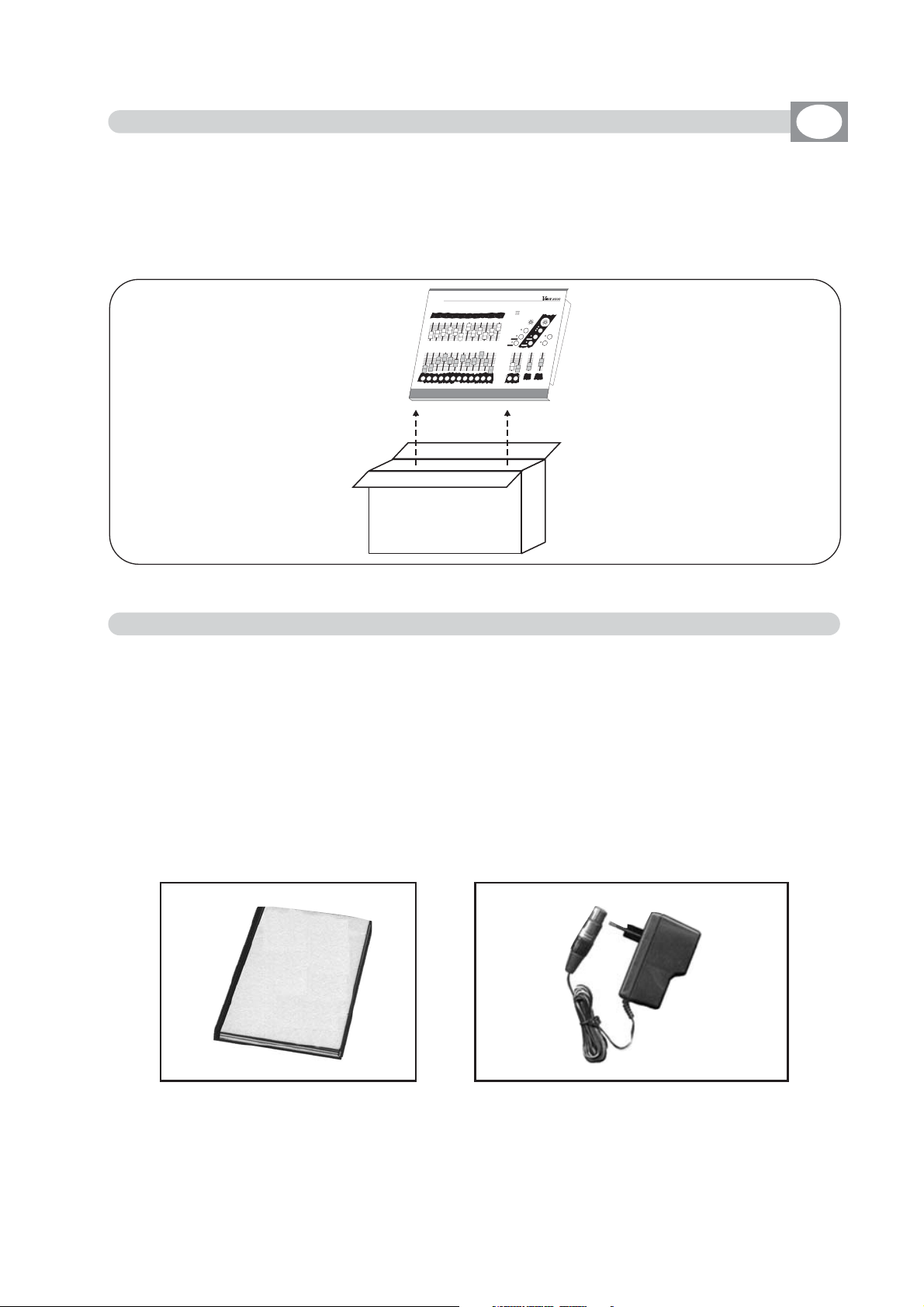

Take the equipment out of the box as shown in the picture below.

1.2 Acessories issued with the equipment and relative documentation

MIN

CHASE

PR-A PR-B

MASTER

PAGE

SOLO

FLASH

COPY

STEP

0.4

0.8

234

CHASE

SPEED

MIC

MUSIC

SCENE

MEM

MAN

WIDE

CHASE

LENGTH

STEP

MEM

16 32

FADE

TIME

SEC

XFADER

123456789101112

ext

12/24 channels Versatile DMX light desk12/24 channels Versatile DMX light desk

1.1 Unpacking of the equipment

DMX 512

OUTPUT

1 = COMMON

2 =DATA

3 =DATA +

4 = n.c.

5 = n.c.

AUDIO IN

(0 dB)

POWER INPUT

12 VDC - 6 W

+VDC

COMMON

ON OFF

POWER

PUSH

4Standard DMX 512 signal OUTPUT with a 5-pin cannon connector.

30 dB audio signal INPUT with a mono/stereo jack connector.

212 Vdc power INPUT with a 3-pin cannon connector.

1Power key

Make sure you are using a shielded twisted cables suitable for the tran-

smission of the DMX 512 signal with connectors of good quality and

connection as shown on the side of the connector.

Plug the 5-pin cannon connector coming from the dimmer completly in the

DMX 512 output

Use the “push” safety hook to disconnect it and than extract it gently.

ATTENTION: the shielded part of the cable must never be connected to

the ground of the electrical system as this could cause faults during the

working of the controller.

1 2 3 4

2.1 Description of the rear panel and installation

2.2 DMX 512 OUTPUT CONNECTION

THE DMX CHANNEL OUT ARE:

N° 1/12 DOUBLE PRESET MODE

N° 1/24 SINGLE PRESET MODE (WIDE)

2.4 Connection of the AC adapter to the electric system

Plug the 3-pin cannon connector of the AC adapter completly in the power

input

Use the “push” safety hook to disconnect it and extract it gently.

ATTENTION: do not use AC adapter different from the one supplied, it

could cause serious damages at the internal circuitation.

Do not connect the 3-pin cannon connector in other appliances, it has

been studied to be used only in this controller.

MAKE SURE THAT VOLTAGE AND POWER FREQUENCY CORRESPOND

TO WHAT IS REPORTED ON THE AC ADAPTER PLATE.

The supplied AC adapter has a plug, therefore you should only plug it in the

socket.

Press

Power key

to verify the correct installation.

If pressing the

Power key

no one led light up, please check if there is ten-

sion in the electric socket or check the connection between AC adapter-

controller and AC adapter-electric socket.

If the problem persist, please consult your dealer.

2.3 Input connection for power supply

-Turn off the V-MIX through

PPoowweerr

key placed on the rear.

-Hold pressed the MMAANNkey (Fig.1) and

Turn on the V-MIX through

PPoowweerr

key placed on the rear aatttthheessaammeettiimmee..

NNoowwtthheeMMiixxeerriissrreeaaddyyttoowwoorrkkiinn2244cchhaannnneellss

SSIINNGGLLEEPPRREESSEETTooppeerraattiioonn..

This procedure allows to go in 24 channels single preset operation.

3.1 Activation of 24 Channel single preset mode (WIDE)

MAN

LENGTH

Fig. 1

-Turn off the V-MIX through

PPoowweerr

key placed on the rear.

-Hold pressed the SSCCEENNEEkey (Fig.2) and

Turn on the V-MIX

through

PPoowweerr

key placed on the rear aatttthheessaammeettiimmee..

NNoowwtthheeMMiixxeerriissrreeaaddyyttoowwoorrkkiinn1122cchhaannnneellss

DDOOUUBBLLEEPPRREESSEETTooppeerraattiioonn..

This procedure allows to go in 12 channels double preset operation.

3.2 Activation of 12 Channel double preset

SCENE

LENGTH

Fig. 2

INITIAL INFORMATION

The Vmix factory default mode is 1122cchhaannnneellssDDOOUUBBLLEEPPRREESSEETToperation..
