INSTALLER MANUAL

Supply air module

SAM 42

LEK

41 Important information

4Safety information

5General

72 Delivery and handling

7Transport

7Assembly

7Supplied components

7Compatible products

8Removing the covers

8Mounting

93 The design of the supply air module

10Pipe connections

10HVAC components

10Sensors etc.

10Electrical components

10Ventilation

10Miscellaneous

114 Pipe and ventilation connections

11General pipe connections

12Heating medium side

13Installation alternative

13General ventilation connection

13Ventilation flow

14Adjusting ventilation

14Dimension and ventilation connections

155 Electrical connections

15Supply

15Connecting communication

176 Commissioning and adjusting

17Preparations

17Filling and venting

18Start-up and inspection

197 Program settings

19Menu system

208 Disturbances in comfort

219 Accessories

2210 Technical data

22Dimensions and setting-out coordinates

23Technical specifications

24Electrical circuit diagram

26Contact information

3Table of ContentsSAM 42

Table of Contents

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

This is an original manual. It may not be

translated without the approval of NIBE.

Rights to make any design or technical

modifications are reserved.

©NIBE 2021.

System pres-

sure

Defined by

main

product

MPaMax. system

pressure, heat-

ing medium

Defined by

main

product

l/sMax flow

35°CMax. permitted

ambient temper-

ature

If the supply cable is damaged, only NIBE,

its service representative or similar author-

ised person may replace it to prevent any

danger and damage.

SYMBOLS

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should consider when installing

or servicing the installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

MARKING

The CE mark is obligatory for most products

sold in the EU, regardless of where they are

made.

Classification of enclosure of electrical equip-

ment.

Danger to person or machine.

Read the User Manual.

SAM 42Chapter 1 | Important information4

1 Important information

General

SOFTWARE VERSION

The heat pump must have software version 8432R2

(F370) or later. Visit www.nibeuplink.com and click on

the "Software" tab to download the latest software for

your installation or use the enclosed USB memory.

SERIAL NUMBER

The serial number can be found at the bottom left inside

the front cover.

LEK

Serial number

LEK

Caution

You need the product's 14 digit serial number

for servicing and support.

RECOVERY

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

When disposing of the product, its constituent

materials and components, e.g. compressors,

fans, circulation pumps and circuit boards, must be dis-

posed of at a special waste station or dealer who

provides this type of service.

To access the separate components, refer to the section

that shows the construction of the product. No special

tools are required for access.

Improper disposal of the product by the user results in

administrative penalties in accordance with current le-

gislation.

5Chapter 1 | Important informationSAM 42

INSPECTION OF THE INSTALLATION

In addition, fill in the page for the installation data in the User Manual.

Current regulations require the supply air module to be inspected before it is put into service. The inspection must

be carried out by a suitably qualified person.

DateSigna-

ture

NotesDescription

✔

Ventilation (page 13)

Setting ventilation flow exhaust air

Setting ventilation flow supply air

Heating medium (page 12)

System flushed

Accessories bled

Check against output and pressure

drop diagrams

Connected according to outline dia-

gram

Electricity (page 15)

Supply connected 230 V

Connected communication

SAM 42Chapter 1 | Important information6

Transport

The supply air module must be transported and stored

dry.

Assembly

SAM 42 is mounted free-standing on brackets, alternat-

ively above a VPB 200 (for VPB 300/VPBS 300 installa-

tion is carried out using brackets). Noise from the fan

can be transferred to the brackets.

•Install the brackets to an outside wall, ideally in a room

where noise does not matter, in order to eliminate

noise problems. If this is not possible, avoid placing

it against a wall behind a bedroom or other room

where noise may be a problem.

• Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

• Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

INSTALLATION AREA

Leave a free space of 800 mm in front of the supply air

module. All service on SAM 42 can be carried out from

the front.

800

NOTE

Ensure that there is sufficient space (300 mm)

above the supply air module for installing

ventilation hoses.

Supplied components

LEK

Vent hose

1 x

Support bushes

4 x

Compatible products

• F370

• F750

7Chapter 2 | Delivery and handlingSAM 42

2 Delivery and handling

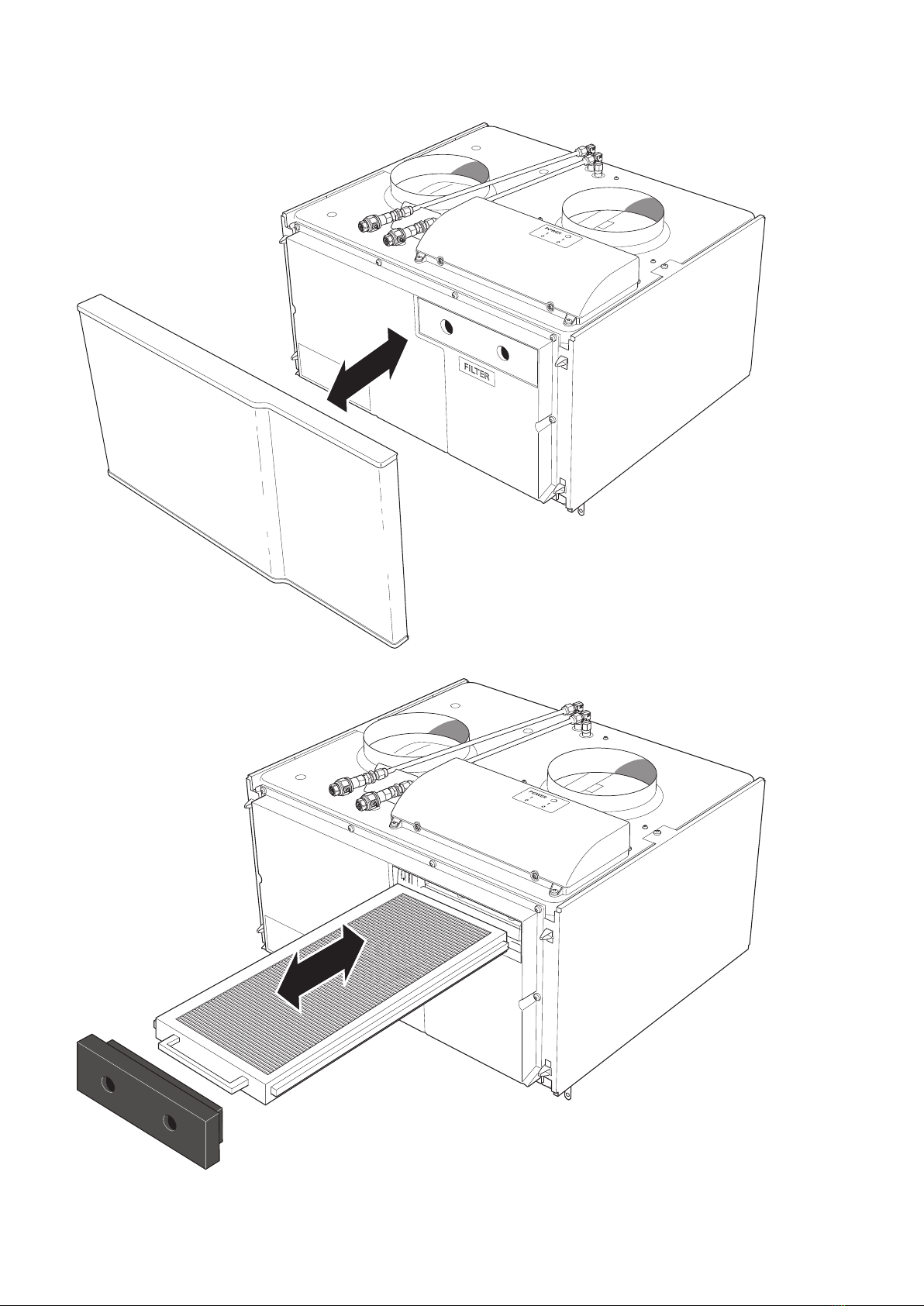

Removing the covers

FRONT COVER

1. Remove the service cover by pulling it straight out.

LEK

Mounting

INSTALLING ON BRACKETS

1. Install SAM 42 on brackets (accessory BAU 40) as

illustrated below.

2. Connect heating medium pipes and ventilation ducts.

LEK

3 - 5 mm

INSTALLING ON WATER HEATER

VPB 200

1. Remove the service cover from VPB 200.

2. Remove the top panel from VPB 200 (installed with

6 screws).

3. Install DEW 40 according to the instructions in the

installation manual. The pipes in VPB 200 can be

adjusted/replaced in such a way that SAM 42 can

easily be installed above VPB 200.

4. Install SAM 42 from the top and slide into position.

LEK

5. Secure SAM 42 with the 2 screws supplied.

LEK

6. Connect heating medium and ventilation pipes.

7. Reinstall the service cover on VPB 200.

SAM 42Chapter 2 | Delivery and handling8

LEK

EP13 XL37 XL36

QN40

GQ3

Svenskt produktblad

GQ3EP13 XL36

XL37

BT69 BT68

QN40

LEK

XL33 XL34QM20

PF1 HQ11

Svenskt produktblad

XL33 BT23

HQ11

XL34

AA100

QM20.2

PF1

BT22

QM20.1

W101

W102

SF1

AA5

AA5-S2

9Chapter 3 | The design of the supply air moduleSAM 42

3 The design of the supply air

module

Pipe connections

Ventilation connection supply airXL33

Ventilation connection outdoor airXL34

Connection, heating medium inXL36

Connection, heating medium outXL37

HVAC components

Supply air batteryEP13

Venting heating mediumQM20.1

Venting heating mediumQM20.2

Control valve heating mediumQN40

Sensors etc.

Temperature sensor, supply airBT22

Temperature sensor, outdoor airBT23

Temperature sensor, flowBT68

Temperature sensor, returnBT69

Electrical components

Accessory cardAA5

Dip switchAA5-S2

Joint board1

AA100

Switch, position 0 - 1, main switchSF1

Cord with connection plugW101

Communication cableW102

Ventilation

Supply air fanGQ3

Air filter supply airHQ11

Miscellaneous

Rating platePF1

Designations according to standard EN 81346-2.

SAM 42Chapter 3 | The design of the supply air module10
