Installer manual

LEK

NIBE™ F1245PC

Ground source heat pump

IHB GB 1602-1

331528

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 40.

How to scroll through menus and make different settings is described on page 42.

Set the indoor climate

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode

in the main menu.

Increase hot water volume

To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and

then press the OK button twice.

In event of disturbances in comfort

If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to

contact your installer. See page 62 for instructions.

Table of Contents

41 Important information

4Safety information

72 Delivery and handling

7Transport

7Assembly

8Supplied components

8Removing the covers

9Removing parts of the insulation

103 The heat pump design

10General

12Distribution boxes

14Cooling section

164 Pipe connections

16General

17Dimensions and pipe connections

17Brine side

18Heating medium side

18Water heater

18Docking alternatives

215 Electrical connections

21General

23Connections

25Settings

26Optional connections

30Connecting accessories

326 Commissioning and adjusting

32Preparations

32Filling and venting

33Start guide

34Post adjustment and venting

38Setting the cooling/heating curve

407 Control - Introduction

40Display unit

41Menu system

448 Control - Menus

44Menu 1 - INDOOR CLIMATE

44Menu 2 - HOT WATER

44Menu 3 - INFO

45Menu 4 - HEAT PUMP

46Menu 5 - SERVICE

569 Service

56Service actions

6210 Disturbances in comfort

62Info menu

62Manage alarm

62Troubleshooting

6411 Accessories

6612 Technical data

66Dimensions and setting-out coordinates

67Technical specifications

72Energy labelling

80Index

3Table of Contents |NIBE™ F1245PC

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Chil-

dren shall not play with the appliance.

Cleaning and user maintenance shall

not be made by children without super-

vision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2016.

Symbols

NOTE

This symbol indicates danger to machine or

person.

Caution

This symbol indicates important information

about what you should observe when main-

taining your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE marking means that NIBE ensures that the

product meets all regulations that are placed on it

based on relevant EU directives. The CE mark is obligat-

ory for most products sold in the EU, regardless where

they are made.

Serial number

The serial number can be found at the bottom right of

the front cover and in the info menu (menu 3.1).

You can also find the serial number on the type plate

PF1, for location see the section for the Heat pump

design in the installer manual.

Serial number

Caution

Always give the product's serial number (14

digits) when reporting a fault.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current

legislation.

Country specific information

Installer manual

This installer manual must be left with the customer.

NIBE™ F1245PCChapter 1 | Important information4

1 Important information

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Brine (page 17)

System flushed

System vented

Antifreeze

Level/Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Heating medium (page 18)

System flushed

System vented

Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Electricity (page 21)

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermostat

Miscellaneous

5Chapter 1 | Important informationNIBE™ F1245PC

DateSignatureNotesDescription

✔

Guarantee submitted

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at

NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 AltishofenCH

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: inf[email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected] www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: inf[email protected] www.nibe.de

Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: inf[email protected] www.volundvt.dk

NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: inf[email protected] www.nibe.fi

NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR

Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: inf[email protected] www.nibe.fr

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: inf[email protected] www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL

Tel: 0168 477722 Fax: 0168 476998 E-mail: inf[email protected] www.nibenl.nl

ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO

Tel. sentralbord: +47 23 17 05 20 E-mail: [email protected] www.nibeenergysystems.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl www.biawar.com.pl

Tel./fax +7 831 419 57 06 E-mail: [email protected] www.nibe-evan.ru

NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: inf[email protected] www.nibe.se

For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.

NIBE™ F1245PCChapter 1 | Important information6

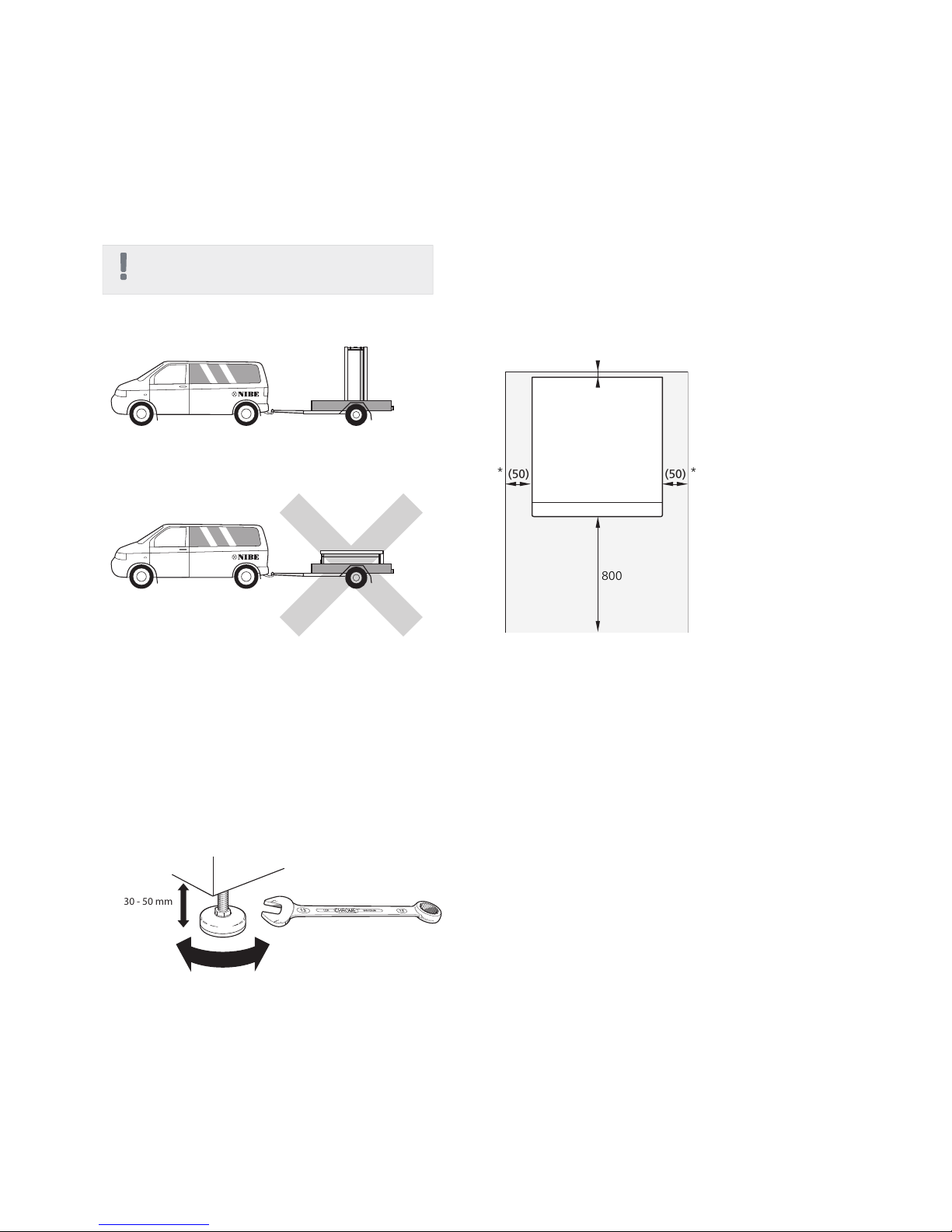

Transport

F1245PC should be transported and stored vertically

in a dry place. When being moved into a building,

F1245PC may be leant back 45 °.

NOTE

The product can be tail heavy!

Remove the outer panels in order to protect them when

moving in confined spaces inside buildings.

-2

HMflow

49(50)°C

Hotwater

51°C

-2

HMflow

49(50)°C

Hotwater

51°C

Pulling out the cooling module

To simplify transport and service, the heat pump can

be separated by pulling the cooling module out from

the cabinet.

See page 58 for instructions about the separation.

Assembly

■Position F1245PC on a firm base that can take the

weight, preferably on a concrete floor or foundation.

Use the product's adjustable feet to obtain a horizont-

al and stable set-up.

30 - 50 mm

15 - 40 mm

■The area where F1245PC is located must be equipped

with floor drainage.

■Install with its back to an outside wall, ideally in a

room where noise does not matter, in order to elim-

inate noise problems. If this is not possible, avoid

placing it against a wall behind a bedroom or other

room where noise may be a problem.

■Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

■Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

Installation area

Leave a free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side, to

remove the side panels. The panels do not need to be

removed during service, all service on F1245PC can be

carried out from the front. Leave space between the

heat pump and the wall behind (and any routing of

supply cables and pipes), to reduce the risk of any

transmission of vibrations.

(50) (50)

800

* A normal installation needs 300 - 400 mm (any side) for connec-

tion equipment, i.e. level vessel, valves and electrical equipment.

7Chapter 2 | Delivery and handlingNIBE™ F1245PC

2 Delivery and handling

Supplied components

LEK

Room sensorCurrent sensorOutside sensor

1 x3 x1 x

(not 1x230V)

LEK

O-ringsSafety valve

(0.3 MPa) (3 bar)

Level vessel

1 x 8 x

1 x

22 28

WILO

LEK

WILO

2,5(22)

H-50 - 2,5

TUV-SV-97-525

WILO

LEK

WILO

2,5(22)

H-50 - 2,5

TUV-SV-97-525

Compression ring couplingsParticle filter

2 x (ø28 x G25)5 - 10 kW

2 x (ø22 x G20)1 x G1

1 x G3/4

LEK

Installation kit for

external brine

pump (only for 10

kW)

External brine

pump (only for

10kW)

1 x

Location

The kit of supplied items is placed in packaging on top

of the heat pump.

Removing the covers

Front cover

LEK

1. Remove the screws from the lower edge of the

front cover.

2. Lift the cover out at the bottom edge and up.

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch outwards and backwards.

4. Assembly takes place in the reverse order.

NIBE™ F1245PCChapter 2 | Delivery and handling8

Removing parts of the

insulation

Parts of the insulation can be removed to facilitate the

installation.

Insulation, top

1. Disconnect the cable from the motor and remove

the motor from the shuttle valve as illustrated.

LEK

2. Grip the handle and pull straight out as illustrated.

LEK

Insulation, immersion heater

NOTE

Electrical installation and service must be car-

ried out under the supervision of a qualified

electrician. Electrical installation and wiring

must be carried out in accordance with the

stipulations in force.

1. Remove the cover for the junction box according

to the description on page 21.

2. Grip the handle and pull the insulation carefully

towards you as illustrated.

LEK

9Chapter 2 | Delivery and handlingNIBE™ F1245PC

General

F1245

BT7

QN10

BT2

EB1

UB1

QM34

XL1

XL6 XL7

XL4 XL3 XL2

FR1

PF1

BT6

UB2

QM32

QM33

PF2

QM22

UB3

AA4

W130

QM31

AA4-XJ3

AA4-XJ4

SF1

View from above

XL5 BT7

View from behind

BF1

NIBE™ F1245PCChapter 3 | The heat pump design10

3 The heat pump design

Andere Handbücher für F1245PC

Inhaltsverzeichnis

Andere Nibe Wärmepumpe Handbücher

Nibe

Nibe NIBE F1X26 Original Betriebsanleitung

Nibe

Nibe F1355 Series Bedienungsanleitung

Nibe

Nibe F2300 Benutzerhandbuch

Nibe

Nibe 1127-2 Benutzerhandbuch

Nibe

Nibe VEDEX 3300 Bedienungsanleitung

Nibe

Nibe F2040-6 Benutzerhandbuch

Nibe

Nibe FIGHTER 2010 Series Bedienungsanleitung

Nibe

Nibe F2040 Series Benutzerhandbuch

Nibe

Nibe F1145 series Bedienungsanleitung

Nibe

Nibe F1226 series Benutzerhandbuch

Nibe

Nibe FIGHTER 410P Bedienungsanleitung

Nibe

Nibe S1155PC Bedienungsanleitung

Nibe

Nibe FIGHTER 1240 Bedienungsanleitung

Nibe

Nibe S2125 Benutzerhandbuch

Nibe

Nibe F470 Benutzerhandbuch

Nibe

Nibe Fighter 200P Bedienungsanleitung

Nibe

Nibe S735 Originalbetriebsanleitung

Nibe

Nibe F2040 Series Bedienungsanleitung

Nibe

Nibe F750 Benutzerhandbuch

Nibe

Nibe HBS 05 Benutzerhandbuch

Nibe

Nibe F1345 Series Benutzerhandbuch

Nibe

Nibe F1145-5 Benutzerhandbuch

Nibe

Nibe F2300 Bedienungsanleitung

Nibe

Nibe F1145 series Benutzerhandbuch

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
