INSTALLER MANUAL

Ground source heat pump

NIBE F1255PC BE

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 36.

How to scroll through menus and make different settings is described on page 38.

Set the indoor climate

INDOOR CLIMATE

HEAT PUMP INFO

HOT WATER

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start

mode in the main menu.

Increase hot water volume

To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet)

and then press the OK button twice.

41 Important information

4Safety information

4Symbols

4Marking

4Serial number

4Recovery

5Environmental information

6Inspection of the installation

72 Delivery and handling

7Transport

7Assembly

8Supplied components

8Removing the covers

9Removing parts of the insulation

103 The heat pump design

10General

12Distribution boxes

13Cooling section

144 Pipe connections

14General

15Dimensions and pipe connections

16Brine side

16Heating medium side

17Water heater

17Docking alternatives

205 Electrical connections

20General

22Connections

24Settings

25Optional connections

29Connecting accessories

306 Commissioning and adjusting

30Preparations

30Filling and venting

31Start guide

32Post adjustment and venting

34Setting the cooling/heating curve

367 Control - Introduction

36Display unit

37Menu system

408 Control - Menus

40Menu 1 - INDOOR CLIMATE

40Menu 2 - HOT WATER

40Menu 3 - INFO

41Menu 4 - HEAT PUMP

42Menu 5 - SERVICE

529 Service

52Service actions

5910 Disturbances in comfort

59Info-menu

59Manage alarm

59Troubleshooting

6211 Accessories

6412 Technical data

64Dimensions and setting-out coordinates

65Technical specifications

68Energy labelling

71Item register

75Contact information

3Table of ContentsNIBE F1255PC BE

Table of Contents

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2018.

Symbols

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should consider when installing

or servicing the installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE mark is obligatory for most products sold in

the EU, regardless of where they are made.

Classification of enclosure of electro-technical equip-

ment.

IP21

Danger to person or machine.

Read the User Manual.

Serial number

The serial number can be found at the bottom right of

the front cover and in the info menu (menu 3.1) and on

the type plate (PF1).

Serial number

Caution

You need the product's ((14 digit) serial number

for servicing and support.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current le-

gislation.

NIBE F1255PC BEChapter 1 | Important information4

1 Important information

Environmental

information

This unit contains a fluorinated greenhouse gas that is

covered by the Kyoto agreement.

F-GAS REGULATION (EU) NO. 517/2014

The equipment contains R407C, a fluorinated green-

house gas with a GWP value (Global Warming Potential)

of 1,774. Do not release R407C into the atmosphere.

5Chapter 1 | Important informationNIBE F1255PC BE

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Brine (page 16)

System flushed

System vented

Antifreeze

Level/Expansion vessel

Filterball (particle filter)

Safety valve

Shut off valves

Circulation pump setting

Heating medium (page 16)

System flushed

System vented

Expansion vessel

Filterball (particle filter)

Safety valve

Shut off valves

Circulation pump setting

Electricity (page 20)

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermostat

NIBE F1255PC BEChapter 1 | Important information6

Transport

F1255PC BE should be transported and stored vertically

in a dry place. When being moved into a building,

F1255PC BE may be leant back 45 °.

Caution

The product can be tail heavy.

Remove the outer panels in order to protect them when

moving in confined spaces inside buildings.

EXTRACTING THE COOLING MODULE

To simplify transport and service, the heat pump can be

separated by pulling the cooling module out from the

cabinet.

See page 54 for instructions about the separation.

Assembly

• Position F1255PC BE on a fixed foundation that can

take the weight of the heat pump. Use the product's

adjustable feet to obtain a horizontal and stable set-

up.

30 - 50 mm

15 - 40 mm

20-55 mm

• Because water comes from F1255PC BE, the area

where the heating pump is located must be equipped

with floor drainage.

•Install with its back to an outside wall, ideally in a room

where noise does not matter, in order to eliminate

noise problems. If this is not possible, avoid placing

it against a wall behind a bedroom or other room

where noise may be a problem.

• Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

• Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

INSTALLATION AREA

Leave a free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side, to

remove the side panels (see image). The panels do not

need to be removed during service. All service on

F1255PC BE can be carried out from the front. Leave

space between the heat pump and the wall behind (and

any routing of supply cables and pipes) to reduce the

risk of any vibration being propagated.

(50) (50)

800

* A normal installation needs 300 – 400 mm (any side) for connection

equipment, i.e. level vessel, valves and electrical equipment.

7Chapter 2 | Delivery and handlingNIBE F1255PC BE

2 Delivery and handling

Supplied components

O-rings

8 x

Room sensor

1 x

Outside sensor

1 x

Filterball

1 x G1

1 x G3/4

Compression ring

couplings

2 x (ø28 x G25)

2 x (ø22 x G20)

IN ITALY AND THE DACH COUNTRIES, THE

FOLLOWING COMPONENTS ARE NOT

ENCLOSED.

LEK

Level vessel

1 x

LEK

Safety valve

0.3 MPa (3 bar)

1 x

LEK

Current sensor

3 x

LOCATION

The kit of supplied items is placed in packaging on top

of the heat pump.

Removing the covers

FRONT COVER

LEK

1. Remove the screws from the lower edge of the

front panel.

2. Lift the panel out at the bottom edge and up.

SIDE COVERS

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch outwards and backwards.

4. Assembly takes place in the reverse order.

NIBE F1255PC BEChapter 2 | Delivery and handling8

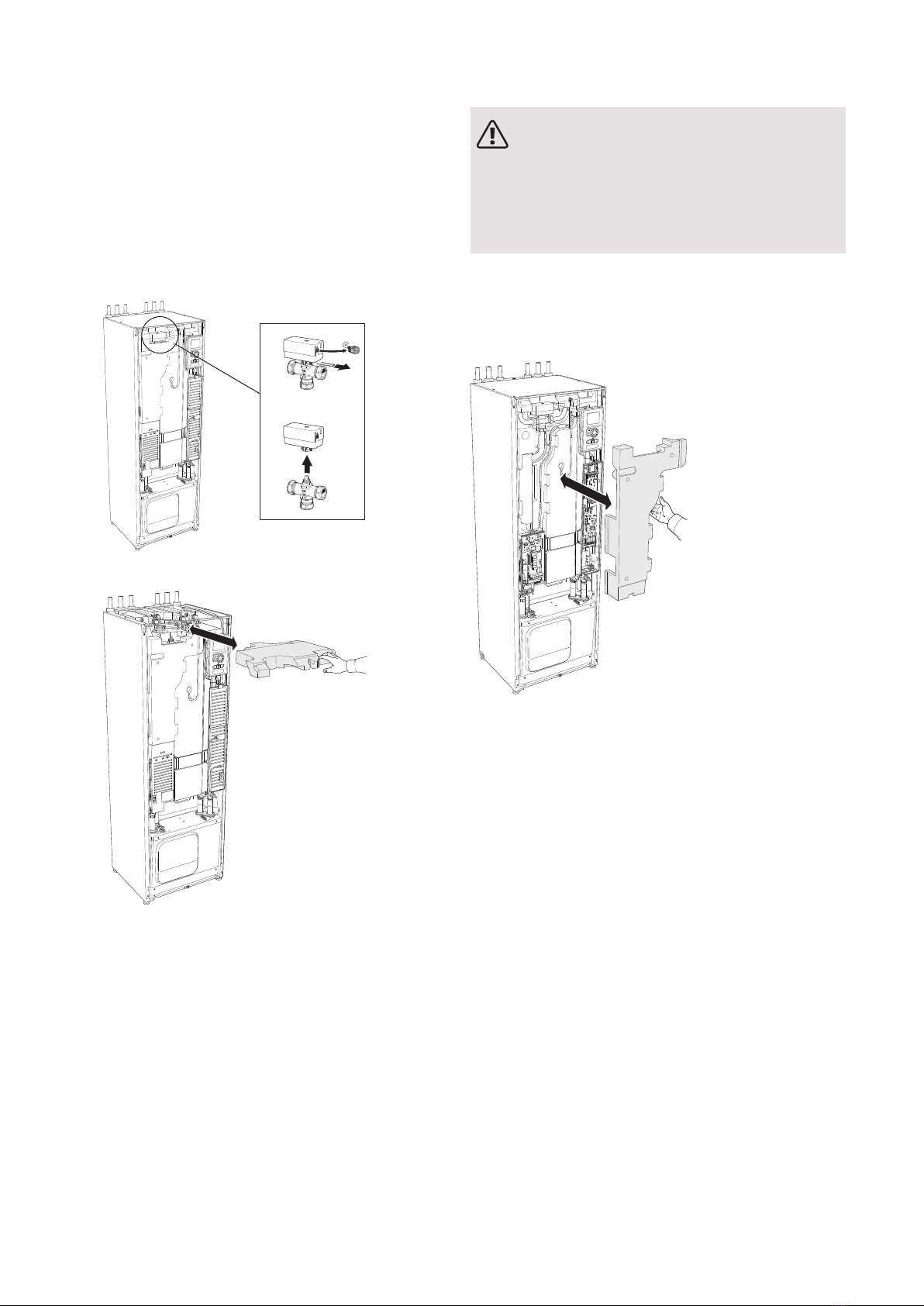

Removing parts of the

insulation

Parts of the insulation can be removed to facilitate the

installation.

INSULATION, TOP

1. Disconnect the cable from the motor and remove

the motor from the shuttle valve as illustrated.

LEK

2. Grip the handle and pull straight out as illustrated.

LEK

INSULATION, IMMERSION HEATER

NOTE

Electrical installation and service must be car-

ried out under the supervision of a qualified

electrician. Electrical installation and wiring

must be carried out in accordance with the

stipulations in force.

1. Remove the cover for the junction box according to

the description on page 20.

2. Grip the handle and pull the insulation carefully to-

wards you as illustrated.

LEK

9Chapter 2 | Delivery and handlingNIBE F1255PC BE

General

F1255

BT7

QN10

BT2

EB1

UB1

QM34

QM22

UB3

AA4

AA4-XJ3

BT6

UB2

QM32

AA4-XJ4

SF1

QM33

XL1

XL6 XL7

XL4 XL3 XL2

FR1

PF1

PF2

QM31

W130

BT7

QN10

BT2

EB1

PF1

UB1

QM34

QM31

BT6

UB2

QM32

QM33

PF2

QM22 UB3

AA4

W130

SF1

AA4-XJ4

AA4-XJ3

XL1

XL6

XL4 XL3

XL7

XL2

FR1

VIEW FROM ABOVE

XL5 BT7

VIEW FROM BEHIND

BF1

NIBE F1255PC BEChapter 3 | The heat pump design10

3 The heat pump design

Andere Handbücher für F1255PC BE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Nibe Wärmepumpe Handbücher

Nibe

Nibe F470 Benutzerhandbuch

Nibe

Nibe ERS 20-250 Benutzerhandbuch

Nibe

Nibe F110 Benutzerhandbuch

Nibe

Nibe F2040-6 Benutzerhandbuch

Nibe

Nibe ClimateMaster Tranquility TCW Series Leitfaden

Nibe

Nibe FIGHTER 640P Bedienungsanleitung

Nibe

Nibe F370 Benutzerhandbuch

Nibe

Nibe F130 Benutzerhandbuch

Nibe

Nibe F1155 Series Bedienungsanleitung

Nibe

Nibe CLIMATEMASTER TRANQUILITY 16 Series Betriebsanleitung

Nibe

Nibe AMS 20 Originalbetriebsanleitung

Nibe

Nibe F1145 series Benutzerhandbuch

Nibe

Nibe VVM S320 Benutzerhandbuch

Nibe

Nibe F370 Bedienungsanleitung

Nibe

Nibe FIGHTER 2010 Series Bedienungsanleitung

Nibe

Nibe F1255 Series Bedienungsanleitung

Nibe

Nibe F2026 Benutzerhandbuch

Nibe

Nibe F370 Bedienungsanleitung

Nibe

Nibe F2040 Series Bedienungsanleitung

Nibe

Nibe DRAZICE TJ 2 EHP 6 kW Technisches Datenblatt

Nibe

Nibe F1355 Series Bedienungsanleitung

Nibe

Nibe F2040-6 Benutzerhandbuch

Nibe

Nibe S2125 Bedienungsanleitung

Nibe

Nibe F2300 Benutzerhandbuch

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
