Nibe VVM 310 Bedienungsanleitung
User manual
APH
NIBE™ VVM 310
Indoor module
UHB GB 1338-3
231176

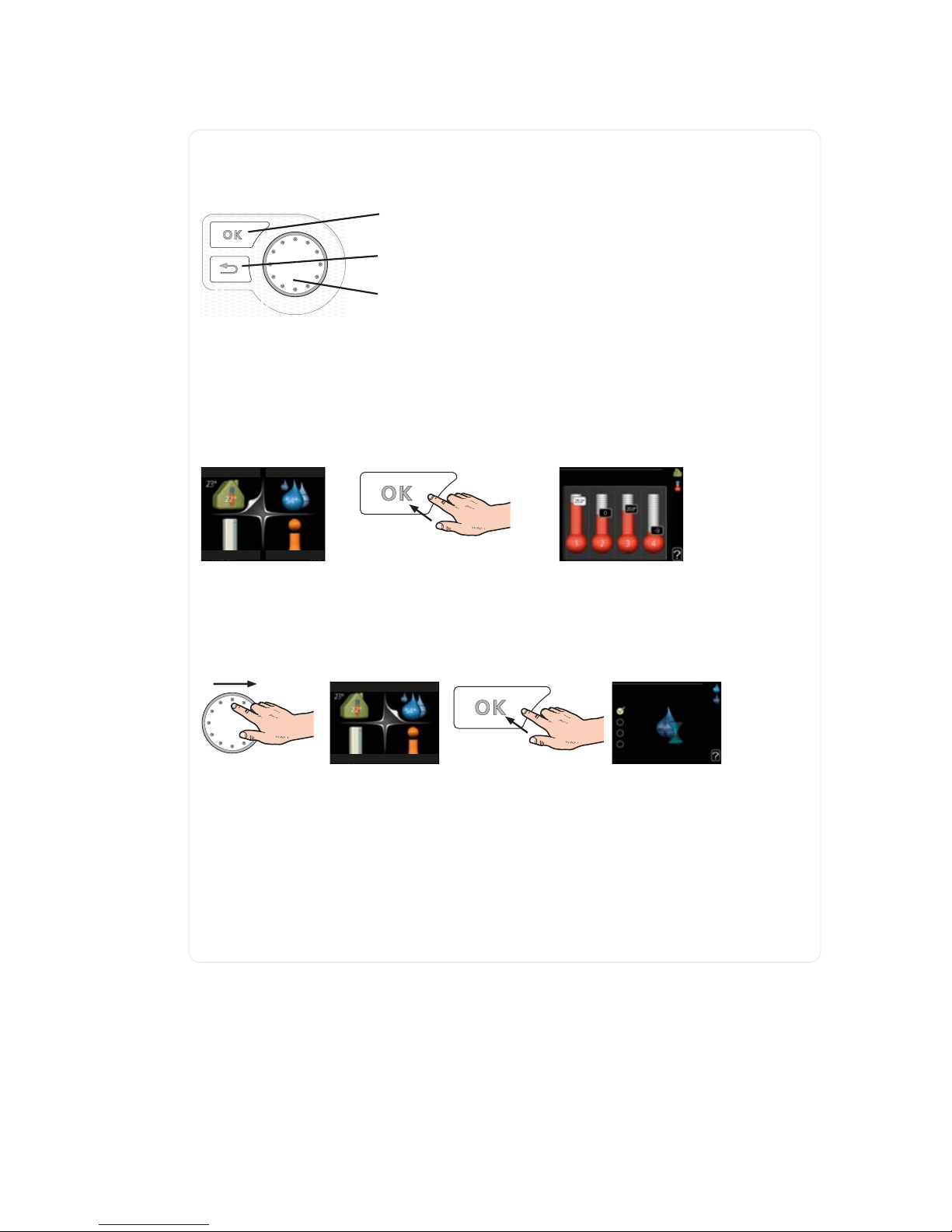

4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page
12.
How to scroll through menus and make different settings is described
on page 16.
6HW WKH LQGRRU FOLPDWH
;
0< ,167$//$7,21
,1'225 &/,0$7( +27 :$7(5
,1)2
The mode for setting the indoor temperature is reached, when in the
start mode in the main menu, by pressing the OK button twice. Read
more about the settings on page 25.
,QFUHDVH KRW ZDWHU YROXPH
;
; ,1'225 &/,0$7( +27 :$7(5
0< ,167$//$7,21 ,1)2
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button
twice. Read more about the settings on page 36.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page
58 for instructions.
Table of Contents
1 Important information 2
Important information 2
2 The heating installation – the heart of the
house 9
Installation function 10
Contact with VVM 310 11
Maintenance of VVM 310 21
3 VVM 310 – at your service 25
Set the indoor climate 25
Set the hot water capacity 36
Get information 40
Adjust the indoor module 43
4 Disturbances in comfort 56
Info-menu 56
Manage alarm 56
Troubleshooting 58
5 Technical data 60
6 Glossary 61
Item register 65
1NIBE™ VVM 310Table of Contents |
1Important information
Important information
Installation data
VVM 310Product
Serial number
Installation date
Installer
Accessories
✔
SetDe-
fault
set-
tings
NameNo.
0temperature (heating
curve offset)
1.1
9heating curve (curve
slope)
1.9.1
20min. flow line temp.1.9.3
Serial number must always be given
Certification that the installation is carried out according to instructions
in NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ VVM 310Chapter 1 | Important information2
Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Rights to make any design or technical modifications
are reserved.
©NIBE 2013.
NOTE
VVM 310 must be installed via an isolator switch with
a minimum breaking gap of 3 mm.
NOTE
If the supply cable is damaged, only NIBE, its service
representative or similar authorised person may re-
place it to prevent any danger and damage.
MinMaxSystem pressure
0.01 MPa
(0.1 bar)
0.3 MPa
(3 bar)
Heating medium
0.01 MPa
(0.1 bar)
1.0 MPa
(10 bar)
Domestic water
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should ob-
serve when maintaining your installation.
3NIBE™ VVM 310Chapter 1 | Important information
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
VVM 310 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the product meets all regu-
lations that are placed on it based on relevant EU directives. The CE mark
is obligatory for most products sold in the EU, regardless where they are
made.
IP21 means that the product can be touched by hand, that objects with a
diameter larger than or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against vertically falling drops.
NIBE™ VVM 310Chapter 1 | Important information4
Serial number
The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number (14 digits) when reporting a fault.
5NIBE™ VVM 310Chapter 1 | Important information
Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
dvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
AIT France, 10 rue des Moines, 67000 HaguenauFR
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk,
0516 Oslo
NO
ergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
NIBE™ VVM 310Chapter 1 | Important information6
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
7NIBE™ VVM 310Chapter 1 | Important information
VVM 310 - An excellent choice
VVM 310 is part of a new generation of products, which have been intro-
duced to supply your home with inexpensive and environmentally friendly
heating. Heat production is safe and economical with integrated hot water
coil, immersion heater, circulation pumps and control system.
The indoor module can be connected to an optional low temperature
heat distribution system, e.g. radiators, convectors or underfloor heating.
It is also prepared for connection to a number of different products and
accessories, e.g. solar or other external heat source, extra water heater,
swimming pool and climate systems with different temperatures.
VVM 310 is equipped with a control computer for good comfort, good
economy and safe operation. Clear information about status, operating
time and all temperatures in the system is shown on the large and easy to
read display. This means, for example, that external unit thermometers
are not necessary.
Excellent properties for VVM 310:
႑Coil for hot water
There is a stainless steel hot water coil integrated in the indoor module.
The water in the coil is heated by the hot water in the surrounding tank.
႑Buffer vessel
There is a buffer vessel integrated in the indoor module that equalises
the temperature of the water that is sent out in the climate system.
႑Scheduling the indoor comfort and hot water
Heating and hot water can be scheduled for each day of the week or
for longer periods (vacation).
႑Large display with user instructions
The indoor module has a large display with easy-to-understand menus
that facilitate setting a comfortable climate.
႑Simple troubleshooting
In the event of a fault, the indoor module display shows what happened
and the actions to be taken.
႑Easy to install
The indoor module is easy to install together with NIBE F20XX or another
air water heat pump. When installing together with F20XX the heat
pump's values can be read off from the indoor module's display.
႑External heat source
VVM 310 is prepared for easy connection to a solar panel installation
and/or oil/gas/ wood fired boiler and district heating.
NIBE™ VVM 310Chapter 1 | Important information8
