Nikon Aculon A211 Bedienungsanleitung

Instruction manual / Manual de instrucciones /

Manuel d’utilisation / Manual de instruções

BINOCULARS/JUMELLES/BINOCULARES/BINÓCULO

A211

8-18x42/10-22x50

7x35/8x42/10x42/7x50/10x50/

12x50/16x50

English ........................................... p. 6-9

Español ...................................... p. 10-13

Français ...................................... p. 14-17

Português brasileiro .................. s. 18-21

7x35/8x42/10x42/7x50/10x50/12x50/16x50

8-18x42/10-22x50

(A) (B)

(C)

(D)

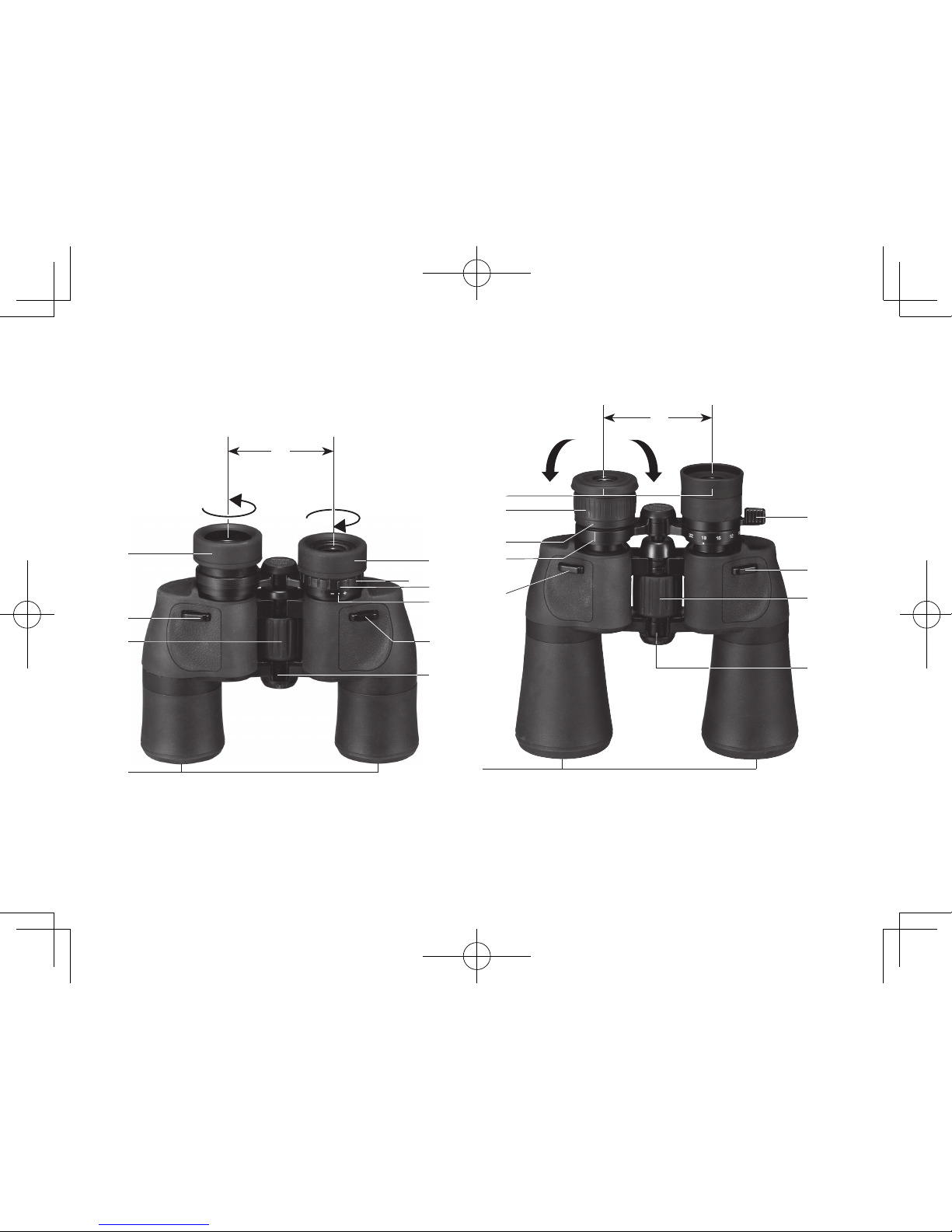

Nomenclature

1Eyecup

2Neckstrap eyelet

3Focusing ring

4Objective lens

5Interpupillary distance

6Diopter ring

70 (zero) diopter position

8Diopter index

9Central shaft

!p Zoom lever (8-18x42, 10-22x50 only)

• Binoculars

• Eyepiececap

• Objectivelenscaps

• Softcase

• Neckstrap

• TripodadapterTRA-2(16x50,10-22x50only)

ITEMS SUPPLIED

Eyecups

For directions in which to turn the eyecups, please refer to the image on page 4.

Please refer to the numbered images on page 4.

Turn and slide type (7x35/8x42/10x42/7x50/10x50/12x50/16x50)

・For eyeglass wearers, use eyecups in the fully retracted position.

・For non-eyeglass wearers, use eyecups in the fully extended position.

Either way, to accurately adjust your view, you can use two click stops before reaching the fully extended/

retracted position.

Fold back type (8-18x42/10-22x50)

・For eyeglass wearers, fold back the end of the eyecups for use.

・For non-eyeglass wearers, do not fold back the end of the eyecups. Use them in the fully extended position.

Neck Strap

Attachtheneckstrapasillustrated(A), taking care to avoid twisting the strap.

Eyepiece cap

Therearetwowaysyoucanpositiontheeyepiececapasyouobserveyoursubject.

•Removetheeyepiececapfromtheeyepiecesandallowittohangfromtheneckstrap.

•Removetheeyepiececapfromtheeyepieces,thendetachtherightstrapfromthecapandallowittohang

from the left neck strap. (B)

Toattach/detachtheeyepiececap,pulltheneckstrapthroughtheslitsasshowninimage (C) in the

following order:

•Detaching:a→b →c

•Attaching: c → b →a

Objective lens caps

You can hook up the objective lens caps on the neckstrap during observation to avoid losing them. (B)

Zoom lever (8-18x42/10-22x50 only)

Neck strap and caps during observation

Tripod adapter TRA-2

Magnification can be changed by moving the zoom lever.

When viewing the subject at a different magnification, first correctly adjust focusing at a higher magnification.

Thisminimizesblurring,whichmayoccurwhenyouchangemagnification.

PleaserefertoimagesA,B,C,D,a,bandconpage5.

Suppliedaccessory:8-18x42/10-22x50

Soldseparately(Optional):7x35/8x42/10x42/7x50/10x50/12x50/16x50

WhenusingatripodadapterTRA-2,attachittothebinocularsasillustrated(D) on page 5.

Formoreinformation,pleaserefertotheinstructionmanualfortripodadapterTRA-2.

Specifications

*ApparentfieldofviewiscalculatedbasedontheISO14132-1:2002standard,andobtainedbythefollowingformula:

[tan ω' = Γxtanω]Apparentfieldofview:2ω',Magnification:Γ,Realfieldofview:2ω

** When minimum magnification (8x) is selected

*** When minimum magnification (10x) is selected

Type Porro prism central focusing type

Model

ACULONA211

7x35 8x42 10x42 7x50 10x50 12x50 16x50 8-18x42 10-22x50

Magnification (x) 7 8 10 7 10 12 16 8-18 10-22

Effective diameter of objective

lens (mm) 35 42 42 50 50 50 50 42 50

Angularfieldofview(real)(°) 9.3 8.0 6.0 6.4 6.5 5.2 4.2 4.6** 3.8***

Angularfieldofview

(apparent)(°)* 59.3 58.4 55.3 42.7 59.2 57.2 60.8 35.6** 36.7***

Field of view 1,000m (m/ft.) 163/488 140/420 105/314 112/335 114/341 91/272 73/220 80/241** 66/199***

Exit pupil (mm) 5.0 5.3 4.2 7.1 5.0 4.2 3.1 5.3** 5.0***

Brightness 25.0 28.1 17.6 50.4 25.0 17.6 9.6 28.1** 25.0***

Eye relief (mm) 11.8 12.0 11.6 17.6 11.8 11.5 12.6 10.3** 8.6***

Close focusing distance,

approx. (m/ft.) 5.0/16.4 5.0/16.4 5.0/16.4 8.0/26.2 7.0/23.0 8.0/26.2 9.0/29.5 13.0/42.7 15.0/49.2

Interpupillary distance

adjustment (mm) 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72

Length(mm/in.) 118/4.6 145/5.7 145/5.7 180/7.1 179/7.0 179/7.0 179/7.0 163/6.4 197/7.8

Width (mm/in.) 185/7.3 185/7.3 185/7.3 197/7.8 197/7.8 197/7.8 197/7.8 185/7.3 197/7.8

Weight (g/oz.) 685/24.2 755/26.6 760/26.8 905/31.9 900/31.7 910/32.1 925/32.6 825/29.1 960/33.9

• Specificationsanddesignaresubjecttochangewithoutnotice.

• Noreproductioninanyformofthis"InstructionManual,"inwholeorinpart(exceptforbriefquotationincriticalarticles or

reviews),maybemadewithoutwrittenauthorizationfromNIKONVISIONCO.,LTD.

• Thisproductisnotwaterproof.Therefore,avoidgettingitwetfromrain,watersplashes,etc.

• Tokeepyourbinocularsinexcellentcondition,NikonVisionrecommendsregularservicingbyanauthorizeddealer.

Nomenclatura

Oculares

1Oculares de goma

2Ojo para la correa

3Arodeenfoque

4Lentesdeobjetivo

5Distancia interpupilar

6Anillodedioptrías

7Posicióndecero(0)dioptrías

8Indicededioptrías

9Eje pivote

!p Palanca de zoom (solo 8-18x42, 10-22x50)

Lasindicacionessobrecómogirarlosocularessepuedenverenlaimagendelapágina4.

Consultelasimágenesnumeradasdelapágina4.

• Binoculares

• Tapadelocular

• Tapasdelaslentesdelobjetivo

• Fundablanda

• Correaalcuello

• AdaptadorparatrípodeTRA-2

(solo 16x50, 10-22x50)

ACCESORIOS SUMINISTRADOS

De tipo giratorio y deslizante (7x35/8x42/10x42/7x50/10x50/12x50/16x50)

・Sillevagafas,coloquelasojerasenlaposiciónplegadaporcompleto.

・Sinollevagafas,coloquelasojerasenlaposiciónextendidaporcompleto.

Encualquiercaso,paraajustarlasojerasconprecisión,utilicecualquieradelasdosposicionesdisponiblesantes

de llegar a la posición extendida/plegada por completo.

De tipo plegable (8-18x42/10-22x50)

・Sillevagafas,plieguehaciaatráselextremodelasojeras.

・ Sinollevagafas,noplieguehaciaatráselextremodelasojeras.Úselasenlaposiciónextendidaporcompleto.
