NOMA Landon Bedienungsanleitung
Landon
52” LED Ceiling Fan
PRODUCT NO. 052-9608-8
USER MANUAL
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
3
01. SAFETY/CAUTIONS
02. TOOLS REQUIRED
03. EXPLODED VIEW
04. ELECTRICAL SAFETY
05. ASSEMBLY
06. OPERATION
08. TROUBLESHOOTING
07. DYNAMIC BLADE BALANCING KIT
09. MAINTENANCE
10. WARRANTY & DISPOSAL
4
6
7
10
12
19
22
24
26
27
4
SAFETY / CAUTIONS
•
•
•
•
•
•
•
•
•
•
TO REDUCE THE RISK OF ELECTRIC SHOCK, ENSURE ELECTRICITY HAS
BEEN TURNED OFF AT THE CIRCUIT BREAKER OR FUSE BOX BEFORE
BEGINNING.
ALL WIRING MUST BE IN ACCORDANCE WITH THE NATIONAL AND
LOCAL ELECTRICAL CODES. ELECTRICAL INSTALLATION SHOULD BE
PERFORMED BY A QUALIFIED LICENSED ELECTRICIAN.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO
NOT USE THIS FAN WITH ANY SOLID-STATE FAN-SPEED CONTROL DEVICE.
IT WILL PERMANENTLY DAMAGE THE ELECTRONIC CIRCUITRY.
CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY, USE ONLY THE
SCREWS PROVIDED WITH THE OUTLET BOX.
THE OUTLET BOX AND SUPPORT STRUCTURE MUST BE SECURELY
MOUNTED AND CAPABLE OF RELIABLY SUPPORTING A MINIMUM OF
35 LB (15.9 KG). USE ONLY UL LISTED OUTLET BOXES MARKED “FOR FAN
SUPPORT.”
THE FAN MUST BE MOUNTED WITH A MINIMUM OF 6’ 11” (2.1 M) FROM
THE TRAILING EDGE OF THE BLADES TO THE FLOOR.
DO NOT PLACE OBJECTS IN THE PATH OF THE BLADES.
TO AVOID PERSONAL INJURY OR DAMAGE TO THE FAN AND OTHER
ITEMS BE CAUTIOUS WHEN WORKING AROUND OR CLEANING THE FAN.
DO NOT USE WATER OR DETERGENTS WHEN CLEANING THE FAN OR
FAN BLADES. A DRY DUST CLOTH WILL BE SUITABLE FOR MOST
CLEANING.
AFTER MAKING ELECTRICAL CONNECTIONS, SPLICED CONDUCTORS
SHOULD BE TURNED UPWARD AND PUSHED CAREFULLY UP INTO THE
OUTLET BOX. THE WIRES SHOULD BE SPREAD APART WITH THE GROUNDED
CONDUCTOR AND THE EQUIPMENT-GROUNDING CONDUCTOR ON ONE
SIDE OF THE OUTLET BOX AND THE UNGROUNDED CONDUCTOR ON THE
OTHER SIDE OF THE OUTLET BOX. ALL SET SCREWS MUST BE CHECKED AND
RE-TIGHTENED WHERE NECESSARY BEFORE INSTALLATION.
01
•
•
•
•
•
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT” WITH THE SCREWS PROVIDED WITH THE OUTLET BOX
WARNING: TO AVOID RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES) OR THE BRACKETS
WHILE BALANCING THE BLADES OR CLEANING THE FAN. DO NOT INSERT
FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT” OF 35 LB (15.9 KG) OR LESS” AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX. MOST OUTLET BOXES
COMMONLY USED FOR THE SUPPORT OF LIGHT FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. DUE
TO THE COMPLEXITY OF THIS FAN, A QUALIFIED LICENSED ELECTRICIAN
IS STRONGLY RECOMMENDED FOR INSTALLATION.
ATTENTION: PLEASE ENSURE LED BULBS’ TOTAL WATTAGE IS ALWAYS
BELOW 70 W!
IC STATEMENT: This device contains license-exempt transmitter(s)/
receiver(s) that comply with lnnovation, Science and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to
the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
5
6
02

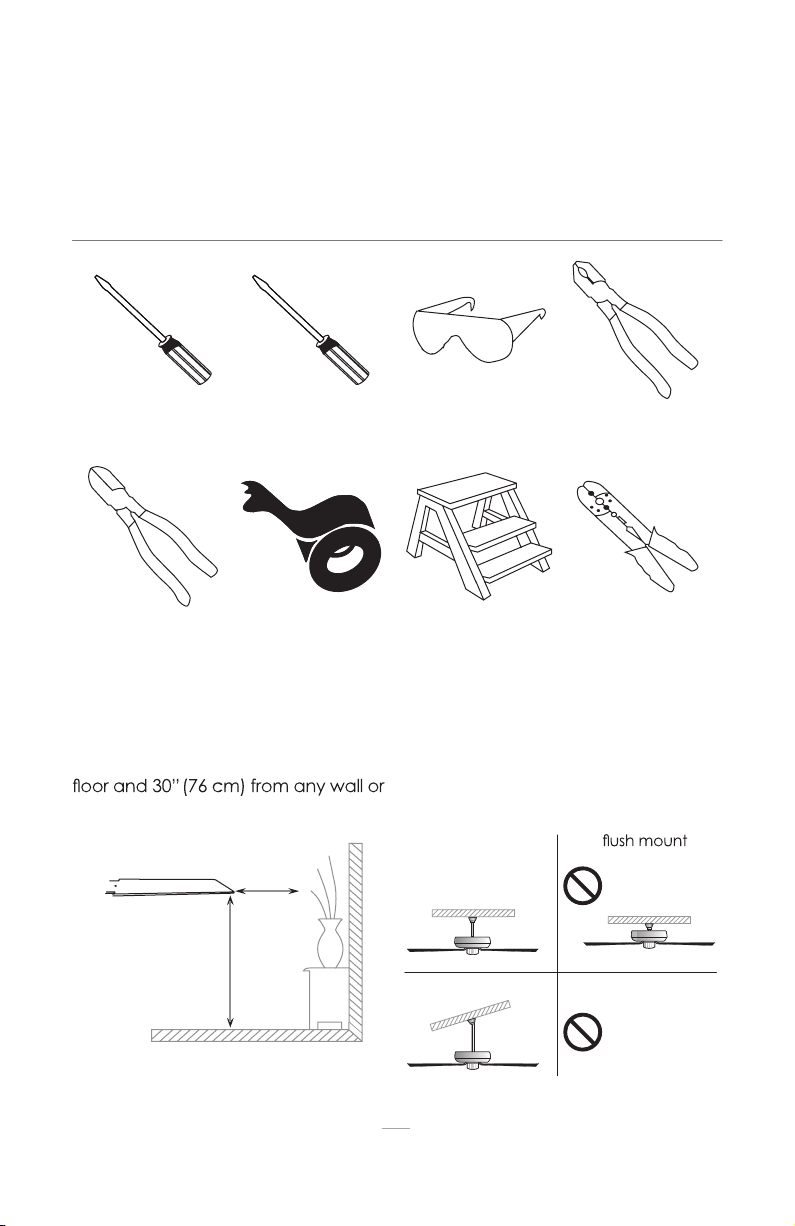

TOOLS REQUIRED
INSTALLATION PREPARATION
Flat-head
screwdriver
Cross-head
screwdriver
Safetyglasses Pliers
Wire cuttersElectrical tape Stepladder Wire strippers
To prevent personal injury and
damage, ensure that the hanging
location allows the blades a
clearance of 6’ 11” (2.1 m)from the
obstruction.
6' 11"
(2.1 m)
30”
(76 cm)
blade edge downrod
installation installation
vaulted
ceiling angle
is not to
exceed 18°
This fan can be mounted with a
downrod on a regular (no-slope) or
vaulted ceiling. Other installations,
such as flush mount, are not
available for this fan.
7
03
EXPLODED VIEW

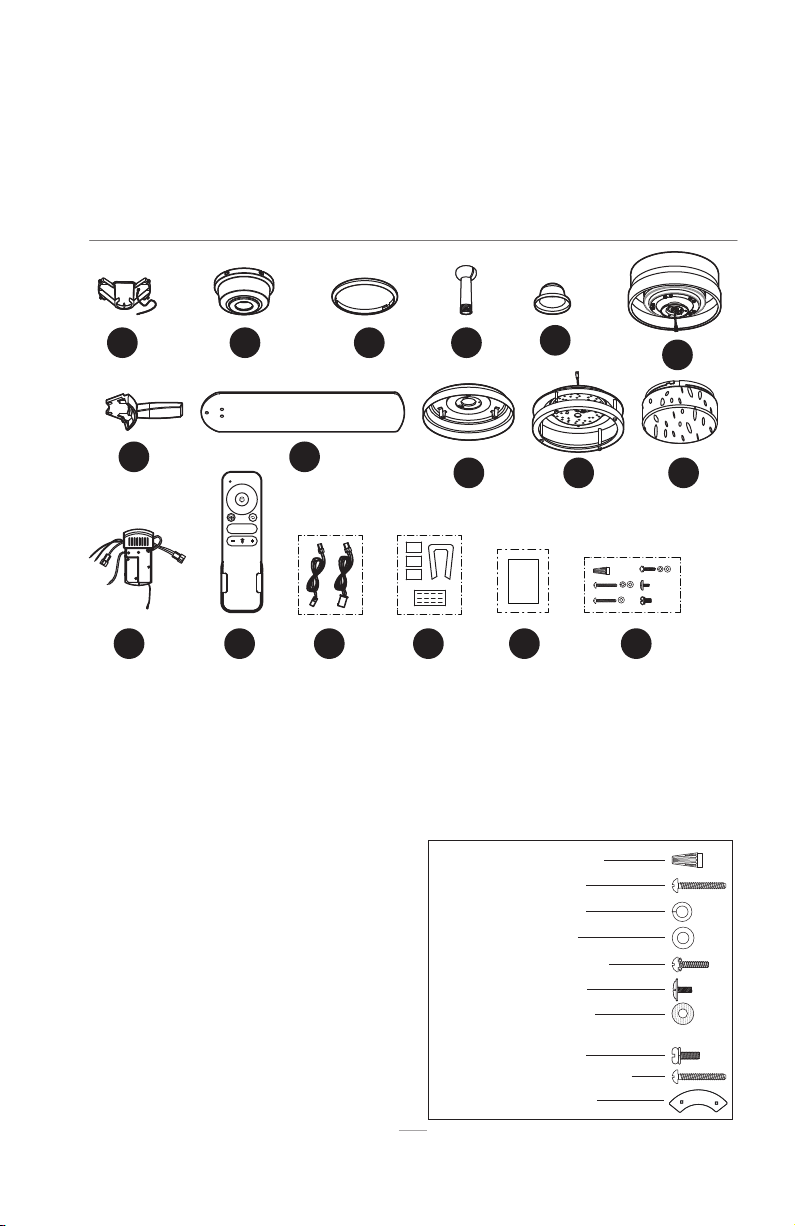

PACKAGE CONTENTS
Installation
Instruction
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
01 02
08
12 13 14 15 16 17
03 04
09 10 11
05 06
07
MOUNTING BRACKET
CANOPY
CANOPY RING
DOWNROD
COUPLING COVER
FAN MOTOR ASSEMBLY
BLADE BRACKETS (5 PCS)
FAN BLADES (5 PCS)
MOUNTING PLATE
20 W LED LIGHT KIT
GLASS SHADE
RECEIVER
REMOTE CONTROL
14.
15.
16.
17.
2-PIN AND 3-PIN EXTENSION
CORDS
BLADE BALANCING KIT
INSTALLATION INSTRUCTIONS
PARTS PACK CONTAINING:
1
2
3
4
5
6
1H 3 6H H
x16
x11
11 x Blade screws with
lock washer
3 x plastic wire nuts
2 x wood screws
3 x Lock washers
2 x Machine screws
1 x Safety cable screw
3 x Flat washers
16 x Flat washers
16 x Fiber washers
5 x Screw retainer
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
MOUNTING BRACKET
DOWNROD
CANOPY
CANOPY RING
COUPLING COVER
FAN MOTOR ASSEMBLY
BLADE BRACKETS (5 PCS)
FAN BLADES (5 PCS)
MOUNTING PLATE
20 W LED LIGHT KIT
GLASS SHADE
8
EXPLODED VIEW
DETAIL 03
9
08
07
03
04
06
09
10
11
01
02
05
10
ELECTRICAL SAFETY
Instructions
•
01.
02.
03.
04
Making the Electrical Connections
•
•
Read all safety information and installation instructions before
you begin to install the fan and save instructions.
All set screws of the fan must be checked and re-tightened
where necessary before installation.
To reduce the risk of personal injury, do not bend the blade
brackets when installing the brackets, balancing the blades or
cleaning the fan. Do not insert foreign objects between rotating
fan blades.
Before changing the fan direction, turn off the fan and wait for
the fan blades to stop completely.
The safeguards provided by these safety instructions and by the
separate installation instructions are not meant to cover all
possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors
which can not be built into this product. These factors must be
supplied by the person(s) installing, caring for and operating the
fan.
WARNING: To avoid risk of electric shock, be sure to shut off
power at the main fuse or circuit breaker box before installing or
servicing this fixture. Turning off the electrical power by using the
light switch is not sufficient to prevent electric shock.
To reduce the risk of injury, install the fan so that the blades are
at least 6’ 11” (2.1 m) above the floor and at least 30” (76 cm)
from the tip of the blades to the wall.
