Norac UC4+ Bedienungsanleitung

RHS BestWay 1200/1600

Installation Manual

Spray Height Controller

Improving the competitiveness of Industry and

Agriculture through Precision Measurement

Printed in Canada

Reorder P/N: UC4+BC+RH1-INST Rev B (RHS Bestway)

NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the

requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained

in this manual. The technical information in this manual was reviewed at the time of approval for publication.

TABLE OF CONTENTS

1INTRODUCTION...................................................................................................................................1

2GENERAL SYSTEM DESCRIPTION...................................................................................................2

3PARTS LISTS.......................................................................................................................................3

4INSTALLATION PROCEDURE............................................................................................................7

4.1 SENSOR INSTALLATION...................................................................................................................7

4.2 MAIN LIFT SENSOR INSTALLATION ..................................................................................................8

4.3 HYDRAULIC INSTALLATION............................................................................................................10

4.3.1 Valve Mounting ......................................................................................................................10

4.3.2 Hydraulic Plumbing ................................................................................................................11

4.4 ELECTRICAL INSTALLATION ..........................................................................................................12

4.5 COMPLETING THE FACTORY INSTALL.............................................................................................14

5END USER INSTALLATION ..............................................................................................................15

6ELECTRICAL REFERENCE – CABLE DRAWINGS ........................................................................17

6.1 ITEM C02: 44668 –SENSOR BRANCH CABLE ...............................................................................17

6.2 ITEM C03: 44656 –VALVE CABLE (VARIABLE RATE) ....................................................................17

6.3 ITEM C10: 44650-39 –CABLE POWER GENERIC...........................................................................18

6.4 ITEM C10A: 44650-03 CABLE POWER VERSION 3(AG-PULL TYPE)................................................19

6.5 ITEM C11: 44651-03 CABLE EXTENSION VALVE GENERIC.............................................................20

6.6 ITEM C13: 44658-57 INTERFACE CABLE GENERIC DIRECTIONAL VALVES ......................................21

1 INTRODUCTION

Congratulations on your purchase of the NORAC UC4+ Spray Height Controller. This

system is manufactured with top quality components and is engineered using the latest

technology to provide operating features and reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage,

improve sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the

system. A thorough understanding of this manual will ensure that you receive the

maximum benefit from the system.

YOUR INPUT CAN HELP MAKE US BETTER! If you find issues or have

suggestions regarding the parts list or the installation procedure, please don’t

hesitate to contact us via the information given below:

Phone: 1-800-667-3921 Canada (Toll Free)

1-866-306-6722 United States (Toll Free)

0-800-404-8389 United Kingdom (Toll Free)

1-306-664-6711 all other regions

E-mail: [email protected]

Website: www.norac.ca

2 GENERAL SYSTEM DESCRIPTION

Figure 1 depicts the general system layout of the UC4+ Spray Height Controller system.

Figure 1 – System Components and General Location

* Some items may not be included in your kit.

NOTICE:

Every effort has been made to ensure the

accuracy of the information contained in

this manual. All parts supplied are

selected specially to fit the sprayer to

facilitate a complete installation.

However, NORAC cannot guarantee all

parts fit as intended due to the variations

of the sprayer by the manufacturer.

Please read this manual in its entirety

before attempting installation.

ATTENTION:

When installing the UC4+ System please

be aware that at a point in the installation

your sprayer booms will be inoperative

until the installation is complete. Any

installation procedure requiring boom

movement will need to be done first.

Once the hydraulics have been

disconnected you must complete the

electrical installation before the booms

become operative.

3 PARTS LISTS

The parts that come with your UC4+ Spray Height Controller are listed in Table 1. The

item number on the left side of this table references each part.

Please ensure that all parts in your kit are present before proceeding with your

installation.

Table 1 – Bestway Spray Height Controller System Parts (Rev B)

Item Part Number Name Quantity

B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1

B10 44700-06 BRACKET VALVE MOUNTING STD 1

B11 44743 MOUNTING BRACKET MAIN LIFT SENSOR UC4 PLUS 1

B13 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2

B16 44727 BRACKET MOUNTING ADAPTER 2.5IN TO 4IN SQUARE TUBE 2

C02 44668 CABLE UC3 SENSOR BRANCH 1 AMP RECEPT 3 AMP PLUG BC 1

C03 44656 CABLE VALVE VARIABLE RATE 1

C10 44650-39 CABLE POWER GENERIC SELF-PROPELLED 1

C10A 44650-03 CABLE POWER VERSION 3 (AG-PULL TYPE) 1

C11 44651-03 CABLE EXTENSION VALVE GENERIC 1

C13 44658-57 INTERFACE CABLE GENERIC DIRECTIONAL VALVES 1

E01 4461BC+ UC4 PLUS BOOM CONTROL PANEL 1

E02 44631 UC4 ULTRASOUND SENSOR 3

H02 44863-01 HOSE ASSEMBLY 122R2-06 36 IN L 6FJX 6FJX 1

H03 44863-26 HOSE ASSEMBLY 122R2-06 228 IN L 6FJX 6MB 1

H20 44865-27 HYDRAULICS FITTING KIT - RH1 1

M01A 446BC+MAN6-1 MANUAL UC4+ BOOM CONTROL 2008 OPERATORS SMALL BOOKLET 1

M01B 446BC+MAN6-2 MANUAL UC4+ BOOM CONTROL 2008 QUICK REFERENCE SMALL BOOKLET 1

M10 UC4+BC+RH1-INST MANUAL INSTALLATION UC4+ RHS BESTWAY 1200, 1600 1

V01 44933S VALVE BLOCK ASSEM UC4-BC 2-STATION CC/LS VARIABLE RATE 1

Table 2 - 44865-27 - Hydraulics Fittings Kit (Rev B)

Item Part Number Name Quantity Picture

F02 101775 FEMALE PIPE THREAD COUPLER - 6FPT 2

F03 102559 MALE PIPE THREAD ADAPTER - 6MP 6MP 2

F04 103345 MALE TO FEMALE ADAPTER - 6MB 6FJX90 2

F05 103312 MALE ADAPTER - 6MB 6MJ 4

F06 104369 PLUG - 6MBP 2

F08 44928 ORIFICE INSERT .047 IN ONE WAY 2

6 M B - 6 M OR X 90

SIZE IN

1/16TH'S

GENDER: MALE

OR FEMALE

90° ANGLE

SWIVEL

TYPE

GENDER

SIZE

TYPE:

B - ORB

J - JIC

OR - FLAT

FACE

P - PIPE

Fitting Name

Example:

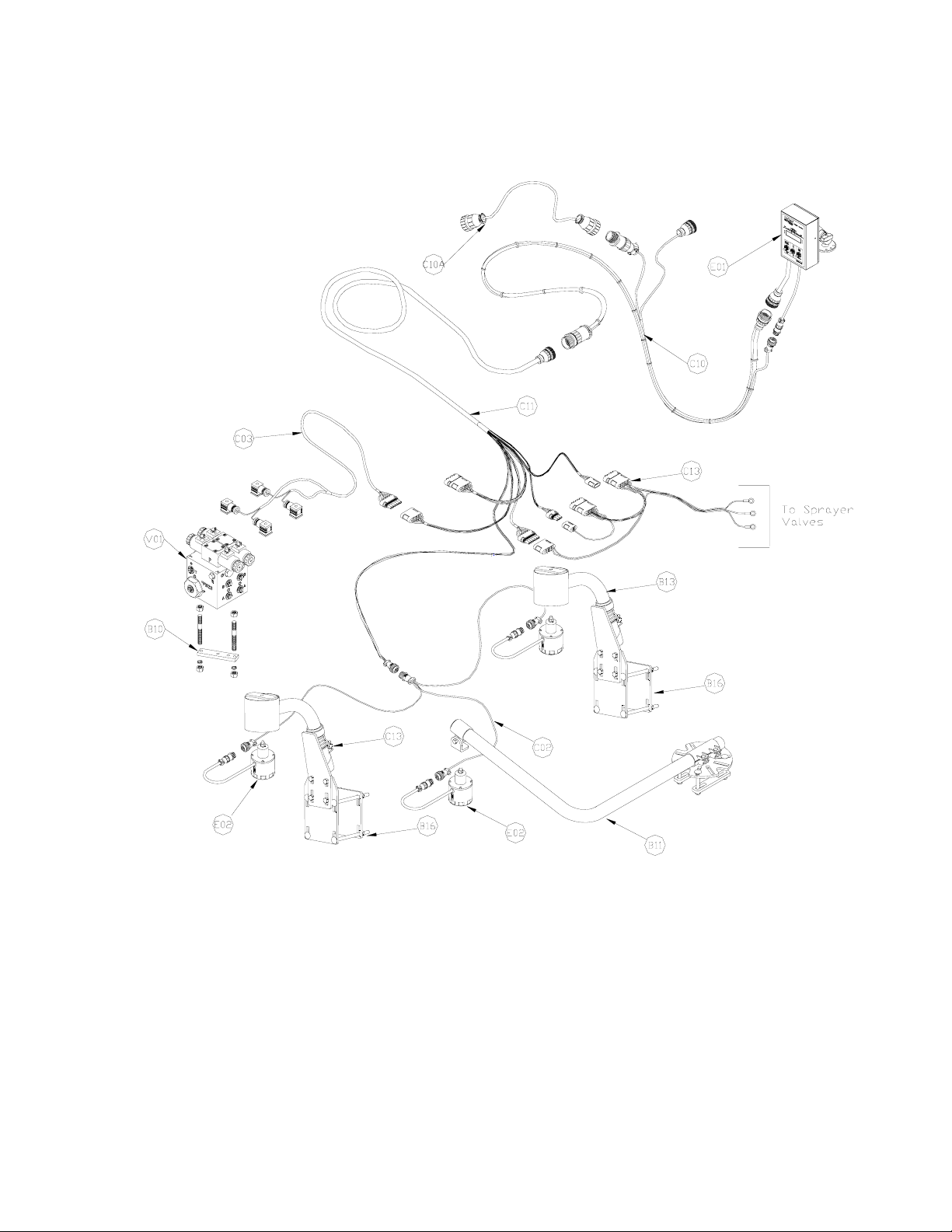

The parts that come with your UC4+ System are shown below in their general

installation configuration.

Figure 2 – UC4+ Spray Height Controller Components

Figure 3 – Hydraulic Plumbing Schematic

4 INSTALLATION PROCEDURE

4.1 SENSOR INSTALLATION

To correctly mount the sensor brackets,

the bracket mounting adapter will most

likely be used. A completely assembled

sensor bracket, with mounting adapter is

shown in Figure 4.

Figure 4 - Sensor mounting bracket

and adapter

It is advised to avoid mounting

the sensor bracket to a

breakaway portion of the boom

because a breakaway action

can cause the UC4+ system to

force a boom close to the

ground.

When installing the UC4+

sensors (E02), start with the

smallest serial number on the

left hand side proceeding to the

largest serial number on the

right hand side (Figure 10).

Avoid mounting sensors in

locations where they may read

from parts of the boom as

shown in Figure 5.

Figure 5 - Poor Mounting

(Sensor reading off boom)

General mounting rules for UC4+

ultrasonic sensors:

a) In its lowest position, the sensor

mouth must be 9 inches or more

from the ground.

b) The bottom of the sensor must be at

least 9 inches in front of the spray

nozzles.

c) The bottom of the sensor must be at

least 9 inches above the spray

nozzles.

d) Ensure that there are no obstructions

within a 12-inch diameter circle

projected directly below the center of

the sensor.

e) The sensor should be approximately

vertical at normal operating heights.

Bracket

Adapter
