Potential dangers from accidents during installation and use are divided into the following three

categories. Closely observe these warnings, they are critical to your safety.

Prohibited Disconnect

Power Ground Be sure to do

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result

causing property damage, personal injury or death.

NORITZ AMERICA

CORPORATION

Installation Manual

CONDENSING TANKLESS GAS WATER HEATER

NCC199-DV (Indoor Installation)

DANGER indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

DANGER

WARNING

CAUTION

SBA8369

Rev. 09/09

Requests to Installers

• In order to use the water heater safely, read this installation manual carefully, and follow the

installation instructions.

•Failures and damage caused by erroneous work or work not as instructed in this manual are not

covered by the warranty.

•

Check that the installation was done properly in accordance with this Installation Manual upon completion.

•

After completing installation, please either place this Installation Manual in a plastic pouch and

attach it to the side of the water heater (or the inside of the pipe cover or recess box if applicable),

or hand it to the customer to retain for future reference. Also, be sure to fill in all of the required

items on the warranty and to hand the warranty to the customer along with the Owner's Guide.

CAUTION

FOR USE IN RESIDENTIAL, COMMERCIAL, OR MANUFACTURED HOME AP-

PLICATIONS.

Installation must conform with local codes, or in the absence of local codes, the

National Fuel Gas Code, ANSI Z223.1/NFPA 54- latest edition and/or CSA

B149.1, Natural Gas and Propane Installation Code (NSCNGPIC).

When applicable, installation must conform with the Manufactured Home Con-

struction and Safety Standard, Title 24 CFR, Part 3280 or the Canadian Standard

CAN/CSA-Z240 MH Mobile Homes, Series M86.

Noritz America reserves the right to discontinue, or change at any

time, the designs and/or specifications of its products without notice.

*ENERGY STAR®applies when used in a combination potable

water heating and space heating system.

Low NOx

Approved by

SCAQMD

CERTIFIED

Accepted For Use

City of New York

Department of Buildings

MEA 19-03-E

*SBA8369*

Included Accessories

The following accessories are included with the unit.

Check for any missing items before starting installation.

Q’tyShapePart

Tapping Screw 1

each

Part Shape Q’ty

Remote Controller

(See p. 25)

Remote Controller

Cord (10ft)

Optional Accessories

The accessories listed below are not

included with the units, but may be necessary

for installation.

Q’tyShapePartPart Shape Q’ty

Flue Terminal

VT4-TL 1

Remote Controller

Cord (26 ft)

Flue Terminal

VT4-TS 1

Quick Connect

Cord 1

Isolation Valves

(includes pressure

relief valve)

Owner's Guide, Warranty,

Installation Manual

(this document)

System Controller 1

4" PVC Adapter

VP4-ADAPT-PVC

3" PVC Adapter

VP4x3-ADAPT-PVC

Bird Screen for 4" PVC

VT4-PVCS

Bird Screen for 3" PVC

VT3-PVCS 2

3" PVC Terminal

VK3-H-PVC

Pipe Cover

(PC-3S-SUS)

Wall Adapter

for VT4-TS 1

Quick Connect

Cord

Remote Controller Cord Gas Supply Piping

Cold Water Supply

Hot Water

Remote Controller

Terminal Block

Cord

Connector

Cord

Connector

Quick Connect Multi System Installation

• The Quick Connect Multi System allows the installation of two units together utilizing only the Quick

Connect Cord.

Typical Plumbing

The Quick Connect Cord is 6 ft. long. Install the units 6-18" apart from each other to ensure the

cord will be able to reach between the units. (See Typical Plumbing diagram).

(If the distance between the two units is too great, not only will the cord not be able to reach,

but the water temperature may also become unstable because of the difference in pipe length

between the two units).

* When connecting two units, use only a

single remote controller.

Note: Connect the remote

controller to only one

of the units.

System Diagram

•Insulate the hot water piping to prevent heat loss. Insulate and apply heating materials to the cold

water supply piping to prevent heat loss and freezing of pipes when exposed to excessively cold

temperatures.

Union

Make this distance as short

as possible.

* The hot water temperature

will become unstable as the

pipe length increases.

Distance at center: 24.3 - 36.3 in.

Quick Connect

Cord

Union

Gas Valve

Union

Shutoff

Valve

Shutoff Valve

Hot Water

Shutoff

Valve

Cold Water

Distance on sides

6 - 18 in.

Leave enough clearance around the plumbing to

apply insulation. It will be necessary to add

bends to the piping to ensure that this clearance

is available.

Size the piping to allow for the maximum

flow rates of the units.

4. Before Installation

Checkup

• Check the fixing brackets and vent pipe yearly for damage or wear. Replace if necessary.

DANGER

Do Not Use Equipment for Purposes Other Than Those Specified

•Do not use for other than increasing the temperature of the water supply, as unexpected accidents

may occur as a result.

Check Water Supply Quality

•If the water supply is in excess of 12 grains per gallon (200 mg/L) of hardness, acidic or otherwise

impure, treat the water with approved methods in order to ensure full warranty coverage.

WARNING

CAUTION

Check the Gas

•Check that the rating plate indicates the

correct type of gas.

•Check that the gas supply line is sized for

199,900 Btuh for this unit.

Check the Power

•The power supply required is 120VAC, at 60Hz.

Using the incorrect voltage may result in fire or electric shock.

Use Extreme Caution if Using With a Solar Pre-Heater

• Using this unit with a solar pre-heater can lead to unpredictable output temperatures and

possibly scalding. If absolutely necessary, use mixing valves to ensure output temperatures do

not get to scalding levels. Do not use a solar pre-heater with the quick-connect multi-system.

Precautions on Vent Pipe Replacement

•Only use vent materials that are specified in this Installation Manual for use on this appliance. Refer

to the "Vent Pipe Installation" section for details. If PVC, CPVC, or Category IV listed pipe is already

installed, check for punctures, cracks, or blockages and consult with the vent pipe manufacturer

before reusing.

Improper venting may result in fires, property damage or exposure to Carbon Monoxide.

Snow Precaution

•If this product will be installed in an area where snow is known to accumulate, protect the vent

termination from blockage by snow drifts or damage from snow falling off of roofs.

199,900

186 000186,000

3.6

3.35 3.35

3.6

192,700

179 300179,300

199,900 BTU

11,000 BTU

222

4.0

0.75 3.35

10.5

840

10.3a-2007

15 150

4.3a-2007

.NCC199-DV

5. Choosing Installation Site

* Locate the appliance in an area where leakage from the unit or connections will not result in damage

to the area adjacent to the appliance or to the lower floors of the structure. When such locations

cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed

under the appliance. The pan must not restrict combustion air flow.

•Locate the vent terminal so that there are no obstacles around the termination and so that ex-

haust can't accumulate. Do not enclose the termination with corrugated metal or other materials.

•Avoid places where fires are common, such as those where gasoline,

benzene and adhesives are handled, or places in which corrosive gases

(ammonia, chlorine, sulfur, ethylene compounds, acids) are present.

Using the incorrect voltage may result in fire or cracking.

•Avoid installation in places where dust or debris will accumulate.

Dust may block the air-supply opening, causing the performance of the

device fan to drop and incomplete combustion to occur as a result.

•Avoid installation in places where special chemical agents

(e.g., hair spray or spray detergent) are used.

Ignition failures and malfunction may occur as a result.

• Carbon Monoxide Poisoning Hazard. Do not install this water heater in a

recreational vehicle or on a boat.

•The water heater is designed for indoor installation only. Never install it

outdoors or in a bathroom, it may be damaged or a fire may be caused.

•Consult with the customer concerning the location of installation.

• Install the water heater in an area that allows for the proper clearances

to combustible and noncombustible construction. Consult the rating

plate on the appliance for proper clearances.

•Do not install the water heater in a place where it may be threatened by

falling objects, such as under shelves.

• The water heater must be installed in a place where supply and exhaust

pipes can be installed as directed.

•Do not install the water heater where the exhaust will blow on outer

walls or material not resistant to heat. Also consider the surrounding

trees and animals.

The heat and moisture from the water heater may cause discoloration of

walls and resinous materials, or corrosion of aluminum materials.

Prohibited

DANGER

WARNING

CAUTION

Prohibited

•Avoid installation above gas ranges or stoves.

•Avoid installation between the kitchen fan and stove. If oily

fumes or a large amount of steam are present in the installation

location, take measures to prevent the fumes and steam from

entering in the equipment.

• Install in a location where the exhaust gas flow will not be

affected by fans or range hoods.

• Take care that noise and exhaust gas will not affect neighbors.

Avoid installation on common walls as the unit will make some

operational noises while it is use.

•Before installing, make sure that the exhaust flue termination will

have the proper clearances according to the National Fuel Gas

Code (ANSI Z223.1).

State of California: The water heater must be braced, anchored or strapped to avoid moving during an

earthquake. Contact local utilities for code requirements in your area or call: 1-866-766-7489 and request

instructions.

Be sure to do

Prohibited

CAUTION

The Commonwealth of Massachusetts: The water heater can be used for hot water only and not in a

combination of domestic and space heating.

For Venting Manufacturers Requirements, see websites or phone numbers listed below:

Noritz N-Vent www.noritz.com

6. Installation Clearances

Before installing, check for the following:

Install in accordance with relevant building and mechanical codes, as well as any local, state or

national regulations, or in the absence of local and state codes, to the National Fuel Gas Code ANSI

Z223.1/NFPA 54 – latest edition. In Canada, see NSCNGPIC for detailed requirements.

WARNING

Item

Distance from combustibles

•Maintain the following clearances

from both combustible and

non-combustible materials.

•There must be a clearance of 24" or

more in front of the Flue terminal.

• This restriction will not be applied to an

area where an effective shield makes a

clearance of 24" or more in front of the

exhaust outlet.

Check Illustration

•If possible, leave 8" or more on either

side of the unit to facilitate inspection.

•If possible, leave 24" or more in front of

the unit to facilitate maintenance

and service if necessary.

•If possible, leave 3" or more above and

below the vent pipe to facilitate inspec-

tion and repair if necessary

Securing of space for

repair/inspection

24" or

8" or

Outdoor Clearances to Opening

into Any Building

Distance from

the side

12"

6" or

12"

or more

12" or

Flue terminal

or more

4" or

There must be no

building opening

within this area.

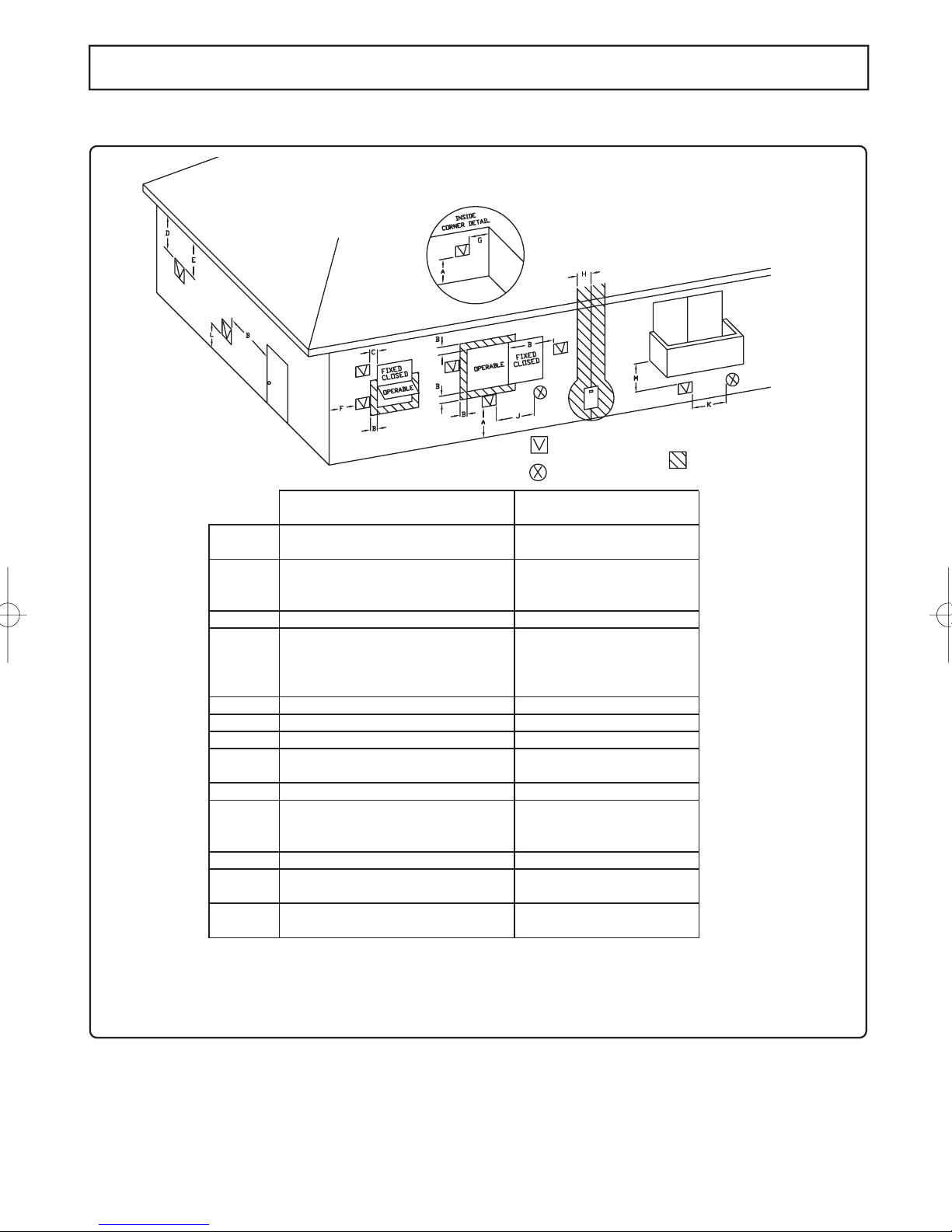

Clearance Requirements from Vent Terminations to Building Openings

*All clearance requirements are in accordance with ANSI Z21.10.3 and the National Fuel Gas Code,

ANSI Z223.1 and in Canada, in accordance with NSCNGPIC.

Vent Terminal

Clearance

A= Above grade, veranda, porch, deck,

or balcony

B= Window or door that may be opened 12" (36")

C= Permanently closed window

Vertical clearance to ventilated soffit

located above the terminal within a

horizontal distance of 2 feet from the

center of the terminal

E= Unventilated soffit *

F= Outside corner *

G= Inside corner *

H= Each side of center line extended

above meter/regulator assembly

3' within a height 15' above

meter/regulator assembly

I= Service regulator vent outlet 3'

Nonmechanical air supply inlet or

combustion air inlet to any other

appliance

12" (36")

K= Mechanical air supply inlet 3' above if within 10' (6')

L= Above paved sidewalk or paved

driveway located on public property

Under veranda, porch, deck, or

balcony

(7' ***)

()= indicates clearances required in Canada

*Maintain clearances in accordance with local installation codes and the requirements of the gas supplier

***A vent shall not terminate directly above a sidewalk or paved driveway that is located between two

single family dwellings and serves both dwellings.

****Permitted only if veranda,porch,deck,or balcony is fully open on a minimum of two sides beneath the floor.

* (12"- Canada Only****)

12" (12")

Air Supply Inlet

Area Where Terminal

is Not Permitted

7. Installation

Securing to the wall

IllustrationCheck

4. Drill holes for the remaining four screws.

5. Hang the unit again by the first screw, and then

insert and tighten the remaining four screws.

6. Take waterproofing measures so that water does

not enter the building from screws mounting the

device.

•Make sure the unit is installed securely so that it will

not fall or move due to vibrations or earthquakes.

1. Drill a single screw hole, making sure to hit a stud.

2. Insert and tighten the screw and hang the unit by

the upper wall mounting bracket.

3. Determine the positions for the remaining four screws

(two for the top bracket and two for the bottom), and

remove the unit.

• The weight of the device will be applied to the wall. If the strength of the wall is not suffi-

cient, reinforcement must be done to prevent the transfer of vibration.

•Do not drop or apply unnecessary force to the device when installing. Internal parts may

be damaged and may become highly dangerous.

• Install the unit on a vertical wall and ensure that it is level.

Locating Screw Holes

Mounting

Structure

•When installing with bare hands, take caution to

not inflict injury.

•Be careful not to hit electrical wiring, gas, or water

piping while drilling holes.

Item

CAUTION

Be sure to do

Mounting Bracket

(upper)

Tapping Screw

Location of Screw Hole

Locating Screw Holes

HIGH ELEVATION

DISCONNECT

•If this water heater is being installed at an elevation of

2,000 ft. or higher, disconnect the connector labeled

"High Elevation Disconnect" as illustrated on the right.

This connector is located inside the unit.

•Disconnect power to the water heater before discon-

necting this connector. Failure to perform this step will

result in a "73" code displayed on the remote controller

and a cease in operation. If this occurs, disconnect,

then reconnect power to the water heater to reset the

system.

Installations at Elevations

Above 2,000 ft.

Filling the neutralizer unit with water

The neutralizer unit can be filled before connecting the vent pipe.

Filling the neutralizer unit before vent pipe installation.

DANGER

Prior to initial start up, make sure that you fill the neutralizer unit with water.

This is to prevent dangerous exhaust gases from entering the building.

Failure to fill the neutralizer unit could result in severe personal injury or death.

Please follow one of the procedures described below to ensure that the neutralizer unit is filled with water.

1) Fill the neutralizer unit by pouring approx. 17 oz.(500ml) of water into the exhaust accessory on the top of

the appliance as illustrated below.

Or, if the vent pipe has already been installed:

2) After installing the drain pipe, make sure that the area around the appliance is well ventilated; open a

window or a door if necessary.

Then, operate the unit and verify that condensate is coming out of the drain pipe.

(During normal use of the water heater, condensate will begin to discharge from the drain pipe within 15 minutes

of use. However, depending on the season and/or installation site conditions, it may take longer.)

17 oz.

500ml

Intake

Exhaust

Inhaltsverzeichnis

Andere Noritz Boiler Handbücher

Noritz

Noritz NC199-DVC-CA Bedienungsanleitung

Noritz

Noritz NC199-OD Bedienungsanleitung

Noritz

Noritz NRC98-OD Bedienungsanleitung

Noritz

Noritz GQ-2857WX-F US Bedienungsanleitung

Noritz

Noritz NCC199CDV Bedienungsanleitung

Noritz

Noritz proTough NR98SV Bedienungsanleitung

Noritz

Noritz NC1991-DVC Bedienungsanleitung

Noritz

Noritz ProTouch NR98OD Bedienungsanleitung

Noritz

Noritz ecoTOUGH NRC661A-OD Bedienungsanleitung

Noritz

Noritz GQ-C3260WXQ-FF US Bedienungsanleitung

Noritz

Noritz NR66-SV Bedienungsanleitung

Noritz

Noritz GQ-C3257WX-FF US Bedienungsanleitung

Noritz

Noritz THERMALUX NERC11DV Bedienungsanleitung

Noritz

Noritz N-132M Gebrauchsanweisung

Noritz

Noritz NR83-DVC Bedienungsanleitung

Noritz

Noritz proTOUGH NR981-DVC Bedienungsanleitung

Noritz

Noritz NR98-DVC-CA Bedienungsanleitung

Noritz

Noritz NR662-OD Bedienungsanleitung

Noritz

Noritz NC250-SV-ASME Bedienungsanleitung

Noritz

Noritz NRC71-OD-NG Bedienungsanleitung

Noritz

Noritz ecoTOUGH NRC711-OD Bedienungsanleitung

Noritz

Noritz NRCR92DV Bedienungsanleitung

Noritz

Noritz proTOUGH NR981-OD Gebrauchs- und Pflegehandbuch

Noritz

Noritz N-132M Gebrauchsanweisung

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung

PVI

PVI MAXIM Bedienungsanleitung
