U ser’s manual

( short form)

NVIP-2DN3038D/IR-1P

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2004/108/EC) and LVD (2006/95/EC ) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national regulations

implementing the directives:

 Electromagnetic compatibility EMC 2004/108/EC.

 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2012/19/EU

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and

Electronic Equipment (2012/19/EU) and further amendments. By ensuring this product is disposed of correctly,

you will help to prevent potential negative consequences for the environment and human health, which could

otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2011/65/EU

Out of concern for human health protection and friendly environment, we assure that our products

falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in

compliance with the above mentioned regulations. Simultaneously, we claim that our products have

been tested and do not contain hazardous substances whose exceeding limits could have negative

impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO

USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE

PERSONNEL MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com website in order to access the newest full manual

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

TABLE OF CONTENTS.................................................................................................4

1. FOREWORD INFORMATION..................................................................................5

1.1. General characteristics .....................................................................................5

1.2. Technical specification ....................................................................................6

1.3. Camera dimension ...........................................................................................7

1.4. Package contents..............................................................................................7

2. START-UP AND INITIAL IP CAMERA CONFIGURATION ................................8

2.1. Description of connectors and control tools ......................................................8

2.2. Zoom and focus adjustment..............................................................................9

2.3. Connecting ethernet cable ..............................................................................10

2.4. Cameras mounting .........................................................................................10

2.5. Starting the IP camera ....................................................................................11

2.6. Initial configuration via the web browser........................................................12

3. NETWORK CONNECTION UTILIZING WEB BROSWER ...............................13

3.1. Recommended PC specification for web browser............................................13

3.2. Connection with IP camera via web browser...................................................13

4. USING AND CONFIGURING..................................................................................15

4.1. Displaying live pictures...................................................................................15

5. ELECTRIC CONNECTORS AND ACCESORIES ...............................................16

5.1. Connecting power supply to the camera. ........................................................16

5.2. Connecting alarm input and output..................................................................16

5.3. SD card installation ........................................................................................17

6. RESTORING FACTORY DEFAULTS ..................................................................18

6.1. Restoring software factory defaults via web browser.......................................18

6.2. Restoring software factory defaults via NMSiptool .........................................18

6.3. Restoring hardware factory defaults in IP cameras .........................................19

TABLE OF CONTENTS

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

1. FOREWORD INFORMATION

1.1. General Characteristics

 Imager resolution: 2 megapixels

 Mechanical IR cut filter, IR operation capability

 Min. Illumination from 0 lx with IR LED on

 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

 Digital Noise Reduction (DNR)

Lens type: varifocal, f=2.8-12 mm/F=1.4

 Built-in LED illuminator: 30 pcs LED

 Built-in webserver: camera configuration through the website

 Compression: H.264, H.265/ MJPEG

 Max video processing resolution: 1920 x 1080

 Multi streaming: compression, resolution, speed and quality defined individually for each video

stream

 ROI functions

 Motion detection

 Private Zones

 RTSP protocol support for video transmission

 Schedule

 Micro SD card up to 128 GB

 Audio input

 Audio output

 Bulid-in microphone

 BNC output

 Alarm input (NO/NC)

 Alarm Output

 Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server, save

file on SD card.

 Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

 Video Content Analysis (VCA):

Exception

Line Crossing

Intrusion

 Power supply: 12VDC, PoE (Power over Ethernet)

FOREWORD INFORMATION

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.7” APTINA

Number of Effective Pixels 1920 (H) x 1080 (V)

Min. Illumination 0.07 lx/F1.4 - color mode,

0 lx (IR on) - B/W mode

Electronic Shutter auto: 1/25 s ~ 1/100000 s

Wide Dynamic Range (WDR) yes (double scan sensor), 120dB

Digital Noise Reduction (DNR) 3D

Defog Function (F-DNR) yes

LENS

Lens Type varifocal, f=2.8 ~ 12 mm/F1.4

DAY/NIGHT

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Switching Level Adjustment yes

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)

Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resolutions

Multistreaming Mode 3 streams

Video/Audio Compression H.264, H.265, MJPEG/G.711

Number of Simultaneous Connections max. 4

Bandwidth 9 Mb/s in total

Network Protocols Support TCP/IP, UDP, FTP, DHCP, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP

ONVIF Protocol Support Profile S (ONVIF 2.3)

Camera Configuration from Internet Explorer browser

languages: Polish, English, Russian, and others

Compatible Software NMS

OTHER FUNCTIONS

Privacy Zones 4

Motion Detection yes

Region of interest (ROI) 3

Video Content Analysis (VCA) tamper, line cross, zone entrance

Image Processing 180˚ image rotation, sharpening, mirror effect, corridor mode

Prealarm/Postalarm -/up to 120 s

System Reaction to Alarm Events e-mail with attachment, saving file on FTP server, saving file on SD card, alarm output

activation

IR LED

LED Number 30

Range 30 m

Angle 90°

INTERFACES

Video Output BNC, 1.0 Vp-p, 75 Ohm

Audio Input/Output 1 x Jack (3.5 mm)/1 x Jack (3.5 mm) additionally built-in: microphone

Alarm Input/Output 1 (NO/NC)/1 relay type

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 128GB

INSTALLATION PARAMETERS

Dimensions (mm) 122 (Ф) x 96 (H)

Weight 0.45 kg

Enclosure plastic, white

Power Supply PoE, 12 VDC

Power Consumption 2.5 W,6 W (IR on)

Operating Temperature -20°C ~ 50°C

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

FOREWORD INFORMATION

1.3. Camera dimensions

1.4. Package contents

After you open the package make sure that the following elements are inside:

 IP camera

 Accessories bag

 Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

START-UP AND INITIAL IP CAMERA CONFIGURATION

2.FOREWORD INFORMATION

2.1 Description of connectors and control tools

1. BNC video output

2. Audio output

3. Audio input

4. Power supply 12VDC

5. 100 Mb/s Ethernet port (RJ-45 connector)

6. Alarm Connectors

1. Alarm COM

2. Alarm OPEN

3. Alarm INA

4. Alarm GND

7. RS-485 conectors

WARNING! To get access to above ports it is required to remove camera dome cover.

1. Light sensor

2. Reset button

3. microSD card slot

4. Buldi in microphone

5. IR LED

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

2.2 Zoom and focus adjustment

1. Remove dome cover by turning it

counterclockwise

2. Adjust zoom and focus.

3. Close camera by turning dome clockwise

2.3. Connecting ethernet cable

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Loosen the nut (a) from the main element (b).

2. Run power cable (without RJ-45 connector) though both elements. Then crimp the cable with RJ-45

connector.

3. Connect the cable to the hermetic connector (c), screw main cover (b), then screw the nut (a).

START-UP AND INITIAL IP CAMERA CONFIGURATION

Zoom

Focus

a b

NVIP-2DN3038D/IR-1P - User’s manual (short form) ver 1.0.

2.4. Connecting power supply to the camera.

Camera can be supplied using external power supply unit corresponding with the camera parameters or

by using RJ45 network socket and PoE (802.3at Type 1 ) power supply unit.

Information:

Power supply adapter is not included. Please use power adapter with parameters specified in user’s

manual.

CAUTION:

Do not use power supplies and POE adapters not compatible with IEEE 802.3af standard!

Damage resulting from the use of improper power supply is not covered under warranty!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge

protectors is advised. Any damages resulting from surges are not eligible for service repairs.

2.4. Camera mounting

1. Remove dome cover by turning it counterclockwise

2. Put assembly template of the camera to the desired mounting surface, and mark drilling holes.

3. Drill mounting and cable holes in previously selected points.

4. Mount the camera base using included screws on smooth surface

5. Adjust the position of the camera module.

6. Adjust focal length and focus using proper levers.

7. Put on the camera cover again, by turning it clockwise.

START-UP AND INITIAL IP CAMERA CONFIGURATION

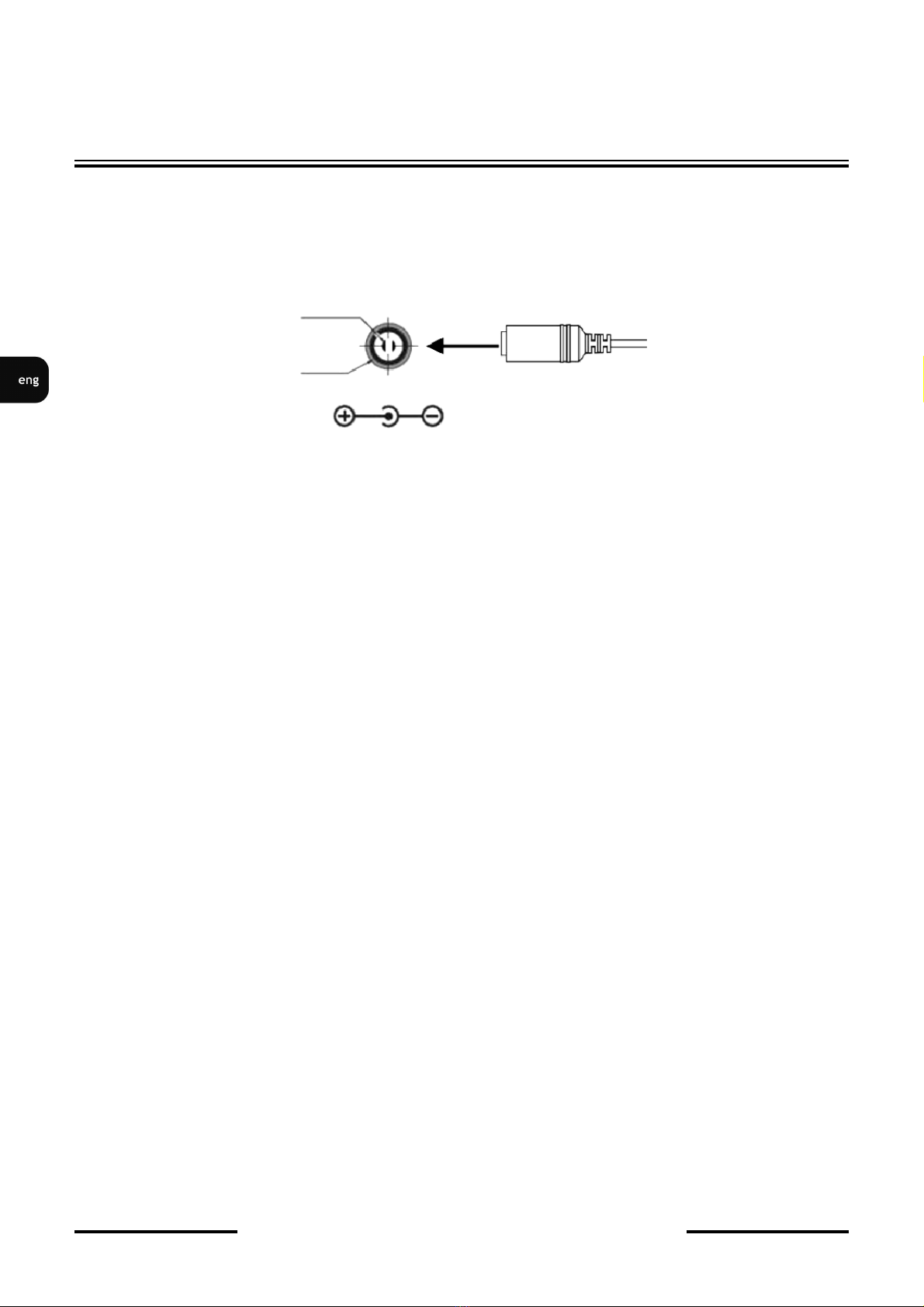

12 VDC +

12 VDC -

Camera 12 VDC power supply

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVIP-5H-6402M/F Bedienungsanleitung

Novus

Novus NVIP-5DN3615AV/IR-1P/F Bedienungsanleitung

Novus

Novus NVIP-5V-6401/F Bedienungsanleitung

Novus

Novus NVIP-4DN3512H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-1DN3000V/IR-1P-II Bedienungsanleitung

Novus

Novus NVC-422D Bedienungsanleitung

Novus

Novus NVIP-2DN3033V/IR-1P-II Bedienungsanleitung

Novus

Novus NVIP-1DN3040H/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-1DN3101V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-2DN2006V/IR-1P-II Bedienungsanleitung

Novus

Novus NVAHD-2DN5100C-3 Bedienungsanleitung

Novus

Novus NVIP-8H-6402M/F Bedienungsanleitung

Novus

Novus NVIP-4DN3513V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-2VE-6201-II Bedienungsanleitung

Novus

Novus NVAHD-2DN5101MV/IR-1 Bedienungsanleitung

Novus

Novus NVIP-4DN2001H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4VE-6502M/F Bedienungsanleitung

Novus

Novus NVIP-4DN2004V/IR-1P-II Bedienungsanleitung

Novus

Novus NVIP-1DN3030H/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-1DN3105V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-2DN5001H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-5H-4202M Bedienungsanleitung

Novus

Novus NVIP-4DN3515V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-3DN3552H/IR-1P Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
