U s e r ’s m a n u a l

( s h o rt )

NVIP-3DN7000C-1P

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2004/108/EC) and LVD (2006/95/EC ) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national regulations

implementing the directives:

Electromagnetic compatibility EMC 2004/108/EC.

Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2002/96/EC

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic

Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will

help to prevent potential negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2002/95/EC

Out of concern for human health protection and friendly environment, we assure that our products

falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in

compliance with the above mentioned regulations. Simultaneously, we claim that our products have

been tested and do not contain hazardous substances whose exceeding limits could have negative

impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN PRODUCT IN

USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE PRODUCT, OR IF IT DOES

NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT, MANUFACTURER MUST BE

CONTACTED UNDER THE RIGOR OF EXCLUDING THE MANUFACTURER’S RESPONSIBILITY FOR

THE RESULTS OF SUCH AN ACTION.

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions described in the

manual in question may change without further notice. We strongly suggest visiting the www.novuscctv.com

website in order to access the newest manual

Data included in the following user’s manual is up to date at the time of printing. AAT Holding Sp z o.o. holds

exclusive rights to modify this manual. The producer reserves the rights for device specification modification

and change in the design without prior notice.

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

TABLE OF CONTENTS .................................................................................................... 4

1. FOREWORD INFORMATION................................................................................... ..6

1.1. General Characteristics........................................................................................ 6

1.2. NVIP-3DN7000C-1P tech specification ........................................................ ...7

1.3. Camera dimension ........................................................................................... ...8

1.4. Package contents .............................................................................................. ...9

2. START-UP AND INITIAL IP CAMERA CONFIGURATION ............................... 10

2.1. Description of connectors and control tools...................................................... 10

2.2. NVIP-3DN7000C-1P lens mount .................................................................... 11

2.3. Starting the IP camera ....................................................................................... 12

2.4. Initial configuration via the Web browser......................................................... 13

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................ 14

3.1. Recommended PC specification for web browser ............................................. 14

3.2. Connection with IP camera via the Internet Explorer........................................ 14

3.3. Connection with IP camera via the other browser ............................................. 16

4. WWW INTERFACE - WORKING WITH IP CAMERA......................................... 18

4.1. Displaying live pictures...................................................................................... 18

5. ELECTRIC CONNECTORS AND ACCESORIES ................................................. 20

5.1. Connecting power supply to the camera. .......................................................... 20

5.1. Connecting alarm input and output .................................................................... 20

5.2. SD card installation ........................................................................................... 21

6. RESTORING FACTORY DEFAULTS .................................................................... 22

6.1. Restoring software factory defaults ................................................................... 22

6.2. Restoring hardware factory defaults in IP cameras........................................... 22

TABLE OF CONTENTS

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

TABLE OF CONTENTS

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

Imager resolution: 3.0 megapixels

Mechanical IR cut filter

IR operation capability

Min. Illumination from 0,02 lx/F=1.2 (DSS)

Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

Digital Slow Shutter (DSS)

Digital Noise Reduction (DNR)

Privacy zones: 5

Alarm input and outputs

Compression: H.264, M-JPEG

Max video processing resolution: 2048 x 1536

Quadruple streaming: compression, resolution, speed and quality defined individually for each

video stream

RTP/RTSP protocol support for video transmission

Pre & post-alarm functions

Schedule recording function

Hardware motion detection

Built-in webserver: camera configuration through the website

MicroSD/SDHC card support

Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,

triggering alarm output, saving file on SD/SDHC card, HTTP notification

Network protocol support : Onvif (2.0), HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP,

DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS

Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

Power supply: 12VDC, PoE (Power over Ethernet)

FOREWORD INFORMATION

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

1.2. NVIP-3DN7000C-1P specification

Model NVIP-3DN7000C-1P

Pick-up Element 1/2.8”, 3M CMOS

Imager Resolution 3 megapixels

Min. Illumination Color: 0.2 lx / F 1.2 (DSS)

B/W: 0.02 lx / F 1.2 (DSS)

Electronic Shutter Auto / Manual (1 ~ 1/10 000 s)

Digital Slow Shutter (DSS) Up to 1 s

Wide Dynamic Range (WDR) Lo /Mid /Hi / Off

White Balance Auto / ATW / With saved reference value / Manual (RGB)

Back Light Compensation (BLC) On /Off

Synchronization Internal

Day/Night Switching Auto

Lens type D

Iris Mode C/CS

Image function DNR –digital noise reduction,

Resolution 2048 x 1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x

768, 800 x 600, 720 x 576, 640 x 480, 352 x 288

Frame Rate Up to 15 fps for 2048 x 1536,

Up to 30 fps for 1920 x 1080 and lower resolution

Multi Streaming 4 streams

Video Compression H.264/M-JPEG

Audio Compression G.711 / G.726

Motion Detection Hardware

System reaction to alarm event E-mail with attachment, saving file on FTP, saving file to SD

card, alarm output activation, HTTP notification

Pre/Post Alarm Pre-alarm: up to 20 frame of picture or 3sec

Post-alarm: up to 20 frame of picture or 9999sec

Video Saving Files AVI(SD card), JPEG(FTP)

Time Synchronization Automatic time synchronization with NTP server

Network Protocols Support Onvif (2.0), HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast,

FTP, DHCP, PPPoE, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS

Software NMS

Security Password protected camera access and its configuration,

HTTPS, IP filtering, IEEE 802.1X

Privacy Zones 5

Video output BNC, 1.0 Vp-p, 75 Ohm

Audio Input 1 x Jack (3,5mm)

Audio Output 1 x Jack (3,5mm)

Alarm Input 1, (NO/NC)

Alarm Output 1, electronic relay galvanically isolated, 0.1A, 30V AC/DC

External Ports 1x Ethernet RJ-45 connector 10/100 Mbit/s, 1x microSD/SDHC

Power Supply 12V DC/ PoE(IEEE 802.3af)

Power Consumption 4W

Operating Temperature -10°C ~ 50°C

Dimensions (mm) 75 (w) x 52 (h) x 125 (l)

Weight 0,35 kg

FOREWORD INFORMATION

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

FOREWORD INFORMATION

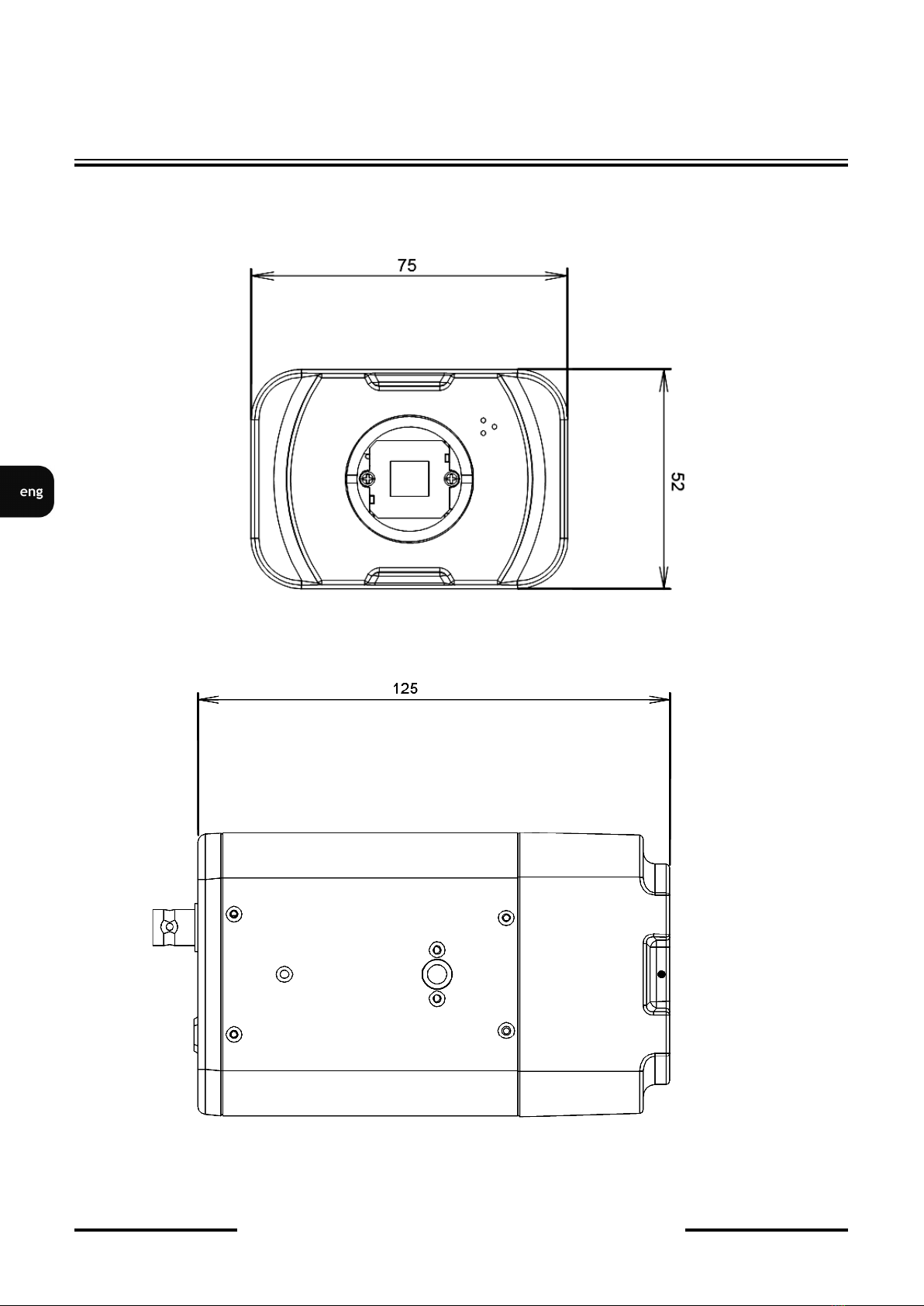

1.3. Camera dimensions

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

1.4. Package contents

After you open the package make sure that the following elements are inside:

IP camera

230 VAC / 12 VDC power supply

Accessories bag

Short version of user’s manual

CD containing manual and software

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

1.4. Package contents

After you open the package make sure that the following elements are inside:

IP camera

Accessories bag

Short version of user’s manual

CD containing manual and software

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches the

temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

FOREWORD INFORMATION

NVIP-3DN7000C-1P User’s manual (short form) ver.1.0

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

2.1. Description of connectors and control tools

NVIP-3DN7000C-1P

1. Alarm input/output

2. ’Reset’ button (reverts to factory defaults)

3. Power socket

4. Power indicator

5. Port Ethernet 100 Mb/s (RJ-45 connector)

6. Audio output

7. MicroSD card slot

8. BNC analogue video output

9. Auto Iris control terminal

10. Audio input

START-UP AND INITIAL CAMERA CONFIGURATION

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVC-401H/IR Bedienungsanleitung

Novus

Novus NVAHD-2DN3201MH/IR-1 Bedienungsanleitung

Novus

Novus NVIP-4DN2002V/IR-1P-II Bedienungsanleitung

Novus

Novus NVIP-2DN3133V/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-2DN5504MV/IR-1 Bedienungsanleitung

Novus

Novus NVH-160H/12/24 Bedienungsanleitung

Novus

Novus NVAHD-2DN5102V/IR-1 Bedienungsanleitung

Novus

Novus NVIP-5VE-6401/F Bedienungsanleitung

Novus

Novus NVIP-2H-4412M/F Bedienungsanleitung

Novus

Novus NVAHD-1DN5102D/IR-1 Bedienungsanleitung

Novus

Novus NVIP-5H-4502M/F Bedienungsanleitung

Novus

Novus NVAHD-1DN3101H/IR-1 Bedienungsanleitung

Novus

Novus NVAHD-2DN3202MV/IR-1-II Bedienungsanleitung

Novus

Novus NVC-601D/IR Bedienungsanleitung

Novus

Novus NVIP-2DN5021H/IRH-1P Bedienungsanleitung

Novus

Novus NVIP-3DN7030SD-2P Bedienungsanleitung

Novus

Novus NVIP-4V-8002M Bedienungsanleitung

Novus

Novus NVIP-4VE-6202-II Bedienungsanleitung

Novus

Novus NVIP-2VE-6402M Bedienungsanleitung

Novus

Novus NVIP-2DN6020SD-2P Bedienungsanleitung

Novus

Novus NVIP-4DN2004H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-5DN7560H/IRH-2P Bedienungsanleitung

Novus

Novus NVC-GDN4801V/H-2 Bedienungsanleitung

Novus

Novus NVIP-1DN3000V/IR-1P-II Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
