Quick start guide

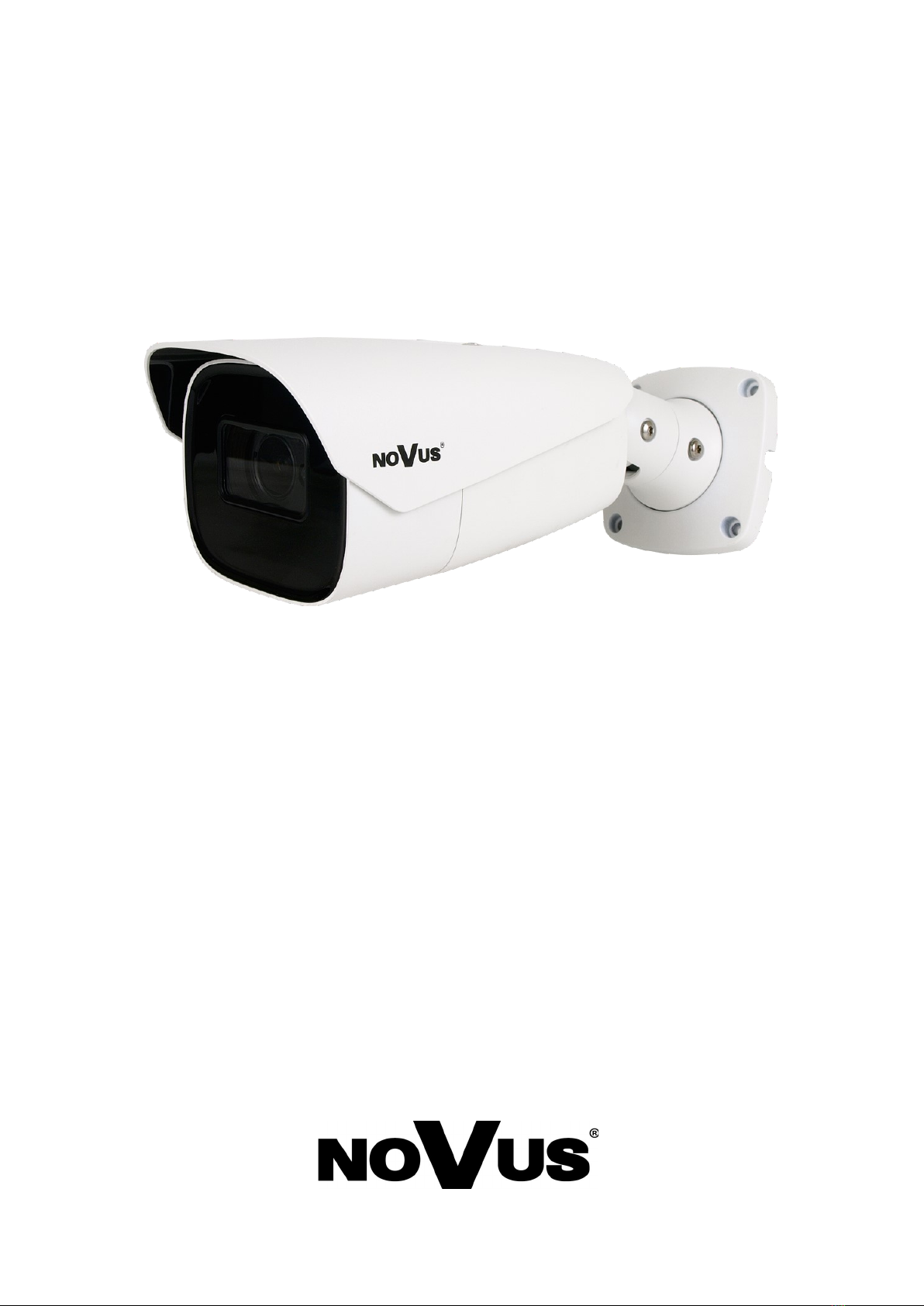

NVIP-4H-6532M/F-II

NVIP-4H-6532M/F-II Quick start guide version 1.0

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damage to data contained on disks and/or other data

carriers:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disks and/or

other data carriers.

Obligation to consult with the Manufacturer before performing an activity not provided for in

the operating manual or other documents:

Before performing an activity that is not provided for in a given Product in the manual, other

documents attached to the Product or does not result from the normal purpose of the Product, please

contact the Manufacturer under the pain of excluding the Producer's liability for the consequences of

such an activity.

IMPORTANT SAFEGUARDS AND WARNINGS

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)

(OJ L 197, 24.7.2012, p. 38–71,with changes).

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).

COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending

Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards

the list of restricted substances.

DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the

use of certain hazardous substances in electrical and electronic equipment.

NVIP-4H-6532M/F-II Quick start guide version 1.0

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-

SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,

bath tubs, damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the datasheet. Therefore, it is forbidden to supply the camera from

a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full

manual

IMPORTANT SAFEGUARDS AND WARNINGS

NVIP-4H-6532M/F-II Quick start guide version 1.0

TABLE OF CONTENTS.....................................................................................................4

1. FOREWORD INFORMATION.....................................................................................5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimensions .............................................................................................8

1.4. Package contents..................................................................................................8

2. START-UP AND INITIAL CONFIGURATION .........................................................9

2.1. Description of electrical connectors ....................................................................9

2.2. Ethernet cable connecting ...................................................................................9

2.3. Arrangement of connectors and control elements .............................................10

2.4. Power supply connection ..................................................................................10

2.5. Camera installation............................................................................................11

2.6. Starting the camera ...........................................................................................12

2.7. Initial configuration via the web browser.........................................................13

2.8. Security recommendations for network architecture and configuration .........14

3. NETWORK CONNECTION USING WEB BROSWER .........................................15

3.1. Recommended PC specification for web browser .............................................15

3.2. Connection with IP camera via web browser.....................................................15

4. WWW INTERFACE - WORKING WITH THE CAMERA ....................................19

4.1. The remote preview interface ............................................................................19

5. SD CARD INSTALLATION .......................................................................................20

6. FACTORY SETTINGS RESTORING ......................................................................21

6.1. Software factory settings restoring via web browser .........................................21

6.2. Software factory settings restoring via NMS IPTool……… ...………………..21

6.3. Hardware factory settings restoring ......................………………..…………...21

TABLE OF CONTENTS

NVIP-4H-6532M/F-II Quick start guide version 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 4.0 megapixels

• Mechanical IR cut filter (IR operation capability)

• Min. illumination from 0.005 lx/F1.6 - color mode, (0 lx IR on)

• Wide Dynamic Range (WDR)

• Digital Slow Shutter (DSS)

• Digital Noise Reduction (DNR)

• Defog Function (F-DNR)

• Highlight Compensation (HLC)

• Back Light Compensation (BLC)

• Reduction of image flicker (Antiflicker)

• Motorized, auto-iris function, f=7 ~ 22 mm/F1.6

• Built-in IR illuminator: 4 LEDs

• Video/audio compression: H.264, H.264+, H.265, H.265+, MJPEG/G.711

• Max. video resolution up to 2592 x 1520

• Operation in tri-stream mode: ability to define compression, resolution, speed and quality for

each stream

• ONVIF Protocol Support

• RTSP protocol support for video transmission

• ROI zones

• Privacy Zones

• MicroSD Card Slot, capacity up to 256 GB

• Audio input and output

• Alarm input and output

• Hardware reset button

• Video content analysis based on Deep Learning with Human/Vehicle object classification

• Wide range of responses to alarm events: e-mail with attachment, SD card, FTP server, alarm

output activation

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Power supply: 12 VDC / PoE

FOREWORD INFORMATION

NVIP-4H-6532M/F-II Quick start guide version 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 4 MPX CMOS sensor 1/3” SmartSens

Number of Eecve Pixels 2688 (H) x 1520 (V)

Min. Illuminaon 0.005 lx/F1.6 - color mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto/manual: 1/2 s ~ 1/100000 s

Digital Slow Shuer (DSS) up to 1/2 s

Wide Dynamic Range (WDR) yes 120dB

Digital Noise Reducon (DNR) 2D, 3D

Defog Funcon (F-DNR) yes

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Lens Type motorized, auto-iris funcon, f=7 ~ 22 mm/F1.6

Auto-focus zoom trigger, day/night mode trigger, manual trigger

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Level Adjustment yes

Switching Delay 2 ~ 120 s

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resoluon 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full

HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x 240

Frame Rate 30 fps for each resoluon,

60 fps for 1920 x 1080 (Full HD) and lower resoluons

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.264+, H.265, H.265+, MJPEG/G.711

Number of Simultaneous Connecons max. 10

Bandwidth 50 Mb/s in total

Network Protocols Support

HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP,

RTSP, RTP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP,

HTML5, RTMP

ONVIF Protocol Support Prole S/G

Camera Conguraon from Internet Explorer, Firefox, Chrome, Opera, Edge browser

languages: Polish, English, Russian, and others

Compable Soware NMS, N Control 6000

Mobile applicaons SuperLive Plus (iPhone, Android)

NVIP-4H-6532M/F-II Quick start guide version 1.0

FOREWORD INFORMATION

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color or 4 video mask type: mosaic

Moon Detecon yes

Region of interest (ROI) 8

Video Content Analysis (VCA)

tamper, abandoned object, object disappearance, line cross,

zone entrance, zone exit, object counng, face detecon,

detecon of people not wearing masks, cross counng, heat

map, Scene Change, Video Blurred, Video Color Cast, objects

disnguishing, people counng, vehicle counng, intrusion

detecon

Image Processing

90˚ image rotaon, 180˚ image rotaon, sharpening, mirror

eect, corridor mode, vercal ip, horizontal ip, lens

distoron correcon

Prealarm/Postalarm up to 6 s/up to 120 s

System Reacon to Alarm Events e-mail, e-mail with aachment, saving le on FTP server,

saving le on SD card, alarm output acvaon

Restoring default sengs via web browser, using reset buon, via NMS IPTool

soware

IR LED

LED Number 4

Range up to 100 m (depends on current opcal zoom value)

Smart IR yes (soware support)

INTERFACES

Video Output BNC, 1.0 Vp-p, 75 Ohm

Audio Input/Output 1 x Jack (3.5 mm)/1 x Jack (3.5 mm)

Alarm Input/Output 1 (NO/NC)/1 relay type (max. 1A 30VDC/0,5A 125VAC)

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) with bracket: 101 (W) x 89 (H) x 280 (L)

Weight 1.1 kg

Degree of Protecon IP 67 (details in the user’s manual)

Enclosure aluminium, white or grey, fully cable managed wall mount

bracket in-set included , IK10 impact rang

Power Supply PoE, 12 VDC

Surge protecon TVS 4000 V

Power Consumpon 7 W, 9.5 W (IR illuminator on)

Operang Temperature -30°C ~ 60°C

Humidity max. 95%, relave (non-condensing)

NVIP-4H-6532M/F-II Quick start guide version 1.0

FOREWORD INFORMATION

1.3. Camera dimensions

1.4. Package contents

After opening, make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

Attention:

If the device was brought from a location with lower temperature, please wait until it reaches the tem-

perature of location it is currently in. Turning the device on immediately after bringing it from a loca-

tion with lower ambient temperature is forbidden, as the condensing water vapour may cause short-

circuits and damage the device as a result.

NVIP-4H-6532M/F-II Quick start guide version 1.0

START-UP AND INITIAL CONFIGURATION

2. START-UP AND INITIAL CONFIGURATION

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

2.2. Ethernet cable connecting

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (b) from the connector cover (a), put the sealing ring on the socket (c)

2. Route the network cable through parts (a) and (b). Insert the RJ-45 plug into the socket (c)

3. Screw the connector cover (a) onto the socket (c). Press the cable seal (d) into the upper part of the

connector cover (a) as far as it will go - the seal has a cut enabling it to be put on the cable.

4. Tighten the nut (b) as far as it will go.

Attention:

The other connectors are not hermetic. The user should ensure their tightness on his own.

2.1. Description of electrical connectors

1. 100 Mb/s Ethernet port (PoE RJ-45 connector)

2. Audio output (HP)

3. Audio input (MIC)

4. BNC CVBS video output

5. Alarm connector:

1. Alarm output COM

2. Alarm output

3. Alarm input

4. Alarm input GND

6. Power supply 12VDC

NVIP-4H-6532M/F-II Quick start guide version 1.0

2.3. Arrangement of connectors and control elements

1. Cover covering connectors and buttons. To gain access to the adjustment elements, unscrew the two

screws securing the cover.

Caution! Be careful not to damage or lose the cover gasket. Lack of gasket or its damage may cause

the camera to get wet and consequently its failure.

The following items are located under the cover:

2. Micro SD memory card slot

3. Lens adjustment buttons: T - zoom + adjustment, W - zoom - adjustment

4. CVBS socket. Not active on this model.

5. RESET button.

2.4. Power supply connection

The camera can be powered from a commercially available DC power supply, provided that it meets

the technical requirements of the camera. The source must provide stabilized 12VDC voltage, must

allow the consumption of at least 12W of power, and have a barrel DC 2.1/5.5 plug with the correct

polarity of the contacts:

It is also possible to power the camera via the RJ45 network socket, using PoE + technology (IEEE

802.3af or IEEE 802.3at).

Caution!

It is forbidden to use PoE devices (power supplies, adapters, etc.) that do not comply with the

IEEE 802.3af standard, commonly known as "passive PoE power supplies" to power the camera.

Damage resulting from the use of unsuitable power sources is not covered under the warranty.

START-UP AND INITIAL CONFIGURATION

235

Inhaltsverzeichnis

Sprachen:

Andere Novus Sicherheitskamera Handbücher

Novus

Novus NVIP-2H-6502M/F Bedienungsanleitung

Novus

Novus NVIP-2DN2101V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4SD-6540/25/F Bedienungsanleitung

Novus

Novus NVIP-2DN3037V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4H-6511/F Bedienungsanleitung

Novus

Novus NVAHD-2DN5103MV/IR-1 Bedienungsanleitung

Novus

Novus NVIP-TC5401C/MPX2.0 Bedienungsanleitung

Novus

Novus NVIP-5VE-4501 Bedienungsanleitung

Novus

Novus NVIP-5DN7021D/IR-2P Bedienungsanleitung

Novus

Novus NVIP-4VE-6501/F-II Bedienungsanleitung

Novus

Novus NVAHD-2ATM-4011 Bedienungsanleitung

Novus

Novus NVIP-2DN3030H/IR-1P Bedienungsanleitung

Novus

Novus NVAHD-2DN5102MV/IR-1 Bedienungsanleitung

Novus

Novus NVIP-4SD-6543/25/F Bedienungsanleitung

Novus

Novus NVIP-3DN7540H/IRH-2P Bedienungsanleitung

Novus

Novus NVIP-4DN3062V/IR-1P Bedienungsanleitung

Novus

Novus 6000 VSS MULTI HD Bedienungsanleitung

Novus

Novus 800 Series Bedienungsanleitung

Novus

Novus NVIP-4H-6101/WL/LITE Bedienungsanleitung

Novus

Novus NVIP-6DN3618V/IR-1P Bedienungsanleitung

Novus

Novus NVIP-5VE-4511/FWLAD Bedienungsanleitung

Novus

Novus NVIP-4H-6702M/FWLAD Bedienungsanleitung

Novus

Novus NVIP-2DN5000H/IR-1P Bedienungsanleitung

Novus

Novus NVIP-4VE-6201/WL-II Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
