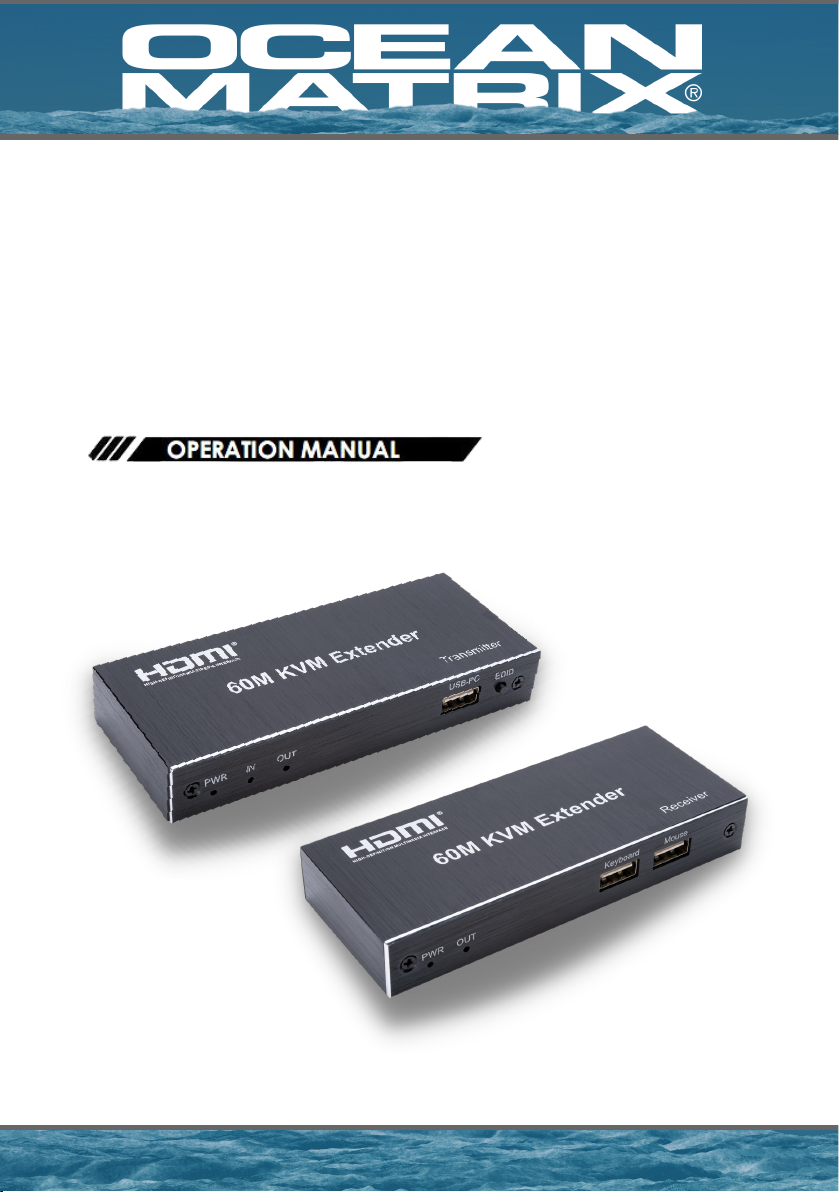

Ocean Matrix OMX-01KVKV0002 Bedienungsanleitung

OMX-01KVKV0002

1080p 60Hz HDMI KVM Extender up to

60 Meters

Supports Resolutions up to 1080p/60Hz

Local HDMI Loop-Out Functionality

Supports transmission up to 60 meters/197 feet

Low Power Consumption & Low Operating Temperature

Both the TX and RX Units Support 3.5mm Stereo Audio

IR Control Functionality

Supports Mouse and Keyboard Extension

The Ocean Matrix OMX-01KVKV0002 extends 1080p 60Hz HDMI & KVM signals up to

60 meters / 197 feet. With local HDMI loop-out, IR control, and 3.5mm audio support, the

OMX-01KVKV0002 is the ideal unit for HDMI KVM extension.

Description:

Features:

Specifications:

Transmission Distance: Up to 60m/197ft via CAT5e/6

HDMI Input: 1080p/1080i/720p/576p/576i/480p/480i

HDMI Output: 1080p/1080i/720p/576p/576i/480p/480i

Max Bandwidth: 150MHz

Max Baud Rate: 4.5Gbps

Input Video Signal: 0.5~1.5Volts p-p

Output DDC Signal: 5 Volts p-p (TTL)

Input HDMI Cable Distance: ≤ 10m AWG26 HDMI Standard Cable

Output HDMI Cable Distance: ≤ 15m AWG26 HDMI Standard Cable

TX Max Working Current: 450mA

RX Max Working Current: 350mA

Power Adapter Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range: 5 to 113°F (-15 to +45°C)

Operating Humidity Range: 5 to 90% RH (No Condensation)

TX Weight: 108g

RX Weight: 108g

Dimensions (LxWxH): 4.78 x 1.97 x 0.74" (122 x 50 x 19 mm)

Weight: 0.24 lbs / 3.8 oz / 107 grams

Operation Controls and Functions:

5V - 5V DC power input port.

IR-TX - IR-TX port.

Output- HDMI loop-out port.

Input - HDMI input port.

L/R - Stereo output.

CAT5E/6 - Cat5e / 6 cable connection port.

PWR - Power indicator light.

IN - HDMI IN indicator light.

OUT - HDMI OUT indicator light.

USB-PC - Connect with the USB of the device (PC).

EDID - 720p and 1080p switch button.

10.

11.

Transmitter:

123 4 5 6

78910

Operation Controls and Functions:

5V - 5V DC power input port.

IR-TX - IR-RX port.

Output- HDMI out port.

L/R - Stereo output.

CATE/6 - Cat5e/6 cable connection port.

PWR - Power indicator light.

OUT - HDMI OUT indicator light.

Keyboard - Keyboard port.

Mouse - Mouse port.

Receiver:

12345

678 9

Connection Diagrams:

The unit should be serviced by qualified service personnel if:

(a) The DC power supply cord or AC adaptor has been damaged

(b) Objects or liquids have gotten into the unit

(d) The unit does not operate normally or exhibits a marked change in performance; The unit has been

dropped or the cabinet is damaged.

(2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating

instructions. Refer all other servicing to authorized servicing personnel.

(3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the

manufacturer. Unauthorized substitutes may result in fire, electric shock, or other hazards.

(4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is

in proper working condition.

Damage requiring service:

PRODUCT SERVICE

Always follow basic safety precautions to reduce the risk of fire, electrical shock and

injury to persons.

To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

Never spill liquid of any kind on or into this product.

Never push an object of any kind into this product through any openings or empty slots

in the unit, as you may damage parts inside the unit.

Do not attach the power supply cabling to building surfaces.

Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

Do not allow anything to rest on the power cabling or allow any weight to be placed

upon it or any person walk on it.

To protect the unit from overheating, do not block any vents or openings in the unit

housing that provide ventilation and allow for sufficient space for air to circulate around

the unit

Please read all instructions before attempting to unpack, install or operate this equipment

and before connecting the power supply.

Please keep the following in mind as you unpack and install the unit:

SAFETY PRECAUTIONS

812 Kings Highway | Saugerties, NY 12477 | 845-246-7500 | www.oceanmatrix.com

100% Employee Owned Division of Tower Products Incorporated

WARRANTY

1 Year
