Ocean Matrix OMX-10HMIP0004 Bedienungsanleitung

OMX-10HMIP0004 1080P HDMI Over IP 1 x 4 Transmitter

OMX-11IPHM0003 1080P HDMI Over IP Receiver with 4 RJ45 Ports

HDMI Over IP Extender with IR

INSTALLATION & SPECIFICATIONS

Rev1a

Ocean Matrix

812 Kings Highway •SaugerƟes, NY 12477

www.oceanmatrix.com

Transmitter Kit Includes:

 One 5VDC/2A Power Adapter

 One IR Transmitter Cable

 Two Brackets

 Four Screws

Receiver Kit Includes:

 One 5VDC/2A Power Adapter

 One IR Receiver Cable

 Two Brackets

 Four Screws

OMX-10HMIP0004 Transmitter OMX-11IPHM0003 Receiver

NOTE: Compatible with Ocean Matrix OMX-11IPHM0001 Receiver 1080P HDMI Over IP

CONNECTION

1. Connect the HDMI source to the TX.

2. Connect the TX to the RX with Cat5e/6 cable.

3. Connect the RX to the HDMI displays with HDMI cable.

4. Connect the IR TX cable to the IR port of the TX.

5. Connect the IR RX cable to the IR port of the RX.

6. Plug in the included power supplies to turn on the TX and the RX.

NOTE: Point to many configurations require different IP addresses and MAC addresses for each receiver.

Ocean Matrix OMX-10HMIP0004 & OMX-11IPHM0003 Installation

SPECIFICATIONS

Protocol TCP/IP

Compliance HDMI, HDCP

Transmission

Distance 394 feet/120m over Cat5e/6

IR Frequency 38kHz-56kHz

Audio Format LPCM, 2 Channel Audio

Audio Sampling Rate 32kHz, 44.1kHz and 48kHz

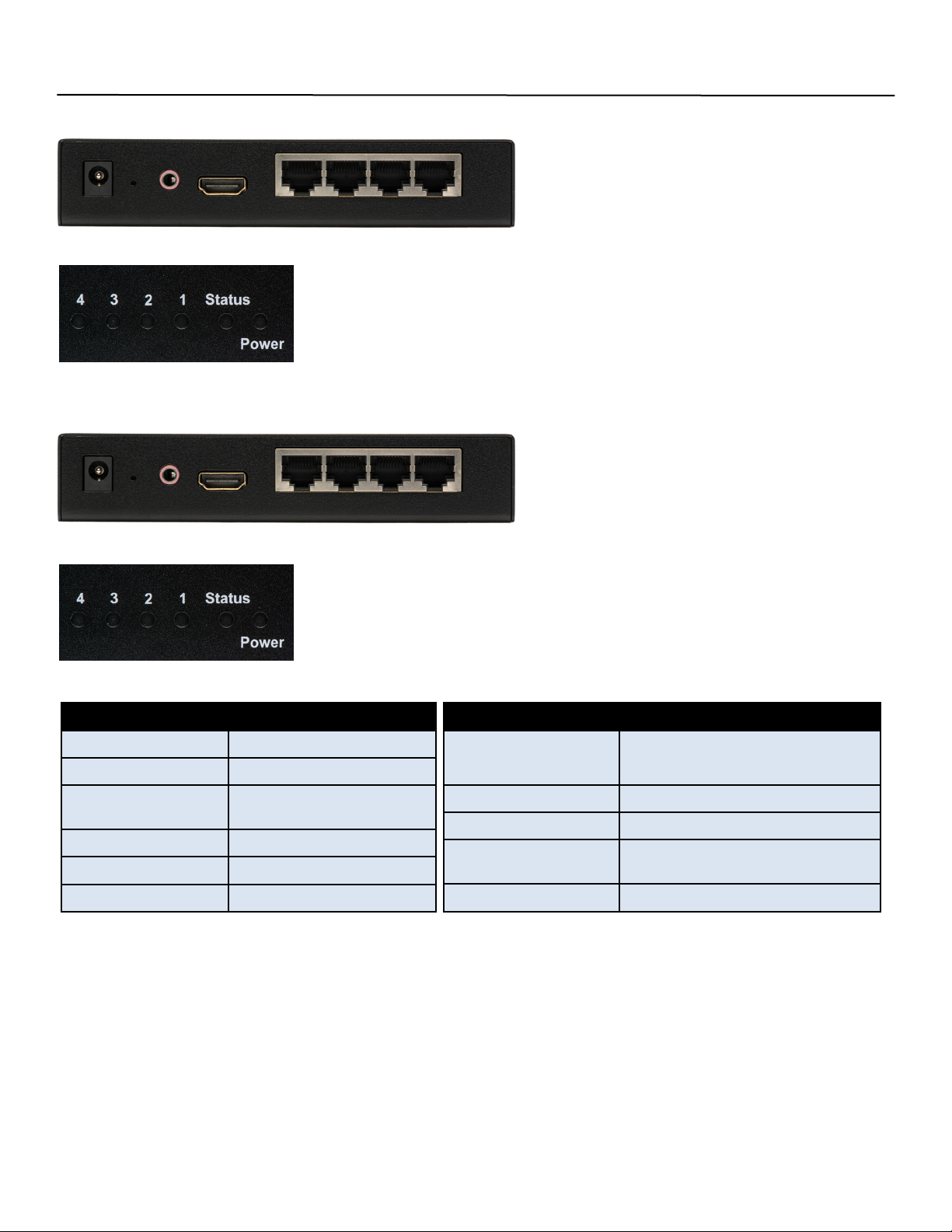

1 Power Input

2 Reset (Insert pin and hold for 10 seconds. When

the Status LED goes out, reset is complete.)

3 IR-RX Port

4 HDMI Output

5 LED Signal Status Indicator

6 LED RJ45 Link Indicators

7 LED Receiver Indicator

8 LED Power Indicator

1 Power Input

2 Reset (Insert pin and hold for 10 seconds. When

the Status LED goes out, reset is complete.)

3 IR-TX Port

4 HDMI Input

5 RJ45 Ports

6 LED RJ45 Link Indicators

7 LED Transmitter Indicator

8 LED Power Indicator

OMX-10HMIP0004 TRANSMITTER

OMX-11IPHM0003 RECEIVER

SPECIFICATIONS

Video Format DTV

HDTV:480i/576i/480P/576P/720P/1080P

Power Consumption 5W Each Unit

Enclosure Black Powder-Coated Steel

Dimensions Each Unit

(LxWxH) 5.71 x 3.35 x 1.10 inches

Weight Each Unit 5.12 oz

Ocean Matrix

www.oceanmatrix.com

431 2 5

7 86

Ocean Matrix 10HMIP0004 & OMX-11IPHM0003 Installation

Transmitter

OMX-10HMIP0004

Receiver

OMX-11IPHM0003

Receiver

OMX-11IPHM0001

Receiver

OMX-11IPHM0001

HDMI Source

HDMI

Display

HDMI

Display

HDMI

Display

HDMI

Display

Receiver

OMX-11IPHM0003

Receiver

OMX-11IPHM0003

Receiver

OMX-11IPHM0003

Receiver

OMX-11IPHM0003

Point to Many Configuration Examples

Receiver

OMX-11IPHM0001

Transmitter

OMX-10HMIP0004

HDMI Source

Receiver

OMX-11IPHM0001

HDMI

Display

HDMI

Display

HDMI

Display

HDMI

Display

Receiver

OMX-11IPHM0001

Receiver

OMX-11IPHM0001

Ocean Matrix

www.oceanmatrix.com

Example 1

Example 2

HDMI Cable

Cat5e/6 Cable

HDMI Cable

Cat5e/6 Cable

SAFETY PRECAUTIONS

 To prevent fire or shock hazard, do not expose this equipment to dust or high humidity. Do not use in an

unprotected outdoor installation or in areas classified as overly damp or wet.

 The installation temperature should be kept between 32°F to 140°F (0°C to 60°C). Avoid direct sunlight exposure or extreme

changes of temperature over a short period of time.

 Do not place the unit on an unstable base and avoid heavy impact.

 Proper ventilation is required for permanent installation. Do not block or cover enclosure openings as they protect the unit from

overheating.

 Prior to cleaning, turn the power off and unplug the unit from all connections. Use a damp cloth. Do not use liquid or aerosol

cleaners.

 Do not overload outlets and extension cords as this may result in a risk of fire or electric shock.

 Enclosure entry is dangerous. Never push objects of any kind, including liquids, through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock.

 Do not open or service this unit yourself as opening or removing covers may expose you to dangerous voltage and other hazards.

 There are no user-serviceable parts inside the unit. If the unit requires service contact your authorized dealer, or authorized repair

service company.

Rev1a

Ocean Matrix

812 Kings Highway •SaugerƟes, NY 12477

www.oceanmatrix.com

FCC Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Federal Communications Commission (FCC) Compliance Notices
