OfficeSource 300HL Kurzanleitung

MODEL NO. 300HL

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Model #:300HLCA

Name:Veneto

Descrip�on:Execu�ve High Back Chair

Color:Caramel

Assembly & Opera�ng Instruc�ons

Please read the instruc�on sheets completely before assembly.

Maximum Weight Load: 275lbs.

Last Updated: 12/2022

MODEL NO. 300HL

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Assembly Notes

Usage Notes

1.After opening the carton, please carefully check for missing parts

and transportation damage and if needed, contact dealer immedi-

ately.

2.Once installed, the gas lift will be difficult to remove. It is not

recommended to remove the lift to avoid damage to other parts of

the chair.

3.Contact dealer if disassembly assistance is needed.

1.Intended for use indoors.

2.Intended for single person use.

3.Do not sit on end of chair to avoid accidental tipping and injury.

4.Do not step or stand on the chair – chair is intended for sitting

only.

5.Use caution when reclining, especially as tension is reduced by

user.

6.Do not lean against product – chair is intended for sitting only.

7.Avoid contact with sharp objects, heavy tools, and hot surfaces.

8.As assembly may loosen overtime, for best user safety, conduct

regular check of nuts and bolts to insure they are always tight and

secure.

9.To clean, wipe with a soft and dry cleaning cloth. If there are

stains on fabric, use a mild detergent to wipe clean and let it air dry.

Last Updated: 12/2022

MODEL NO. 300HL

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

300HLCA assembly and operating instructions

Parts list

Back with mechanism X1 Aluminum base x1

A B

KGS class 4 gas lift X1 Casters X5

C D

Last Updated: 12/2022

MODEL NO. 300HL

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Installation steps

STEP1 STEP2

STEP3 STEP4

Last Updated: 12/2022

MODEL NO. 300HL

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Seat slider / Function lever located on the right hand side

of the mechanism

Adjust sliding seat so that hips and

knees are at a 90 degrees angle, it

reduces tiredness.

Pull out the hand lever for sliding

function and release when desired

position is reached

Tension tilt / Control rod located on the left hand side of

mechanism

Tension tilt offers more secure and

comfortable working environment.

Rotate forward to increase tension

Rotate backwards to release tension

Last Updated: 12/2022

MODEL NO. 300HL

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

To raise the seat,

shift your weight to your feet.

Engage actuator. Chair will rise

automatically

To lower seat,

place your full weight on the

chair, and engage actuator lever.

When the desired height is

reached, release the actuator

Height adjustment / Control rod located on the right

hand side of mechanism

Tilt lock / Control rod located on the left hand side of

mechanism

Tilt lock allows users to sit in an upright

position for keyboarding, while providing

a comfortable rocking/reclining motion

during work or break.

Pull out the control rod to unlock

tilt function and adjust, relock control

rod when desired angle reached

Last Updated: 12/2022

Inhaltsverzeichnis

Andere OfficeSource Inneneinrichtung Handbücher

OfficeSource

OfficeSource PLTCRKB36WF30 Bedienungsanleitung

OfficeSource

OfficeSource PBTR71 Bedienungsanleitung

OfficeSource

OfficeSource PBTR60 Bedienungsanleitung

OfficeSource

OfficeSource PBP36 Bedienungsanleitung

OfficeSource

OfficeSource EVS700GG Bedienungsanleitung

OfficeSource

OfficeSource PL231 Bedienungsanleitung

OfficeSource

OfficeSource PL102 Bedienungsanleitung

OfficeSource

OfficeSource PLT147T Bedienungsanleitung

OfficeSource

OfficeSource EVRC1ALGG Bedienungsanleitung

OfficeSource

OfficeSource EVH200DGG/EBK Bedienungsanleitung

OfficeSource

OfficeSource PLTEAB4872BUONF Bedienungsanleitung

OfficeSource

OfficeSource PLTEAB4872BUDECONF Bedienungsanleitung

OfficeSource

OfficeSource PLT131T Bedienungsanleitung

OfficeSource

OfficeSource RCN3131C Bedienungsanleitung

OfficeSource

OfficeSource RCN3222WB Bedienungsanleitung

OfficeSource

OfficeSource EVS600GG Bedienungsanleitung

OfficeSource

OfficeSource PL112 Bedienungsanleitung

OfficeSource

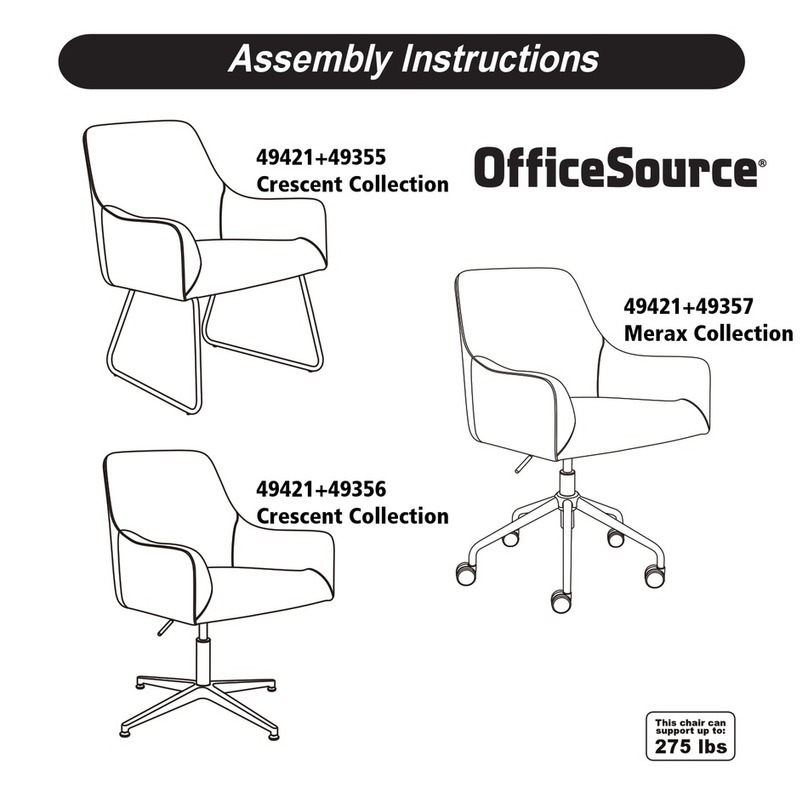

OfficeSource Crescent 49421 Bedienungsanleitung
