C7300/C7500

V2 enhancements - all operating systems

PREFACE > 2

Every effort has been made to ensure that the information in this document is complete,

accurate, and up-to-date. The manufacturer assumes no responsibility for the results of

errors beyond its control. The manufacturer also cannot guarantee that changes in

software and equipment made by other manufacturers and referred to in this Guide will

not affect the applicability of the information in it. Mention of software products

manufactured by other companies does not necessarily constitute endorsement by the

manufacturer.

While all reasonable efforts have been made to make this document as accurate and

helpful as possible, we make no warranty of any kind, expressed or implied, as to the

accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from the Oki Europe website:

http://www.okieurope.com

Oki and Microline are registered trademarks of Oki Electric Industry Company Ltd.

Energy Star is a trademark of the United States Environmental Protection Agency.

Hewlett-Packard, HP, and LaserJet are registered trademarks of Hewlett-Packard

Company.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

Apple, Macintosh and Mac OS are registered trademarks of Apple Computer Inc.

Other product names and brand names are registered trademarks or trademarks of

their proprietors.

As an Energy Star Program Participant, the manufacturer has

determined that this product meets the Energy Star guidelines for

energy efficiency.

This product complies with the requirements of the Council Directives

89/336/EEC (EMC) and 73/23/EEC (LVD) as amended where applicable

on the approximation of the laws of the member states relating to

electromagnetic compatibility and low voltage.

CONTENTS > 3

CONTENTS

Enhancement summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

“Ask Oki”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PCL XL 2.1 in brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rendezvous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Why Rendezvous? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

How Rendezvous works with this printer . . . . . . . . . 7

Setting up the printer . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter - by - Chapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Oki contact details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

ENHANCEMENT SUMMARY > 4

ENHANCEMENT SUMMARY

Following our policy of continual development of our printers, this

booklet summarises the new features and enhancements which have

been incorporated in this model since its launch.

USING THIS MANUAL

The User’s Guide leads you logically through the unpacking, setting

up and operation of your printer. To help you to make the best use of

this printer’s many advanced features, it should be read in

conjunction with this Enhancement Summary.

GENERAL

lUSB interface improved to conform to USB (480 Mbit/s)

lLCD message translations extended to include Russian and

Greek

l“Ask Oki” feature provides a direct link to a localised, printer-

specific Internet support page

lPrinter Control Language (PCL) enhanced from PCL 5c to PCL 6

by the inclusion of PCL XL 2.1

lSupport for Macintosh Rendezvous

lImproved Network Interface performance enables faster file

download

lMulti purpose tray now supports duplex printing

lFirst tray now supports duplex printing of non-standard size

media

lUpdated “Colour Correct” utility

lReduced standby noise

ENHANCEMENT SUMMARY > 5

“ASK OKI”

“Ask Oki” provides a direct link to a localised, printer-specific Internet

support page.

Find out what you and your Oki printer can create!

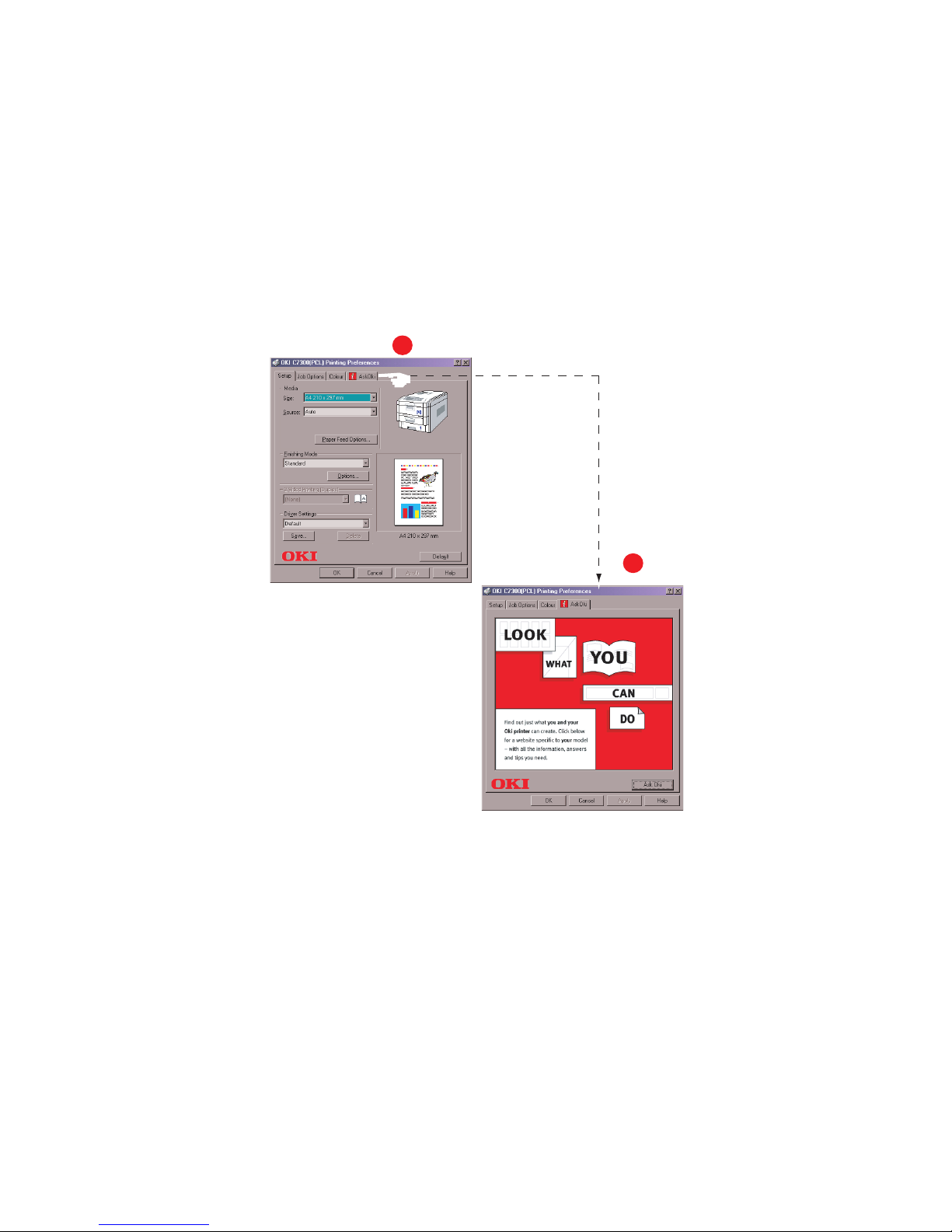

On the “Ask Oki” tab (1), press the “Ask Oki” button for a link to a

website (2) specific to your model – with all the information, answers

and tips you need!

lDownload the manual for your printer

lDownload the latest driver for your printer

lDownload additional utilities for your printer

lContact your local Customer Service facility

lAccess support tips to get the most from your printer

lStep by step printing tasks

ENHANCEMENT SUMMARY > 6

PCL XL 2.1 IN BRIEF

PCL XL Ver. 2.1 is supported in Win95/98/Me/2000 and XP only.

lPreviously, the PCL printer driver was available as PCL5c only.

Using PCL 5c, more processing

of a print file is done by the

computer. This could result in

large files which can adversely

effect the print speed.

lThe printer now supports PCL XL 2.1.

Now, more processing of a

print file is done by the printer,

rather than the computer.

The benefits of this can be:

lSmaller print files.

lFaster print speed.

lMore accurate

reproduction of the

original computer file.

* At this time the PCL XL 2.1 driver for your computer is available on:

http://www.okieurope.com

NOTES

> Booklet Printing, Poster Print, Overlay and Watermark features are

only available when using PCL5c.

PCL 5c

PostScript PostScript

PCL 5c

PCL XL 2.1

PCL 5c

PostScript PostScript

PCL XL 2.0 *

PCL 5c

PCL 6

ENHANCEMENT SUMMARY > 7

RENDEZVOUS

Users of Macintosh computers running Mac OS 9 or

earlier, connected with an Ethernet hub, are able to

see all the available printers, file servers, and other

services available on the network, instantly.

Rendezvous extends this capability to Mac OS-X 10.2

and above. The following procedures assume

Mac OS-X 10.2.

Why Rendezvous?

More and more, people that do not fit the traditional role of the

network administrator, nor have their experience, have a need to set

up networks.

How Rendezvous works with this printer

Although Rendezvous is promoted as zero-configuration, this is not

quite the case. You will still have to do the following:

1. Run the installer program provided by us to install printer

software to your hard disk.

If this is not done, Rendezvous will automatically select a

Generic PostScript Printer Description (PPD) file that will not be

appropriate for your printer.

2. If you have installed any additional hardware options, these

must be manually configured. Rendezvous will not do this

automatically.

Setting up the printer

There are 2 methods of setting up this printer with Rendezvous under

OS-X.

Method 1 (Preferred)

lAdvantage: Ensures complete configuration of Hardware

Device Options

lDisadvantage: Not much easier than current TCP/IP

configuration

Rendezvous Logo

(Courtesy of Apple Computer)

ENHANCEMENT SUMMARY > 8

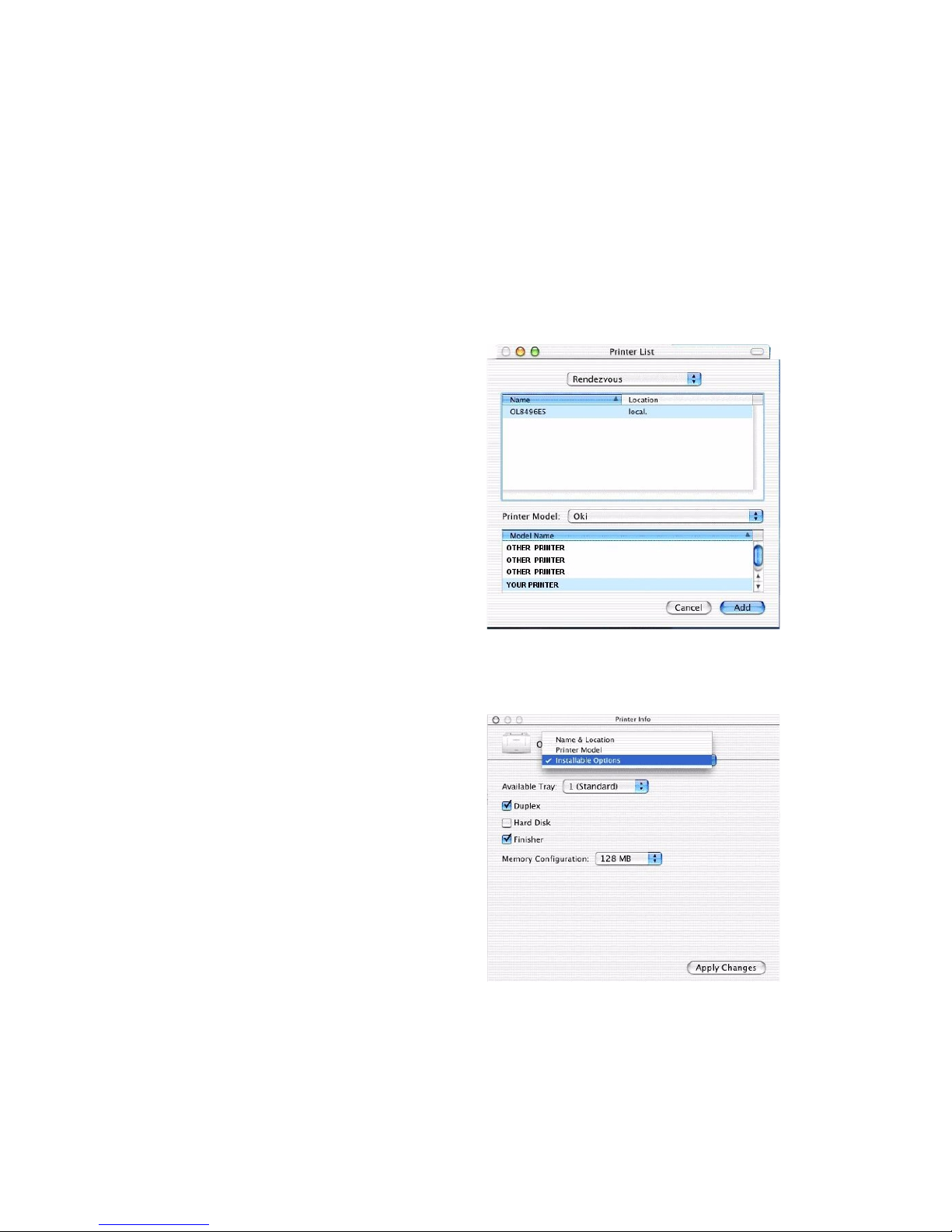

1. Run the installer program that we provide on CD-ROM.

This copies the software components to the user's hard disk.

2. Launch Print Center.

This is located in the Applications/Utilities folder.

3. Click Add.

4. From the drop-down menu, select Rendezvous.

5. Choose your printer.

The correct PPD file for

your printer will be

automatically selected.

6. Click Add.

7. Select the printer name

in the printers list.

8. From the Printers menu,

select Show Info.

9. From the drop-down list,

select Installable

Options.

10. Select the options that

apply to your printer.

11. Click Apply Changes.

Method 2

lAdvantage: Fewer steps

lDisadvantage: Will not

neccessarily take

advantage of all the

available Hardware

Device Options

ENHANCEMENT SUMMARY > 9

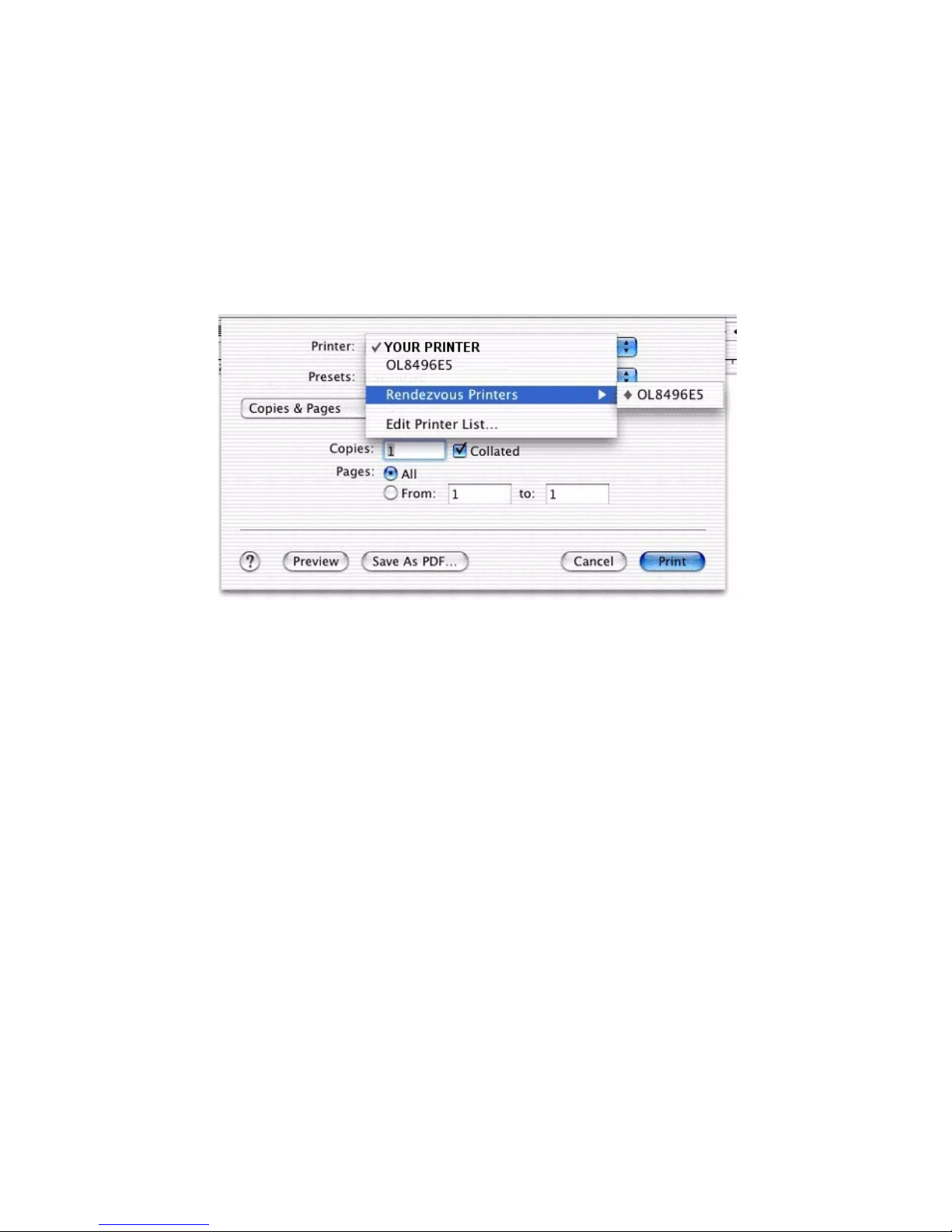

1. Run the installer program that we provide on the CD-ROM.

This copies the software components to your hard disk.

2. From your application program, choose File > Print.

3. From the Printer menu, choose Rendezvous Printers, and then

select your printer.

This automatically adds the printer, and selects the correct PPD file.

4. Click Print to print your document.

CHAPTER - BY - CHAPTER > 10

CHAPTER - BY - CHAPTER

INTRODUCTION

lThe model range now consists of the C7300 and C7500 only

lPCL XL 2.1 added to PCL 5c emulation, making this PCL6

emulation

Model C7100 is discontinued.

SETTING UP

lNew Custom Paper size support (1200mm height)

lCustom paper size handling extended to Tray 1

* Not available

lPara. 2: The USB interface cable has to be compliant with

USB 2.0.

Model Network

card

Duplex Unit Memory Hard

disk

Additional

Trays

C7300 Option Option 64Mb Option Option

C7300n Standard Option (requires

additional memory).

64Mb Option Option

C7300dn Standard Standard 128Mb Option Option

C7500dn Standard Standard 128Mb Standard Option

C7500hdn Standard Standard 256Mb Standard Option

Paper size Feed Exit

Tray 1 Tray 2/Tray 3 Manual Rear

(Face up)

Top

(Face down)

Custom

(width 76.2 -

215.9mm;

height 127.0 to

1200mm)

Simplex *SimplexSimplex*
